About Astrodyne

Location:USA
Certifications:ISO 9001 & ISO 14001 Certified design & manufacturing facility

Astrodyne Corporation is a global developer and manufacturer of specialized power solutions for demanding applications that protect and enhance peoples’ lives
Astrodyne’s product families consist of innovative:

AC/DC switching power supply
DC/DC converter
EMI (Electromagnetic Interference) Filters
Electronic Control products

They are designed specifically for challenging applications for:

Medical
Military
Aerospace
Industrial devices and systems

Our wide variety of products include the

Jerome Industries
RO Associates
LCR Electronics
Radius Power
FCI (Filter Concepts Inc) brands
Designed and built by our experienced staff in our dedicated facilities worldwide

Products

EMI Filters

Highlights

LCR-Inc and Radius Power specialize in the design and manufacture of custom EMI/EMC/RFI Filters and suppression components, electronic and motor control boards and custom systems and backplanes, as well as a variety of EMC testing, engineering and contract manufacturing services. We have expertise in appliance, military and aerospace, commercial, industrial, telecommunications and medical markets. From in-house and on-site services, to ongoing investments in research, development, production and sales, we are now uniquely positioned as a global leader in the industry.

Picture	General Specifications

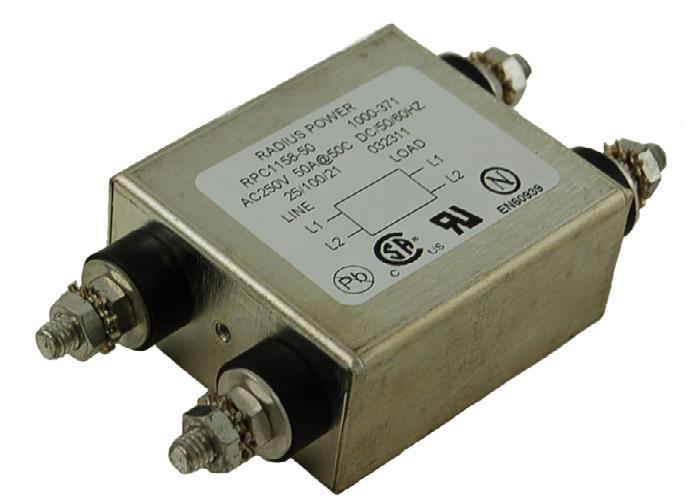

Single Phase EMI Filters
	Operating Frequency: 50 / 60Hz Max. Operating Voltage: 120 / 250VAC or 300VAC Ambient Temperature: -25°C to 40°C Current Ratings: Up to 450A

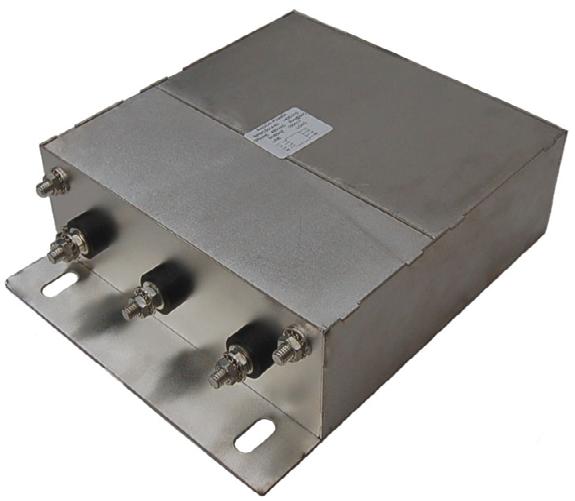

Three Phase EMI Filters
	Operating Frequency: 50 / 60Hz Max. Operating Voltage: 480VAC, 520VAC or 600VAC Delta or WYE configuration Current Ratings: Up to 2500A Ambient Temperature: -25°C to 50°C
IEC Inlet Filters
	Operating Frequency: 50 / 60Hz Max. Operating Voltage: 120 / 250VAC Ambient Temperature: -25°C to 40°C Current Ratings: Up to 20A

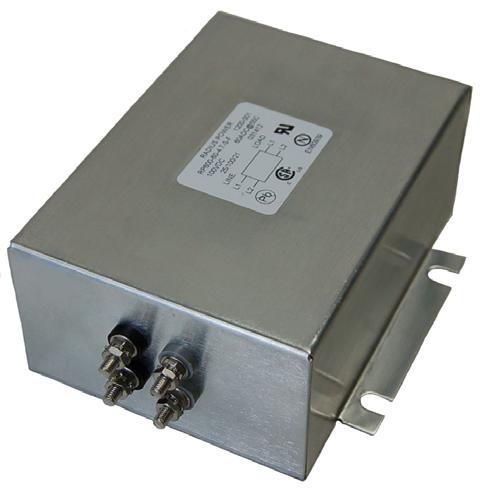

DC EMI Filters
	Max. Operating Voltage: up to 1200VDC Current Rating: Up to 2500A
Inverter EMI Filters
	Operating Frequency: 50 / 60Hz Max. Operating Voltage: 480VAC, 600VAC or 1200VDC Ambient Temperature: -25°C to 50°C Current Rating: up to 2500A
Medical Grade EMI Filters
	Operating Frequency: 50 / 60Hz Max. Operating Voltage: 120 / 250VAC or 277 / 480VAC Ambient Temperature: -25°C to 40°C Current Rating: Up to 300A

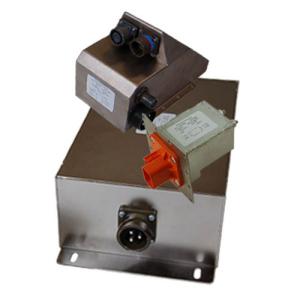

Military EMI Filters
	Max. Operating Voltage: Up to 300VAC single phase / 400VDC, 480VAC 3-phase Delta and WYE Ambient Temperature: -25°C to 85°C Current Ratings: Up to 225 A

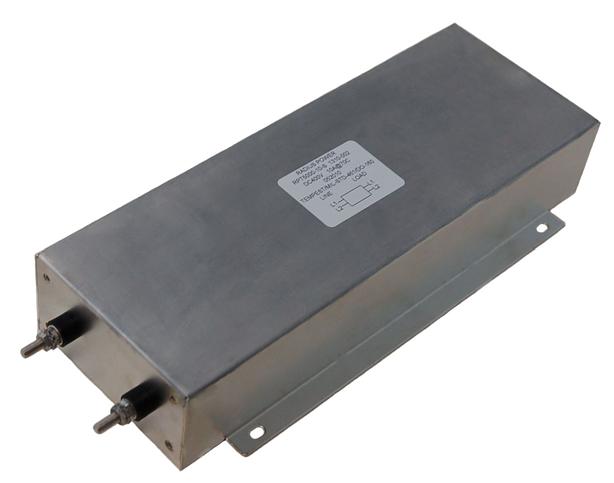

Tempest Filters
	Max. Operating Voltage: Up to 300VAC single phase / 400VDC, 480VAC 3-phase Delta and WYE Ambient Temperature: -25°C to 85°C Current Rating: Up to 225A
Telecom EMI Filters
	Operating Frequency: 50 / 60Hz Max. Operating Voltage: Up to 250VAC / VDC Ambient Temperature: 50°C to 100°C Current Rating: Up to 125A
Custom EMI Filters
	N/A

AC/DC Power Supplies

For industrial, instrumentation, medical and networking applications requiring 5 Watts to 450 Watts, Astrodyne’s open frame switching supplies offer the most flexible OEM solution. All models provide universal AC input and full safety agency certifications. Models include industry standard footprint versions for conventional design needs. Where space is at a premium (2” x 4” x 1”) and big power (160 Watts) is a necessity, Astrodyne’s new ASL150 Series combines high density with high efficiency. Open Frame products are available from 3.3VDC to 48VDC in single, dual, or triple output configurations.

90 – 264VAC Universal Wide Range Input

Full Agency Approvals – UL, TUV and CE Mark

Integral EMI Filtering

OVP and Over current Protection

Power levels from 5W up to 5kW

AC/DC Power Supply 40W	AC/DC Power Supply 80W	AC/DC Power Supply 10kW

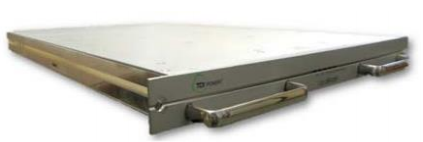

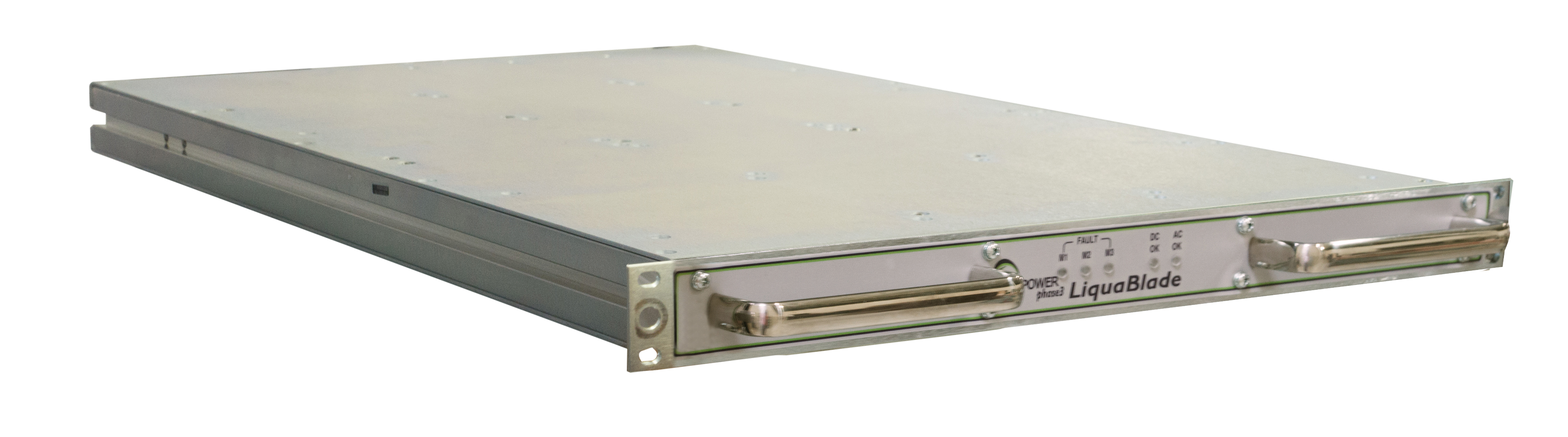

Highlight: LiquaBlade

Product	Description	Features	Benefits
T100103091-1-LF	RECTIFIER, 0-60V, 0-360A, 16.5kW, L-Droop CS	SEMI-F47 Alarm Outputs CanBus Controls Constant Voltage / Constant Current / Constant Power Control Modes High Efficiency: 92% power conversion efficiency Liquid Cooled – Water, DI Water, WEG compatible Blind Mate/Hot Swappable High Reliability: 100% HASS Tested 1U / 19” Rack Compatible Parallel / Series compatible Designed to NAVSO P-3641A Full PFC - High Power Factor Low Input Current THD	Reduced System Complexity and Time to Market High Reliability for Critical Applications High Power Density
T100108057-1-LF	RECTIFIER, 0-120V, 0-240A, 16.5kW, L-Droop CS
T100104286-1-LF	RECTIFIER, 0-180V, 0-120A, 16.5kW, L-Droop CS
T100117293-1-LF	RECTIFIER, 0-500V, 0-45A, 16.5kW, L-Droop CS
T1003270-LF	SHELF, LiquaBlade

DC/DC Converters (Military)

Many systems are installed in environments where they are exposed to the natural elements including extreme temperatures and moisture. These extreme environments often demand that systems be fully enclosed with only baseplate cooling. Power products, which generate a great deal of heat, must be designed to not only withstand these environments, but provide long-term performance and reliability. Our DC/DC and AC/DC high-reliability/COTS converters range from -40 to +100°C for use in military, industrial, and other harsh-environment applications.
