CBRDFA4-100

Picture Description Features Benefits Applications Datasheets
4.0 amp full wave bridge rectifier mounted in a durable epoxy surface mount
  • High 4.0A current rating
  • Low VF Diodes
    (1.0V MAX @ IF=4.0A)
  • DFN style package
  • Energy efficiency
  • Space-savings
  • Exceptionally low profile package
  • Consumer & I/S/M built-in power supplies
    (low profile)
  • Consumer & I/S/M fast chargers
    (low profile)

JFETs for various applications, including Pro Audio

Picture Popular JFETs Mounting Case Description PD
MAX		 BVGSS
MIN		 Datasheets
2N4416 Through-Hole TO-72 N Channel 300mW 30V
2N4416A Through-Hole TO-72 N Channel 300mW 35V
2N4391 Through-Hole TO-18 N Channel 1.8W 40V
2N4392 Through-Hole TO-18 N Channel 1.8W 40V
2N4393 Though-Hole TO-18 N Channel 1.8W 40V
2N3819 Through-Hole TO-92 N Channel 360mW 25V
CMPFJ175 Surface Mount SOT-23
TO-236AB		 P Channel 225mW 30V
CMPFJ176 Surface Mount SOT-23
TO-236AB		 P Channel 225mW 30V

Silicon Carbide Schottky Rectifier Die Family

Picture Features Benefits Applications Links
  • Positive temperature coefficient
  • Low reverse leakage current
  • Temperature independent switching characteristics
  • High operating junction temperature
  • Metallization suitable for standard die attach technologies
  • Top metallization optimized for wire bonding
  • Wide current range
  • Power efficiency
  • Power inverters
  • Industrial motor drives
  • Switch-mode power supplies
  • Power factor correction (PFC)
  • Over-current protection
Product Brief


Datasheets

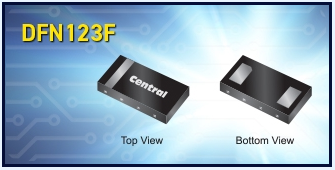

CMJA5050

Picture Features Benefits Applications Links
  • Constant current range
  • Adjustable regulation up to 80mA
  • Wide operating voltage
  • Negative temperature coefficient for LED protection
  • Eliminates need for additional regulation
  • Eliminates need for additional regulation
  • Space savings
  • Low profile package
  • RoHS and REACH complian
  • LED lighting and displays
  • AC lighting panels
  • Decorative lighting
  • Test and measurement equipment
Datasheet


Product Brief

Leading Edge Devices

Products Picture Features Benefits
Low Profile DFN Bridge Rectifiers
(CBRDFSH Series)
  • Low forward voltage as low as 500mV
  • High current range
  • Low profile BR DFN package (1.22mm)
  • Energy efficiency
  • Space savings
  • Low profile package
  • RoHS and REACH compliant
Low Capacitance TVS
(CFTVS5V0BULC)
  • Ultra low capacitance
  • Low leakage current
  • 15kV ESD protection
  • Space-saving SOD-882L package
  • Data line signal integrity maintained at high speeds

Application-Specific Designs

Products Picture Application Requirement Features
CBRHDSG2-100 PoE Polrarity Protection 2A, 100V Schottky Bridge
  • Low Leakage Current (700nA TYP @ VRRM)
  • High 2.0A Current Rating
  • Low VF Schottky Diodes (840mV MAX @ IF=2.0A)
CTLHR10-06 Power Factor Correction for industrial motors 600V Rectifier with faster reverse recovery speed than Ultra Fast(<25ns)
  • HyperFast recovery time (22ns TYP)
  • Low reverse leakage current (1.2μA TYP)
  • Low profile 1.2mm MAX package height

Product Highlights

Legacy Devices

Products Picture Max Rating Electrical Characteristics
2N222A
  • Collector-Base Voltage: 75V
  • Collector-Emitter Voltage: 40V
  • Emitter-Base Voltage: 6V
  • ICBO@VCB=60V: 10nA
  • BVCBO@IC=10µA: 75V
  • VCE(SAT)@IC=150mA, IB=15mA: 0,3V
2N2907A
  • Collector-Base Voltage: 60V
  • Collector-Emitter Voltage: 60V
  • Emitter-Base Voltage: 5V
  • ICBO@VCB=60V: 10nA
  • BVCBO@IC=10µA: 60V
  • VCE(SAT)@IC=150mA, IB=15mA: 0,4V
TIP36C
  • Collector-Base Voltage: 100V
  • Collector-Emitter Voltage: 100V
  • Emitter-Base Voltage: 5V
  • ICEO@VCE=60V: 1mA
  • BVCEO@IC=30mA: 100V
  • VCE(SAT)@IC=15A, IB=1,5A: 1,8V
1N5303
  • Peak Operating Voltage: 100V
  • Power Dissipation: 600mW
  • Temp.: -60 to +200°C
  • Ip@VT=25V: 1,36 - 1,84mA
  • ZT@VT=25V: 0,475MΩ
  • ZK@VK=6V: 0,092MΩ

MOSFETs

Products Picture Features Applicatios
CMLDM8120G
  • Low rDS(on)
  • Low Threshold Voltage
  • Logic Level Compatible
  • Small SOT-563 package
  • Load/Power Switches
  • Power Supply Converter Circuits
  • Battery Powered Portable Equipment
CMKDM8005
  • ESD protection up to 1800V (Human Body Model)
  • 350mW power dissipation
  • Very low rDS(ON)
  • Low threshold voltage
  • Logic level compatible
  • Small, SOT-363 surface mount package
  • Load switch/Level shifting
  • Battery charging
  • Boost switch
  • Electro-luminescent backlighting

Schottky Diodes

Products Picture Features Applications
CBRHDSH1-100
  • Low Leakage Current (40nA TYP @ VRRM)
  • Low Forward Voltage Drop Schottky Diodes
  • High 1.0A Current Rating
  • Low Voltage full wave rectifications
CMRSH-4DO
  • Current (IO=200mA)
  • Low forward voltage drop (VF=0.35V TYP @ 1.0mA)
  • Low reverse current (25nA TYP @ 30V)
  • Extremely fast switching (5.0ns MAX)
  • Small 1.0 x 1.0 x 0.5mm SOT-963 surface mount package
  • Versatile multi-configurable device
  • DC-DC converters
  • Voltage clamping
  • Protection circuits
  • Battery charging circuits

CLDs

Product Picture Features Max Ratings
CMJ0300
  • High reliability
  • Through hole devices available
  • Special selections available
  • Peak Operating Voltage: 100V
  • Power Dissipation: 500mW
  • Temp.: -65 to +150°C
CMJ2000
  • High reliability
  • Through hole devices available
  • Special selections available
  • Peak Operating Voltage: 100V
  • Power Dissipation: 500mW
  • Temp.: -65 to +150°C

Switching Diodes

Products Picture Max Ratings Electrical Characteristics
CMPD4448
  • Continuous Reverse Voltage: 75V
  • Peak Repetitive Reverse Voltage: 100V
  • Continuous Forward Current: 250mA
  • Power Dissipation: 350mW
  • IR@VR=20V: 25nA
  • BVR@IR=5µA: 75V
  • VF@IF=5mA: 0,62-0,72V
  • CT@VR=0, f=1MHz: 4pF
CMOD2004
  • Continuous Reverse Voltage: 240V
  • Peak Repetitive Reverse Voltage: 300V
  • Continuous Forward Current: 225mA
  • Power Dissipation: 250mW
  • IR@VR=240V: 100nA
  • BVR@IR=100µA: 300V
  • VF@IF=100mA: 1V
  • CT@VR=0, f=1MHz: 5pF

Products

Diodes & Rectifiers

Bridge Rectifiers

Mounting Case Configuration VRRM (max) IO (max) IFSM (max)
Bare Die Chip Packaging Bare die 25.800 X 25.800 60, 600V 140mA, 500mA 0, 30A
Surface Mount BR DFN Schottky 40, 60, 100V 1A, 2A 30, 50A
HDDIP General Purpose
Low VF Schottky
Schottky		 100, 200, 400, 600, 1000V
40V
40, 60, 100, 200V		 500mA
1,2A
1A, 2A		 30A
20A
20A, 50A
LPDIP General Purpose
Schottky		 200, 400, 600, 800, 1000V
40, 60, 100V		 1A
1A, 2A		 30A
30A, 50A
SMDIP Fast Recovery
General Purpose
Schottky
Ultra Fast Recovery		 200, 400, 600V
200, 400, 600, 800, 1000V
40, 60, 100V
100, 200V		 1A
1A, 2A
2A
1A		 50A
50A, 60A
110A
50A
SOT-143 Fast Recovery 60V 140mA -
SOT-363 Fast Recovery 60V 140mA -
Through-Hole CASE A Fast Recovery
General Purpose		 100, 200, 400, 600V
100, 200, 400, 600, 800, 1000V		 1,5A
1,5A, 2A		 50A
50A, 60A
CASEB-M General Purpose 100, 200, 400, 600, 800, 1000V 1,5A, 2A 30, 50, 55, 60A
CASE CM Fast Recovery
General Purpose		 100, 200, 400, 600, 800, 900, 1000V
100, 200, 400, 600, 800, 900, 1000V		 6A
6A, 10A		 125A
125A, 150A
CASE DM Fast Recovery
General Purpose		 100V
100, 200, 400, 600, 800, 1000V		 4A
4, 6, 8A		 200A
200A, 250A
CASE FP Fast Recovery
General Purpose		 100, 200, 400, 600V
100, 200, 400, 600, 800, 1000V		 10, 25, 35A
10, 25, 35A		 200, 300, 400A
200, 350, 400A
CASE FPW General Purpose 100, 200, 400, 600, 800, 1000V 10, 25, 35A 200, 350, 400A
DIP Fast Recovery
General Purpose		 200, 400, 600, 800, 1000V
100, 200, 400, 600, 800, 1000V		 1A
1A		 50A
50A

Rectifiers

Mounting Case Configuration VRRM (max) IO (max) IFSM (max)
Bare Die Chip Packaging Bare die 42.500-110.000 X 42.500-110.000 100, 200, 400, 600, 800, 1000V 1, 2, 3, 5, 6, 8, 10V 10, 30, 40, 50, 70, 100, 125, 150, 200, 300, 400A
Surface Mount DPAK Single
Dual		 200, 400, 600V
200V		 4, 8, 10A
6A		 70A, 100A
70A
D2PAK Single
Dual		 200, 400, 800V
200, 400, 800V		 8A
16A		 125A
125A
SMA Single 100, 200, 400, 600, 1000, 1300V 1A 30A
SMAFL Single 400, 600, 800, 1000V 1A, 2A 30A, 70A
SMB Single 100, 200, 400, 600, 800, 1000V 1, 2, 3A 30, 50, 60, 100A
SMBFL Single 200, 400, 600V 1A 30A
SMC Single 100, 200, 400, 600, 800, 1000, 1100V 3A, 5A 100, 150, 175, 200A
SOD-123F Single 200, 400, 600, 800, 1000V 1A 16,5A, 30A
SOT-223 Single
Dual		 400V
400V		 1A
2A		 10A
10A
SOT-89 Single 400V 1A 10A
TLM364 Single 600V 5A, 10A 150A
Through-Hole CASE 106 Single 200, 400, 600, 1000V 6A 400A
DO-15 Single 50, 100, 200, 400, 600, 800, 1000, 1600V 1,5A, 2A 50A
DO-201AD Single 50, 100, 200, 300, 400, 600, 800, 1000, 1200V 3A, 5A 125, 150, 175, 200A
DO-41 Single 50, 100, 200, 400, 600, 800, 1000V 1A 30A, 50A
DO-5 Single 50, 100, 200, 300, 400, 500, 600, 800V 40A, 60A 800A, 900A
GPR-1A Single 200, 400, 600, 800, 1000V 1A, 1,5A 40A, 50A
GPR-4AM Single 100, 200, 400, 500, 600, 800, 1000V 3A, 5A 80A, 100A, 125A
TO-220-2 Single 600V 15A 200A
TO-220FP Dual 200, 400, 800V 16A 125A
TO-220FP-2 Single 200, 400 ,800V 8A 125A

Schottky Diodes & Rectifiers

Mounting Case Configuration VRRM (max) IO (max) IFSM (max)
Bare Die Chip Packaging Bare die 9.053-84.000 X 9.053-84.000 20 - 100V 15mA - 6A 50mA - 250A
Surface Mount Diverse Single
Dual
Triple		 20 - 200V 15mA - 16A 50mA - 300A
Through-Hole DO-15 Single 20, 40, 50, 60, 100V 2A 50A
DO-201AD Single 20, 30, 40, 50, 60, 80, 100V 3, 5, 8A 80A, 250A
DO-35 Single 20, 40, 100V 100mA, 200mA 750mA, 15A
DO-4 Single 40V 25A 800A
DO-41 Single 20, 30, 40, 50, 60V 1A 25A, 30A
DO-5 Single 40V, 50V 75A 1200A
TO-220FP Dual 40, 60, 100V 16A 150A
TO-220FP-2 Single 40, 60, 100V 8A 150A

Switching Diodes

Mounting Case Configuration VRRM (max) IO (max) IFSM (max)
Bare Die Chip Packaging Bare die 11.025-19.685 X 11.025-19.685 35 - 300V 50 - 400mA 500mA-6A
Surface Mount SOD-123 Single 50, 70, 100, 150, 200, 250V 150, 200, 250mA 500mA, 1A, 4A
SOD-323 Single 100, 200, 300V 200mA, 250mA 2A, 4A
SOD-523 Single 100, 200, 300, 350V 200mA, 250mA 2, 4, 4,5A
SOD-80 Single 50, 100, 150, 250V 150, 200, 250, 300mA 500mA, 4A
SOD-882L Single 120V 250mA 4A
SOD-923 Single 100V, 120V 250mA 4A
SOT-143 Dual 60, 85, 300V 200mA, 250mA 4A, 4,5A
SOT-23 Single
Dual		 50, 90, 100, 120, 200, 250, 300V
75, 90, 100, 120, 200, 250, 300, 350V		 200, 250, 400mA
200, 250, 400mA		 2, 4, 6A
2, 4, 6A
SOT-26 Dual Pair
Triple		 300V, 375V
100, 200, 300V		 200mA
200mA, 250mA		 4A
2A, 4A
SOT-28 Quad 60V 250µA -
SOT-323 Single
Dual		 100V
75, 100, 300, 350V		 250mA
200, 225, 250mA		 4A
4A
SOT-363 Dual
Triple		 75, 100, 120, 200V
100V		 200mA, 250mA
250mA		 2A, 4A
4A
SOT-523 Single
Dual		 100V
75V, 100V		 250mA
200mA		 4A
-
SOT-523W Single 100V 250mA 4A
SOT-543 Dual 120V 250mA 4A
SOT-563 Dual 75, 100, 120, 200, 300V 200mA, 250mA 2A, 4A
Through-Hole DO-35 Single 40, 50, 70, 75, 100, 150, 175, 200, 250V 75, 150, 200, 250mA 500mA, 1, 2, 4A
DO-415SP Single 225, 600V 400mA 3A
TO-18 2LEAD Single 35V 50mA -

Current Limiting Diodes

Mounting Case Configuration PD (max) POV (max)
Surface Mount SOD-123FL Single 500mW 50V, 100V
SOD-80 Single 400mW 50V, 100V
DFN123F Single: High Current 1W 50V
Through-Hole DO-35 Single 600mW 50V, 100V

Zener Diodes

Mounting Case Configuration PD(max) IZM(max)
Bare Die Chip Packaging Bare die 12.990-33.500 X 12.990-33.500 250mW-1,5W 6,4mA-890mA
Surface Mount MELF Single 1W 45mA-1380mA
SMA Single 1,5W 7mA-416mA
SMB Single 3W 7mA-416mA
SMC Single 5W, 10W 23,6mA-1320mA
SOD-123 Single 500mW 5,1mA-120mA
SOD-323 Single 250mW -
SOD-523 Single 250mW, 350mW -
SOD-80 Single 400mW, 500mW 5,5mA-208mA
SOT-23 Single
Dual		 350mW
350mW		 5,3mA-120mA
3,5mA-63mA
SOT-26 Triple
Temperature Compensated		 350mW
350mW		 6,4mA
-
SOT-323 Single
Dual		 275mW
275mW		 -
3,5mA-63mA
SOT-363 Triple
Temperature Compensated		 200mW
325mW		 -
-
SOT-563 Dual 250mW 47mA
TLM2D3D6 Single 100mW -
Through-Hole AX-5W Single 5W 76, 158, 280, 295, 315mA
DO-15 Single 1W -
DO-201 Single 5W 23,6mA-1,32A
DO-35 Single 250, 400, 500mW, 250W 1,5mA-208mA
DO-35A Single 500mW
DO-4 Single 10W 40mA-1,32A
DO-41 Single 1, 1,3, 1,5, 2W 3mA-1380mA
DO-41S Single 500mW -
DO-5 Single 50W 200mA-6,6A
TO-3 50MIL Single 50W 220mA-4300mA

Silicon Carbide Schottky Rectifier Die

Devices Product IF
(A)
TA=25°C		 VRRM
(V)
TA=25°C		 VF
(V)
TYP		 VF
(V)
MAX		 Die Size
(MILS)		 Top Metallization
(A)		 Bottom Metallization
(A)
650V CPC08-SIC04-650 4 650 1.5 1.7 39.4x39.4 AI - 50,000 Ti/Ni/Ag - 1,000/2,000/10,000
CPC09-SIC06-650 6 650 1.5 1.7 46.5x46.5
CPC10-SIC08-650 8 650 1.5 1.7 52.8x52.8
CPC07-SIC10-650 10 650 1.5 1.7 57.5x57.5
CPC15-SIC10-650 10 650 1.5 1.7 57.5x57.5 Ni/Au - 15,000/500
CPC11-SIC30-650 30 650 1.5 1.7 94.5x94.5 AI - 50,000
1200V CPC-SIC02-1200 2 1200 1.4 1.6 40.9x50.4 AI - 50,000
CPC-SIC05-1200 5 1200 1.5 1.7 54.3x76.8
CPC-SIC10-1200 10 1200 1.4 1.6 86.6x86.6
CPC-SIC10-1200 10 1200 1.4 1.6 86.6x86.6 Ni/Au - 15,000/500
CPC-SIC50-1200 50 1200 1.5 1.7 179.5x179.5 AI - 50,000

Stabistors

Mounting Configuration Case Product PD(max) IFRM(max)
Surface Mount Stabistor SOT-23 CBAS17 350mW 250mA
SOT-26 CMXSTB200 350mW -
CMXSTB300 350mW -
CMXSTB400 350mW -

Transistors

General Purpose Transistors

Mounting Case Configuration Polarity IC(max) PD(max) VCEO(max)
Bare Die Chip Packaging Bare die 11.024-105.900 X 11.024-105.900 NPN, PNP, 2XNPN, 2XPNP, 4XPNP 25mA-15A 200mW-150W 12-450V
Surface Mount Diverse Dual NPN & PNP
Dual NPN
Dual PNP
NPN
PNP		 NPN, PNP, 2XNPN, 2XPNP, 2XNPN2XPNP, 4XNPN, 4XPNP 10mA-30A 100mW-360W 10-700V
Through Hole Diverse TO-xx 2XNPN & 2XPNP
Dual NPN
Dual PNP
NPN
PNP		 NPN, PNP, 2XNPN, 2XPNP, 2XNPN2XPNP, 4XNPN, 4XPNP 10mA-30A 200mW-360W 10-700V

Darlington Transistors

Mounting Case Configuration Polarity IC(max) PD(max) VCEO(max)
Bare Die Chip Packaging Bare die 22.835-110.000-22.835X110.000 NPN
PNP		 300mA-30A 350mW-240W 40-120V
Surface Mount DPAK NPN Darlington
PNP Darlington		 NPN
PNP		 2A
8A		 20W
20W		 100V
100V
SOT-223 NPN Darlington
PNP Darlington		 NPN
PNP		 500mA, 5A
500mA, 5A		 2W
2W		 100V
100V
SOT-23 NPN Darlington
PNP Darlington		 NPN
PNP		 500mA
500mA		 350mW
350mW		 40V, 60V
-
SOT-323 NPN Darlington NPN 500mA 275mW 40V
SOT-563 NPN Darlington NPN 500mA 350mW 40V
SOT-89 NPN Darlington
PNP Darlington		 NPN
PNP		 500mA
500mA		 1,2W
1,2W		 -
-
Through Hole TO-126 NPN Darlington
PNP Darlington		 NPN
PNP		 4A 1,5W, 40W 40, 45, 60, 80, 100, 120V
TO-202 NPN Darlington
PNP Darlington		 NPN
PNP		 500mA, 2A
2A		 1,67, 2, 6,25W
1W		 30, 40, 50V
-
TO-218 NPN Darlington
PNP Darlington		 NPN
PNP		 10A 125W 60, 80, 100V
TO-220 NPN Darlington
PNP Darlington		 NPN
PNP		 2, 4, 5, 6, 8, 10A 2, 50, 60, 65, 75, 80W 40-400V
40-100V
TO-247 NPN Darlington NPN 10A 125W 100V
TO-3 NPN Darlington
PNP Darlington		 NPN
PNP		 8, 10, 12, 15, 16, 20, 30A 90-240W 40-400V
40-120V
TO-66 NPN Darlington
PNP Darlington		 NPN
PNP		 4A, 8A 50W, 75W 60V, 80V
TO-92 NPN Darlington
PNP Darlington		 NPN
PNP		 300, 500, 800mA
300,500mA		 400, 625mW, 1W
625mW		 25, 40, 60V
-

Low Vce(Sat) Transistors

Mounting Case Configuration Polarity IC(max) PD(max) VCEO(max)
Bare Die Chip Packaging Bare die 17.714-65.748X17.714-65-748 NPN
PNP		 1, 3, 6A
1, 3, 4, 5A		 350mW, 1,2, 2, 3W
350mW, 1,2, 2, 3W		 15, 25, 50, 60, 100V
25, 40, 50, 60, 100, 140V
Surface Mount SOT-223 NPN Low VCE
PNP Low VCE		 NPN
PNP		 3A, 6A
3, 4, 5A		 2W, 3W
2W, 3W		 15, 50, 100V
40, 50, 100, 140V
SOT-228 PNP Low VCE PNP 3A 2W 40V
SOT-23 NPN Low VCE
PNP Low VCE		 NPN
PNP		 1A
1A		 350mW
350mW		 25V, 60V
25V, 60V
SOT-26 NPN Low VCE
PNP Low VCE		 NPN
PNP		 3A
3A		 350mW
350mW		 15V
40V
SOT-323 NPN Low VCE
PNP Low VCE		 NPN
PNP		 1A
1A		 275mW
275mW		 25V
25V
SOT-523 NPN Low VCE
PNP Low VCE		 NPN
PNP		 1A
1A		 275mW
275mW		 25V
25V
SOT-563 NPN Low VCE
PNP Low VCE
Dual NPN Low VCE
Dual PNP Low VCE
Dual NPN & PNP Low VCE		 NPN
PNP
NPN
PNP
NPN & PNP		 1A
1A
1A
1A
1A		 250mW
250mW
350mW
350mW
350mW		 60V
60V
25V
25V
25V
SOT-89 NPN Low VCE
PNP Low VCE		 NPN
PNP		 1A, 3A
1A, 3A		 1,2W
1,2W		 15, 25, 60V
25, 40, 60V
TLM621 NPN Low VCE
PNP Low VCE		 NPN
PNP		 1A
1A		 900mW
900mW		 25V
25V
TLM832D Dual NPN Low VCE
Dual PNP Low VCE
Dual NPN & PNP Low VCE		 NPN
PNP
NPN & PNP		 1A
1A
1A		 1,65W
1,65W
1,65W		 25V
25V
25V
TLM833 NPN Low VCE
PNP Low VCE		 NPN
PNP		 6A
5A		 4,5W
4,5W		 100V
100V
TLM833S NPN Low VCE
PNP Low VCE		 NPN
PNP		 6A
5A		 4,5W
4,5W		 100V
100V

MOSFETs & JFETs

MOSFETs

Mounting Case Configuration Polarity VDS(max) VGS(max) ID(max)
Bare Die Chip Packaging Bare die 15.700-196.500X15.700-196.500 N-CH
P-CH		 20-850V 8-40V 100mA-12A
Surface Mount DPAK N-Channel Enhancement Mode N-CH 600-800V 30V 3-7A
SOIC-8 N-Channel Enhancement Mode
P-Channel Enhancement Mode
Dual: N-Channel Enhancement Mode
Dual: P-Channel Enhancement Mode		 N-CH
P-CH
N-CH
P-CH		 30V
30V
30V
30V		 20V
16V, 20V
20V
16V		 5,8A, 11A
5,3A, 11A
5,8A
5,3A
SOT-223 N-Channel Enhancement Mode N-CH 100V, 850V 20V, 30V 2W
SOT-23 N-Channel Enhancement Mode
P-Channel Enhancement Mode		 N-CH
P-CH		 20, 50, 60V
20, 50V		 8, 12, 20, 40V
8, 20V		 115, 280, 300mA, 1A
280mA, 860mA
SOT-23F N-Channel Enhancement Mode
P-Channel Enhancement Mode		 N-CH
P-CH		 20V, 30V
20V, 30V		 12V
12V		 3,2A, 3,6A
2,3A, 2,4A
SOT-26 Dual P-Channel Enhancement Mode P-CH 60V 40V 280mA
SOT-363 Dual P-Channel Enhancement Mode P-CH 20V 8V 650mA
SOT-523 N-Channel Enhancement Mode
P-Channel Enhancement Mode		 N-CH
P-CH		 20V, 30V
20V, 30V		 8V, 10V
8V, 10V		 100, 450, 915mA
100, 450, 650mA
SOT-563 N-Channel Enhancement Mode
P-Channel Enhancement Mode
Dual: N-Channel Enhancement Mode
Dual: P-Channel Enhancement Mode
Dual: N-/P-Channel MOSFET		 N-CH
P-CH
N-CH
P-CH
N-CH & P-CH		 20V
20V
20, 50, 60V
20V, 50V
20, 30, 50V		 8V
8V
8, 12, 40V
8V, 20V
8, 20, 40V		 1A
860mA
280, 540, 650mA
280, 430, 650mA
280-650mA
SOT-883L N-Channel Enhancement Mode
P-Channel Enhancement Mode		 N-CH
P-CH		 20, 30, 60V
20V, 30V		 8, 10, 20V
8, 10V		 100, 300mA, 1,78A
100mA, 450mA
SOT-883VL N-Channel Enhancement Mode
P-Channel Enhancement Mode		 N-CH
P-CH		 20V, 30V
20V, 30V		 8V, 10V
8V, 10V		 100mA, 450mA
100mA,
450mA
SOT-89 N-Channel Enhancement Mode
P-Channel Enhancement Mode		 N-CH
P-CH		 30, 40, 60, 100V
40V		 12V, 20V
25V		 2, 5,3 6, 6,9A
6A
SOT-953 N-Channel Enhancement Mode
P-Channel Enhancement Mode		 N-CH
P-CH		 20V
20V		 10V
10V		 100mA
100mA
SOT-963 Dual: N-Channel Enhancement Mode
Dual: P-Channel Enhancement Mode
Dual: N-/P-Channel MOSFET		 N-CH
P-CH
N-CH & P-CH		 20V
20V
20V		 8V
8V
8V		 160mA
140mA
160mA & 140mA
TLM3D6D8 N-Channel Enhancement Mode
P-Channel Enhancement Mode		 N-CH
P-CH		 20V
20V		 8V
8V		 160mA
140mA
TLM621 N-Channel Enhancement Mode
P-Channel Enhancement Mode		 N-CH
P-CH		 50V, 60V
50V		 12V, 40V
20V		 280mA
280mA
TLM621H N-Channel Enhancement Mode
P-Channel Enhancement Mode		 N-CH
P-CH		 20V
20V, 50V		 8V
8V, 20V		 1A
280mA, 860mA
TLM832D Dual: N-Channel Enhancement Mode
Dual: P-Channel Enhancement Mode
Dual: N-/P-Channel MOSFET		 N-CH
P-CH
N-CH & P-CH		 20V
20V
20V		 8V
8V
8V		 1A
860mA
1A & 860mA
TLM832DS Dual: N-Channel Enhancement Mode
Dual: P-Channel Enhancement Mode		 N-CH
P-CH		 20V, 30V
30V		 8V, 12V
12V		 1A, 3,6A
4,2A
Trough Hole TO-220 N-Channel Enhancement Mode N-CH 650V, 800V 30V 6A, 10A
TO-220FP N-Channel Enhancement Mode N-CH 600V, 800V 30V 6, 8, 11A

JFETs

Mounting Case Configuration Polarity PD(max) BVGSS(max)
Bare Die Chip Packaging Bare die 14.000-21.000X14.000-21.000 N-CH
P-CH		 300mW- 1,8W 25, 30, 35, 40V
Surface Mount SOT-23 N-Channel
P-Channel		 N-CH
P-CH		 350mW
225mW		 25, 35, 45V
30V
UB N-Channel N-CH 300mW 35V
Through Hole TO-18 N-Channel
P-Channel		 N-CH
P-CH		 350mW, 1,8W
300mW, 500mW		 30V, 40V
30V
TO-72 N-Channel N-CH 300mW 30V, 35V
TO-92 N-Channel
P-Channel		 N-CH
P-CH		 310, 360, 625mW
310mW		 25V, 40V
40V

Protection Devices

Transient Voltage Suppressors

Mounting Case Configuration PDM(max) IFSM(max) VRWM(max)
Bare Die Chip Packaging Bare die 76.000 X 76.000 600W 100A 20V
Surface Mount SMA Single: 400W Uni-Directional
Single: 600W Uni Directional		 400W
600W		 40A
60A		 5-220V
6-58V
SMAFL Single: 400W Uni-Directional 400W - 8,5-170V
SMB Single: 600W Bi- Directional
Single: 600W Uni-Directional		 600W
600W		 - 5-214V
SMC Single: 1500W Bi- Directional
Single: 1500W Uni-Directional
Single: 3000W Bi- Directional
Single: 3000W Uni-Directional
Single: 5000W Uni- Directional		 1500W
1500W
3000W
3000W
5000W		 -
200A
-
200A
300A		 5-185V
5-185V
5-170V
5-170V
33-170V
SOD-123F Single: 200W Uni-Directional 200W - 5-170V
Through-Hole DO-15 Single: 600W Bi-Directional
Single: 600W Uni-Directional		 600W
600W		 -
100A		 5,8-376V
5,8-376V
DO-201 Single: 1500W Bi-Directional
Single: 1500W Uni-Directional		 1500W
1500W		 -
200A		 -
-

ESD Diodes & Arrays

Mounting Case Configuration PDM(max) IFSM(max) VRWM(max)
Bare Die Chip Packaging Bare die 6.700-18.900X67.00-18.900 12, 18, 25, 35, 80W - 3,3, 5, 9V
Surface Mount SOD-523 80W ESD TVS
Low Capacitance		 66W
12W		 -
-		 4V
5V
SOD-882 Low Capacitance 40W - 3,3V
SOD-882L Low Capacitance 12W, 14W - 5V
SOD-923 80W ESD TVS 80W - 3,3V, 5V
SOT-23 Array: Dual
Low Capacitance
Low Capacitance Array		 210W
50W, 400W
50W, 400W		 -
-
-		 24V
1,5V, 5V
1,5V, 5V
SOT-26 Array: Quad
Low Capacitance Array		 150W
-		 -
2A		 -
5V
SOT-363 5 Device Array
Low Capacitance Array		 100W
-		 -
-		 5, 12, 15, 24V
5V
SOT-543 Low Capacitance Array 60W - 5V
SOT-953 Low Capacitance Array 18, 25W - 5V, 9V
TLM1031 Array Quad 32,5W - 5V
TLM2D3D6 Low Capacitance
35W ESD TVS		 30W, 35W
35W		 -
-		 5V, 9V
4V

Thyristors

PN UJT

Mounting Configuration Case Product VB2E(max) VB2B1(max) Ie(max)
Through-Hole UJT TO-92 2N4870 30V 35V 1,5A
2N4871 30V 35V 1,5A
TO-18 2N4851 30V 35V 50mA

Programmable PN UJT

Mounting Configuration Case Product VGKF(max) VGKR(max) IT(max)
Surface Mount Programmable UJT SOT-23 CMPP6027 40V 5V 150mA
CMPP6027R 40V 5V 150mA
CMPP6028 40V 5V 150mA
CMPP6028R 40V 5V 150mA
Bare Die Bare die 27.500 X 27.500 Chip Packaging CP622-2N6027 40V 5V 150mA
CP624-2N6028 40V 5V 150mA
Through Cole Programmable UJT To-92 PN6120 40V 5V 150mA
2N6027 40V 5V 150mA
2N6028 40V 5V 150mA

SCR

Mounting Case Configuration VDRM(max) IT(RMS)(max) ITSM(max)
Bare Die Chip Packaging Bare die 41.430 x 41.340
Bare die 53.150 x 53.150		 30, 200, 400V
30, 50, 200, 400V		 0,8A, 1A
0,8, 1, 1,6A		 10A
10A, 15A
Surface Mount DPAK SCR 600V 4A 30A
D2PAK SCR 600V, 800V 12, 16, 25A 110, 160, 25A
SOT-223 SCR 400, 600, 800V 800mA, 2A, 4A 10A, 30A
SOT-23 SCR 100, 200, 400V 250mA -
SOT-89 SCR 600V 800mA 10A
Through-Hole TO-18 SCR 30, 60, 100, 200, 400, 600, 800V 0,8A, 1A 6A, 10A
TO-202 SCR 100, 200, 300, 400, 500, 600, 800V 4A 20A, 30A
TO-202-2 SCR 200, 400, 600, 800V 4A 20A, 30A
TO-220 SCR 200, 400, 600, 800V 8, 10, 12, 25A 60, 80, 100, 250A
TO-3 50MIL SCR 400V, 600V 16A 200A
TO-3P SCR 200, 400, 600, 800, 1000, 1200V 40A 500A
TO-39 SCR 25-800V 1,6A, 4A 15A, 35A
TO-64 SCR 100, 200, 300, 400, 600V 7,4A, 8A 60A, 100A
TO-65 SCR 600V 63A 1000A
TO-92 SCR 30-800V 0,8A, 2A 8A, 10A

Triac

Mounting Case Configuration VDRM(max) IT(RMS)(max) ITSM(max)
Bare Die Chip Packaging Bare die 114.000 x 114.000
Bare die 128.000 x 128.000		 600V
600V		 8A
12A		 70A
100A
Surface Mount DPAK TRIAC 600V 4A, 8A 40A, 70A
D2PAK TRIAC 600V 12, 16, 25A 100, 110, 150A
SOT-223 TRIAC 600V, 800V 2A, 4A 10, 20, 40A
SOT-89 TRIAC 600V, 800V 2A 20A
Through-Hole TO-202 TRIAC 200, 400, 600, 800V 4A 40A
TO-202-2 TRIAC 200, 400, 600, 800V 4A 40A
TO-220 TRIAC 200, 400, 600, 800V 8, 10, 12, 25A 50, 80, 100, 150A
TO-3P TRIAC 200, 400, 600, 800V 30A, 40A 250A, 300A
TO-39 TRIAC 200, 400, 600V 4A 35A
TO-92 TRIAC 200, 400, 600V 1A 20A

Multi-Discrete Modules

Transistor & Schottky Diode or Rectifier

Mounting Case Configuration Products Polarity PD(max) IC(max)
Suface Mount SOT563 NPN General Purpose Amplifier & Low VF Schottky Diode CMLM2205 NPN 350mW 600mA
NPN Low VCE (SAT) & Low VF Schottky Diode CMLM0405 NPN 350mW 200mA
CMLM3405 NPN 350mW 1A
PNP General Purpose Amplifier & Low VF Schottky Diode CMLM0705 PNP 350mW 600mA
PNP Low VCE (SAT) & Low VF Schottky Diode CMLM0605 PNP 350mW 200mA
CMLM7405 PNP 350mW 1A
TLM832D NPN Low VCE (SAT) & Low VF Schottky Rectifier CTLM1034-M832D NPN 1,65W 1A
PNP Low VCE (SAT) & Low VF Schottky Rectifier CTLM1074-M832D PNP 1,65W 1A

MOSFET & Schottky Diode or Rectifier

Mounting Case Configuration Products Polarity PD(max) VDS(max)
Surface Mount SOT-563 N-Channel MOSFET & Low VF Schottky Diode CMLM0205 N-CH 350mW 60V
CMLM0305 N-CH 350mW 50V
CMLM0305T N-CH 350mW 50V
CMLM0574 N-CH 350mW 30V
CMLM0575 N-CH 350mW 20V
P-Channel MOSFET & Low VF Schottky Diode CMLM0584 P-CH 350mW 8V
CMLM0585 P-CH 350mW 8V
CMLM8205 P-CH 350mW 20V
TLM832D N-Channel MOSFET & Low VF Schottky Rectifier CTLM7110-M832D N-CH 1,65W 20V
P-Channel MOSFET & Low VF Schottky Rectifier CTLM8110-M832D P-CH 1,65W 20V

Services

Overview

  • Product services & vendor managed inventory (VMI)
  • Parametric electrical screening
  • Plating options for through-hole devices
  • Custom device development
  • Up-screening
  • Super Industrial and Spacellite
High Rel Brochure

Custom Device Development

Custom Device Picture Features
Bare Die
  • Custom diffusion
  • Special Metallization
  • Lateral die development
Packaging
  • Plastic or Hermetic packages
  • Custom lead frames

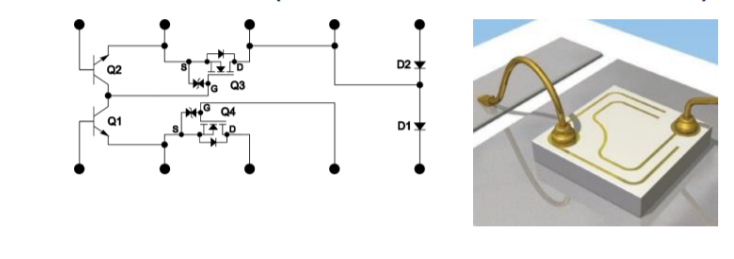

Interconnect/assembly
  • Gold wire bond
  • Custom device integration
  • MDM™ (Multi-discrete Modules)

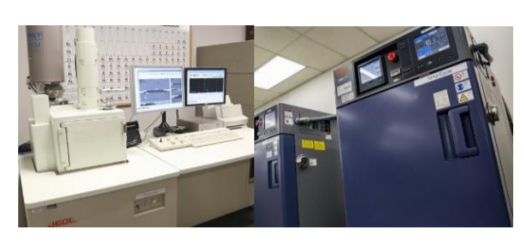

Testing
  • JAN equivalent to
    • MIL-PRF-19500
    • MIL-PRF-38534
  • Customer specific testing

Super Industrial & Spacellite

Definition Applications
Super Industrial

 Super Industrial™ solutions provide superior performance at extreme environmental conditions Designed to meet the rigorous environmental conditions standard Industrial products cannoot meet:
Spacellite

 Spacellite™ solutions are designed to meet Space level applications
Radiation testing by Troxel
Silicon expertise from Central

Collaboration in Space:
 Custom bypass diode for the satellite solar panels.
Central created lateral die. Anode and Cathode on the same side
Space 2.0 - New Space

Central Semi Spacellite
Spacellite-S,
Spacellite Ultra,
Spacellite+,
Spacellite
  • Space:
    • MIL-PRF-19500
    • MIL-PRF-38534
    • (JANS, JANS R)
Solutions for extreme environments
Central Semi MIL Equivalent
(E, EX, EV, ES, H, HC, K, KC)
  • Military:
    • MIL-PRF-19500
    • MIL-PRF-38534
    • (JAN, JANTX, JANTXV)

Central Semi Super Industrial
  • Commercial up-screened:
    • COTS Plus
  • Industrial/AEX-Q101
  • Commercial:
    • COTS

Expanding in-house Up-Screening

Applications
Wire pull / die sheer

 Tri-temp testing

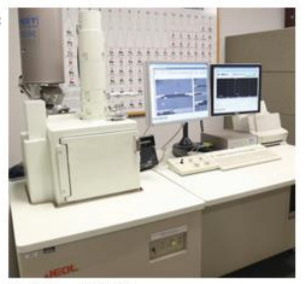

 SEM w/EDX

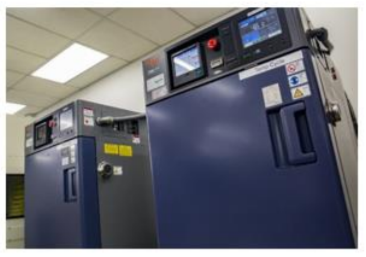

 Temperature cycling

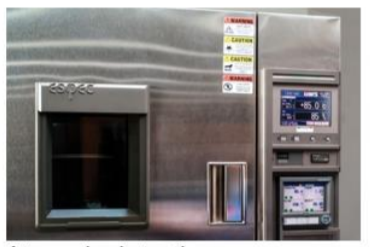

 Atmospheric testing

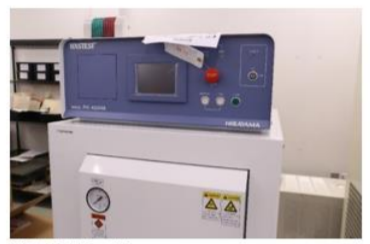

HAST Testing
(Highly Accelerated Stress Test)

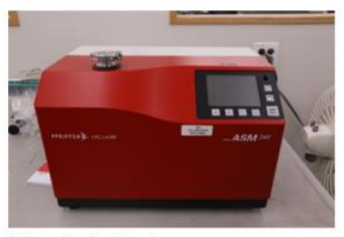

 Fine leak Testing

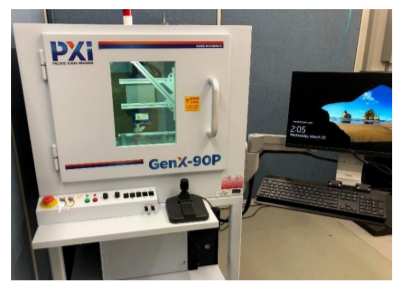

 X-Ray

 One Box test chambers

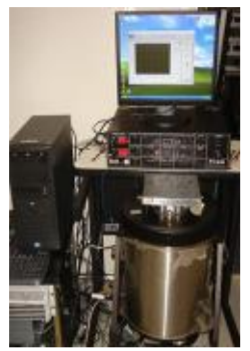

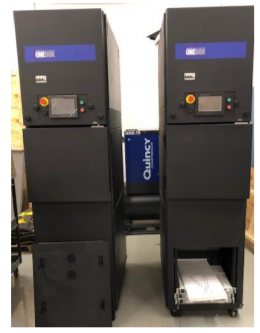

 PIND Tester
Multiple waveform surge tester

 C-SAM

 De-cap station
Up-Screening (JAN/MIL equivalent)
MIL-PRF-38534 equivalent (Bare Die):
MIL-PRF-38534 Class H equivalent
  • Class H processed 100% in-house
  • Customer Specific Testing possible
  • Very fast turn-around time
  • Class K screening also available
 MIL-PRF-19500 equivalnet (Packaged and Bare Die):
  • Packaged: E=JAN, EX=JANTX, EV=JANTXV, ES=JANS
  • Bare Die: Class HC and KC
  • Expanding in-house process and capabilities
  • Increased number of external testing partners
  • Focusing on Spacellite products
 Customer specific screening:
  • Approved via test plan or SCD

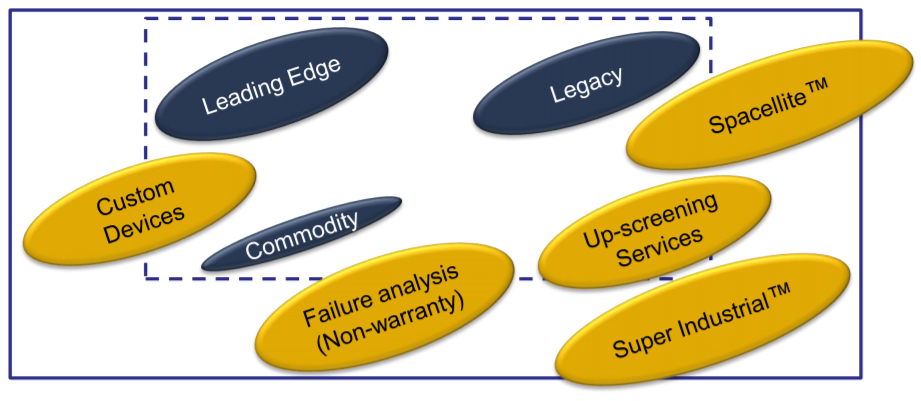

Expanded Capabilities

The Past The Future

Applications

Alternative Energy

The need for alternative energy technologies is "fueling" the development of energy efficient discrete semiconductor solutions.
    Potential Applications:
  • Electric vehicle charge station
  • Smart meter / Smart grid
  • Solar panel system
  • Wind turbine control

Consumer

Innovative discrete solutions assist designers of consumer products by providing greater functionality, smaller size and longer battery life.
    Potential Applications:
  • Bluetooth headset
  • Digital camera
  • Night vision technology
  • Set top box
  • Smartphone
  • Tablet computers

Industrial/Scientific

Today's intelligent industrial & scientific applications demand energy efficient and smaller form fitting solutions to seamlessly interface with the power grid.
    Potential Applications:
  • AC-DC switch mode power supply with PFC
  • Air conditioner unit
  • Motor control system
  • Uninterrupted power supply (UPS)

Lightning

The demand for brighter and more efficient lighting solutions is driving discrete semiconductor innovation.
    Potential Applications:
  • High-intensity discharge lamp
  • LED lighting driver
  • LED lighting driver with dimmer
  • Low voltage LED products

Medical

The portability and functionality of today's medical products is made possible by smaller and more efficient discrete semiconductor solutions.
    Potential applications:
  • Glucose meter
  • Hearing aid
  • Pulse oximeter

Networking

The increasing complexity of networks and peripheral devices demands "smarter" and more efficient discrete semiconductor solutions.
    Potential Applications:
  • Power over ethernet (PoE)
  • PoE audio speaker
  • PoE security camera
  • PoE point-of-sale (POS)
