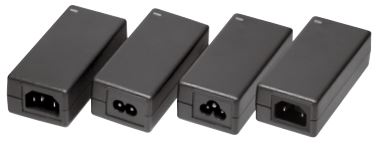

EA1024

• Power range:16~36W
• Universal AC input 100 to 240V AC
• Frequency: 50 to 60Hz
• AC plug:1. C14, 2. C8, 3. C6, 6. C18
• Output voltage available from 5 to 48V DC
• Safety: UL/cUL, TUV, CB, CE, FCC, CCC
• All models meet RoHS and WEEE
• Dimensions (L x W x H):98L x 45.5W x 31.2H (mm)
• Weight:200 grams

EA1098

• Power range:72-90W
• Low Profile with 16.8mm
• Universal AC input 90 to 264V AC / 47 to 63Hz
• Inlet: IEC320 C8
• Output voltage available from
• ( I)18 to 20V DC, maximum 4.72A
• (II)21 to 24V DC, maximum 3.75A
• Safety: cTUVus TUV/GS FCC CE CB CCC
• All models meet RoHS and WEEE
• Dimensions (L x W x H):98 x 65 X 16.8 mm
• Weight: 450 grams
