MWLP120 |
 |
- 3” x 2” foot print.
- Height 1” above PCB.
- 120 Watts with Forced Air Cooling.
- Approval to EN60601 3rd Edition,Dual fusing
- Efficiencies upto 93%.
- -40 to 70°C operating temperature, Thermal Shut-Down
- Suitable for BF applications
- Means of Protection : 2xMOPP
- >3.00m Hours, Telcordia -SR332-issue 3.
- Standby Power < 0.3W.
- Class II option available
|
 |
 |

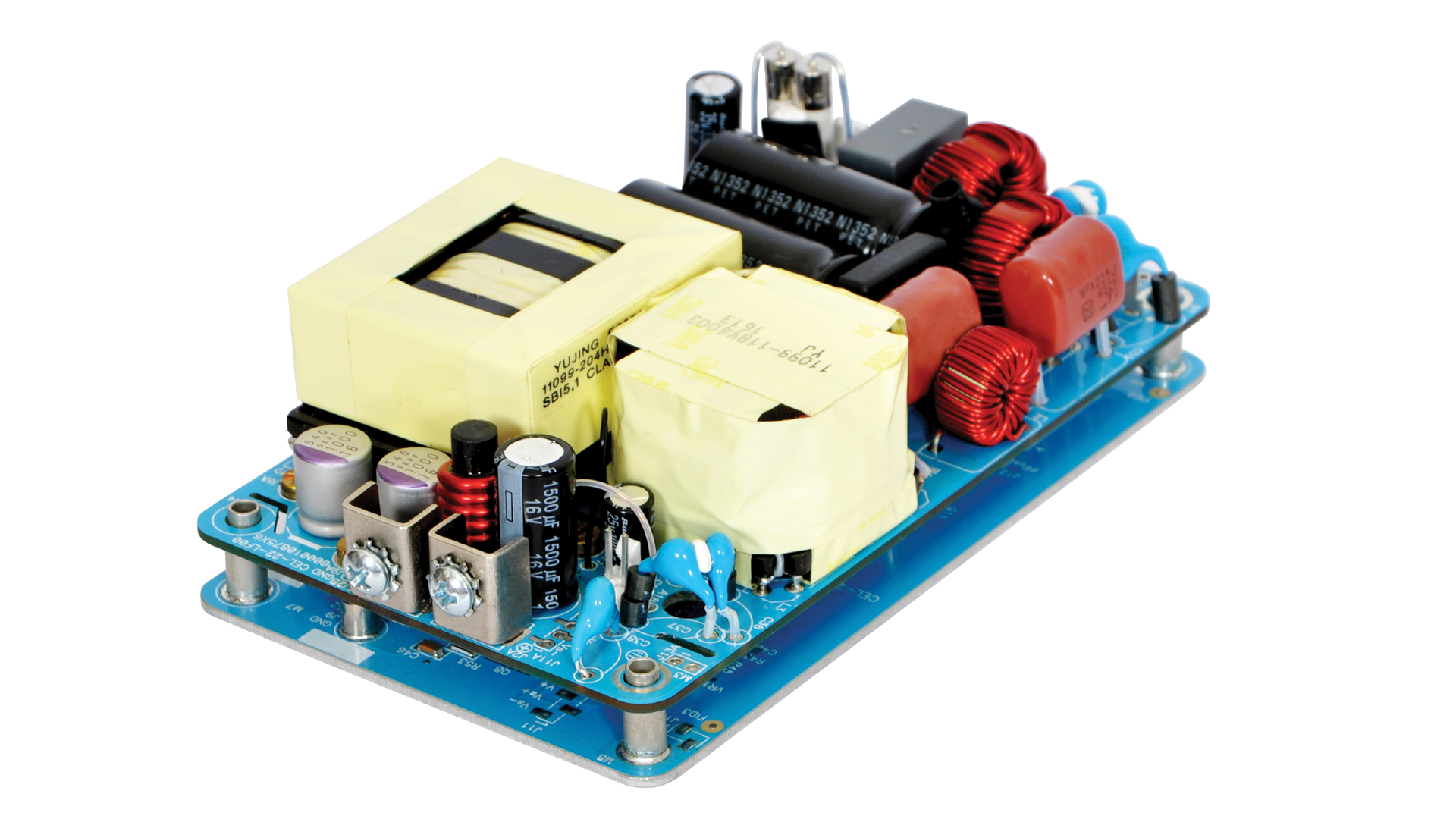

MWLC550 |
 |
- 5 x 3 x 1.5 Inches Form factor
- Up to 550 Watts with Forced Air Cooled
- Efficiencies up to 92%
- -40 to 70 degree operating temperature
- 12V / 0.5A Fan Output, Thermal Shut-Down feature
- Shall be approved to EN60601-1 3rd Edition
- Meets EN60601-1-2, 4th Edition
- Medical (BF) Safety Approvals
- 7 years warranty
|
|
|

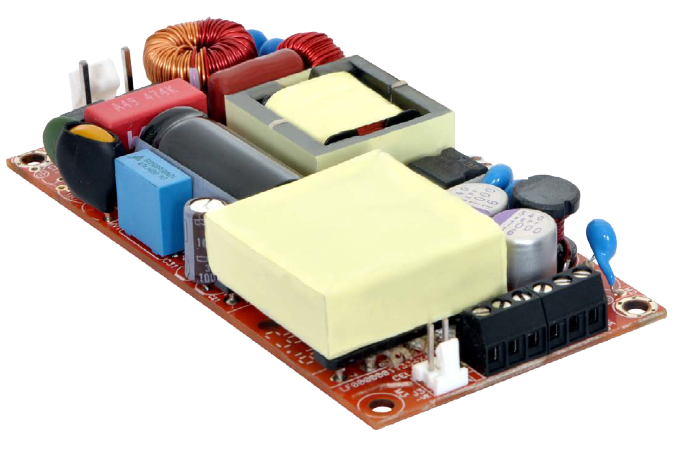

MULP180 |
 |
- 4 x 2 x 0.75 Inches Form factor
- 180 Watts with Forced Air Cooling
- Approval to EN60601 3rd Edition
- Efficiencies upto 92 %
- -40 to 70 degree operating temperature
- Dual fusing
- 12 V / 0.5 A Fan Output, Thermal Shut-Down feature
- 3.37m Hours, Telcordia -SR332-issue 3 MTBF
- Standby Power < 0.5 W
- Medical (BF) Safety Approvals
|
|
|

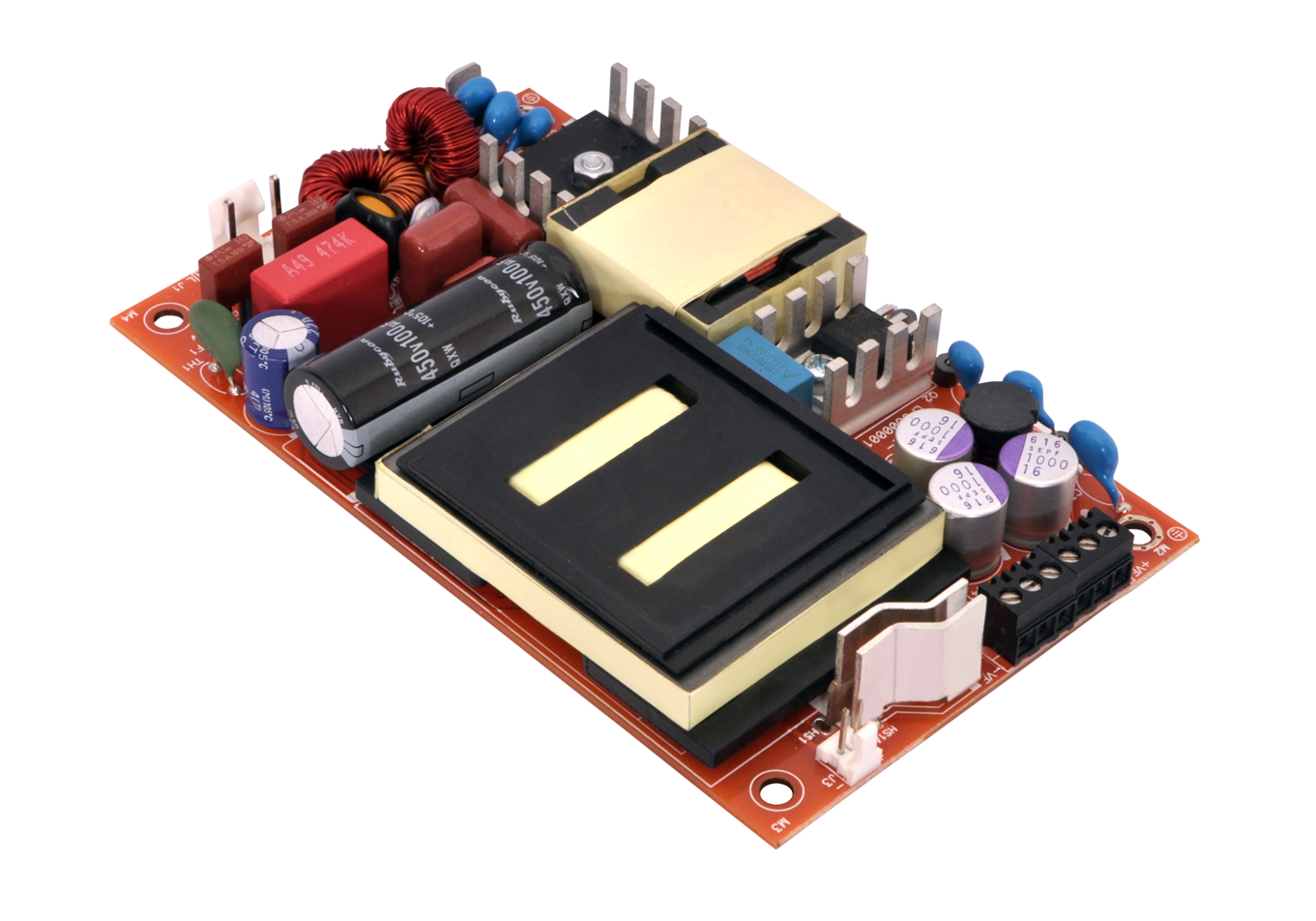

MULP270 |
 |
- 5 x 3 x 0.75 Inches Form factor
- 275 Watts with Forced Air Cooling
- Efficiencies upto 92 %
- -40 to 70 degree operating temperature*
- 12 V / 0.5 A Fan Output, Thermal Shut-Down feature
- 3.37m Hours, Telcordia -SR332-issue 3 MTBF
- Standby Power < 0.5 W
|
|
|
