WiFi 6 (802.11ax) AP module

Picture Part No. Type of Card Protocol Form Factor MIMO Main Chip Part No. Channel Width Operating Temp. Status Datasheets
WMX7401 WiFi 6 (2.4G) PCIe Mini PCIe 4T4R QCN9074 20/40/80/160 -20 to 70°C
-40 to 85°C		 EVT
WMX7401-3 WiFi 6 (2.4G) PCIe Mini PCIe 3T3R QCN9074 20/40/80/160 -20 to 70°C
-40 to 85°C		 EVT
WMX7402 WiFi 6 (5G) PCIe Mini PCIe 4T4R QCN9074 20/40/80/160 -20 to 70°C
-40 to 85°C		 EVT
WMX7402-3 WiFi 6 (5G) PCIe Mini PCIe 3T3R QCN9074 20/40/80/160 -20 to 70°C
-40 to 85°C		 EVT
WMX7406 WiFi 6/6E (5-6G) PCIe Mini PCIe 4T4R QCN9074 20/40/80/160 -20 to 70°C
-40 to 85°C		 EVT

Wi-Fi 6 802.11ax Client Module

Picture Part No. Chipset Wi-Fi Bluetooth Interface Form Factor MIMO Frequency Bands Bandwidth Certifications Datasheets Status

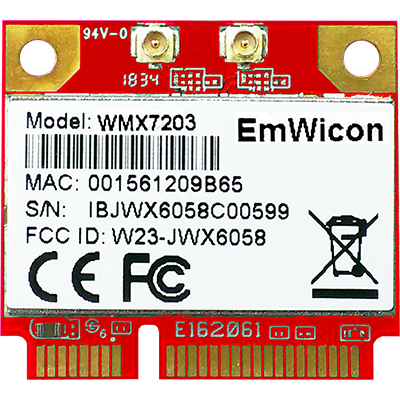

WMX7203-0 Qualcomm WCN6856 Wi-Fi 6/6E DBDC Bluetooth 5.2 PCIe Half Size Mini Card 2T2R 2400-2496 MHz
4900-5850 MHz
5925-7125 MHz		 20/40/80/160 CE, FCC, IC MP
WMX7203-1 Qualcomm
QCA2066		 Wi-Fi 6/6E DBDC Bluetooth 5.2 PCIe Half Size Mini Card 2T2R 2400-2496 MHz
4900-5850 MHz
5925-7125 MHz		 20/40/80/160 CE, FCC, IC MP

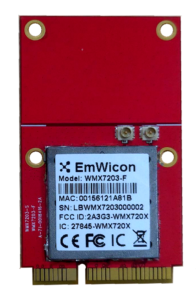

WMX7203-F Qualcomm WCN6856 Wi-Fi 6/6E DBDC Bluetooth 5.2 PCIe Full Size Mini Card 2T2R 2400-2496 MHz
4900-5850 MHz
5925-7125 MHz		 20/40/80/160 CE, FCC, IC MP
WMX7203-1F Qualcomm
QCA2066		 Wi-Fi 6/6E DBDC Bluetooth 5.2 PCIe Full Size Mini Card 2T2R 2400-2496 MHz
4900-5850 MHz
5925-7125 MHz		 20/40/80/160 CE, FCC, IC MP
WMX7205-0 Qualcomm WCN6856 Wi-Fi 6/6E DBDC Bluetooth 5.2 PCIe M.2 2230 A+E Key 2T2R 2400-2496 MHz
4900-5850 MHz
5925-7125 MHz		 20/40/80/160 CE, FCC, IC MP
WMX7205-1 Qualcomm
QCA2066		 Wi-Fi 6/6E DBDC Bluetooth 5.2 PCIe M.2 2230 A+E Key 2T2R 2400-2496 MHz
4900-5850 MHz
5925-7125 MHz		 20/40/80/160 CE, FCC, IC MP
WMX7206
WMX7206-F		 Realtek RTL8852BE Wi-Fi 6 Bluetooth 5.2 PCIe Half/Full Size Mini Card 2T2R 2412-2483 MHz
5150-5835 MHz
 20/40/80 CE, FCC, IC to be finished in Q1 23 MP
WMX7207 Realtek RTL8852BE Wi-Fi 6 Bluetooth 5.2 PCIe M.2 2230 A+E Key 2T2R 2412-2483 MHz
5150-5835 MHz
 20/40/80 CE, FCC, IC + 100 more MP

Product Highlights

Picture Description Datasheets

WMX6218
  • Standard: 802.11ac/a/b/g/n + BT5.0
  • Interface: PCIe Half Mini Card
  • Chipset: RTL8822CE
  • Antenna: 2xU.FL connector, 2T2R
  • Temp. Range: -40°C to +85°C
  • Support: Win10, Linux, Android
  • Certification: CE, FCC, IC

WMX6219
  • Standard: 802.11ac/a/b/g/n + BT5.0
  • Interface: PCIe, M.2 2230 A+E Key
  • Chipset: RTL8822CE
  • Antenna: 2xMHF4 connector, 2T2R
  • Temp. Range: -40°C to +85°C
  • Support: Win10, Linux, Android
  • Certification: CE, FCC, IC, Telec + 100 country certifications

WMU6202
  • Dualband IEEE 802.11 ac/a/b/g/n Wave 2
  • Bluetooth 4.2
  • RTL8822BU
  • 2T2R
  • USB protocol
  • PCIe Half Mini Card
  • Operating temperature -20°C - +70°C
  • Windows, Linux, Android
  • Ideal for client applications
  • Certification: CE, FCC, IC,...

WMU6203
  • Dualband IEEE 802.11 ac/a/b/g/n Wave 2
  • Bluetooth 4.2
  • RTL8822BU
  • 2T2R
  • USB protocol
  • M.2 2230
  • Operating temperature -20°C - +70°C
  • Windows, Linux, Android
  • Ideal for client applications
  • Certification: CE, FCC, IC,...

WMU6204-6207


  • Dualband IEEE 802.11 ac/a/b/g/n Wave 2
  • Bluetooth 4.2
  • RTL8822BU
  • 2T2R
  • USB protocol
  • U.FL or Printed Antenna
  • USB Type A or 4 Pin Wafer connector
  • Operating temperature -20°C - +70°C
  • Windows, Linux, Android
  • Ideal for client applications
  • Certification: CE, FCC, IC,...

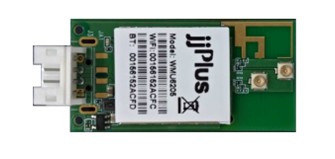

WMU6204


WMU6205


WMU6206


WMU6207

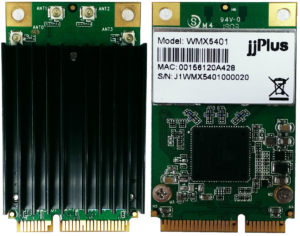

WMX5401
  • 802.11 ac Wave 2
  • 4T4R MU-MIMO
  • QCA9984
  • Standard Mini PCIe
  • -20°C - +85°C
  • High Output Power 21 dBm @ 5 GHz
  • Linux Driver Support

WMX6401
  • 802.11 ac Wave 2 & 802.11 a/b/g/n
  • 4T4R MU-MIMO
  • QCA9984
  • Standard Mini PCIe
  • -20°C - +85°C
  • High Output Power 20 dBm @ 2,4 GHz, 21 dBm @ 5 GHz
  • Linux Driver Support
  • Certification: CE, FCC, IC

JWX6058 - lead time is improving
  • Dualband IEEE 802.11 ac/a/b/g/n Wave 2
  • Bluetooth 5.0
  • QCA6174A-5 Chipset
  • 2T2R
  • PCIe Half Mini Card
  • Operating temperature -40°C - +85°C
  • Ideal for client applications
  • Certification: CE, FCC, IC

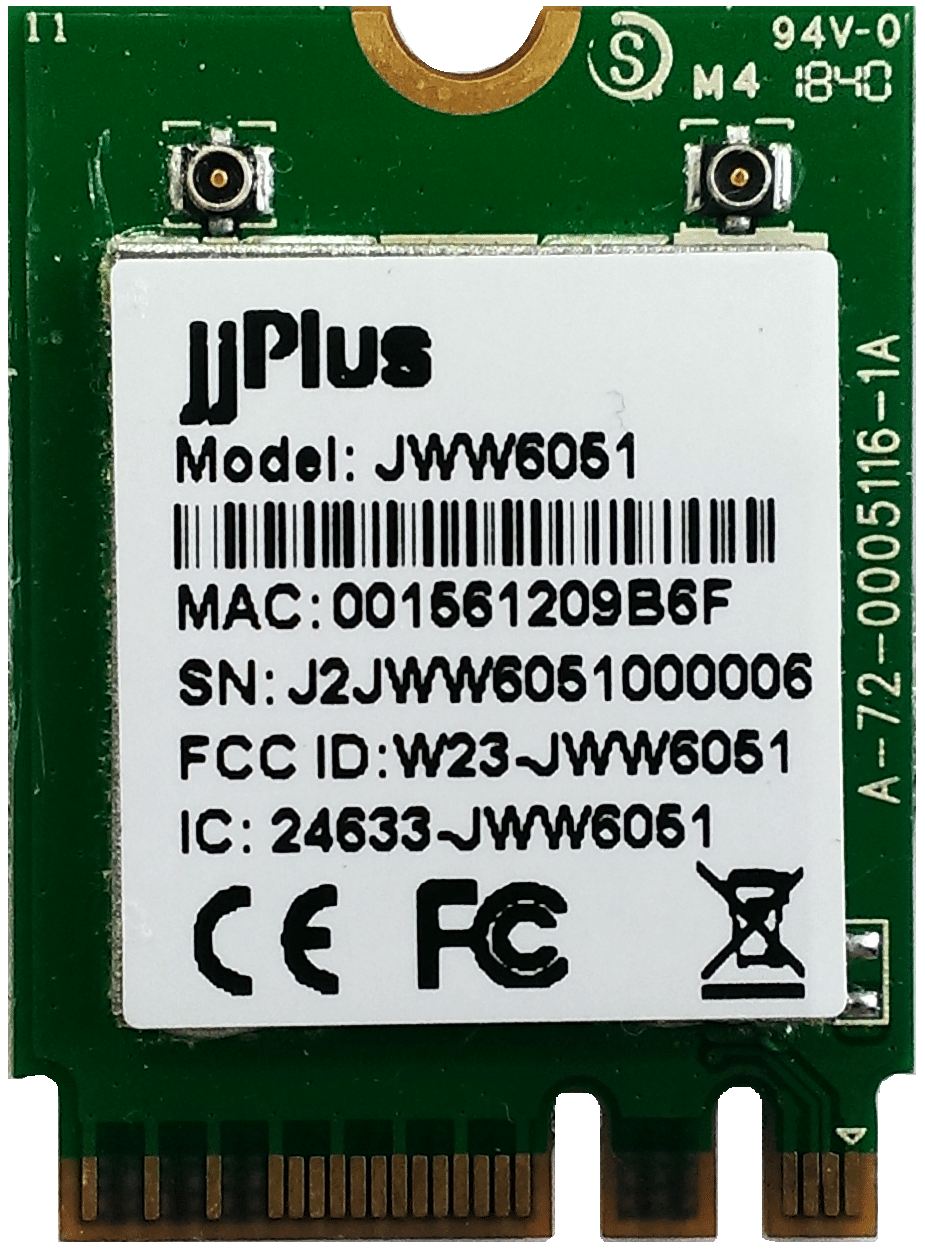

JWW6051 - lead time is improving
  • Dualband IEEE 802.11 ac/a/b/g/n Wave 2
  • Bluetooth 5.0
  • QCA6174A-5 Chipset
  • 2T2R
  • M.2 2230
  • PCIe Interface for WiFi
  • USB Interface for Bluetooth
  • Operating temperature -40°C - +85°C
  • Ideal for client applications
  • Certification: CE, FCC, IC

Product Ranges

Picture Description Datasheets

WiFi Modules (continued)

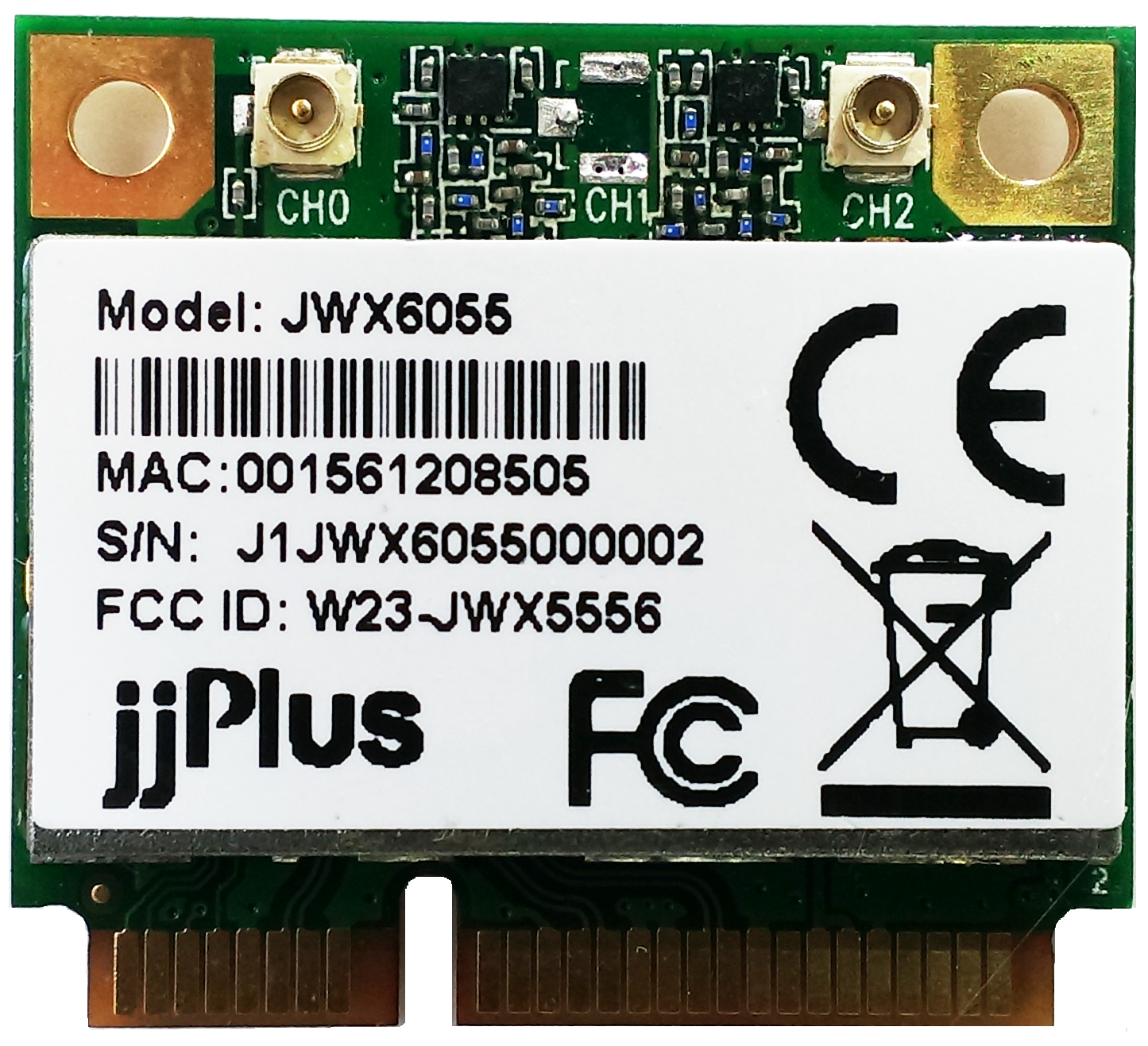

JWX6055
  • Dualband IEEE 802.11 ac/a/b/g/n
  • QCA9882 Chipset
  • 2T2R
  • PCIe Half Mini Card
  • PCIe Interface
  • Operating temperature -20°C - +70°C

JWX6056
  • Dualband IEEE 802.11 ac/a/b/g/n
  • QCA9892-BR4B Chipset
  • 2T2R
  • PCIe Half Mini Card
  • PCIe Interface
  • Operating temperature -40°C - +85°C
  • First I-Grade 11ac Module in Half Mini Card Form Factor!

JWX6053
  • Dualband IEEE 802.11 ac/a/b/g/n
  • QCA9890 Chipset
  • 3T3R
  • PCIe Mini Card
  • PCIe Interface
  • Operating temperature -40°C - +85°C

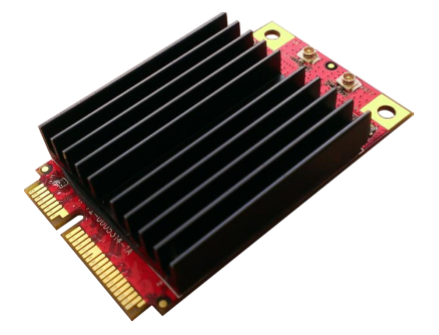

Wireless 11AC Wave 2

    Features:
  • Design with Qualcomm Atheros QCA99xx Series
  • Supports IEEE 802.11ac Wave 2 & backward compatible
  • 5Ghz single band or 2.4Ghz/5Ghz dual band switchable
  • Mutli-user MIMO(MU-MIMO) beam former for clients’ connection simultaneously
  • Mini PCIE Express 2.0 interface
  • Highlight recommend for High Bandwidth Enterprise Wireless Access Point
  • Certification: FCC/CE/IC
Flyer
Model name Chipset Standard Ant. OS support Operating Voltage Operating Temp. Dimension
WMX5401 QCA9984 5GHz Wave 2
802.11ac 4x4		 4 x IPEX MHF1 Linux DC 3.3V -20°C to 70°C 50,8 x 30mm
WMX5402 QCA9994 -40°C to 85°C
WMX6401 QCA9984 Dual Band Wave 2
802.11ac 4x4		 -20°C to 70°C
WMX6402 QCA9994 -40°C to 85°C
WMX6301 QCA9984 Dual Band Wave 2
802.11ac 3x3		 3 x IPEX MHF1 -20°C to 70°C
WMX6302 QCA9994 -40°C to 85°C

IoT Modules - fully customized

Model name Chipset Standard Ant. OS support Operating Voltage Operating Temp. Dimension

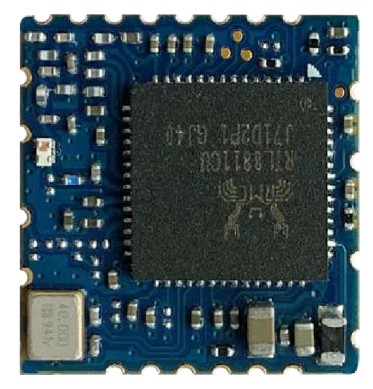

WMU6103 RTL8821CU WiFi 5 + BT 4.2 1T1R Linux/Windows 3.3V -20°C ~ +70°C 13x12.2x1.8mm

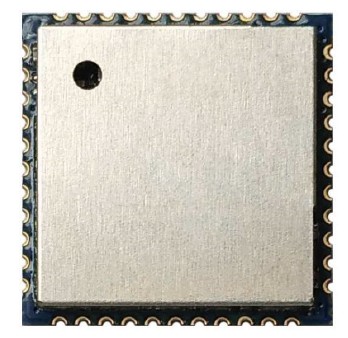

WMS6101 IRTL8821CS WiFi 5 + BT 4.2 1T1R Linux/Windows 3.3V -20°C ~ +70°C 12x12x2.4mm

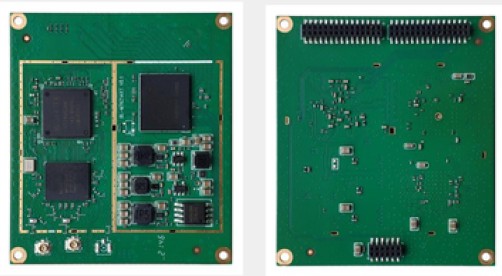

WAP7255 MT7621+MT7905 WiFi 6 2T2R   12V -10°C ~ +50°C 60x53x5.5mm

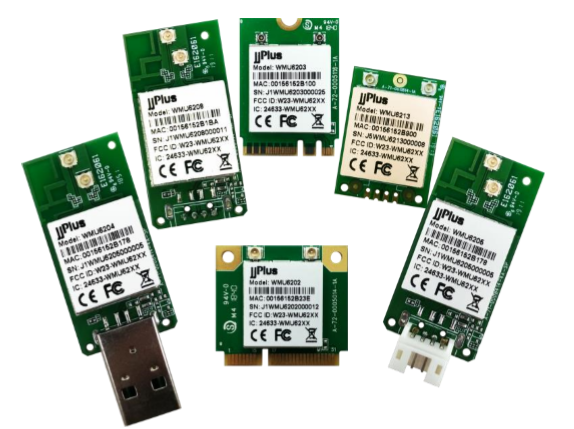

USB Modules

  • Supports 802.11ac 2x2, Wave 2 Compliant with MU-MIMO
  • Various Form Factor:
    • Mini PCIe
    • M.2 2230
    • USB Type-A
    • 4 pin wafer
    • Pin Header
    • Half Holes
  • Antenna: 2x IPEX MHF1 connector or Printed Antenna
  • Low power consumption
  • CPU Supported: X86, ARM, MIPS
  • Support Multiple OS: Windows 7, 8.1, 10 / Linux / Android
  • Certification: FCC/CE/IC/TELEC
Flyer
Model name Form Factor Ant. OS support Operating Voltage Operating Temp. Dimension
WMU6202 Half Mini PCIe 2x IPEX MHF1 Windows
Linux
Android		 DC 3.3V -20°C ~ 70°C 30x26,8mm
WMU6203 M.2 2230 2x IPEX MHF4 22x30mm
WMU6204 USB Type-A 2x IPEX MHF1 Dc 5V 55x20mm
WMU6205 4 Pin Wafer 2x IPEX MHF1 44,5x20mm
WMU6206 USB Type-A 2x Printed Ant. 55x20mm
WMU6207 4 Pin Wafer 2x Printed Ant. 44,5x20mm
WMU6208 Pin Header 2x IPEX MHF1 40x20mm
WMU6209 Half Holes 2x IPEX MHF1 40x20mm
WMU6210 Pin Header 2x Printed Ant. 40x20mm
WMU6211 Half Holes 2x Printed Ant. 40x20mm
WMU6213 Half Holes 2x IPEX MHF1 27x20mm

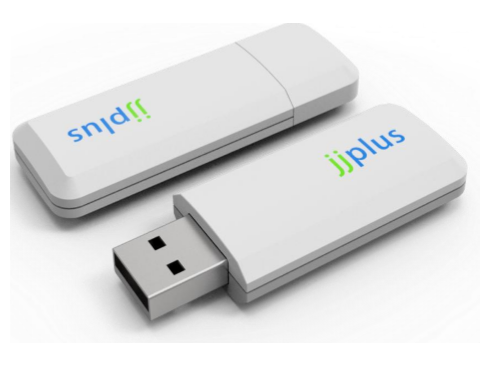

WMI6201 USB Dongle 2x Printed Ant. 60x25x9mm

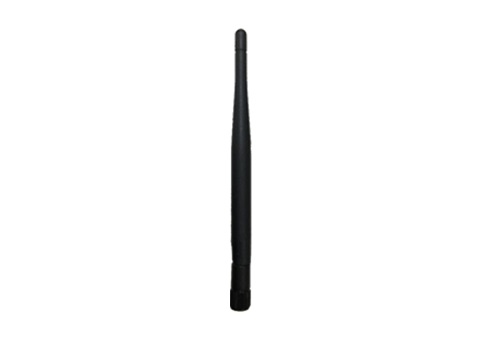

Antenna

Product Picture Specifications Datasheets
ATD6551
  • Frequency:
    • 2.4GHz ~ 2.5GHz
    • 5.15GHz ~ 5.85GHz
  • Peak Gain:
    • 2.4GHz : 5.0 ±0.5 dBi
    • 5GHz : 5.0 ±0.5 dBi
  • Impedance: 50Ω
  • Antenna Type: Dual-Band Dipole
  • Polarization Type: Liner; Vertical
  • V.S.W.R.: ≤2.0
  • Connector Type: RP-SMA Male
  • Color: Black
ATD6351
  • Frequency:
    • 2.4GHz ~ 2.5GHz
    • 5.15GHz ~ 5.85GHz
  • Peak Gain:
    • 2.4GHz : 3.0 ±0.5 dBi
    • 5GHz : 3.0 ±0.5 dBi
  • Impedance: 50Ω
  • Antenna Type: Dual-Band Dipole
  • Polarization Type: Liner; Vertical
  • V.S.W.R.: ≤2.0
  • Connector Type: RP-SMA Male
  • Color: Black
ATD6251
  • Frequency:
    • 2.4GHz ~ 2.5GHz
    • 5.15GHz ~ 5.85GHz
  • Peak Gain:
    • 2.4GHz : 3.0 ±0.5 dBi
    • 5GHz : 2.0 ±0.5 dBi
  • Impedance: 50Ω
  • Antenna Type: Dual-Band Dipole
  • Polarization Type: Liner; Vertical
  • V.S.W.R.: ≤2.0
  • Connector Type: RP-SMA Male
  • Color: Black

Applications

Solutions for Picture Description Products
Warehouse Data collection, advanced communication, and connectivity are essential to efficient warehouse operations.
Rugged tablets and mobile computers with the Industrial-Grade WiFi module enable automation and high connectivity in the warehouse.
This increases material handling, reduces costs associated with handling delays, and streamlines the supply chain. Advanced communications options enable uninterrupted communications and connectivity.
Heathcare Technology has long played an imperative role in streamlining hospital operations and improving patient care.
In hospital environments, performance, reliable and accurate image reproduction is imperative.
From Healthcare images to patient transmission data, the hospital environment is a complex ecosystem that requires advanced communication to keep it running smoothly.
Transportation Vehicles such as dump trucks, cranes, excavators, and tractors usually operate in heavy industries or agricultural sectors and require rugged computing and advance communication solutions that must be tough and durable enough to withstand the harshest environments.
