About Flex Power Modules

Headquarter in Stockholm, Sweden
Locations in Stockholm and Kalmar, Sweden, Shanghai, China, Plano, USA
Certification: ISO9001, ISO14001
~250 employees worldwide
DC/DC-Products for communicationsystems and avionics, computer, industrial, medical and military applications
Leading supplier to many of the world’s foremost telecom businesses

Upcoming / New Products

PNA2405S3S

Picture	Description	Features	Characteristics	Datasheet
	PoL Regulators Input 9-36V Output up to 6A / 33W	Small size 13.0 x 12.35 x 6.2 mm (0.512 x 0.486 x 0.244 in) 0.9 V – 5.5V output voltage range 6 A maximum output current High efficiency, typ. 93.7% at 24 Vin, 5.5 Vout, 6A load Control loop with fast load transient response Allows synchronization to an external clock Meets safety requirements according to IEC/EN/UL 62368-1 MTBF TBD Mh	Output voltage adjust function Output over current protection Over temperature protection Remote control Power Good Soft start and Output voltage tracking Highly automated manufacturing ensures quality ISO 9001/14001 certified supplier

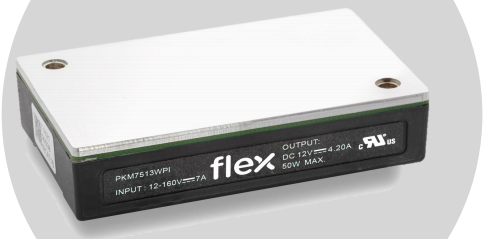

PKM7500W and PKM7100W (Refresh)


Features

Specifications

Applications

Ultra-wide input voltage range
Fully encapsulated quarter brick converter
Excellent price / performance ratio

	PKM7500W	PKM7100W
Mechanical
Dimensions	57.9136.812.7mm
Electrical specs
Input voltage range	12-160V	14-160V
Output voltage	5/12/13.8/15/24/48/54V
Output power	50W	100W
Efficiency	Up to 90%
Isolation	4000V
Others
Relase date	Released	Released in Aug/2020

Railway
Industrial

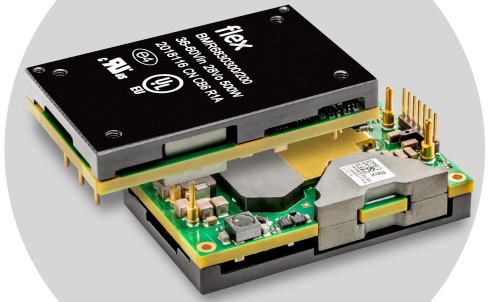

BMR683 (RFPA)


Features

Specifications

Applications

Digital quarter brick DC/DC up to 500 W Pout
Designed for high power LDMOS and GAN RFPA applications
High efficiency with 95.5%

Mechanical
Dimensions	58.436.812.7mm (2.31.450.5in)
Electrical specs
Input voltage range	36-60V
Output voltage	18-32V
Output power/current	500W / 17.9A
Efficiency	95.5%
Isolation	1500V
Others
Release	Sep 2020

Telecom

BMR491 (digital high-power DC/DC)


Features

Specifications

Applications

Digital quater brick DC/DC
Up to 2250 W peak power
48-60V & 40-60V input variants
12V nominal outputs
High efficiency up to 97.6%

Regulation	HRR	Fixed output regulation
Dimensions	58.436.812.7mm (2.31.450.5in)
Electrical specs
Input voltage range	48-60V	40-60V
Output voltage	12V	12V
Output power/peak power	1300W / 1850W	1300W
Efficiency	97.6% half load, Vin 48V	97.4% half load, Vin 48V
Isolation	1500V	1500V
Release	Q4 2020	Q4 2020

Telecom
Datacom

Picture	Features	Specifications
BMR490 (Non-Isolated DC/DC Converter)
	Industry standard low profile Quarter-brick 58.4 x 36.8 x 14.5 mm (2.30 x 1.45 x 0.57 in) High efficiency, typ. 97.7 % at 51 Vout, half load Input to output non-isolated Baseplate to enhance thermal performance UL 62368 certificated Pin in paste soldering supported MTBF over 6 Million hours	Input voltage range: 40-60 V Output voltage: 12 V Max output current: 139 A Max output power: 1300 W Monotonic start-up Output over voltage protection Over temperature protection Output short-circuit protection
BMR4696001 (PoL Regulator)
	Small Package 25.4 x 14.5 x 5.8 mm (1.00 x 0.57 x 0.23 in) Configurable for either dual or single output 0.6 V- 5 V output voltage range Maximum output current, 25 A per output for dual output or 50 A for single output High efficiency, typ. 94.3% at 12Vin, 5Vout full load Current sharing up to 4 modules, 200 A Control loop with fast load transient response	Configuration support via Flex Power Designer Monotonic soft start up Input under voltage & over voltage protection Output over current & over voltage protection Differential remote sense Remote control & Power Good Output voltage setting via pin-strap or PMBus Over temperature protection
PMU (Low Current PoL)
	Adjustable fixed switching frequency (200 kHz to 1.6 MHz) Synchronization to an external clock Power good (PG) Allows soft start and tracking Loop optimization Cost-efficient solution Fully automated test and production processes Bottom side mounting	Vin: 4.5-17V Vout: 0.6-5.5V Iout max: 6A Pout max: 33W Efficiency: 92.8% @ 12Vin, 3.3Vout, 6A Switching frequency: 200-1600kHz Ripple and noise: 1.8mV @ 3.3 Vout
PKM-D (Direct Converter)
	Industry standard Quarter-brick. 57.9 x 36.8 x 9.35 mm (2.28 x 1.45 x 0.368 in) High efficiency, typ. 93.5% at 12 Vout half load 1500 Vdc input to output isolation Meets isolation requirements equivalent to basic insulation according to IEC/EN/UL 60950-1 More than 3.3 million hours MTBF	Output over voltage protection Over temperature protection Output short-circuit protection Hiccup over current protection as an option Remote control Output voltage adjust function

Product Highlights

Picture	Features	Specifications	Datasheets

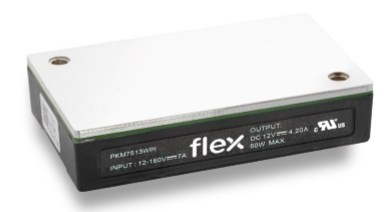

PKM-W (Quarter Brick DC/DC-Converter)
	Ultrawide input range 13:1 Fully encapsulated Output over voltage protection Output over current protection Over temperature protection Meets IEC/EN/UL62368-1 Compliant to EN50155	Vin: 12-160V Vout: 5/12/13,8/15/24/48/54 Iout max: 10A Pout max: 50W Efficiency: 90% Switching frequency: 200kHz Ripple and noise: 100mVp-p

Products

Isolated DC/DC Modules

Digital Converters

Product Series	Products	Specifications
BMR453	BMR4530002/003	Power (W): 198-396 Vin Range (VDC): 36-75 Vout (VDC): 3.3-12.45
	BMR4530002/004
	BMR4530000/002
	BMR4530007/012
	BMR4530000/001
	BMR4530007/014

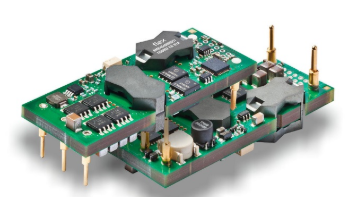

BMR454	BMR454002/003	Power (W): 132-240 Vin Range (VDC): 36-75 Vout (VDC): 3.3-12
	BMR4540002/004
	BMR4540000/002
	BMR4540004/005
	BMR4540000/001

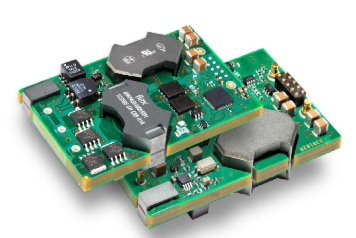

BMR456	BMR4560004/004	Power (W): 315-468 Vin Range (VDC): 36-75 Vout (VDC): 9-12.45
	BMR4560004/001
	BMR4560004/014
	BMR4560000/003
	BMR4560000/002
	BMR4560011/017

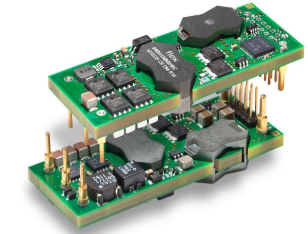

BMR457	BMR4570004/001	Power (W): 261-300 Vin Range (VDC): 36-75 Vout (VDC): 12-12.45
	BMR4570007/014
	BMR457000/002
	BMR4570011/017

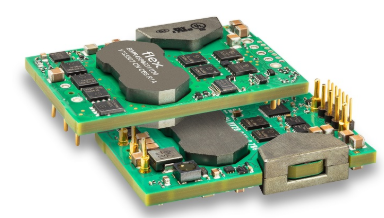

BMR458	BMR4580011/002	Power (W): 900-1000 Vin Range (VDC): 46-60 Vout (VDC): 10.4-12.1
	BMR4580011/017
	BMR4580002/003
	BMR4580002/014
	BMR4580030/004
	BMR4580030/020

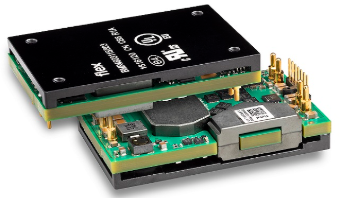

BMR480	BMR4803114/001	Power (W): 900-1300 Vin Range (VDC): 40-60 Vout (VDC): 10.4-12.1
	BMR4800100/001
	BMR4800100/017
	BMR4800102/002
	BMR4800102/032
	BMR4800106/005

Analog Converters

Product Series	Prodducts	Specifications	Datasheets
PKV	PKV3110PI	Power (W): 1.65-3 Vin Range (VDC): 9-72 Vout (VDC): 3.3-15
	PKV3211PI
	PKV3313PI
	PKV3315PI
	PKV3222PI
	PKV3321PI
	PKV3325PI
	PKV5110PI
	PKV5211PI
	PKV5313PI
	PKV5315PI
	PKV5222PI
	PKV5321PI
	PKV5325PI

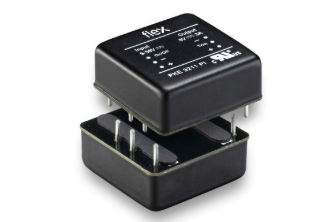

PKE	PKE3210PI	Power (W): 15-30 Vin Range (VDC): 9-75 Vout (VDC): 3.3-54	3000 Series 5000 Series
	PKE3211PI
	PKE3213PI
	PKE3215PI
	PKE3310PI
	PKE3311PI
	PKE3313PI
	PKE3315PI
	PKE3316ZPI
	PKE3316JPI
	PKE3316HPI
	PKE5210PI
	PKE5211PI
	PKE5213PI
	PKE5215PI
	PKE5310PI
	PKE5311PI
	PKE5313PI
	PKE5315PI
	PKE55316ZPI
	PKE5316JPI
	PKE5316HPI
PKE-A	PKE8413API	Power (W): 30-40 Vin Range (VDC): 9-160 Vout (VDC): 5-48	7000 Series 8000 Series
	PKE7311API
	PKE7313API
	PKE7315API
	PKE7316ZAPI
	PKE7316JAPI

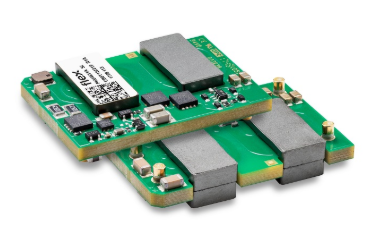

PKU-A	PKU4611ASI	Power (W): 60 Vin Range (VDC): 36-60 Vout (VDC): 5-6
PKU-A	PKU4617VA	Power (W): 60 Vin Range (VDC): 36-60 Vout (VDC): 5-6

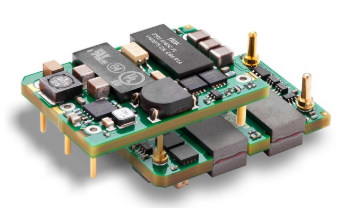

PKU-C	PKU4105CPI	Power (W): 43.2-100 Vin Range (VDC): 28-75 Vout (VDC): 5.0-30
	PKU4106C
	PKU4107CPI
	PKU4813C
	PKU4104CPI
	PKU4815C
	PKU4116C
	PKU4416Z
PKU-E	PKU4517VE	Power (W): 50-66 Vin Range (VDC): 18-75 Vout (VDC): 3.3-12

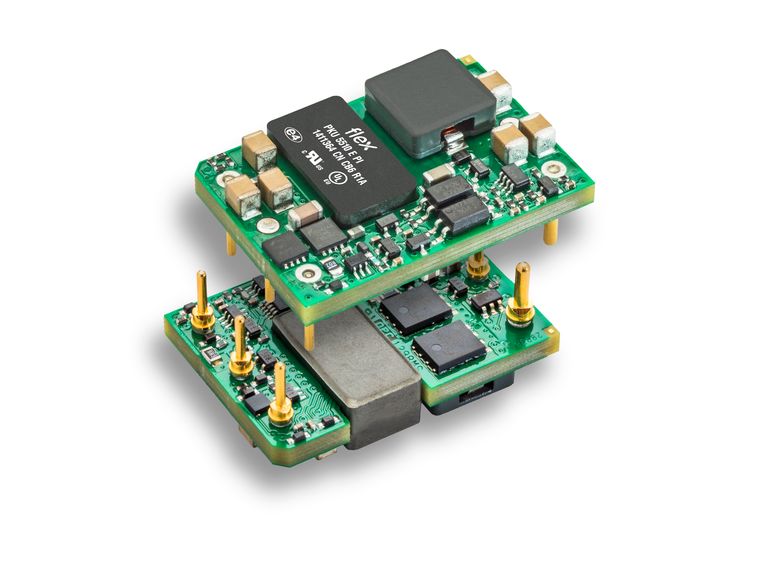

	PKU5510E
	PKU5511E
	PKU5513E
	PKU5517VE
	PKU4610E
	PKU4717E
PKU-S	PKU3510SPI	Power (W): 50 Vin Range (VDC): 9-75 Vout (VDC): 3.3-24	3500 Series 5500 Series
	PKU3511SPI
	PKU3513SPI
	PKU3515SPI
	PKU3516ZSPI
	PKU5510SPI
	PKU5511SPI
	PKU5513SPI
	PKU5515SPI
	PKU5516ZSPI

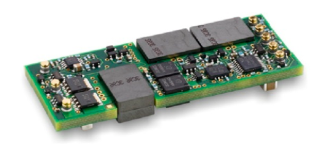

PKB-C	PKB4518NC	Power (W): 50-200 Vin Range (VDC): 36-75 Vout (VDC): 1.0-30	4000 Series 4216 Series
	PKB4718LCPI
	PKB4918HCPI
	PKB4118GCPI
	PKB4110CPI
	PKB4111CPI
	PKB4113CPI
	PKB4216C

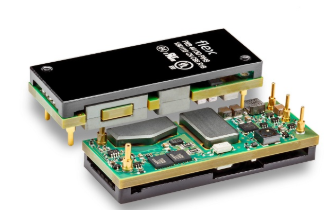

PKB-D	PKB2213D	Power (W): 132-450 Vin Range (VDC): 18-75 Vout (VDC): 3.3-50
	PKB4110D
	PKB4111D
	PKB4211D
	PKB4210DA
	PKB4211DA
	PKB4217ND
	PKB4213D
	PKB4313D
	PKB4313DA
	PKB4413DA
	PKB4413D
	PKB4216HD

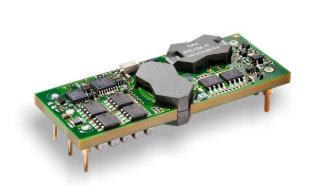

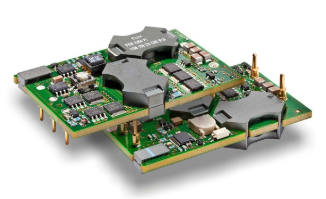

PKB-F	PKB4204	Power (W): 240 Vin Range (VDC): 40-75 Vout (VDC): 12

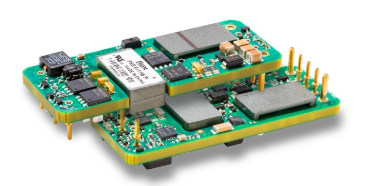

PKB-W	PKB5110WPI	Power (W): 99-120 Vin Range (VDC): 18-75 Vout (VDC): 3.3-12
	PKB5111WPI
	PKB5113WPI

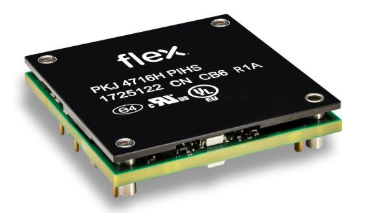

PKJ	PKJ4716APIHS	Power (W): 700 Vin Range (VDC): 36-75 Vout (VDC): 28-50
PKJ	PKJ4716HPIHS	Power (W): 700 Vin Range (VDC): 36-75 Vout (VDC): 28-50

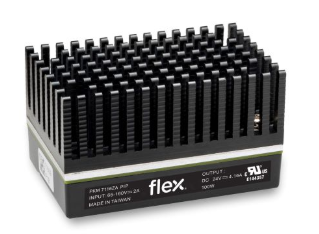

PKM-A	PKM7111APIP	Power (W): 100-150 Vin Range (VDC): 66-160 Vout (VDC): 5-48
	PKM7113APIP
	PKM7115APIP
	PKM7116ZAPIP
	PKM7116JAPIP
	PKM7213APIP
	PKM7215APIP
	PKM7216ZAPIP
PKM	PKM4304	Power (W): 396 Vin Range (VDC): 40-75 Vout (VDC): 12

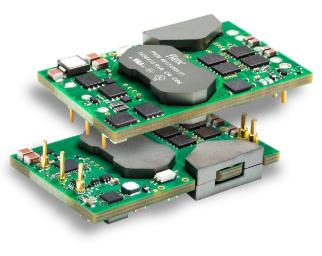

PKM-NH	PKM4717NH	Power (W): 580-864 Vin Range (VDC): 36-75 Vout (VDC): 10.8-12
	PKM4717BNH
	PKM4817NH
	PKM4817LNH
	PKM4713NH
	PKM4613ANH
	PKM4613NH

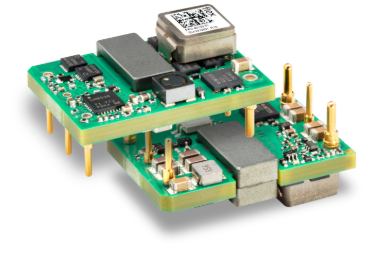

PKU-D	PKU4110D	Power (W): 110-260 Vin Range (VDC): 36-75 Vout (VDC): 3.3-12
	PKU4111D
	PKU4113D
	PKU4213D
	PKU4217D

Non-isolated DC/DC modules

Digital Converters

Product Series	Picture	Products	Specifications	Datasheets	Overview
BMR490		BMR490XX17/820	Power (W): 1300 Vin Range (VDC): 40-60 Vout (VDC): 12 Iout (A): 139 Eff.: 98% Size (mm): 58.4x36.8x14.5 Mount: TH
BMR490		VMR490XX18/033

Digital Point of Load

Product Series	Products	Specifications

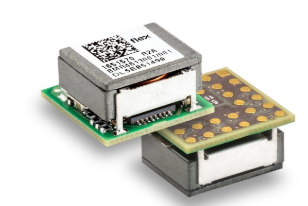

BMR461	BMR4612001	Iout (A): 6-18 Vin Range (VDC): 4.5-14 Vout Range (VDC): 0.6-5.0
	BMR4613001
	BMR4614001
BMR462	BMR462x002	Iout (A): 12 Vin Range (VDC): 4.5-14 Vout Range (VDC): 0.6-5.0
BMR463	BMR463x002	Iout (A): 20-25 Vin Range (VDC): 4.5-14 Vout Range (VDC): 0.6-3.3
	BMR463x006
	BMR463x008

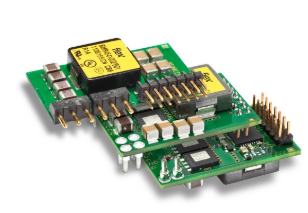

BMR464	BMR464x002	Iout (A): 40-50 Vin Range (VDC): 4.5-14 Vout Range (VDC): 0.6-3.3
BMR464	BMR464x008

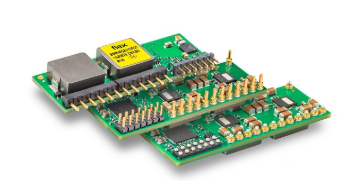

BMR465	BMR465x010	Iout (A): 90 Vin Range (VDC): 7.5-14 Vout Range (VDC): 0.6-1.8

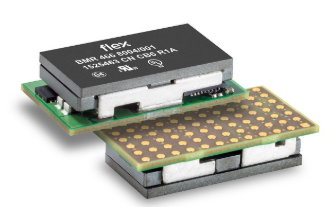

BMR466	BMR4668004	Iout (A): 60 Vin Range (VDC): 4.5-14 Vout Range (VDC): 0.6-1.8
BMR467	BMR467x010	Iout (A): 120 Vin Range (VDC): 7.5-14 Vout Range (VDC): 0.6-1.8

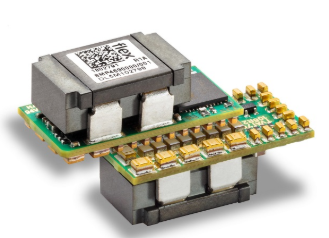

BMR469	BMR4690000	Iout (A): 40/40 or 80 Vin Range (VDC): 7.5-14 Vout Range (VDC): 0.6-5

Analog Point of Load

Product Series	Products	Specifications
PMD	PMD41180	Iout (A): 2.25-3 Vin Range (VDC): 3-14 Vout Range (VDC): 0.9-5.5
PMD	PMD51180
PME	PME4118V	Iout (A): 6 Vin Range (VDC): 2.95-13.2 Vout Range (VDC): 0.55-5.5
	PME4118T
	PME5118V
	PME5218T
	PME8118V
	PME8118T
	PME8318L
PMF	PMF4218T	Iout (A): 10 Vin Range (VDC): 2.95-13.2 Vout Range (VDC): 0.8-5.5
	PMF5318T
	PMF8218T
	PMF8618L
PMG	PMG4318T	Iout (A): 12-15 Vin Range (VDC): 2.95-13.2 Vout Range (VDC): 0.8-5.5
	PMG5518T
	PMG8218T
	PMG8618L
PMH	PMH4518T	Iout (A): 18-22 Vin Range (VDC): 2.95-13.2 Vout Range (VDC): 0.8-5.5
	PMH5718T
	PMH8318T
	PMH8918L
PMJ	PMJ4718T	Iout (A): 26-30 Vin Range (VDC): 2.95-13.2 Vout Range (VDC): 0.8-5.5
	PMJ5918T
	PMJ8418T
	PMJ8118L

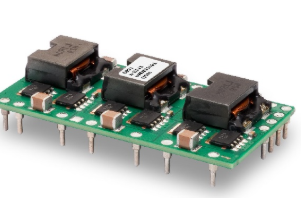

PMM	PMM4218T	Iout (A): 50-60 Vin Range (VDC): 2.95-14 Vout Range (VDC): 0.8-2.5
PMM	PMM8218T

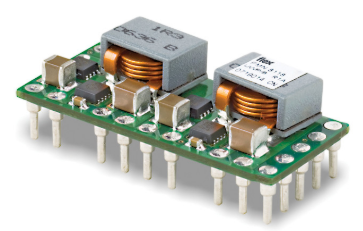

PMN	PMN5118U	Iout (A): 30 Vin Range (VDC): 4.5-14 Vout Range (VDC): 0.7-3.6
PMN	PMN8118UW

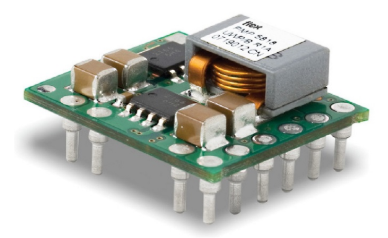

PMP	PMP5818UW	Iout (A): 16 Vin Range (VDC): 4.5-14 Vout Range (VDC): 0.7-5.5
PMR	PMR5118UW	Iout (A): 40-50 Vin Range (VDC): 4.5-14 Vout Range (VDC): 0.7-5.25
PMR	PMR8210
PMT	PMT8318VS	Iout (A): 6 Vin Range (VDC): 4.5-14 Vout Range (VDC): 0.8-5.5
PMU	PMU8318	Iout (A): 4-8 Vin Range (VDC): 4.5-17 Vout Range (VDC): 0.6-5.5

Direct Conversion Modules

Product Series	Picture	Products	Specifications	Datasheets	Overview

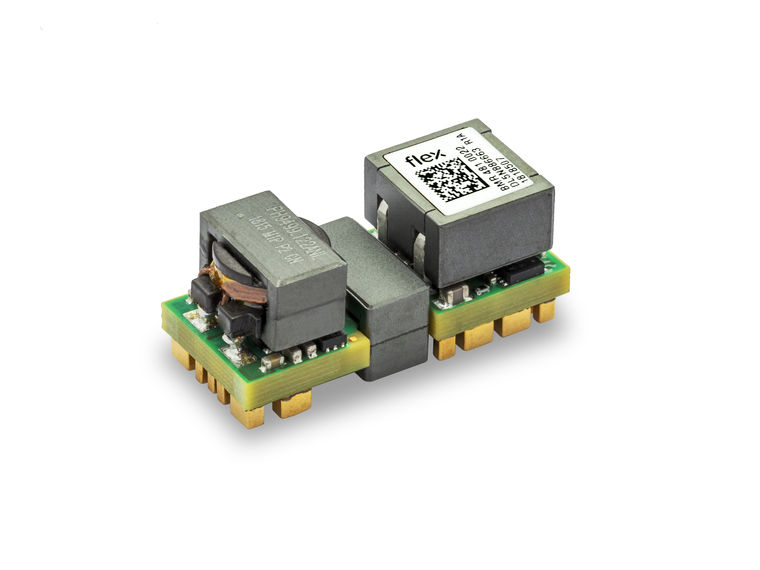

BMR481		BMR4810022	Vin (VDC): 40-60 Vout (VDC): 0.5-1.35 Pout: 70W Iout: 70A Eff.: 92%
BMR481		BMR4810021/002

Power Interface Modules

Product Series	Products	Specifications
PIM4006	PIM4106SD	Power (W): 100-400 Iout (A): 2.56-10.3 Vin Range (VDC): 36-60
	PIM4206SD
	PIM4306SD
	PIM4406SD
PIM4820	PIM4820	Power (W): 960-1080 Iout (A): 16.5-20 or 5 Vin Range (VDC): 36-75
PIM4328	PIM4328P	Power (W): 390-540 Iout (A): 10-12 / 3.6 / 0.15 Vin Range (VDC): 36-75
PIM4328	PIM4328PD/PDA

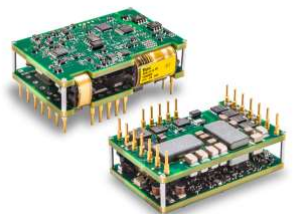

PIM4010	PIM4610	Power (W): 600-780 Iout (A): 16-20 / 3.6-7 Vin Range (VDC): 36-75
PIM4010	PIM4710

DC/DC for RF/Microwave Power Amplifier

Product Series	Products	Specifications

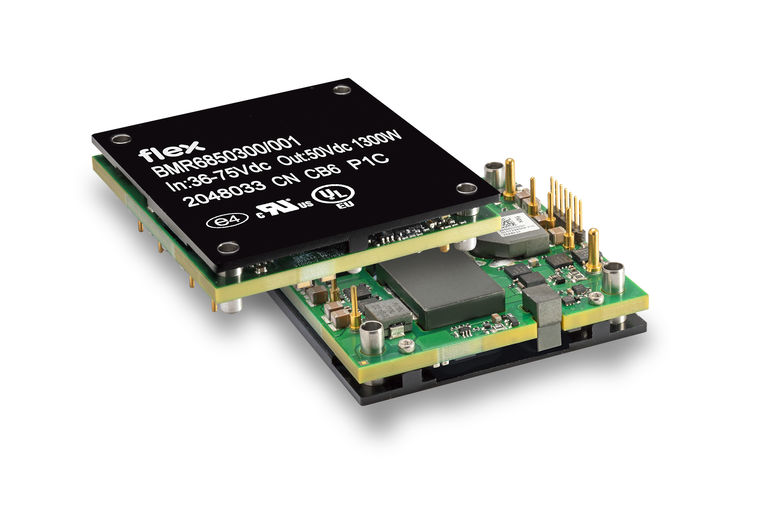

BMR685	BMR685X300/001	Power (W): 1300 Iout (A): 26 Vin Range (VDC): 36-75 Vout Range (VDC): 25-55
BMR685	BMR685X301/001
PKJ4000	PKJ4716A	Power (W): 700 Iout (A): 25 Vin Range (VDC): 36-75 Vout Range (VDC): 14-35

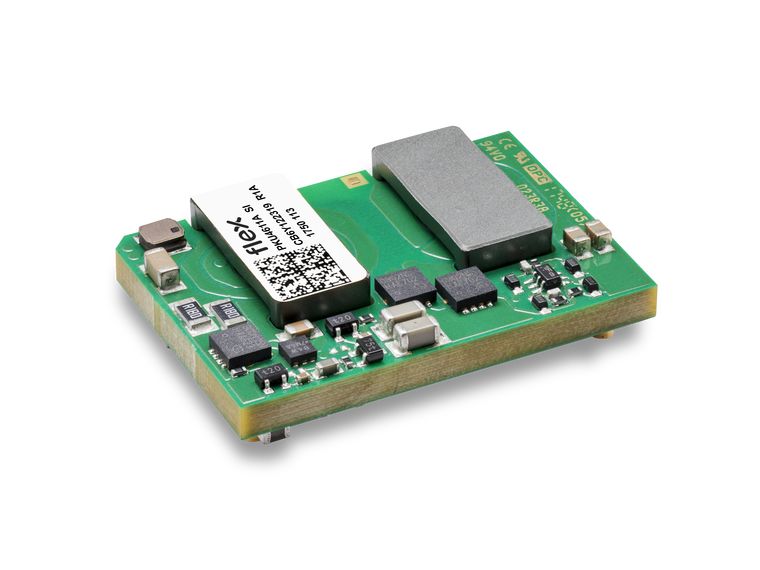

PKU-A	PKU4611A	Power (W): 60 Iout (A): 12 Vin Range (VDC): 36-60 Vout Range (VDC): 5-6
PKU-E	PKU4517VE	Power (W): 50 Iout (A): 9 Vin Range (VDC): 18-60 Vout Range (VDC): 5-6

Applications

Applications-Areas	Applications	Products
	Routers Switches Servers Base station equipment Optical networks Session border controllers Gateways Other Networking devices	Wide portfolio of Isolated or Non-Isolated DC/DC solutions delivering op to 700W or 360A respectively: Isolated DC/DC modules Digital converters Analog converters Non-isolated DC/DC modules Digital point of load Analog point of load Direct conversion modules Power interface modules
	Wireless base stations Distributed antenna systems Remote radio heads Microwave backhaul systems Power over ethernet (bulk power at ~50V)	Wide portfolio of DC/DC products up to 700W: Isolated DC/DC modules Digital converters(BMR683X300/200) Analog converters
	AI Deep learning Autonomous vehicles Cloud computing IoT	Multitude ode Isolated and Non-Isolated DC/DC solutions up to 7.5kW or 420A respectively to maximize system efficiency and hence minimize power dissipation: Isolated DC/DC modules Digital converters Analog converters Non-isolated DC/DC modules Digital converters Digital point of load Analog point of load Direct conversion modules Power interface modules
	High reliabilities Rugged designs	Covers a huge range of applications typically requiring DC/DC solutions from 5V, 12V and 24V supplies: Isolated DC/DC modules Analog converters Non-isolated DC/DC modules Digital point of load Analog point of load
	Railway Buses Trams Other Forms of mass public transport Demand for safety Passenger information Comfort & entertainment	Wide and growing range of DC/DC solutions delivering up to 300W: Isolated DC/DC modules Analog converters Non-isolated DC/DC modules Digital point of load Analog point of load
