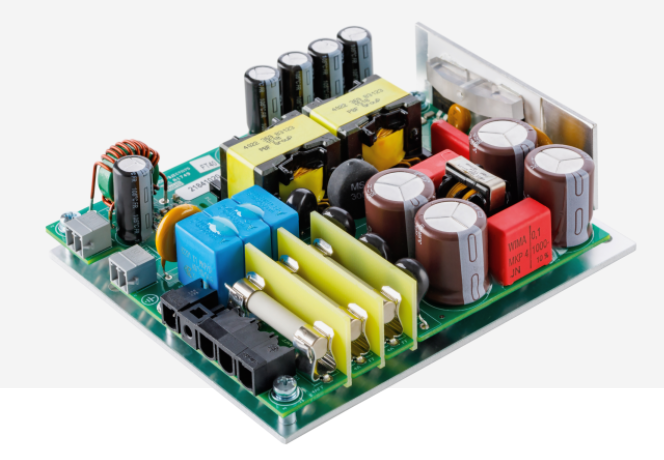

• Nominal input voltage: 180 … 550 Vac, 47/63 Hz
• Output voltage: 24 V
• Universal mains
• 24 V / 120 W power supply
• Universal mains, 3-phase (no neutral)
• Base plate-cooled
• Ideal as an auxiliary power supply
• 120 x 100 x 32 mm
• UL/CSA

• Nominal input voltage: 180 ... 550Vac, 47/63 Hz
• Output voltage: 24V
• Ripple and noise: < 50 mVpp
• Line regulation: < 0,1%
• Load regulation: < 1%
• Total output power: 120W
• Efficiency: 80%
• Operating temp. range: Air: 0 ... +70°C, Base plate: 0 ... +55°C
• MTBF: 600.000 Hrs. (35°C, GB)

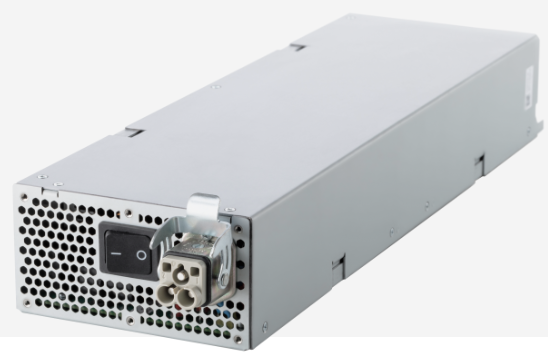

• Nominal input voltage: 90 V … 264 Vac, 50/60 Hz
• Output voltage: 5 … 40 Vdc (programmable, V and I mode)
• Total output power: 2400 W at 40 Vdc
• DC and pulsed applications
• Safety: EN/UL/CSA/61010
• Universal mains
• Current sharing
• Up to 2 units in parallel
• Fan-cooled

• Nominal input voltage: 90 ... 264Vac, 50/60 Hz
• Output voltage: 50 ... 40Vdc (programmable, V and I mode)
• Ripple and noise: < 50 mVpp
• Line regulation: < 0,1%
• Load regulation: < 1%
• Total output power: 2400W at 40Vdc
• Efficiency: 93%
• Operating temp. range: 0 ... +50°C
• MTBF: 300.000 Hrs. (35°C, GB)

• Nominal input voltage: 180 V … 528 Vac, 3 phase, 50/60 Hz
• Output voltage: 5 … 52 Vdc (programmable, V and I mode)
• Safety: EN/UL/CSA 61010
• Base plate-cooled
• DC and pulsed applications
• 3-phase universal mains (no neutral)
• Current sharing, up to 6 units in parallel
• Special design to handle any kind of pulsed load

• Nominal input voltage: 180V ... 528Vac, 50/60 Hz
• Output voltage: 5 ... 52Vdc (programmable, V and I mode)
• Ripple and noise: < 50 mVpp
• Line regulation: < 0,1%
• Load regulation: < 1%
• Total output power: 3800W
• Efficiency: 93%
• Operating temp. range: Baseplate: 5 ... +35°C, Ambient: 0 ... +50°C
• MTBF: 300.000 Hrs. (35°C, GB)

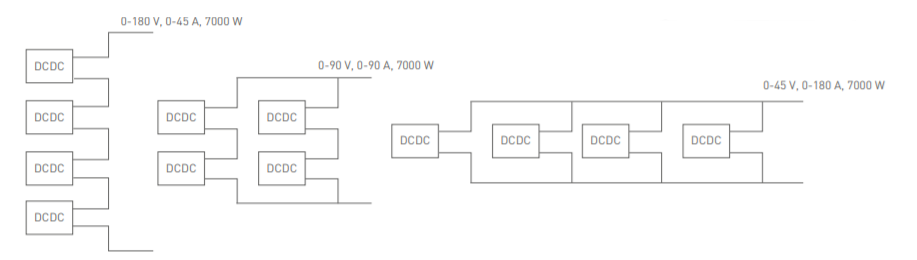

• Up to 21 kW / unit

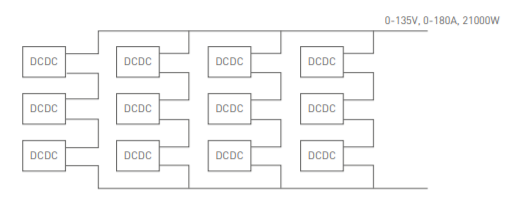

• Parallel operation for higher output power
• for DC and pulsed application
• Water-cooled
• Machinery Directive-compliant – 2016/42/EC

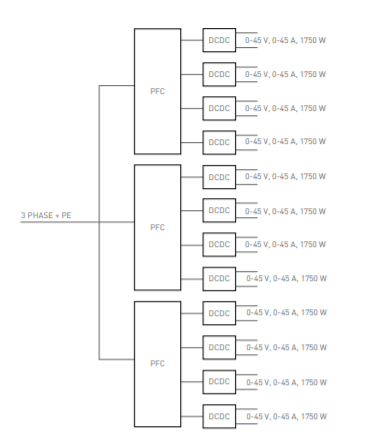

• up to 12 channels current/voltage source
• Analogue/digital interface
• Class 3 safety interlock / ISO13849-1 class d
• CB + UL/CSA certified
• Compact design – 19”/3U

• Nominal input voltage: 360V ... 528Vac, 3 phase, 50/60 Hz
• Output voltage: 2,5 ... 45V / 5 ... 90V / 7,5 ... 135V / 10 ... 180V / 15 ... 270V
• Output current: 540A / 270A / 180A / 135A / 90A
• Ripple and noise: < 100 mArms
• Line regulation: < 0,1%
• Load regulation: < 1%
• Total output power: 7kW / 14kW / 21kW
• Efficiency: 93%
• MTBF: 250.000 Hrs. (35°C, GB)

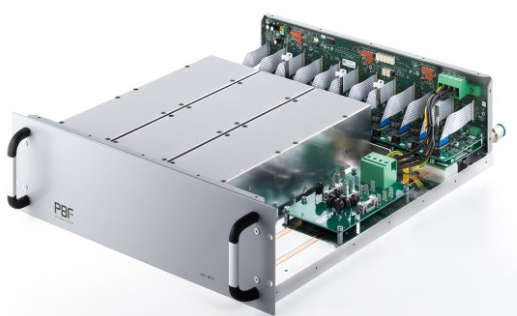

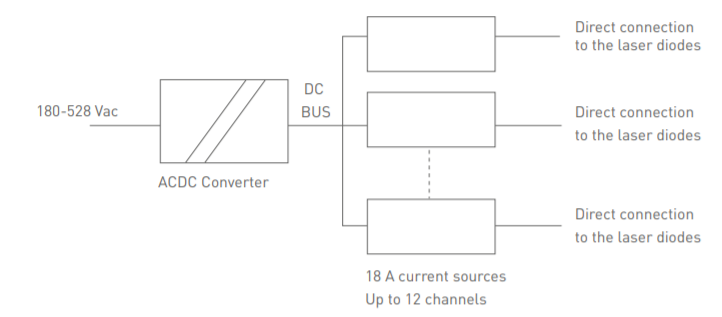

• New standard in laser power systems. Compactly and effectively designed especially for the dynamic behaviour in laser systems
• The PBF LASY provides up to 10.8 kW of electrical power
• The complete solution can drive up to 12 laser diode strings for 3000 W of optical power
• The water-cooled system can be directly connected to universal mains, and can drive almost any fiber laser
• For example, with 2 laser diodes of 190 W in series, it is possible to drive 24 fiber lasers 0 – 50 V
• It is a modular system and can be configured on from 1 to 12 channels
• It is a cost-effective solution for laser systems in the range of 500 W to 3000 W of optical power
• The fail-safe interlock system is compatible with the required emergency systems and guarantees operator safety
• LASY is CSA certified as a Safety Component under the EU Machinery Directive and supports PL e safety systems

• Nominal input voltage: 180V ... 528Vac, 3 phase, 50/60 Hz
• Output current: 18A per channel
• Output voltage: 5 ... 50Vdc
• Number of channels: 4, 8 or 12
• Rise/fall time: <50us
• Dimensions: 3HE, 19"
• Cooling type: Water cooling (integrated)
• Safety Interlock: ISO 13849-1/Category 5, PLe

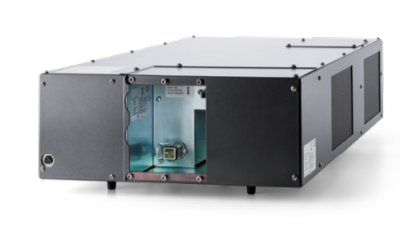

• Input Voltage: 180 ... 440 Vac, 3 Ph, 47 ... 63Hz
• Efficiency > 88%
• Power Factor: > 0,85

• Output voltage(Programmable): 15 ... 26kV
• Load capacity: 30 ... 180nF
• Load repetition rate: 0 ... 400Hz
• Power output: 4000 Joules/sec (20kW peak)
• Output voltage repeatability: ± 0,11%
• Output voltage accuracy: < 1% of set-point

• Operating temp. range: +15 … +35°C
• MTBF: 50.000 Hrs. (35°C, GB)
• Protections: Over-voltage, Over-temperature, Short-Circuit, No-Load, dual channel remote interlock
• Safety: EN61010
• EMC: IEC61000-6-1/2/3/4
• Dimensions WxDxH: 700x440x170mm
• Cooling: Forced air cooling

• Nominal input voltage: 360V ... 510Vac, 3 phase, 47 … 63Hz
• Hold up time: 20ms
• Inrush current: < 25A

• Output voltage: 380Vdc ± 10V
• Output Current: 0 ... 21A
• Load regulation: < 2.0%
• Ripple: < 5.0Vpp

• Operating temp. range: +5 … +40°C (Baseplate temp.: +5 … +30°C)
• Protections: Over-current, Over-temperature, Over-voltage
• MTBF: 300.000 Hrs. (25°C, GB)
• Safety: EN50178
• EMC: EN61010-6-2, EN61000-6-4
• Dimensions WxDxH: 120x350x125mm
• Cooling: Water

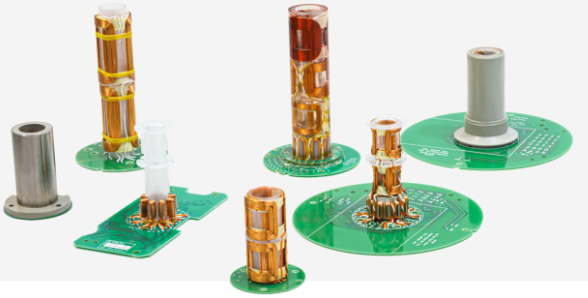

• Single and multilayer orthocyclic winding
• under vacuum potting
• Automated testing
• Optimal price performance for series production

• Orthocyclic winding with a high fill factor (>95%)
• Coil winding with one, two or more wires in parallel
• Single and multi-layer
• Many different shapes
• Outside dimensions 1 – 600 mm
• Wire size 0.04 – 3 mm
• Round, square or rectangular wire
• Bending of coils into various shapes

• Under vacuum potting
• With or without housing
• Epoxy, polyurethane materials
• Design casting tools

Laser

• Powering your laser innovations
• Complete solution from mains to laser diode up to 160 kW
• Certified safety interlock
• Modular and scalable solution
• Water and fan-cooled solution

Analytical

• Current sources
• Ultra-low ripple
• High efficiency
• Certified safety interlock
• High-voltage ion getter pump supply

Semiconductor

• Ultra-low ripple
• Certified safety interlock
• Compliance with SEMI F47
• High efficiency
• High-voltage ion getter pump supply
