About Port

• Founded in May 1990 as an independent company in Halle/Saale, Germany
• Since then port can refer to a prosperous business development.
• Services in the area of industrial communications especially for CAN, CANopen, PROFINET, Ethernet/IP, EtherCAT and Ethernet POWERLINK
• Besides their high-performance standard products, they develop customized, client-specific fieldbus-oriented solutionst meet clients demands
• Independent system integrator and use, wherever possible, open standards
• To meet the high quality requirements on the products and services and to guarantee this quality for their clients port works with a process management system
• Port is certified since 1999 to ISO 9001:2008

Product Highlights

System on Module

Version	Picture	Description	Functions	Benefits	Links

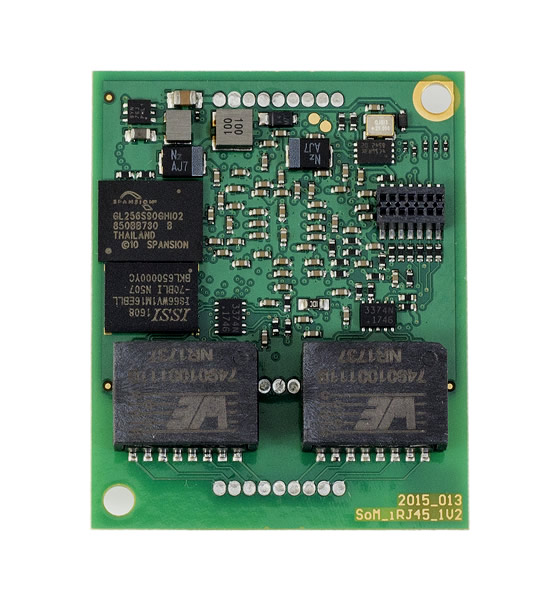

SoM IoT Based on RENESAS RIN32M3		Based on a RIN32M3EC CPU in combination with GOAL technology from PORT, this SoM offers PROFINET, EtherNetIP, EtherCAT on board.	Complete dual Ethernet interface compliant to IEEE 802.3 including transformers and PHYs Embedded 2-port Ethernet switch for bus and ring network topologies High speed SPI interface and power pins to connect the module to the host CPU Integrated processor to handle real-time industrial Ethernet protocols All Protocols on board available Support of PROFINET RT (incl. MRP) , EtherNetIP (incl. DLR), EtherCAT real-time communication standards Ethernet ports supporting 10 Mbit/s and 100 Mbit/s with auto negotiation Device configuration via “Management Tool” and API through application controller	Cost effectiv Easy to integrate One module for all market leading real-time communication systems Open interfaces for more flexibly in the connector area Works with RJ45, M12, M8 or MiniIO Extensive tool offer for management and integration makes the design very efficient integrated update service	Coming Soon Presentation

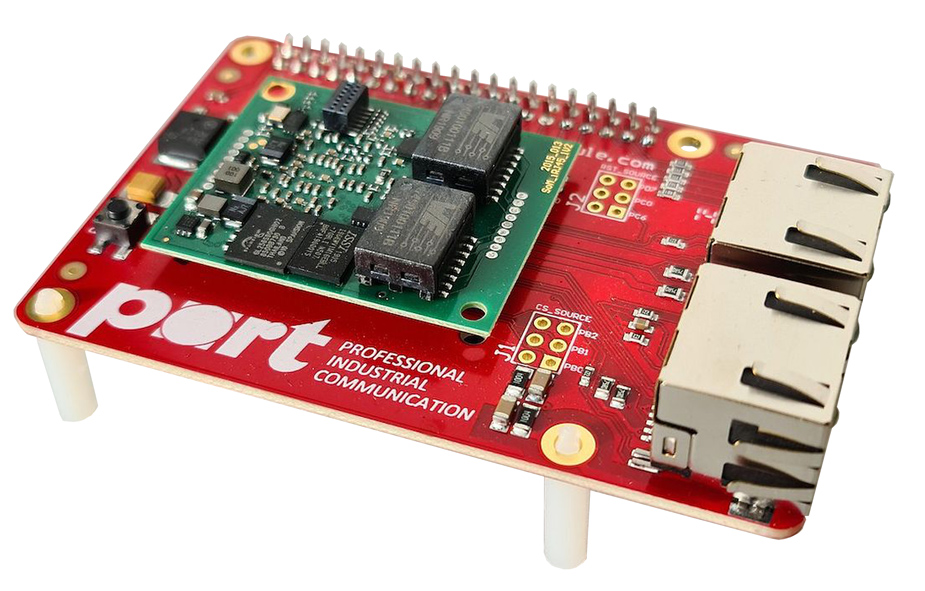

SoM IoT Raspberry PI		Integrated Raspberry PI into networks such as PROFINET, EtherNetIP and EtherCAT - no problem with the Raspberry PI expansion board from port

Products

CANopen

Concept	Software	Device-Solutions	Datasheets
Implementations are available for various processors from 8 bits to 32 bits, Little or Big Endian data item adjustment and all usual CAN controllers. This advantage is used in particular by customers with applications, which use the same source code or the same programming interface in different systems. They would also like to allow the option of a portation to other systems in the future.	ANSI-C CANopen Library ANSI-C CANopen Driver Package CANopen Modules and Profiles CANopen Mini Bootloader PAULUS m4d - The CANopen Gateway Server youCAN Linux CAN can4linux / CANopen Driver Device Driver für VxWorks	CAN - USB Interfaces CAN - PCI / PCI Express CAN / CANopen Gateways ISA Media - Converter

J1939

Overview	Features	Scope of Delivery	Datasheets
The J1939 Protocol Stack (in ANSI-C) is a complete implementation of the SAE J1939 protocol. By providing all communication mechanisms defined in the SAE J1939 specification the stack allows the developer to focus solely on the implementation of the application.	Transmission and reception of application-specific messages Pre-filtering of messages according to PGN and source address Support for the transport protocols TP-BAM and TP-CM to transmit larger blocks of data Parallel communication with several consumers Support of "Address Claiming" for dynamic address assignment	J1939 Protocol Stack with separate driver interface CPU/CAN driver Numerous, immediately compilable examples Reference manual containing descriptions of all API functions, including parameters and return values Support by E-Mail and update service free of charge within the support period

PROFINET

Description	Software	Overview	Datasheets
PROFINET is realtime-enabled. It uses IT standards like TCP/IP and makes an integration fieldbus systems possible. PROFINET was standardized by the IEC specifications IEC 61158 and IEC 61784.	PROFINET Software Product	Extrem low ressource requirements Can be operated w/o OS as well as with an OS Easy porting to other platforms Use of a central callback function	Coming Soon
	PROFINET Driver´s	Driver for STM32F Driver TI SITARA AM335x RENESAS RX6xx Driver

EtherNet/IP

Description	Software	Overview	Datasheets
EtherNet/IP is an industrial Ethernet protocol that implements the Common Industrial Protocol (CIP) over Ethernet in combination with the standard protocols IP, TCP and UDP.	EtherNet/IP - Stack GOAL	Encapsulation Protocol CIP Object Model CIP Messages CIP Connections	Coming Soon
	DLR (Device Level Ring)	Network technology for high network availability in a ring topology in industrial applications Primarily used for EtherNet/IP end devices that have two Ethernet ports and embedded switch technology When DLR detects a break in the ring, it provides alternate routing of the data to help recover the network at extremely fast rates Due to short recovery times machines often continue operating without interruptions

EtherCAT

Description	Software	Overview	Datasheets
EtherCAT - Ethernet for Control Automation Technology - is an open high performance Ethernet-based fieldbus system (based on IEC-Standard IEC61158).	EtherCAT Protocol Stack	Provides the most importand services Completely written in ANSI-C and can be compiled with every ANSI-C compliant compiler The standard version of the EtherCAT Library all services are provided for development of full-featured EtherCAT Slave devices
	EtherCAT Driver´s	Driver for SITARA AM335x Driver for STM32F

CC-Link IE

Category	Description	Datasheets
CC-Link IE TSN Stack	Industrial Ethernet with 1 Gbit/s or 100 Mbit/s bandwidth and Time Sensitive Networking (TSN) Allowing transmission of deterministic real-time traffic and standard Ethernet traffic (Webserver, FTP, SNMP, etc. …) over the same network Realized with standard components CC-Link IE TSN (shop floor) Can be integrated into higher level IT networks (office floor, e.g. ERP) to realize Smart Factories (Industrie 4.0) CC-Link IE TSN uses IEEE 802.AS for time synchronization and IEEE 802.1Qbv for scheduling	Coming Soon
CC-Link IE Field Basic	Possible to setup a slave occupying 1 to 16 stations Each station can be interpreted as a physical or virtual participant of the CCLIEFB network To each of the stations there is a fixed amount of I/O data with fixed size, called Link Devices The CSP Plus file is the device description needed by a PLC to identify and to communication with a device

Ethernet Powerlink

Concept	Software	Overview	Datasheets
Up to 240 devices in one POWERLINK network line POWERLINK Manager: 240 TX-PDO, 240 RX-PDO PDO Mapping with up to 254 objects Maximum size of a PDO is 1490 bytes Every device can communicate with every other one via SDO Error messages with detailed error information Standard Boot-Up behavior and configuration manager are define	POWERLINK Library	Universal ANSI-C conform and hardware independent software library for the Ethernet POWERLINK protocol
	POWERLINK Driver	Driver for STM32F Driver for SITARA AM335x

GOAL - Middleware

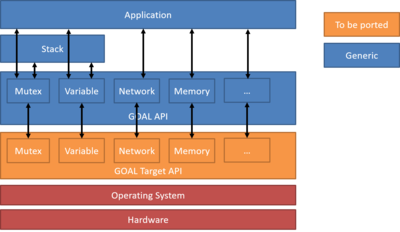

Structure	Benefits	Components	Datasheets
	Communication Middleware for Industrial Networking more than a HAL / connector to IoT / Industrie 4.0 application powerful socket for protocols like PROFINET, EtherNet/IP, EtherCAT, CANopen powerful services around networking, Timer, Memory Management, Flash, ….	MCU/CPU capabilities (PN IRT / RT) Switch Management vs. Single Port Protocols as needed Information / Data / Variables Management Connecting to upper Layers via IP OPC-UA and many more	Coming Soon

Applications

MCU	Picture	Application

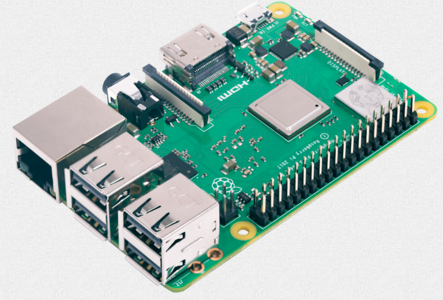

Raspberry PI		With the GOAL solution, the Raspberry PI is "ready for" PROFINET and EtherNetIP communication. PROFINET CC-B - slave EtherNetIP slave 1 port variant No MRP or DLR possible Conforms to the current certification tests of the PNO and the ODVA
NXP Layerscape LS1028		Designed for industrial and automotive applications It includes a Time Sensitive Network (TSN) enabled Ethernet switch and Ethernet controller to support convergent IT and OT networks
STM32F		The versatile range of this 32-bit MCU excels in: Performance Real-time behaviour DSP functions as well as With low-power and low-voltage requirements
AM335x		Connected Vending Machines Home/ Building Automation Consumer Electronics
GOAL - RZN		GOAL is configured in it‘s Building Blocks to address: MCU/CPU capabilities Switch Management vs. Single Port Protocols as needed Information / Data / Variables Management Connecting to upper Layers via TCP/IP, OPC-UA and many more

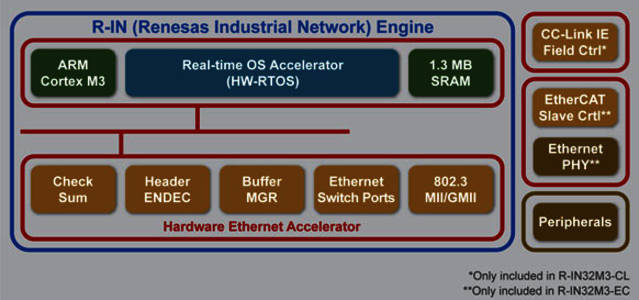

Renesas R-IN32M3		The following communication technologies are available for the R-IN: PROFINET CANopen Ethernet / IP EtherCAT CC-LINK IE (on request)
Renesas RX63N		The following communication technologies are available for the RX63N/RX631: PROFINET CANopen Ethernet / IP EtherCAT POWERLINK
Renesas RX64M		PORT and RENESAS offer complete support for all market-leading "industrial Ethernet protocols" like: PROFINET EtherNetIP including the fieldbus CANopen
Renesas RL78		The series provides: CPUs for General Purpose LCD ASSP Illumination Automotive The RL78 family is best suitable for use in Ultra Low Power systems and enables the user to build compact and energy efficent systems.

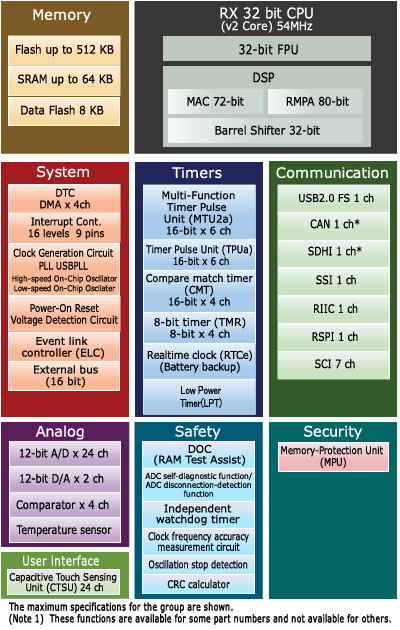

Renesas RX231		The following Applications are ideally suited for the RX231 familys: Healthcare Medical Office automation Smart Meter Building and Home automation Industrial Controller & Sensor Home appliances
