About UDINFO

Location: Taiwan
Certifications:ISO9001, AS9100 Rev C

Merged with Afaya Memory business (Most I&T) in 2014
UDinfo continues Afaya’s more than one decade know-how, products, technologies and services
Besides Afaya original background, UDinfo brings new investors with IC design, Firmware modification and system innovation capabilities
To customize solutions is the biggest niche for UDinfo

pSLC (pseudo-SLC) has mentioned in NAND flash makers
It has 10 times better life with MLC and much low-cost and high-capacity than SLC
UDinfo is providing the complete series of pSLC product lines, including

CF
IDE
SD/uSD
USB
SATA

UDinfo also has our own supply chain, including controller, production lines, fixed BOM and firmware version, which can guarantee quality assurance and supply longevity

UDinfo keeps “Service, Value and Integrity” as our slogan and promises to customers. We will bring stable-supply storage products and new technologies for industrial applications and embedded systems..

New Products

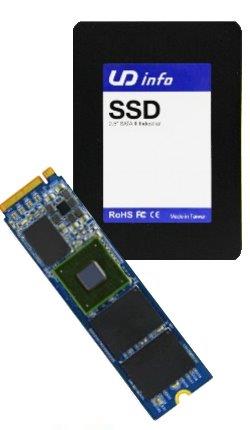

FIPS 140-2 SSD

Picture	Features	Links
	UD info Flash memory products which can correspond FIPS US government standard. (Federal Information Process Standard) Applied on, 2.5” SATA SSD, M.2 SATA 2280 & M.2 NVMe 2280 products Security Label is performed on 2.5” SATA SSD Conformal Coating is implement on M.2 SATA 2280 & M.2 NVMe 2280 SSD	Company Profile Product Catalog

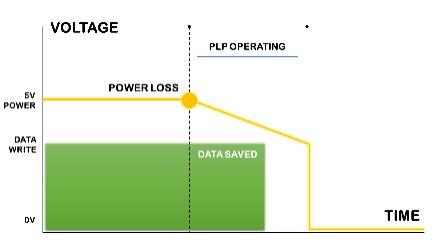

Valued PLP (Power Loss Protection) Solutions


Description

Features

Products

Links

No external DRAM
No need to Pump Up to High Voltage
Exclusive FW with great performance

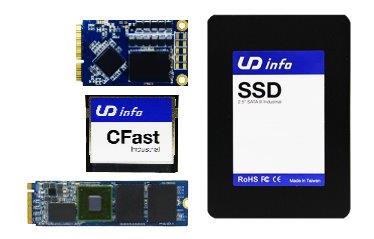

2.5” SATA	mSATA	CFAST	M.2 SATA 2280
Up to 2TB	Up to 1TB	Up to 512GB	Up to 2TB
0 ~ 70 c & -40 ~85 c
3DTLC & 3D pSLC are avaliable
READY	READY	READY	Q1, 21’

Company Profile

Product Catalog

Products

PCIe

Products	Model Name	NAND	Capacity	Performance (Seq Read/Write)MB/s	Operating Temp.
2,5 inch PCIe SSD	PFD-25UB	3D TLC	480GB to 7680GB	3400/3000	0°C ~ 70°C
2,5 inch PCIe SSD	PFD-25DC	3DTLC	480GB to 7680GB	3200/1100	0°C ~ 70°C -45°C ~ 85°C
M.2 2280 PCIE SSD	M2P-80UB	3D TLC	240GB to 1920GB	3400/3000	0°C ~ 70°C
	M2P-80UF	3D TLC	32GB to 512GB	1600/1000	0°C ~ 70°C -45°C ~ 85°C
	M2P-80DC	3D TLC	240GB to 1920GB	3000/1000	0°C ~ 70°C -40°C ~85°C
	M2P-80DE	3D TLC	128GB to 2TB	2500/2100	0°C ~ 70°C -40°C ~ 85°C
M.2 2242 PCIe SSD	M2P-42UF	3D TLC	32GB to 512GB	1550/950	0°C ~ 70°C -45°C ~ 85°C
M.2 2242 PCIe SSD	M2P-42DE	3D TLC	120/128GB to 1920GB/2TB	2500/1200	0°C ~ 70°C -45°C ~ 85°C
M.2 22110 PCIe SSD	M2P-10DC	3D TLC	3840GB	3200/850	0°C ~ 70°C -40°C ~ 85°C
CF Express PCIe SSD	CFX-21DE	3D TLC	128GB to 1TB	1700/1550	0°C ~ 70°C -45°C ~ 85°C

SATA

Products	Model Name	NAND	Capacity (3D TLC)	Channels	Operating Temp.
2,5 inch SATA SSD	HF3-25US	SLC, MLC, pSLC	32GB to 256GB (SLC)	4	0°C ~ 70°C -40°C ~ 85°C
	HF3-25UB	SLC, MLC, pSLC, 3D TLC	32GB to 1TB	2	0°C ~ 70°C -40°C ~ 85°C
	HF3-25UF	3D TLC	120GB to 1920GB	8	0°C ~ 70°C
	HF3-25DC	3D TLC	120GB to 7680GB	8	-40°C ~ 85°C
MSATA(MO-300)	MHD-52UB	SLC, MLC, pSLC, 3D TLC	32GB to 1 TB	2	0°C ~ 70°C -40°C ~ 85°C
	MHD-52US	SLC, MLC, pSLC	4GB to 64GB (SLC)	4	0°C ~ 70°C -40°C ~ 85°C
	MHD-52AC	3D TLC	60GB to 960GB	4	0°C ~ 70°C -40°C ~ 85°C
CFast	CFS-24UB	SLC, MLC, pSLC, 3D TLC, 3D pSLC	64GB to 512GB	2	0°C ~ 70°C -40°C ~ 85°C
1,8 inch SATA SSD	M18-16UK	SLC, MLC, pSLC, 3D TLC, 3D pSLC	64GB to 1TB	2	0°C ~ 70°C -40°C ~ 85°C
HalfSlim(MO-297)	SHD-22UB	MLC, pSLC, 3D TLC	32GB to 512GB	2	0°C ~ 70°C -40°C ~ 85°C
MSATAMini(MO-300B)	HMH-52UB	MLC, pSLC, 3D TLC, 3D pSLC	32GB to 256GB	2	0°C ~ 70°C -40°C ~ 85°C
M.2(NGFF)2242	M2S-42UB	SLC, MLC, pSLC, 3D TLC, 3D pSLC	32GB to 1TB	2	0°C ~ 70°C -40°C ~ 85°C
M.2(NGFF)2242	M2S-42DC	3D TLC	120GB to 240GB	8	0°C ~ 70°C -40°C ~ 85°C
M.2(NGFF)2260	M2S-60UB	MLC, 3TLC	128GB to 512GB	2	0°C ~ 70°C
M.2(NGFF)2280	M2S-80UB	SLC, MLC, pSLC, 3D TLC, 3D pSLC	32GB to 1 TB	2	0°C ~ 70°C -40°C ~ 85°C
	M2S-80AC	3D TLC	60GB to 960GB	-	-
	M2S-80UF	3D TLC	120GB to 1920GB	8	0°C ~ 70°C
	M2S-80DC	3D TLC	120GB to 1920GB	8	0°C ~ 70°C -40°C ~ 85°C
uSSD(MO-276)	MSC-F6UB	MLC, pSLC, 3D TLC	32GB to 256GB	2	0°C ~ 70°C -25°C to 85°C -40°C ~ 85°C
SATA Flash module	MDS-7UUB	MLC, 3D TLC	16GB to 128GB	2	0°C ~ 70°C -40°C ~ 85°C
	MDS-7XUK	SLC, MLC, pSLC, 3D TLC, 3D pSLC	64GB to 256GB	2	0°C ~ 70°C -40°C ~ 85°C
	MDS-7XUH	SLC, MLC	8GB to 32GB (MLC)	4	0°C ~ 70°C -40°C ~ 85°C

CF & PCMCIA

Products	Model Name	NAND	Capacity (SLC)	Performance (seq Read/Write)MB/s	Operating Temp.
PCMCIA ATA Card	ATA-68SI	SLC	128MB to 32GB	43/35	0°C ~ 70°C -40°C ~ 85°C
Compact Flash Card	CFC-50SI	SLC	128MB to 32GB	43/35	0°C ~ 70°C -40°C ~ 85°C
	HCF-50UC	SLC, MLC	256MB to 64GB	84/72	0°C ~ 70°C -40°C ~ 85°C

SD & MicroSD

Products	Model Name	NAND	Capacity (SLC)	Performance (Seq Read/Write)MB/s	Operating Temp.
SD card	SDC-09UD-P	SLC, MLC, pSLC, 3D TLC, 3D pSLC	128MB to 32GB	95/90	0°C ~ 70°C -25°C ~ 85°C -40°C ~ 85°C
	SDC-09UD-I	SLC, MLC, pSLC	4GB to 32 GB	90/70	0°C ~ 70°C -25°C ~ 85°C -40°C ~ 85°C
	SDC-09UF	3D TLC, 3D pSLC	32GB to 256 GB (3D TLC)	90/70	0°C ~ 70°C -25°C ~ 85°C -40°C ~ 85°C
microSD Card	uSD-80UD-P	SLC, MLC, pSLC, 3D TLC, 3D pSLC	128MB to 4GB	95/90	0°C ~ 70°C -25°C ~ 85°C -40°C ~ 85°C
	uSD-08UD-I	SLC, MLC, pSLC	4GB to 8GB	90/70	0°C ~ 70°C -25°C ~ 85°C -40°C ~ 85°C
	uSD-08UF	3D TLC, 3D pSLC	32GB to 256 GB (3D TLC)	90/70	0°C ~ 70°C -25°C ~ 85°C -40°C ~ 85°C

PATA/IDE

Picture	Product	Model Name	NAND	Capacity (SLC)	Performance (Seq Read/Write)MB/s	Operating Temp.	Datasheets
	2,5 inch PATA SSD	IFD-25UD	SLC, MLC, pSLC	4Gb to 256GB	80/80	0°C ~ 70°C -40°C ~ 85°C
	IDE DOM	MDM-0V/4SXSi	SLC	128MB to 8GB	50/34	0°C ~ 70°C -40°C ~ 85°C

USB

Product	Model Name	NAND	Capacity (SLC)	Performance (Seq Read/Write)MB/s	Operating Temp.
USB 2.0 Flash Module	MDU-0LUD	SLC, MLC, pSLC	1GB to 32GB	30/25	0°C ~ 70°C -40°C ~ 85°C
USB 2.0 Flash Module	MDU-0XUA	SLC, MLC	1GB to 8GB	35/35	0°C ~ 70°C -40°C ~ 85°C
USB 2.0 Flash Drive	UF2-V2UD	SLC, MLC, pSLC	128MB t 32GB	30/20	0°C ~ 70°C
USB 3.0 Flash Drive	UF3-V2UH	3D TLC, 3D pSLC	16GB to 512GB (3D TLC)	240/160	0°C ~ 70°C

eMMC

Picture	Model Name	NAND	Capacity	Performance (Seq Read/Write)MB/s	Operating Temp.	Datasheets
	EMC-F3/A1UD	MLC, pSLC	4GB to 64GB (MLC)	250/90	-40°C ~ 105°C -40°C ~ 85°C -25°C ~ 85°C
	EMC-F3UF	3D TLC, 3D pSLC, 3D pMLC	16GB to 128GB (3D TLC)	280/140	-40°C ~ 105°C -40°C ~ 85°C -25°C ~ 85°C

DRAM

Products	Model Name	Form Factor	Capacity	Speed (MT/s)	Number of Pin
DDR3	UD3U	U-Dimm	2GB to 8GB	1866/1600	240
DDR3	UD3S	So-Dimm	1GB to 8GB	1866/1600/1333	204
DDR4	UD4U	U-Dimm	4GB to 32GB	2666/2400	288
DDR4	UD4S	So-Dimm	2GB to 32GB	2666/2400	260

Applications

Automation

Product	Description
2.5” SATA SLC SSD on Automation Application	2.5” SATA is the most common form factor for data storage as Hard-Disk Drive (HDD) Due to the capacity flexibility and fast response of Solid-State Drive (SSD), it has replaced some applications for HDD One of UDinfo major customers use UDinfo 2.5” SATA SSD on their automation control system They choose Single-Level Cell (SLC) NAND as their media, since SLC has the best reliability and program/erase (P/E) cycle up to 60,000 Compared with 3,000 for Multi-Level Cell (MLC) and 300~1000 for Tri-Level Cell (TLC), SLC is the best choice for industrial applications In high-end automation control system, it requires stability and reliability for data write and read continuously Therefore UDinfo 2.5” SATA SSD is their best choice

Product

Description

2.5” SATA SLC SSD on Automation Application

2.5” SATA is the most common form factor for data storage as Hard-Disk Drive (HDD)
Due to the capacity flexibility and fast response of Solid-State Drive (SSD), it has replaced some applications for HDD

One of UDinfo major customers use UDinfo 2.5” SATA SSD on their automation control system
They choose Single-Level Cell (SLC) NAND as their media, since SLC has the best reliability and program/erase (P/E) cycle up to 60,000
Compared with 3,000 for Multi-Level Cell (MLC) and 300~1000 for Tri-Level Cell (TLC), SLC is the best choice for industrial applications

In high-end automation control system, it requires stability and reliability for data write and read continuously
Therefore UDinfo 2.5” SATA SSD is their best choice

Gaming

Product	Description
microSSD (uSSD) Application on Gaming System	microSSD is a Ball-Grid Array (BGA) packaged SATA SSD It follows JEDEC MO-276 spec. with size at 16x20x1.4 (mm), 156 balls It acts the same as a SATA SSD, but extreme small size, which is its best advantage Since gaming application wants to make sure there will be any change on the gaming OS part, it is good to separate OS and data into 2 drives microSSD can support Quick-Erase and Write-Protection functions It fits into a very small host board with wide applications Same as other UDinfo products, our microSSD can offer I-temp (-40 ˚C~ 85 ˚C) option, which is the best solution for outdoor products

Product

Description

microSSD (uSSD) Application on Gaming System

microSSD is a Ball-Grid Array (BGA) packaged SATA SSD
It follows JEDEC MO-276 spec. with size at 16x20x1.4 (mm), 156 balls
It acts the same as a SATA SSD, but extreme small size, which is its best advantage

Since gaming application wants to make sure there will be any change on the gaming OS part, it is good to separate OS and data into 2 drives

microSSD can support Quick-Erase and Write-Protection functions
It fits into a very small host board with wide applications
Same as other UDinfo products, our microSSD can offer I-temp (-40 ˚C~ 85 ˚C) option, which is the best solution for outdoor products

Telephony

Product	Description
Pseudo SLC (pSLC) USB 3.0 drive Application on Telephony System	pSLC is a special technology to use controller firmware to make MLC NAND act with better reliability as SLC NAND Due to MLC with 3000 P/E cycle and SLC with 60,000 P/E cycles, there is no solution in between, which has higher P/E cycles and lower cost pSLC is a product due to the demand for high reliability to cost ratio It has half capacity of MLC NAND, but one-third cost of SLC Besides high P/E ratio, its performance is also much better than regular MLC UDinfo pSLC is not only designed for USB, but also for SATA, SD/microSD, PATA and PCIe interfaces

Product

Description

Pseudo SLC (pSLC) USB 3.0 drive Application on Telephony System

pSLC is a special technology to use controller firmware to make MLC NAND act with better reliability as SLC NAND
Due to MLC with 3000 P/E cycle and SLC with 60,000 P/E cycles, there is no solution in between, which has higher P/E cycles and lower cost

pSLC is a product due to the demand for high reliability to cost ratio
It has half capacity of MLC NAND, but one-third cost of SLC
Besides high P/E ratio, its performance is also much better than regular MLC

UDinfo pSLC is not only designed for USB, but also for SATA, SD/microSD, PATA and PCIe interfaces
