About Virtium

• Location: USA
• Certifications: ISO9001, AS9100 Rev C
• Virtium is a solutions-driven provider of embedded SSD and industrial memory products
• OEMs trust for their networking, communications, industrial, in-flight entertainment, transportation, gaming and mobile monitoring system applications
• Virtium excels at both first-to-market solutions and unsurpassed continuity of support for legacy products that meet the performance, workload and product deployment requirements of its customers
• Virtium is known as a storage and memory technology innovator
• The company is a driving force in the continuous advancement of embedded SSDs and memory modules that deliver:
• The capacity
• form factor
• extended temperature
• ruggedization
• configuration improvements
• Some of the world’s largest companies are long-time Virtium customers and include Alcatel-Lucent, Boeing, DRS Technologies, Emerson, Freescale, General Dynamics, General Electric, IBM, Intel and Radisys

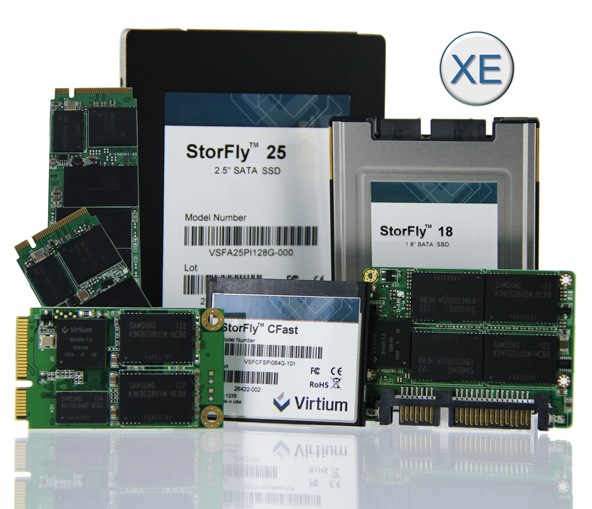

New Products

• Superior endurance through iMLC at a minor impact on price over standard MLC
• Industrial-temperature support, enabling greater data retention than standard MLC in extreme environments
• Wide capacity range, from 30GB to 480GB
• Industry’s most popular interfaces and form factors for embedded/industrial systems: M.2, CFast, Mini Card, mSATA, SlimSATA, 1.8” and 2.5”
• Protection features (vtGuard and vtSecure)
• vtView monitoring software
• Adherence to RoHS and worldwide hazardous-substance compliance standards

• MLC: 3.000 cycles
• iMLC: 20.000 cycles
• SLC: 60.000 cycles

Product Highlights

Products

Industrial SSDs

Product Type	Picture	Specifications	Datasheets

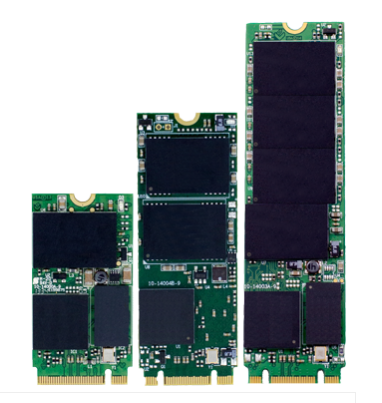

M.2 SATA and PCIe SSDs		Interface: SATA 6G (SATA III), 3G and 1.5G, or PCIe Voltage / Power: 3.3V / 1.7W UBER: < 1 sector error in 1015 bits read Environmental: MIL-STD-810F Compliance: ATA/ATAPI-8 (ACS-2), FCC, CE, UL, RoHS, WEEE Dimensions: 42.15 x 22.15 x 3.65 (2242) 80.15 x 22.15 x 3.65 (2280) Media: MLC, pSLC, SLC
mSATA SSDs		Interface: SATA 6G (SATA III), 3G and 1.5G Voltage / Power: 3.3V / 1.7W UBER: < 1 sector error in 1015 bits read Environmental: MIL-STD-810F Compliance: ATA/ATAPI-8 (ACS-2), FCC, CE, UL, RoHS, WEEE Dimensions: 50.00 x 30.00 x 3.7 Media: MLC, pSLC, SLC
Slim SATA SSDs		Interface: SATA 6G (SATA III), 3G and 1.5G Voltage / Power: 5V / 1.7W UBER: < 1 sector error in 1015 bits read Environmental: MIL-STD-810F Compliance: ATA/ATAPI-8 (ACS-2), FCC, CE, UL, RoHS, WEEE Dimensions: 54 x 39 x 4.8 Media: MLC, pSLC, SLC
2,5" SSDs		Interface: SATA 6G (SATA III), 3G and 1.5G Voltage / Power: 5V / 1.7W UBER: < 1 sector error in 1015 bits read Environmental: MIL-STD-810F Compliance: ATA/ATAPI-8 (ACS-2), FCC, CE, UL, RoHS, WEEE Dimensions: 69.85 x 100.5 x 7/9.5 Media: MLC, pSLC, SLC
1,8" SSDs		Interface: SATA 6G (SATA III), 3G and 1.5G Voltage / Power: 3.3V / 1.7W UBER: < 1 sector error in 1015 bits read Environmental: MIL-STD-810F Compliance: ATA/ATAPI-8 (ACS-2), FCC, CE, UL, RoHS, WEEE Dimensions: 54.00 x 78.25 x 5.0 Media: MLC, pSLC, SLC
CFast SSDs		Interface: SATA 6G (SATA III), 3G and 1.5G Voltage / Power: 5V / 1.7W UBER: < 1 sector error in 1015 bits read Environmental: MIL-STD-810F Compliance: ATA/ATAPI-8 (ACS-2), FCC, CE, UL, RoHS, WEEE Dimensions: 42.80 x 36.40 x 3.30 Media: MLC, pSLC, SLC
eUSB SSDs		Interface: USB Voltage / Power: 5V / 1.7W UBER: < 1 sector error in 1015 bits read Capacities: 2GB to 64GB MTBF: > 2M hours Dimensions: 69.85 x 100.5 x 7 / 9.5 Endurance: 30X Baseline
USB Key SSDs		Interface: USB Capacities: 2GB to 64GB Voltage/Power: 5V / 1.7W UBER: < 1 sector error in 1015 bits read MTBF: > 2M hours Endurance: 30X Baseline Dimensions: 69.85 x 100.5 x 7 / 9.5
2,5" PATA		Interface: PATA Voltage / Power: 5V / 1.7W Capacities: 16, 32, 64, 128, 256, 512 GB (CE only) Environmental: MIL-STD-810F NAND Flash: SLC Dimensions: 100.5 x 69.85 x 9.5 Read / Write Sequential: 100 / 60 MBs
CF SSDs		Interface: PATA/PCMICIA Voltage / Power: 5V / 1.7W UBER: < 1 sector error in 1015 bits read Environmental: MIL-STD-810F Compliance: ATA/ATAP-8 (ACS-2), FCC, CE, UL, RoHS, WEEE Dimensions: 36.4 x 42.8 x 3.3 Media: SLC
SD SSDs		Interface: Secure Digital Voltage / Power: 5V / 1.7 W UBER: < 1 sector error in 1015 bits read Environmental: MIL-STD-810F Compliance: FCC, CE, UL and RoHS Dimensions: 32 x 24 x 2.1 Media: SLC Capacities: 1, 2, 4, 8, 16 GB	Coming Soon

Industrial Memory

Product Type	Picture	Specifications	Datasheets

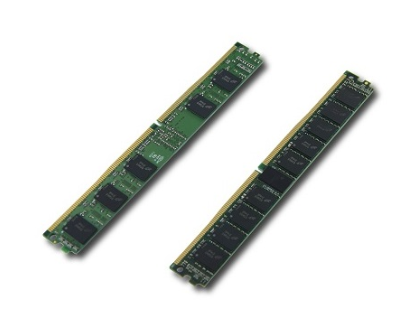

DDR4 Memory		Densities: 4, 8, 16, 32, 64GB Form Factors: DIMM, SODIMM, Mini-DIMM Height: Standard, VLP and ULP Type: Registered or Urbuffered Error Correction: ECC or Non-ECC Speed: PC4-1866, PC4-2133, PC4-2400 and PC4-2666 Data Transfer Speed (MT/s): 1866, 2133, 2400, 2666 Voltage: 1.2VDC	Coming Soon

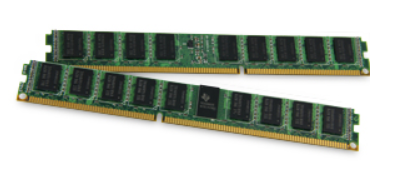

DDR3 Memory		Densities: 4, 8, 16, 32GB Form Factors: DIMM, SODIMM, Mini-DIMM Height: Standard, VLP and ULP Type: Registered or Unbuffered Error Correction: ECC or Non-ECC Speed: PC3-14900, PC3-12800 and PC3-10600 Data Transfer Speed (MT/s): 1866, 1600 and 1333 Voltage: 1.35 / 1.5VDC	Coming Soon

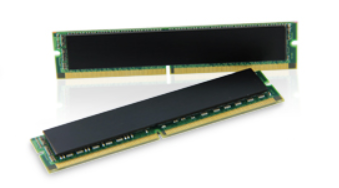

DDR2 Memory		Densities: 1, 2, 4, 8GB Form Factors: DIMM, SODIMM, Mini-Dimm Height: Standard, VLP, Blade VLP Type: Registered or Unbuffered Error Correction: ECC or non-ECC Speed: PC2-6400, PC2-5300, PC2-4200, PC2-3200 Data Transfer Speed (MT/s): 800, 667, 533, 400 Voltage: 1.8VDC	Coming Soon

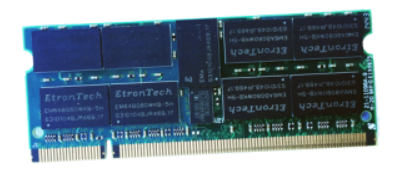

DDR Memory		Densities: 256MB, 512MB, 1GB, 2GB, 4GB Form Factors: DIMM, SODIMM, Mini-DIMM Height: Standard, VLP, Blade VLP Type: Registered or Unbuffered Error Correction: ECC or Non-ECC Speed: PC3200, PC2700, PC2100 Data Transfer Speed (MT/s): 400, 333, 266 Voltage: 2.5VDC	Coming Soon

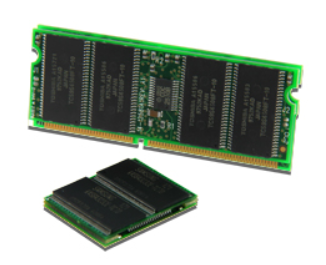

SDRAM Memory		Densities: 256MB, 512MB, 1GB Form Factors: DIMM, SODIMM Height: Standard, VLP Type: Registered or Unbuffered Error Correction: ECC or Non-ECC Speed: PC133, PC100 Data Transfer Speed (MT/s): 133, 100 Voltage: 2.5VDC	Coming Soon

Applications

Communications	Communications equipment continues to experience exponential increases in demand for data while simultaneously maintaining quality of service, reducing total power consumption, and increasing the return-on-investment on a bit-transfer basis. Implementations include: Base stations DSLAMs PBX systems Multi-service gateways Remote access servers
Networking:	Networking applications represent the “last mile” of IT data/content. They continue to quire quality of service/experience, a reduction in total power consumption and return-oninvestment. Implementations include: Switches Routers Supervisor Mezzanine cards firewall VPN equipment Small cell networks
Energy	The Energy segment is subjected to electro-static discharge (ESD), extreme temperatures and high humidity. Urban sprawl means more demands on energy grids so the backbone systems require efficient uninterrupted operation and high durability. Implementations include: Substation control Monitoring/diagnostics Data loggers Smart grid controllers Distribution systems
Transportation	Transportation applications are inherently subjected to extreme temperatures, shock and vibration, and high humidity. Implementations include: Simple data loggers GPS / geo-location and navigation Rugged PCs In-vehicle control Monitoring Diagnostics Wide range of architectures and software
Industrial Automation	Industrial Automation environments are diverse yet share common requirements - with regard to form-factor, legacy support and endurance. Implementations include: Large production plants Industrial PCs Factory automation/robotics Kiosks ATMs Terminals Process control units Data loggers
Medical	Medical applications are increasing in complexity and moving closer to the patient. This requires low-power, low-latency solutions at low costs. Implementations include: Therapeutic devices Medical imaging Patient diagnostics Measurement Monitoring equipment
Video and Signage	Professional media companies range from high-performance HD video capture to broadcast video serving and digital signage applications. Some devices require heavy write performance (data capture) - others require high read performance (video serving). Implementations include: Professional video capture/editing Broadcast Ad terminals Indoor/outdoor multimedia signage Casino gaming Surveillance/security
Smart Cities	Smart Cities is a fast growing frontier for Industrial IoT and embedded technologies – including: Sensors Vision systems Self-service kiosks Devices connected by mesh networks to data centers for analyzing data and adjusting to changing usage patterns. This segment requires compact form-factors with low power requirements and tolerance to extreme temperature, humidity, shock, vibration, etc. as well as resilience to unexpected power loss.
