ALPHA & OMEGA

Headquarter: Sunnyvale, USA
Certifications: ISO 9001, ISO 14001, QC 080000
Alpha and Omega Semiconductor is committed to excellence in design, manufacturing, and responsiveness to their customers through the continued development of new technologies, products and innovative solutions
They bring to the market devices designed to benefit their customers by meeting the customers product specific needs
Their mission is to bring value to their customers, shareholders and employees
They pride themselves in their expertise in all areas of power semiconductor technology and business operations
They have developed extensive intellectual property and technical knowledge that encompasses the latest advancements in the power semiconductor industry, which enables them to introduce innovative products to address the increasingly complex power requirements of advanced electronics
AOS differentiates itself by integrating its Discrete and IC semiconductor process technology, product design, and advanced packaging know-how to develop high performance power management solutions
AOS's portfolio of products targets high-volume applications, including but not limited to portable computers, flat panel TVs, LED lighting, smart phones, battery packs, consumer and industrial motor controls and power supplies for TVs, computers, servers and telecommunications equipment

Diverse Customer Base

Telecom	Consumer		Computing	Industrial
Telecom	Black Goods	White Goods	Computing	Industrial
Alcatel-Lucent Belfuse Delta Efore Emerson H3C Murata Nokia Siemens Networks ZTE	Changhong Hisense LG Panasonic Samsung Sony TCL	Changhong Cuckoo Haier Hisense Microsteps Midea Nidec Panasonic Samsung Sanyo	Acer Asus Dell Hewlett Packard Lenovo Nvidia	BYD Chicony Delta Emerson Lite-On Nidec Philips Stanley Black & Decker Tyco

New Products

GaN

650V αGaN^TM FET

Product	Pictures	Features	Applications	Links

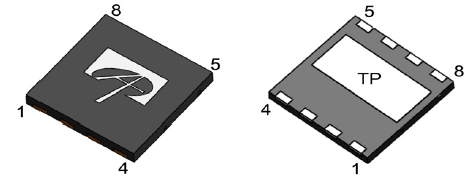

AONV070V65G1 70mΩ and 650V		Normally-off operation Zero reverse recovery (Qrr) Robust gate technology (6V DC, 10V AC) High switching speed Fully controllable with external R_G Source sense (Kelvin) pin Compatible with Si gate drivers	High-efficiency power supplies Bridgeless technologies Telecomm/server power supplies High-frequency converters (LLC)	And available on Request
AONV100G65 100mΩ and 650V				And available on Request

100V αGaN^TM eFET

Product	Picture	Features	Applications	Links
AOCA007G10 7mΩ and 100V		Best in class R_DS(ON)*Q_g FOM Zero Qrr Robust Gate: 6V (DC), 12V (AC) Low inductance CSP form factor Optimized gate drive IC with integrated DT control available	High-frequency DC/DC conversion Class-D amplifiers Wireless charging LiDAR	Datasheets on Request

Product Highlights

Highlights IGBTs

AOS Insulated Biplor Transistor

Products	Features	Applications	Links
IGBT Discrete Line-up (Hard - and Soft Switching)	Lower conduction loss Lower switching loss Lower EMI Higher ruggedness	Motor Drives Consumer Drives (Fan motors, Refrigerators, Washing machines, Dryers...) Industrial Drives (Pumps, Power Tools, HVAC motors, Sewing Machines...) AC Power Control Welding (Higher efficiency and controllability) Consumer Cooking (Rice Cookers, Inductive Cooking Hubs...) Energy Segment and Solar Inverter (Power Factor Corrections, Uninterruptible Power Supplies...)	More Datasheets available on Request

Highlights MOSFETs

AlphaSGT^TM TOLL

Part Number	Specifications	Features	Applications	Links

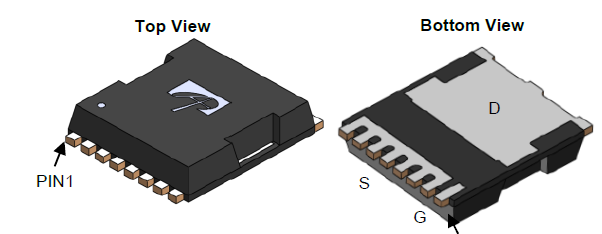

AOTL66401	V_DS(V): 40 R_DS(ON) @ 10V_GS: 0.7mΩ I_D@ 25°C(A): 400	Lowest package resistance Better thermal dissipation High inrush current tolerance High current capability Low package inductance	Power tools Motor drive BMS Hot swap Automotive	More Datasheets available on Request

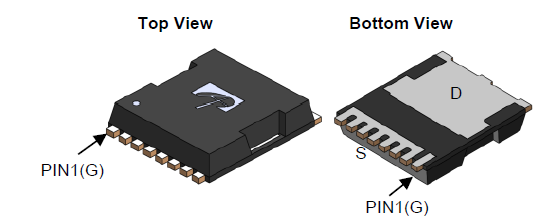

AOTL66608*	V_DS(V): 60 R_DS(ON) @ 10V_GS: 0.85mΩ I_D@ 25°C(A): 400
AOTL66610*	V_DS(V): 60 R_DS(ON) @ 10V_GS: 1.2mΩ I_D@ 25°C(A): 200

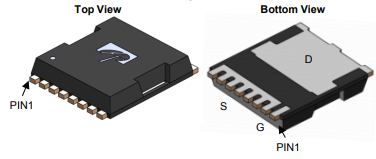

AOTL66912*	V_DS(V): 100 R_DS(ON) @ 10V_GS: 1.8mΩ I_D@ 25°C(A): 277
AOTL66518**	V_DS(V): 150 R_DS(ON) @ 10V_GS: 3.7mΩ I_D@ 25°C(A): 188
* = Available Q1 2019	** = Available Q2 2019

Super Junction MOSFETs

Part Number	Picture	Specifications	Features	Applications	Links
AOD600A70 AI600A70	AOD600A70 AOI600A70	V_DS, V_GS, V_GTH (V): 700, 20, 4.1 R_DS(ON) @ 10V_GS: 600mΩ Ciss, Coss, Crss (pF): 830, 23, 2.1 Package: DPAK / IPAK	Low-on state resistance with αMOS5^TM HV technology Optimized switching performance Versatile device for both hard switching and soft noise Suppressed switching noise High reliability Easy-to-design	Server power supplies ATX power supplies High efficiency adapters/chargers Power rectifiers in telecom equipment	More Datasheets available on Request
AOD950A70 AOI950A70	AOD950A70 AOI950A70	V_DS, V_GS, V_GTH (V): 700, 20, 4.1 R_DS(ON) @ 10V_GS: 950mΩ Ciss, Coss, Crss (pF): 461, 15, 1.4 Package: DPAK / IPAK
AOD1R4A70 AOI1R4A70	AOD1R4A70 AOIR4A70	V_DS, V_GS, V_GTH (V): 700, 20, 4.1 R_DS(ON) @ 10V_GS: 1400mΩ Ciss, Coss, Crss (pF): 354, 12, 1.3 Package: DPAK / IPAK
AOTF190A60		V_DS, V_GS, V_GTH (V): 600, 20, 4.6 R_DS(ON) @ 10V_GS: 190mΩ Ciss, Coss, Crss (pF): 1935, 55, 1.25 Package: TO-220F
AOTF380A60 AOD380A60 AOI380A60	AOTF380A60	V_DS, V_GS, V_GTH (V): 600, 20, 3.2 R_DS(ON) @ 10V_GS: 380mΩ Ciss, Coss, Crss (pF): 955, 29, 2.4 Package: TO-220F DPAK / IPAK

Highlights IPMs

Intelligent Power Modules (IPMs) for Motor Drives

General Description:

Transfer-molded 3-phase IGBT inverter with gate driver and protection IC
Application optimized performance

Low cost while keeping its reliability and performance high
IGBT: T_JMAX=175°C as a discrete, 150°C as a module
Built-in thermal protection function

Line-up	Part Number	Specifications	Features	Applications	Links
IPM5	AIM5C(D)05B060N1	Rated Voltage (V): 600 I_O @ 25°C (Typ) (A): 5 Key Feature: Standard Package: IPM-5	Trench Shielded Planar Gate IGBT 3-phase Inverter module including HVIC drivers Built-in bootstrap diodes with integrated current limiting resistor Control supply under-voltage lockout protection (UVLO) Over-temperature (OT) protection Temperature monitoring (VOT) Short-circuit current protection (CSC) Fault out signal (VFO) corresponding to SC, UV and OT fault Optional fault-out duration time Wide input interface (3-18V), Schmitt trigger receiver circuit (Active High) Isolaton ratings of 2000Vrms/min	Refrigerators Washing machines Fan motors General motor drives	More Datasheets available on Request

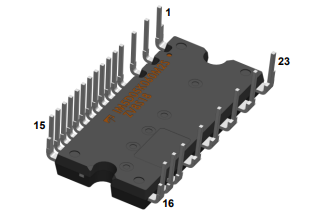

	AIM5D05K060M2	Rated Voltage (V): 600 I_O @ 25°C (Typ) (A): 5 Key Feature: High ESD Package: IPM-5
	AIM5C(D)10B060M1	Rated Voltage (V): 600 I_O @ 25°C (Typ) (A): 10 Key Feature: Standard Package: IPM-5
	AIP5D10K060Q1	Rated Voltage (V): 600 I_O @ 25°C (Typ) (A): 10 Key Feature: Low EMI Package: IPM-5A
IPM7	AIM702H50A	Rated Voltage (V): 500 R_DS(ON) @ 25°C (Max) (Ω): 4 Key Feature: Smallest DIP-IPM Package: SOP-19L			Datasheets on Request
IPM7	AIM704H50A	Rated Voltage (V): 500 R_DS(ON) @ 25°C (Max) (Ω): 2.4 Key Feature: Smallest DIP-IPM Package: SOP-19L			Datasheets on Request

Highlights HVIC

Product	Picture	Features	Specifications	Links
3-Phase HVIC / Gate Driver for 3-Phase		+600V 6-channel gate drivers Improved ruggedness and wider operation Advanced bulit in filter Shoot-through protection Under votage lockout (UVLO) Over-current protection (OCP) Enable function	AGD8xx6A SOIC-28 18 x 7.5 x 2.5mm
Half-Bridge HVIC		Maximum blocking voltage +600V Output current +200mA/-350mA (Typ.) Matched propagation delay for channels Shoot-through (cross-conduction) protection Under voltage lockout (UVLO) 3.3V/5V CMOS and TLL inputs logic compatible Input logic: Schmitt trigger receiver circuit (Active High)	AGD8252B1/B2 SO-8 5.0 x 4.0 x 1.5mm	Datasheets on Request

Products

Product Overview

IGBTs	MOSFETs	Power ICs	IPMs	TVs	Wide Bandgap (GaN, SiC)	HVICs
IGBT with Anti-Parallel Diode IGBT Discrete	Single Dual Complementary Common Drain Asymmetric	EZBuck^TM: DC-DC Buck Regulators EZPower^TM:Smart Load Switches DrMOS Power Factor Correction ECPower^TM TypeC Protection Switch	IPM5	ESD TVS High Current Surge TVS High Power Surge TVS	Gallium Nitride (GaN) FETs	6-Channel HVIC

IGBTs

Product Group	Selector Guide	Datasheets
IGBTs
IGBTs-Single		And available on Request
IGBTs-Co-Pack		And available on Request

MOSFETs

AOS pioneered the fab-lite model in the Trench Power MOSFET field, developing leading-edge products that are exclusively manufactured in state-of-the-art 8-inch fabs. Advanced proprietary silicon and packaging processes are designed in AOS’s U.S. headquarters and are then produced with its very efficient manufacturing model. Their product portfolio covers 6V to 1000V MOSFETs and 600V, 650V, 1200V, and 1350V IGBTs.

V_DS (V)	I_D (A)	R_DS(ON)(mΩ max) at V_GS=		Selector Guide	Datasheets
V_DS (V)	25°C	10V	4.5V	Selector Guide	Datasheets
-38 to 40	-85 to 400	0,68 to 950	0,95 to 710		And available on Request
40 to 400	1 to 400	0,7 to 3100	0,95 to 720
400 to 1000	0,034 to 53	70 to 50000	60000

Product Group	Selector Guide	Datasheets
MOSFETs
Low Voltage MOSFETs		And available on Request
Medium Voltage MOSFETs
aMOS5™ High Voltage SuperJunction MOSFETs
aMOS1™ High Voltage MOSFETs

Power ICs

AOS provides best-in-class power management solutions combining Power Discrete and IC technologies. The portfolio of products includes EZBuck™ Step-down DC/DC regulators, DrMOS Power Modules, EZPower™ smart load switches, power factor correction (PFC) devices, and ECPower™ Type C protection switches. AOS approach is to provide high power density solutions to reduce design complexity and development time.

Product Group	Selector Guide	Datasheets
EZBuck
EZBuck™: DC-DC Buck Regulators		And available On Request
EZPower™: Smart Load Switches
DrMOS
Power Factor Correction
ECPower™ Type C Protection Switch

IPMs

Product Group	Selector Guide	Datasheets
IPM5

TVs

AOS provides a family of high-surge power, high-current surge, ultra-low capacitance Transient Voltage Suppressor (TVS), and Diode Array-Thunderboldt, SATA and Gigabit Ethernet ports. These products may be used to meet the ESD immunity requirement of products that are designed for ESD protection of high-speed interfaces like HDMI2.0, USB3.1, IEEE1394, IEC61000-4-2, Level 4 for mobile, digital consumer, networking, and computing applications.

Product Group	Selector Guide	Datasheets
TVS
Ultra Low Capacitance TVS		And available on Request
High Current Surge TVS
High PowerSurge TVS
Diode Arrays

Wide Bandgap (GaN, SiC)

Gallium Nitride (GaN) FETs

Part Number	Status	Package	Description	V_DSmax	R_DS(on) typ.	V_GSmax	Qg	Qrr	Links
Part Number	Status	Package	Description	V	mΩ	V	nC	nC	Links
AONV070V65G1	New	DFN8x8-8L_EP1_S	Enhancement Mode FET	650	70	6	6.9	0

HVICs

6-Channel HVIC

Part Number	Status	Input Logic	Output Current (mA)		V_CCUVLO TYP. (V)		V_BSUVLO TYP. (V)		Package	Pin Configuration	Links
Part Number	Status	Input Logic	I_o+	I_o-	Set	Reset	Set	Reset	Package	Pin Configuration	Links
AGD8136A	New	Active Low	200	350	8.2	8.9	8.2	8.9	SOP-28L	-
AGD8156A	New	Active High	200	350	8.2	8.9	8.2	8.9	SOP-28L	-
AGD8236A	New	Active Low	200	350	11.4	11.9	10	11	SOP-28L	-
AGD8256A	New	Active High	200	350	11.4	11.9	10	11	SOP-28L	-

Applications

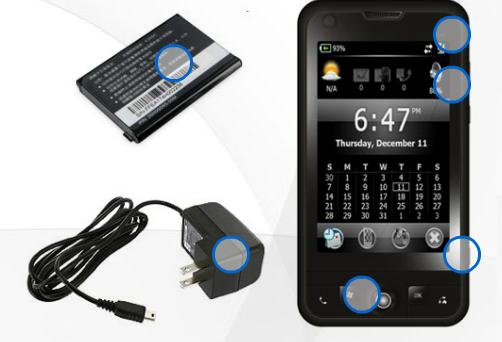

Cell Phone

Desktop PC

eBike

LCD TV

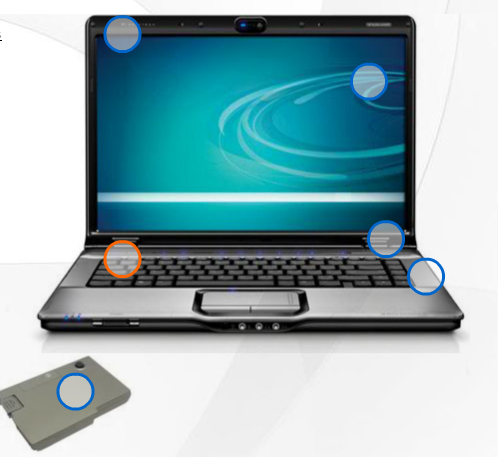

Notebook PC

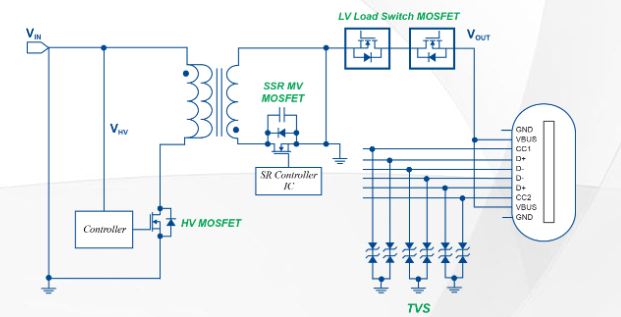

PD Adapter ♦ Charger Solutions

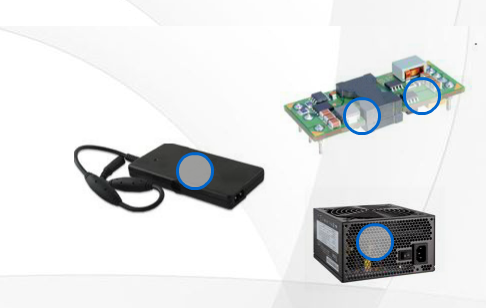

Power Supply

About Alpha & Omega
