PCI Express Flash Drive |
| PV140-25 |
 |
- Highlight: 4TB Capacity with I-Temp
- Adopts advanced LDPC ECC engine with 3D NAND flash memory to improve reliability
- Global Wear Leveling
- Flash bad-block management
- Flash Translation Layer: Page Mapping
- Supports SSDWidget S.M.A.R.T function
- Power Failure Management
- AES 256-bit hardware encryption
- End-to-End Data Protection
- TRIM Support
- Over-Provisioning
- SMART Read Refresh™
- NVMe Secure Erase
|
- Interface: PCIe Gen3x4
- Connector: U.2 (SFF-8639)
- Form Factor: 2.5"
- Capacity: 960 ~ 3840GB
- Sustained Read Performance (MB/sec): Up to 3340
- Sustained Write Performance (MB/sec): Up to 1175
- Standard Operating Temp. (°C): 0~+70
- Extended Operating Temp. (°C): -40~+85
- Operating Voltage: 12V±5%
- Power consumption:
- Active mode: 705mA
- Idle mode: 180mA
- Dimension (LxWxH): 100x69.85x7 (mm)
- MTBF (hours): >3,000,000
|
 |

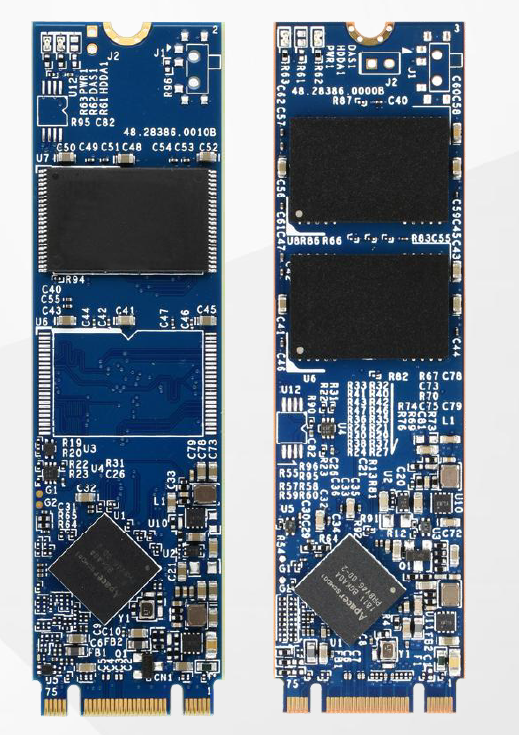

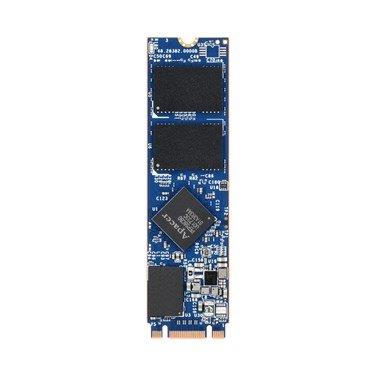

M.2 2280 Flash Drive |
| SV250-M280 |
 |
- Is a well-balanced solid-state disk (SSD) drive with standard form factor and great performance
- Utilizes 3D NAND for higher capacity up to 960GB and provides more power efficiency than 2D NAND
- Appearing in M.2 2280 mechanical dimensions, SV250-M280 is believed to be the leading add-in storage solution for future host computing systems
- Regarding reliability, SV250-M280 is implemented with LDPC (Low Density Parity Check) ECC engine to extend SSD endurance and increase data reliability
while reading raw data inside a flash chip
- In terms of security, Advanced Encryption Standard (AES) and Trusted Computing Group (TCG) Opal ensure data security and provide users with a peace of
mind knowing their data is safeguarded against unauthorized use at all times
|
- Supply Voltage: 3.3V ± 5%
- Capacity: 30, 60, 120, 240, 480GB
- Operating Temp. Range:
- Standard: 0°C to 70°C
- Wide: -40°C to 85°C
- Storage Temp. Range: -40°C to 100°C
- Power Consumption:
- Active mode: 415mA
- Idle mode: 75 mA
|
|

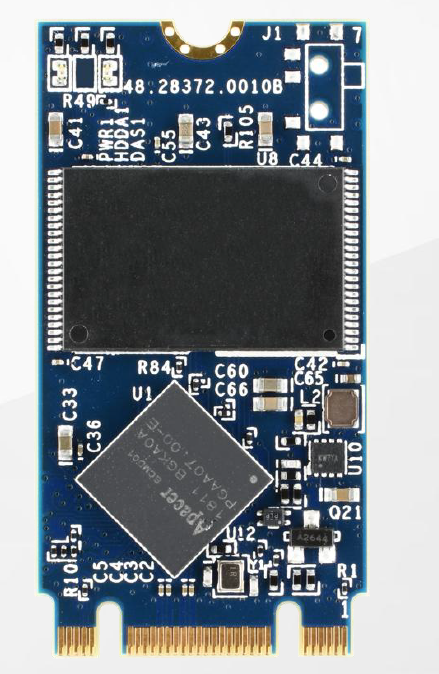

M.2 2242 Flash Drive |
| SV250 M242 |
 |
- Is a well-balanced solid-state disk (SSD) drive with standard form factor and great performance.
- Utilizes 3D NAND for higher capacity up to 480GB and provides more power efficiency than 2D NAND
- Regarding reliability, SV250-M242 is implemented with LDPC (Low Density Parity Check) ECC engine to extend SSD endurance and
increase data reliability while reading raw data inside a flash chip
- In addition, the drive comes with various implementations including powerful hardware ECC engine, power saving modes, wear leveling,
flash block management, S.M.A.R.T., TRIM, and DataDefender
- In terms of security, Advanced Encryption Standard (AES) and Trusted Computing Group (TCG) Opal ensure data security and provide users with a peace
of mind knowing their data is safeguarded against unauthorized use at all times
|
- Supply Voltage: 3.3V ± 5%
- Capacity: 30, 60, 120, 240, 480GB (single side) & 960GB (double side)
- Operating Temp. Range:
- Standard: 0°C to 70°C
- Wide: -40°C to 85°C
- Storage Temp. Range: -40°C to 100°C
- Power Consumption:
- Active mode: 455mA
- Idle mode: 80mA
|

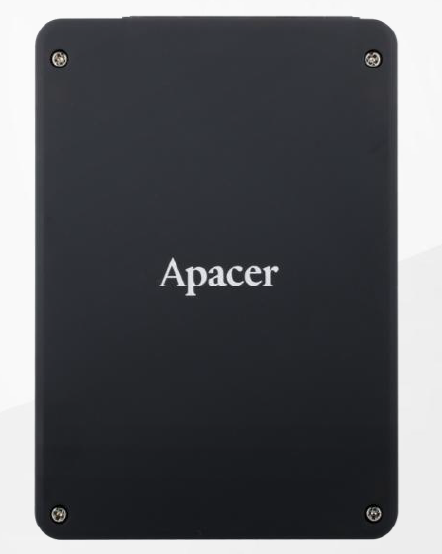

Serial ATA Flash Drive |
| SV250-25 |
 |
- Apacer’s SV250-25 is a well-balanced solid-state disk (SSD) drive with standard form factor and great performance
- SV250-25 utilizes 3D NAND and provides more power efficiency than 2D NAND
- Regarding reliability, SV250-25 is implemented with LDPC (Low Density Parity Check) ECC engine to extend SSD endurance
and increase data reliability while reading raw data inside a flash chip
- In addition, the drive comes with various implementations including powerful hardware ECC engine, power saving modes, wear leveling,
flash block management, S.M.A.R.T., TRIM, and DataDefender
- In terms of security, Advanced Encryption Standard (AES) and Trusted Computing Group (TCG) Opal ensure data security and provide users
with a peace of mind knowing their data is safeguarded against unauthorized use at all times
|
- Supply Voltage: 5.0V ± 10%
- Capacity: 30, 60, 120, 240, 480GB
- Oprating Temp. Range:
- Standard: 0°C to 70°C
- Wide: -40°C to 85°C
- Storage Temp. Range: -40°C to 100°C
- Power Consumption:
- Active mode: 385 mA
- Idle mode: 100mA
|
CV110-SD |
|
 |
- Is compatible with the SD card version 6.1
- The SD card comes with 9-pin interface designed to operate at a maximum operating frequency of 208MHz
- It can alternate communication protocol between the SD mode and SPI mode
- It performs data error detection and correction with very low power consumption
- Secure Digital 4.0 card with high performance, good reliability and wide compatibility is nowadays one of
the most popular card well adapted for hand held applications with customized firmware in semi industrial/medical markets already
|
- Operating Voltage: 2.7 to 3.6 V
- MTBF (hours): >3,000,000
- Operating Temp. Range:
- Standard: -25°C to 85°C
- Extended: -40°C to 85°C
- Storage Temp. Range: -40°C to 85°C
- Power Consumption:
- Active mode: 105mA
- Idle mode: 185uA
|
|
