Products

PoE Systems (Midspans & Switches)

Single Port Midspans / Injectors (Indoor)

Product Picture Features Specifications Datasheets
PE15
  • Safe & reliable power over existing Ethernet infrastructure
  • Stackable and compact
  • Plug-and-play installation
  • Guaranteed uptime
  • No. of Ports: 1
  • Pass Through Data Rates: 10/100/1000 Mbps
  • User Port Power: 15,4W
  • PoE Standard: IEE802.3 af
  • Pin Assignment and Polarity: 3/6 (+), 1/2 (–)
  • Output Power Voltage: 52V DC
  • Input Voltage: 100...240V AC
  • Operating Temp.: 0...40°C
  • Dimensions:40 x 30,8 x 115,4mm

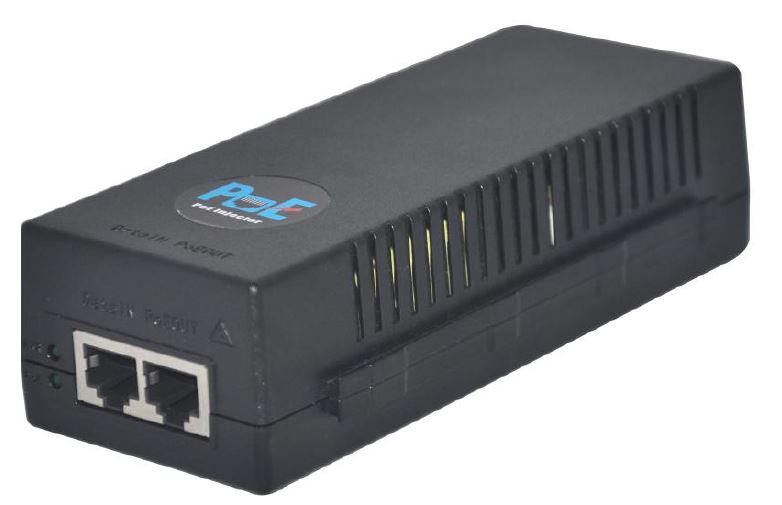

PE30
  • Full IEEE 802.3af, IEEE 802.3at Compliant
  • Up to 30W of Power on 2-pairs
  • Auto-detect of POE IEEE 802.3af equipment
  • Supports 10/100/1000 Base-T applications
  • LED indicators power input indication
  • Distance up to 100 meters
  • Internal AC/DC converter – no need for external power brick
  • Easy plug-and-play installation
  • Surge protection
  • EMI standards complies with FCC, CE class B
  • Safety standards comply with UL/CUL, KC, PSE, GS, CB, CCC, BSMI, EAC, NOM, S-MARK etc.
  • ERP VI, DOE VI, GEMS VI energy saving approved
  • No. of Ports: 1
  • Pass Through Data Rates: 10/100/1000 Mbps
  • User Port Power: 30W
  • PoE Standard:
    • IEE802.3 af (PoE)
    • IEE802.3 at (PoE+)
  • Pin Assignment and Polarity: 3/6 (+), 1/2 (–)
  • Output Power Voltage: 52V DC
  • Input Voltage:
    • 100...240V AC
    • 50...60 Hz
  • Operating Temp.: -10...45°C
  • Reliability MTBF: 100,000 hrs. @25℃
  • Surge Protection:
    • AC port: 6kV
    • RJ45 port: 4kV
  • Dimensions: 38 x 65 x 150mm
PE60-bt
  • Safe & reliable power over existing Ethernet infrastructure
  • Stackable and compact
  • Plug-and-play installation
  • Guaranteed uptime
  • No. of Ports: 1
  • Pass Through Data Rates: 10/100/1000 Mbps
  • User Port Power: 60W
  • PoE Standard: IEE802.3 bt
  • Pin Assignment and Polarity: 3/6 (+), 1/2 (–)
  • Output Power Voltage: 52V DC
  • Input Voltage: 100...240V AC
  • Operating Temp.: 0...40°C
  • Dimensions: 40 x 30,8 x 115,4mm

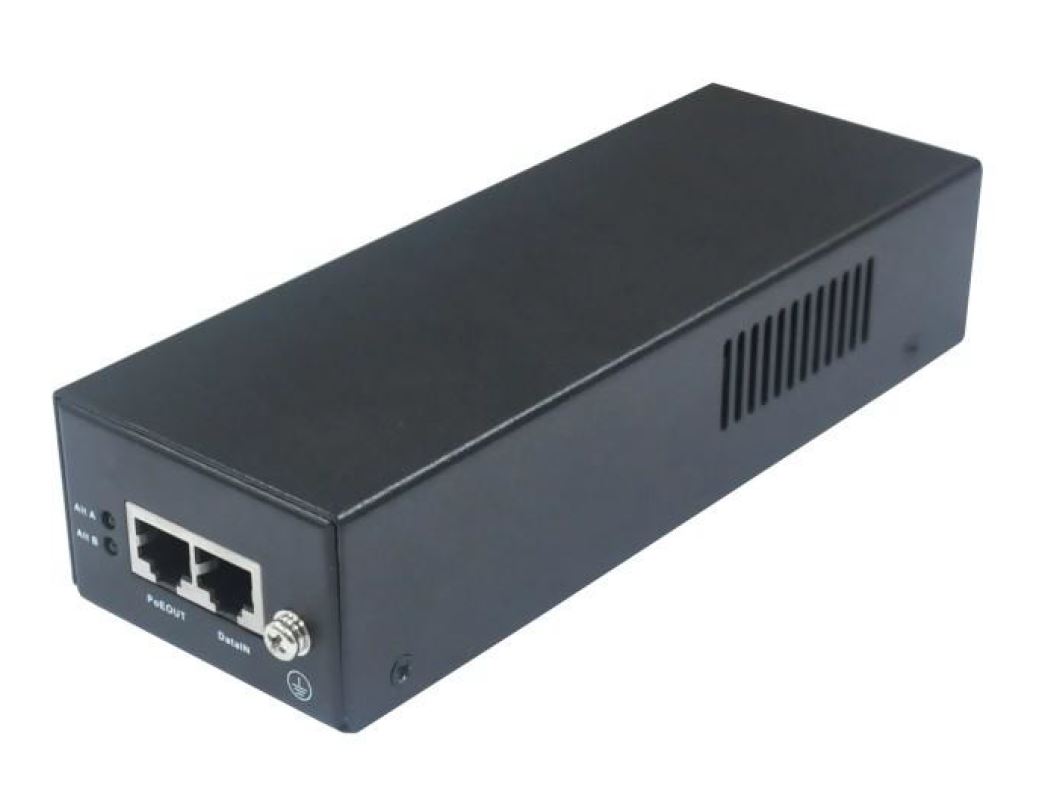

PE90-bt
  • IEEE802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt.
  • Up to 90W of power on 4-pairs
  • Supports 10/100/1000 Base-T applications
  • LED indicators power input indication
  • Distance up to 100 meters
  • Internal AC/DC converter – no need for external power brick
  • Easy plug-and-play installation
  • CE class A, LVD, FCC, ROHS 2.0
  • No. of Ports: 1
  • Pass Through Data Rates 10/100/1000 Mbps
  • User Port Power 90W
  • PoE Standard: IEE802.3 bt
  • Pin Assignment and Polarity:
    • Alternative A: V+ (Pin3,6), V- (Pin 1,2)
    • Alternative B: V+ (Pin4,5), V- (Pin 7,8)
  • Output Power Voltage: 56V DC
  • Input Voltage: 100...240V AC
  • Operating Temp.: 0...40°C
  • Surge Protection: 10/700us 6kV (IEC 61000-4-5)
  • Dimensions: 40 x 65 x 180mm

Multi-Port Midspans/Injectors (Indoor)

Product Picture Features Specifications Datasheets

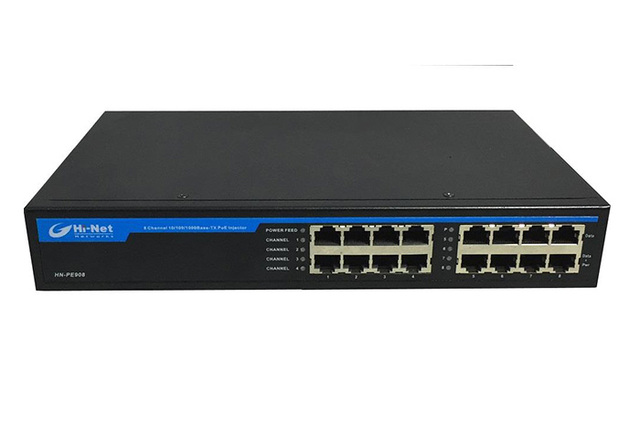

PE908
(8 port)
  • IEEE802.3af and IEEE802.3at Standard
  • 16 Ports—8 Ports data input and 8 ports data+ power output
  • Up to 30W of Power on 2-pairs
  • Auto-detect of POE IEEE 802.3af/IEEE 802.3at equipment
  • Supports 10/100/1000Base-T applications
  • LED indicators power input indication
  • Distance up to 100 meters
  • Optional internal power supplies: 150W or 250W
  • Easy plug-and-play installation
  • EMI standards complies with FCC, CE class B
  • Pass Through Data Rates: 10/100/1000 Mbps
  • Pin Assignment and Polarity: 1/2 (+), 3/6 (-)
  • Output Power Voltage: 48Vdc
  • User Port Power: 30W
  • AC Input Voltage: 100 to 240 Vac
  • AC Input Current: 1.3A at 110 Vac
  • AC Frequency: 50 to 60 Hz
  • System Indicator: AC Power
  • User Indicator: Channel Power
  • Connectors: Shielded RJ-45, EIA 568A and 568B
  • Operating Ambient Temp.: -10 to 45°C
  • Storage Temp.: -20 to 70°C
  • Dimension: 270 x 180 x 44mm
Coming soon

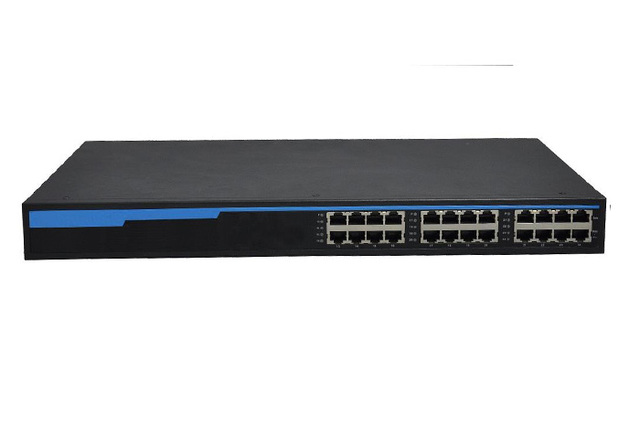

PE912
(12 port)
  • IEEE802.3af and IEEE802.3at Standard
  • 24 Ports—12 Ports data input and 12 ports data+ power output
  • Up to 30W of Power on 2-pairs
  • Auto-detect of POE IEEE 802.3af/IEEE 802.3at equipment
  • Supports 10/100/1000Base-T applications
  • LED indicators power input indication
  • Distance up to 100 meters
  • Optional internal power supplies: 200W or 360W
  • Easy plug-and-play installation
  • EMI standards complies with FCC, CE class B
  • Pass Through Data Rates: 10/100/1000 Mbps
  • Pin Assignment and Polarity: 1/2 (+), 3/6 (-)
  • Output Power Voltage: 48Vdc
  • User Port Power: 30W
  • AC Input Voltage: 100 to 240 Vac
  • AC Input Current: 1.3A at 110 Vac
  • AC Frequency: 50 to 60 Hz
  • System Indicator: AC Power
  • User Indicator: Channel Power
  • Connectors: Shielded RJ-45, EIA 568A and 568B
  • Operating Ambient Temp.: -10 to 45°C
  • Storage Temp.: -20 to 70°C
  • Dimension: 44 x 20 x 4.4cm
Coming soon
PE924
(24 port)
  • IEEE802.3af and IEEE802.3at Standard
  • 48 Ports—24 Ports data input and 24 ports data+ power output
  • Up to 30W of Power on 2-pairs
  • Auto-detect of POE IEEE 802.3af/IEEE 802.3at equipment
  • Supports 10/100/1000Base-T applications
  • LED indicators power input indication
  • Distance up to 100 meters
  • Optional internal power supplies: 370W or 720W
  • Easy plug-and-play installation
  • EMI standards complies with FCC, CE class B
  • Pass Through Data Rates: 10/100/1000 Mbps
  • Pin Assignment and Polarity: 1/2 (+), 3/6 (-)
  • Output Power Voltage: 48Vdc
  • User Port Power: 30W
  • AC Input Voltage: 100 to 240 Vac
  • AC Input Current: 1.3A at 110 Vac
  • AC Frequency: 50 to 60 Hz
  • System Indicator: AC Power
  • User Indicator: Channel Power
  • Connectors: Shielded RJ-45, EIA 568A and 568B
  • Operating Ambient Temp.: -10 to 45°C
  • Storage Temp.: -20 to 70°C
  • Dimension: 44 x 20 x 4.4cm
Coming soon

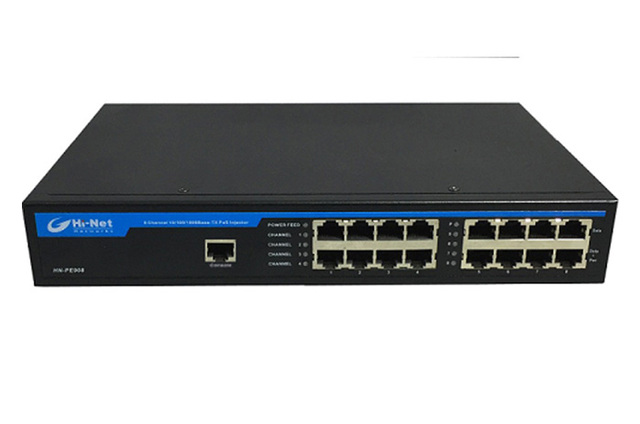

PE908M
(8 port managed)
  • Full IEEE 802.3af & IEEE 802.3at Compliant
  • Up to 30W of Power on 2-pairs
  • Auto-detect of POE IEEE 802.3af/IEEE 802.3at equipment
  • Supports 10/100/1000Base-T applications
  • LED indicators power input indication
  • Distance up to 100 meters
  • Internal AC/DC converter – no need for external power brick
  • Easy plug-and-play installation
  • Show PoE Output status
  • PoE ON/OFF Control
  • PoE Schedule
  • PD Alive auto Check
  • Pass Through Data Rates: 10/100/1000 Mbps
  • Pin Assignment and Polarity:1/2 (-), 3/6 (+)
  • Output Power Voltage: 52Vdc
  • User Port Power: 30W
  • AC Input Voltage: 100 to 240 Vac
  • AC Frequency: 50 to 60 Hz
  • Total Available Power: 150W/240W
  • System Indicator: AC Power
  • User Indicator: Channel Power
  • Connectors: Shielded RJ-45, EIA 568A and 568B
  • Operating Ambient Temp.: -10 to 45°C
  • Storage Temp.: -20 to 70°C
Coming soon

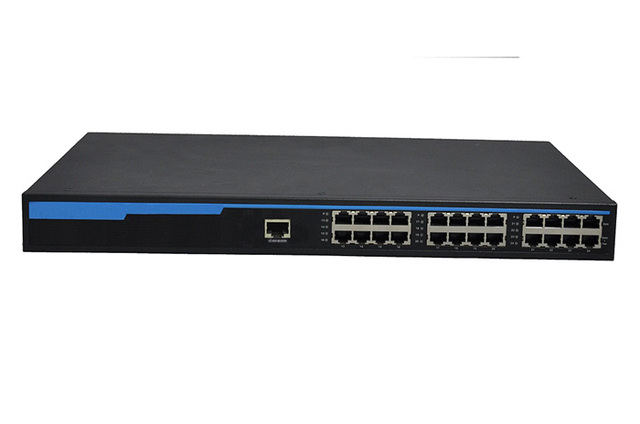

PE912M
(12 port managed)
  • Full IEEE 802.3af & IEEE 802.3at Compliant
  • Up to 30W of Power on 2-pairs
  • Auto-detect of POE IEEE 802.3af equipment
  • Supports 10/100/1000Base-T applications
  • LED indicators power input indication
  • Distance up to 100 meters
  • Internal AC/DC converter – no need for external power brick
  • Easy plug-and-play installation
  • Show PoE Output status
  • PoE ON/OFF Control
  • PoE Schedule
  • PD Alive auto Check
  • Pass Through Data Rates: 10/100/1000 Mbps
  • Pin Assignment and Polarity: 3/6 (+), 1/2 (-)
  • Output Power Voltage: 52Vdc
  • User Port Power: 30W (MAX)
  • AC Input Voltage: 100 to 240 Vac
  • AC Frequency: 50 to 60 Hz
  • Total Available Power: 240W/480W
  • System Indicator: AC Power
  • User Indicator: Channel Power
  • Connectors: Shielded RJ-45, EIA 568A and 568B
  • Operating Ambient Temp.: 0 to 40°C
  • Storage Temp.: -20 to 70°C
Coming soon
PE916M
(16 port managed)
  • Full IEEE 802.3af & IEEE 802.3at Compliant
  • Up to 30W of Power on 2-pairs
  • Auto-detect of POE IEEE 802.3af equipment
  • Supports 10/100/1000Base-T applications
  • LED indicators power input indication
  • Distance up to 100 meters
  • Internal AC/DC converter – no need for external power brick
  • Easy plug-and-play installation
  • Show PoE Output status
  • PoE ON/OFF Control
  • PoE Schedule
  • PD Alive auto Check
  • Pass Through Data Rates: 10/100/1000 Mbps
  • Pin Assignment and Polarity: 3/6 (+), 1/2 (-)
  • Output Power Voltage: 52Vdc
  • User Port Power: 30W (MAX)
  • AC Input Voltage: 100 to 240 Vac
  • AC Frequency: 50 to 60 Hz
  • Total Available Power: 240W/480W
  • System Indicator: AC Power
  • User Indicator: Channel Power
  • Connectors: Shielded RJ-45, EIA 568A and 568B
  • Operating Ambient Temp.: 0 to 40°C
  • Storage Temp.: -20 to 70°C
Coming soon

PoE Switches (Indoor)

Product Picture Features Specifications Datasheets

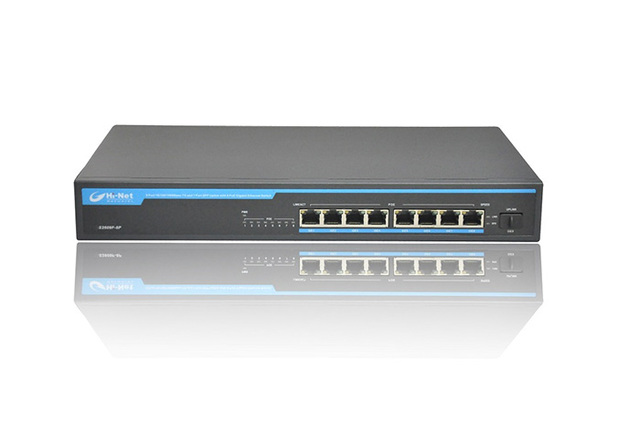

S2609F-P
  • IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3af, IEEE802.3at
  • Provides 8 10/100/1000Base-TX ports and 1 1000M SFP port
  • Provides 4 or 8 PoE Port, each port output 30W max power
  • Build in power supplies, optional 150W or 250W
  • 4K entry MAC address table of the PoE switch with auto-learning and auto-aging
  • High back-plane bandwidth 18Gbps
  • IEEE802.3x Flow control
  • Surge protection for power port and data ports
  • EMI standards complies with FCC, CE class B
  • Extend Function: Port Lightning protection, Power lightning protection, solid vlan.
  • LED Indicators: PWR, PoE, Link/Act LED
  • Input voltage 100V~240V AC, 50/60Hz
  • Network Media
    • 10BASE-TX: UTP category 5, 5e cable (≤250m)
    • 100BASE-TX: UTP category 5, 5e cable (≤150m)
    • 1000BASE-TX: UTP category 5, 5e cable (≤150m)
    • Uplink Fiber Port: Single Fiber 20KM, Double Fiber: 20Km
  • Operating Temp.: 0~40°C
  • Storage Temp.: -10~70°C
  • Switching capacity: 18G
  • PoE port: 4/8 10/100/1000Base-TX ports
Coming soon

PoE Switches (Industrial)

Product Picture Features Specifications Datasheets

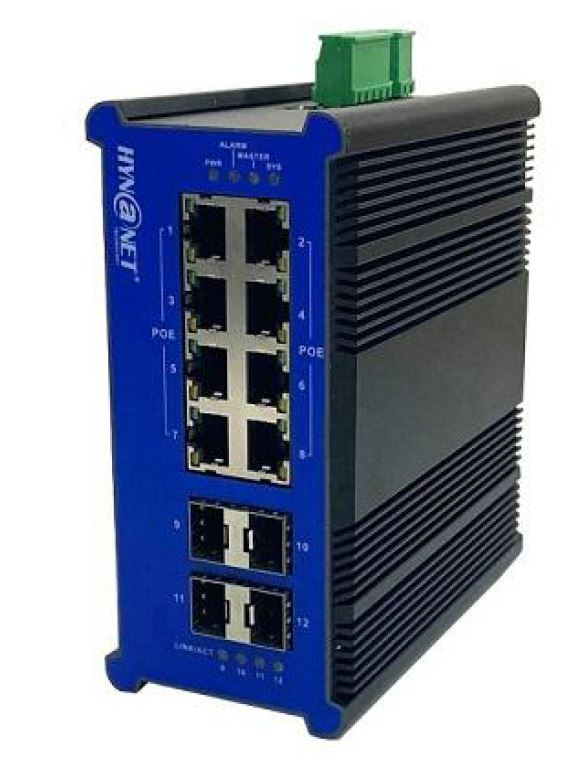

IDS5008F4-U/T
  • IEEE802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3ae, IEEE802.3af IEEE802.3at IEEE802.3bt
  • Provides 8 10/100/1000 Base-TX ports + 4 10G SFP ports
  • Provides 8 60W(Type-3) or 90W(Type-4) PoE ports
  • High back-plane bandwidth 96Gbps
  • Support:
    • MLD Snooping
    • Standard IP/ Extend IP / MAC IP / ARP ACL
    • IGMP snooping for Multi-media application
    • Port mirror and bandwidth control
    • IEEE802.3x Flow control
    • Port Based VLAN / 802.1Q Tag VLAN
    • IEEE802.3ad Port trunk with LACP
    • Spanning tree protocol IEEE802.1d/802.1w/802.1s
    • IEEE 802.1p class of servic
    • IEEE 802.1x user authentication
    • Broadcast storm filter
    • DHCP client, DHCP relay, DHCP server, DHCP snooping
    • Static Route, Policy Route, RIP, OSPF, VRRP
    • System event log
    • Command line interface management
  • Management by Web / SNMP / SSH / Telnet / Console
  • CE Class A, LVD, ROHS2.0
  • Management Interface: Console
  • LED Indicators: Power, Link/Act, PoE
  • Switching Capacity: 96 Gbps
  • Forwarding Capacity: 71.4 Mpps
  • Forwarding Mode: Store and Forward
  • Packet Buffer Memory: 12 Mbit
  • RAM for CPU: 2G Mbit
  • Flash Memory: 512 Mbit
  • MAC Address Table: 16K
  • Max. Jumbo Frame size: 16K
  • ACL Table: 512
  • VLAN Quantity: 4K
  • VLAN Interface: 32
  • Routing Host: 512
  • Routing Entries: 64
  • PoE Budget: 240/360/480/720W
  • Dimensions: 147.5 x 142.5 x 70 mm
  • Operating Temp.: -10 to 60°C
  • Storage Temp.: -40 to 75°C
  • Power Method: 44~57VDC
  • Including PoE Output: 250/370/490/730W
  • Excluding PoE Output: 10W

Splitters (Indoor)

Product Picture Features Specifications Datasheets
PS60G
60 W Gigabit PoE splitter
  • Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at IEEE802.3at/4-Pairs
  • 2 10/100/1000M RJ45 ports
  • Splits the 48VDC power over RJ45 Ethernet cable into different DC output.
  • Support wide input voltage range 36Vdc to 57Vdc.
  • Maximum power output up to 60W.
  • Support 4 pin connector, can output 2 channel power
  • Short circuit protection.
  • High efficiency DC/DC converter.
  • LED indicators for power input indication.
  • Plug-and-Play
  • Network Media:
    • 10BASE-TX: UTP category 5, 5e cable (≤250m)
    • 100BASE-TX: UTP category 5, 5e cable (≤150m)
    • 1000BASE-TX: UTP category 5, 5e cable (≤150m)
  • Forwarding Rate:
    • 10BASE-T: 14880pps/port
    • 100BASE-TX: 148800pps/port
    • 1000BASE-TX: 148800pps/port
  • Size: 136 *100.8 *37.4 mm
  • Pin Feet: Data & power Pairs 1/2 and 3/6 or 4/5 and 7/8
  • DC output 4pin connector: 12V/5A
  • Operating Ambient Temp.: 0 to 40°C
  • Storage Temp.: -40 to 70°C
  • Regulatory Compliance:
    • IEEE 802.3af (PoE)
    • IEEE 802.3 (Ethernet)
    • IEEE 802.3u (Fast Ethernet)
    • IEEE 802.3ab (Gigabit Ethernet)
Coming soon

PoE Accessories

Product Picture Features Specifications Datasheets

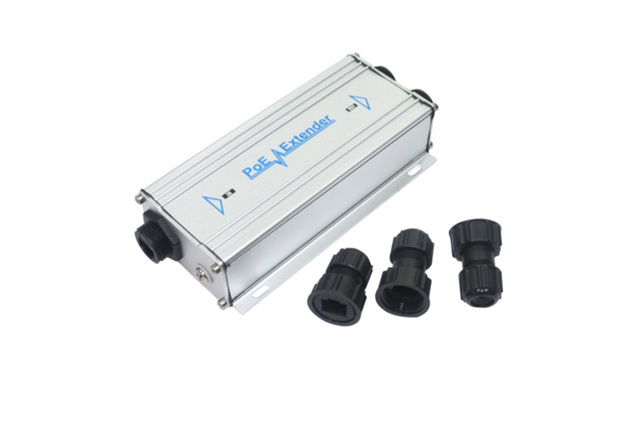

IPX102-bt
PoE-Extender
  • IEEE802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt
  • One PoE Input (PD port) and Two PoE output (PSE ports)
  • 10/100M Base-T Ports
  • Extends the range of PoE and Ethernet an additional 100 meters
  • No additional power supply is required
  • Automatically detects and protects PoE equipment from being damaged by incorrect installation
  • Full-rate network throughout the whole extended distance
  • Compact size, Wall-Mountable design
  • Easy plug-and-play installation
  • Aluminum case
  • CE class A, LVD, FCC, ROHS 2.0
  • PoE Interfaces:
    • 1 x RJ-45 Connector for 802.3af/at/bt Power input
    • 2 x RJ-45 Connector for 802.3af/at Power output
  • Input PoE Voltage: 44~57VDC
  • Input PoE Pin Assignment:
    • V+ (RJ45 Pin3,6)
    • V- (RJ45 Pin 1,2)
    • V+ (RJ45 Pin4,5)
    • V- (RJ45 Pin 7,8)
  • Output PoE Wattage: ≥65W
  • Output PoE Pin Assignment
    • V+ (RJ45 Pin3,6)
    • V- (RJ45 Pin 1,2)
    • V+ (RJ45 Pin4,5)
    • V- (RJ45 Pin 7,8)
  • Power cost: ≤5W
  • Dimensions: 170 x 78 x 35mm
  • Operating Temp.: -40 to 75°C
  • Storage Temp.: -40 to 85°C
  • Ingress Protection Level: IP30
Coming soon

Applications

Solutions

Solutions Application

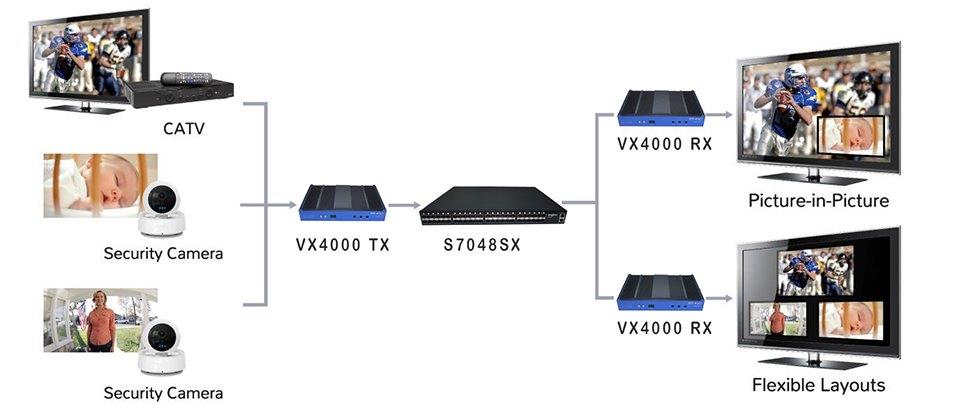

4K HDMI Solution

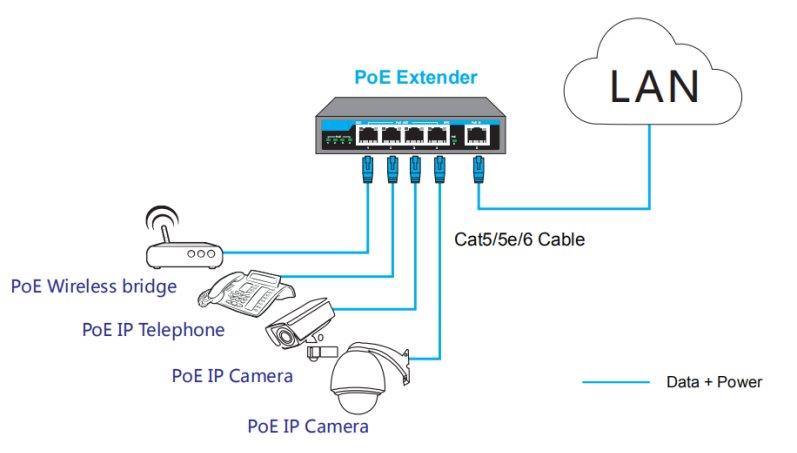

Security Solutions
Wireless Solutions
IP telephony Solutions
