About ISOCOM

• Isocom Components is a leading manufacturer of high performance infrared optoelectronic devices in optocouplers and optoswitches
• Since the business was established over 25 years ago they have consistently delivered in excess of our customer’s expectations to become one of the most respected brands in the worldwide optoelectronic industry
• Their expert knowledge and flexible manufacturing processes result in the shortest production lead times in the world for many parts
• Their product quality and superior customer service is unrivalled and is endorsed by our many long-standing customers
• Isocom Components is your natural alternative to all popular commercial optocoupler industry standard types including many no longer supplied by other manufacturers
• In addition, They carry out special parametric selections to meet customer’s specific circuit design requirements
• Their parts are available approved to the leading recognised industry standards and all devices are available in various lead forms and in Tape and Reel packaging if required
• Special Selections
• Just-In-Time Delivery
• Superior Service
• Short Lead Times
• Unbeatable Quality
• Technical Support

New Products

QTR 2 2018

• ISLT 1102 (Long Creepage Package) alternative to Vishay TCLT 1002
• HIILI - introduction of new package, allowing for higher operating temperature of 100°C

QTR 3 2018

• High Speed Coupler S08 package ISPL Series, alternative to AVAGO HCPL product range...
• Introduction of IS1109 half pitch Mini - Flat package altrnative to Vishay TCMT 1109

QTR 4 2018

• IGBT type, ISPL 3150, 0.5 AMP output current gate drive Opto Coupler

Product Highlights

Optocouplers

Optoswitches

Product Line	Picture	Standard Devices	Special Purpose Devices	Custom Devices
Transistor PWB		Single Channel Slotted Interrupters Transistor and Darlington	Reflectors Fyling Leads 5mm Gap Interrupters	Package Dimensions Electrical Characteristics Flying Leads Connectors Complete Assemblies
Transistor Flanged

Solid State Relays (SSR)

Products

Optocouplers

Product Line	Product Categories	Picture	Links
4 Pin DIL and SMD Optocouplers	Transistor Output

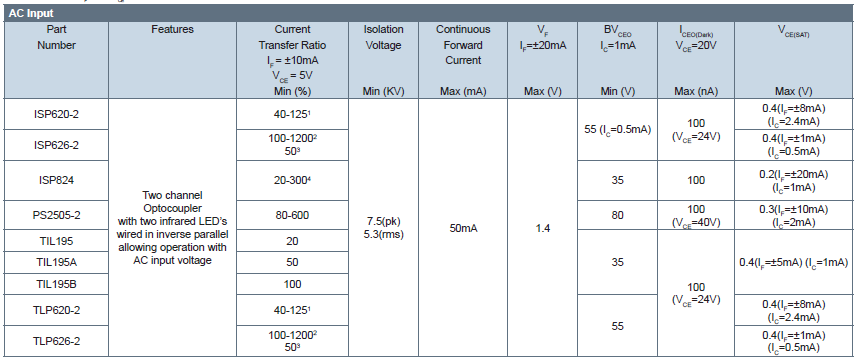

	AC Input

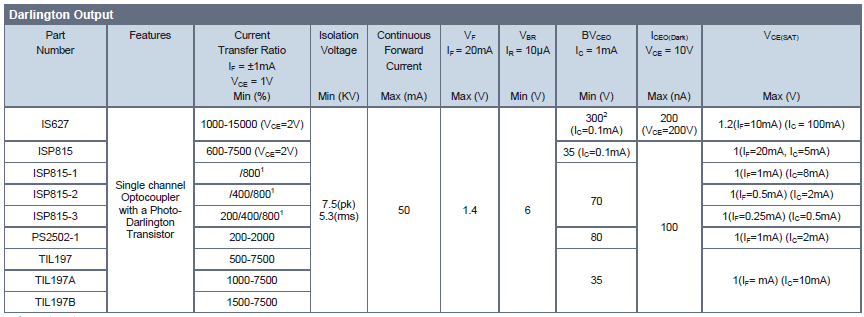

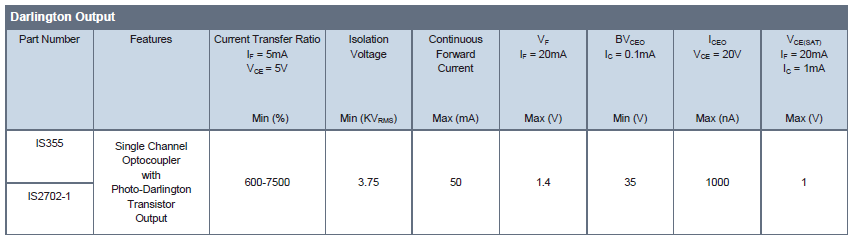

	Darlington Output

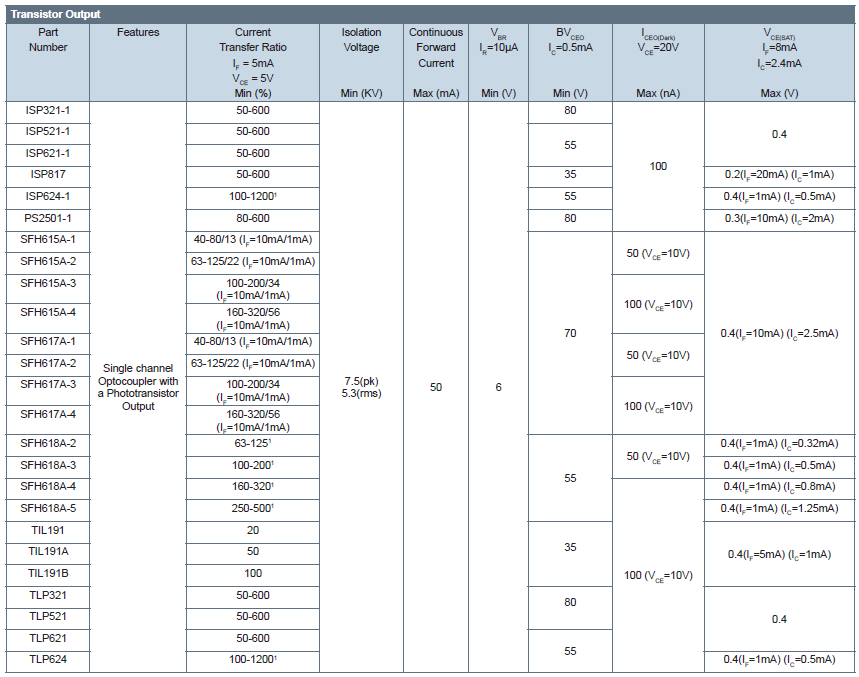

6 Pin DIL and SMD Optocouplers	Transistor Output

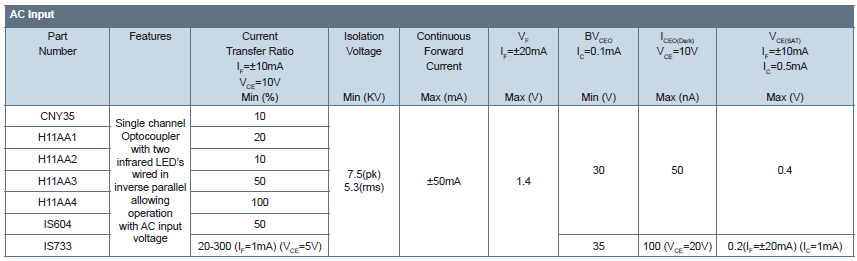

	AC Input
	Darlington Output

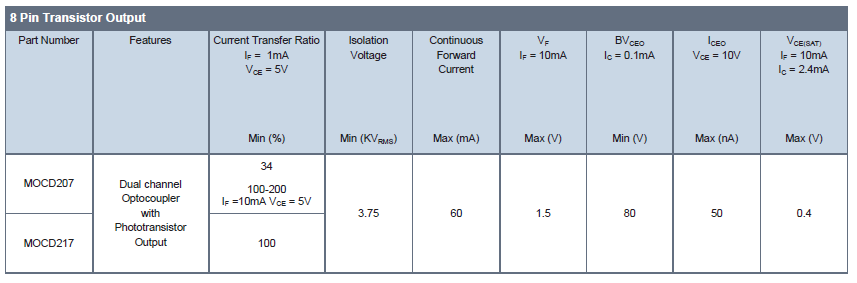

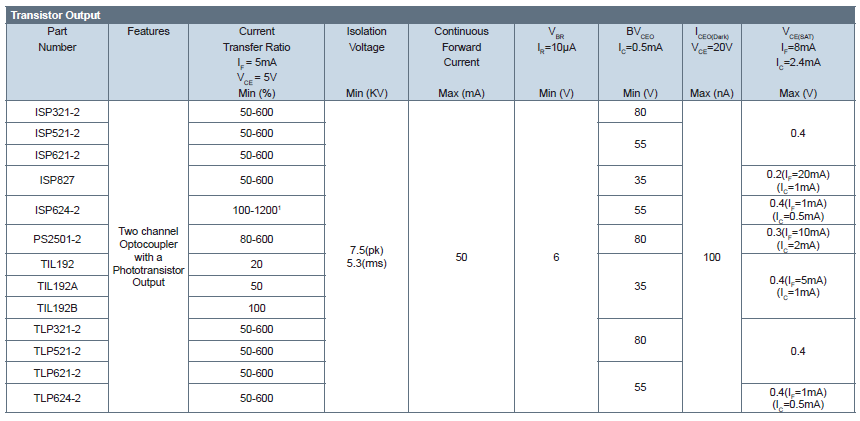

8 Pin DIL and SMD Optocouplers	Transistor Output

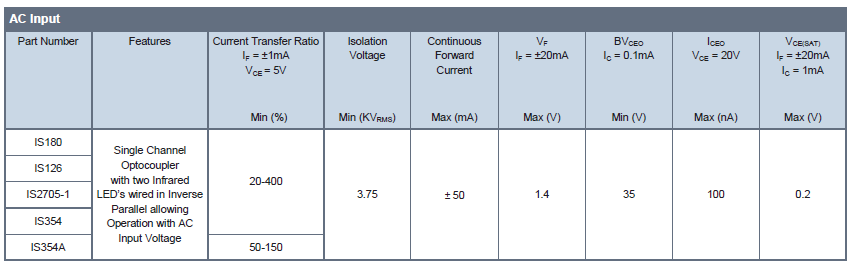

	AC Input

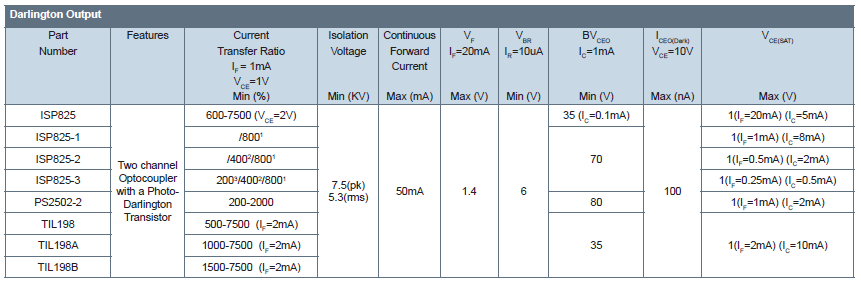

	Darlington Output

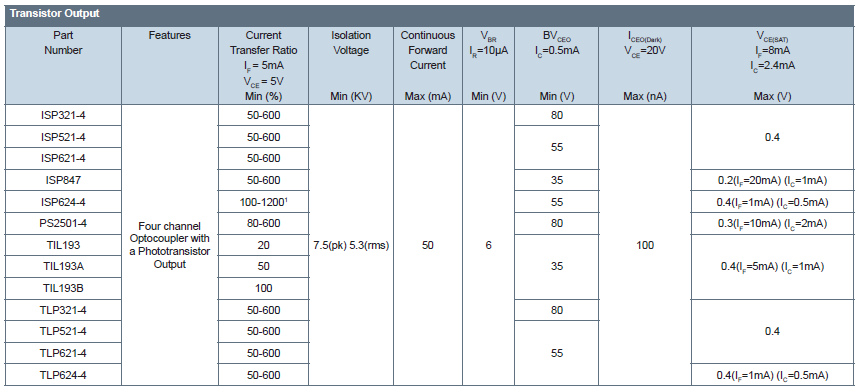

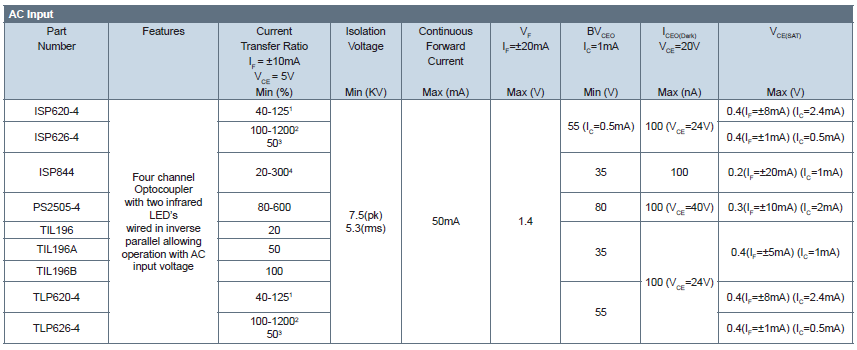

16 Pin and DIl and SMD Optocouplers	Transistor Output
	AC Input

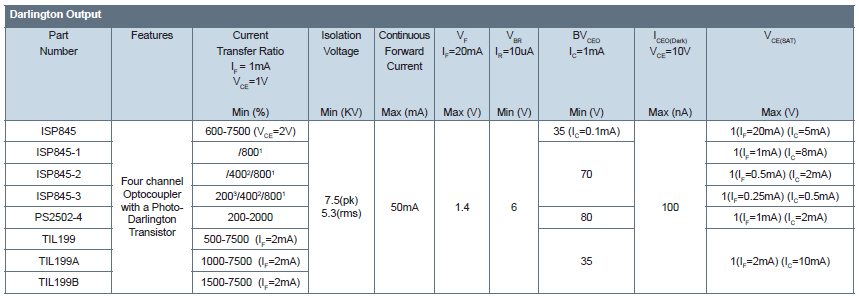

	Darlington Output
Mini Flat Packages	Transistor Output
	AC Input
	Darlington Output
	High Voltage Darlington Output
	Random Phase Triac

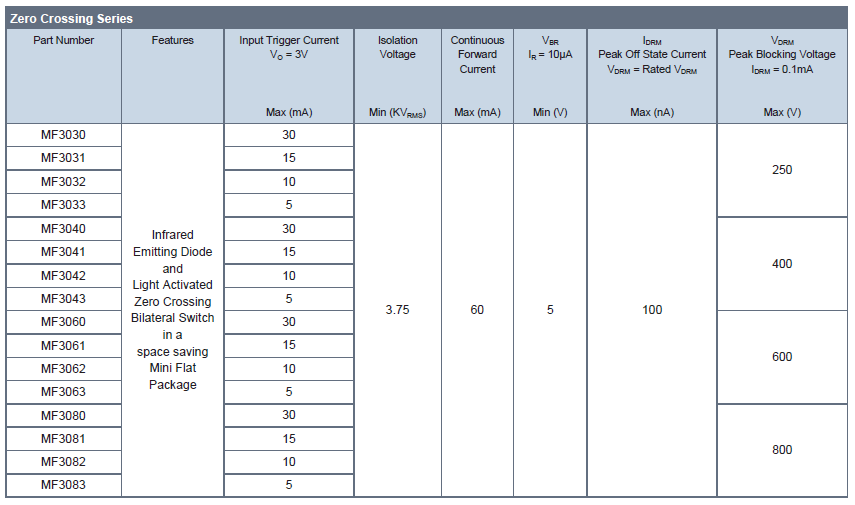

	Zero Crossing Triac
Half Pitch Products	Half Pitch 4 Pin Compact
	Half Pitch 5 Pin Compact
	Half Pitch 8 Pin Compact
	Half Pitch 16 Pin Compact
High Speed Products	High Speed
	Compact Range High Speed
	Wide Bodied High Speed

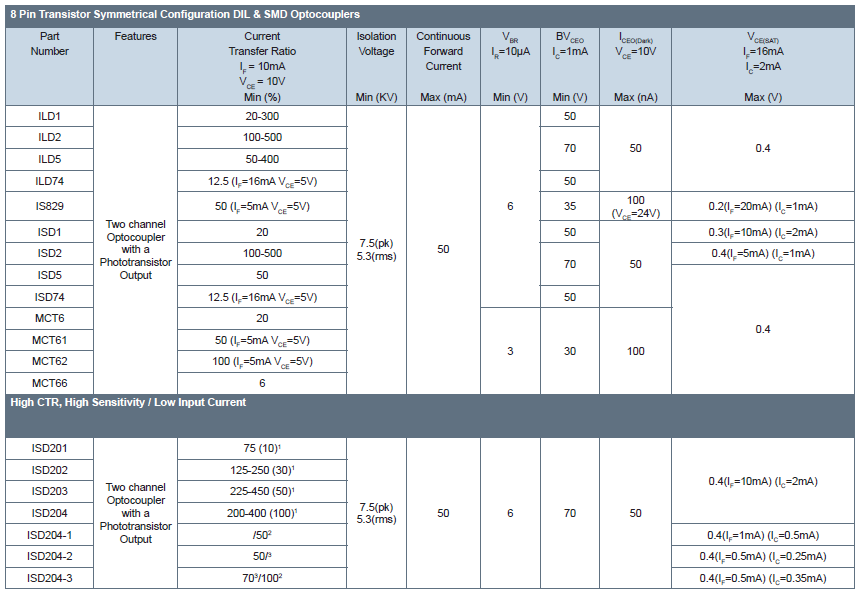

8 Pin Symmetrical Terminal Configuration DIL and SMD	8 Pin Symmetrical Terminal Configuration DIL and SMD

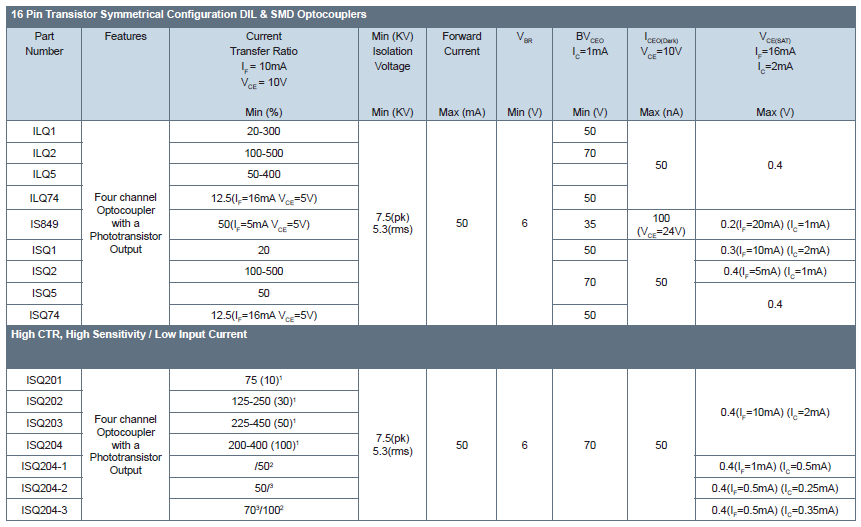

16 Pin Symmetrical Terminal Configuration DIL and SMD	16 Pin Symmetrical Terminal Configuration DIL and SMD

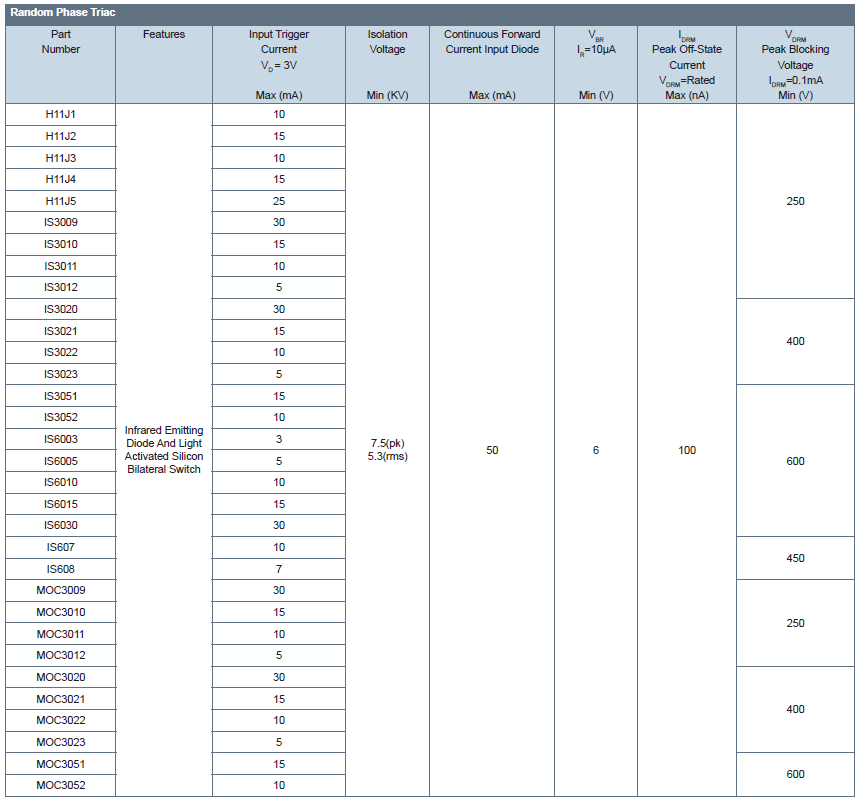

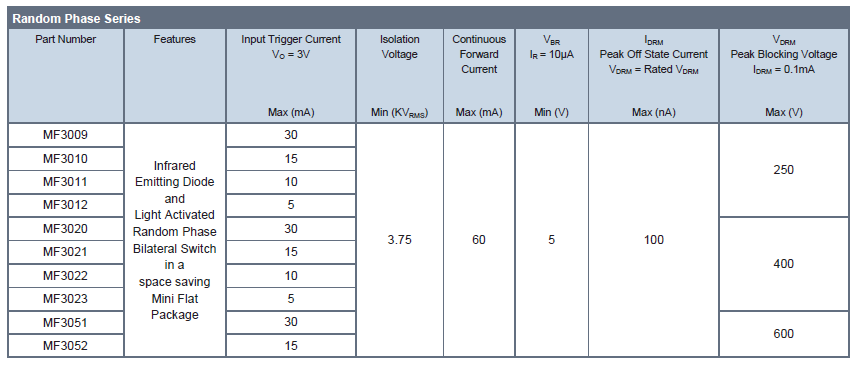

Special Purpose 6 Pin DIL and SMD	Random Phase Triac
	Zero Crossing Triac

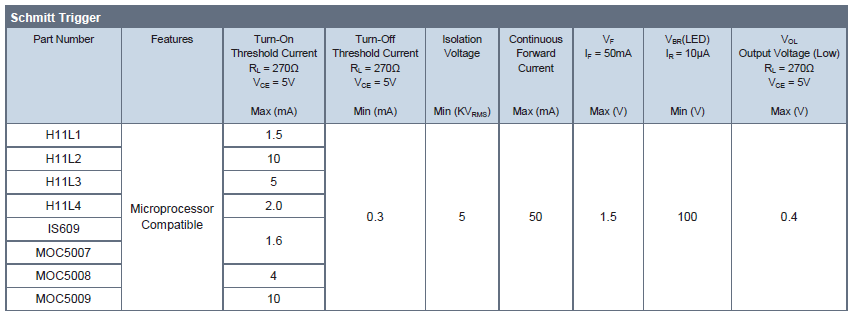

	Schmitt Trigger
IGBT Optocouplers	IGBT Optocouplers

Optoswitches

Product Line	Product Categories	Picture	Links

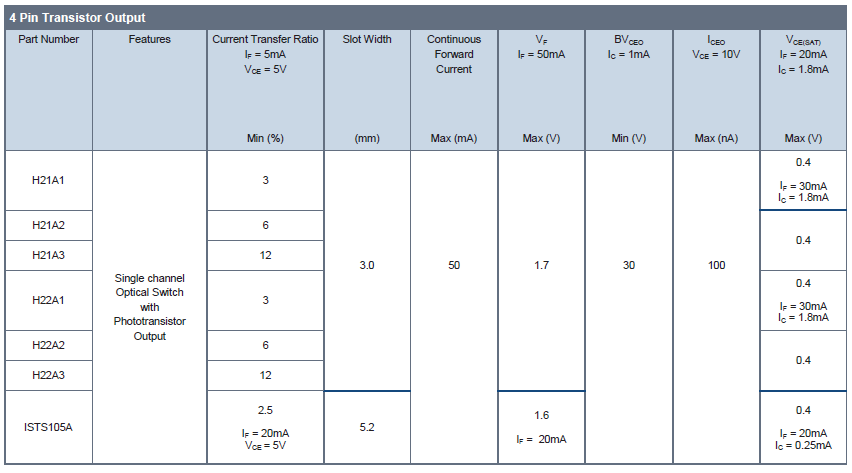

Transistor PWB	Transistor PWB
Transistor Flanged	Transistor Flanged

Solid State Relays (SSR)

Product Line	Product Categories	Picture	Links

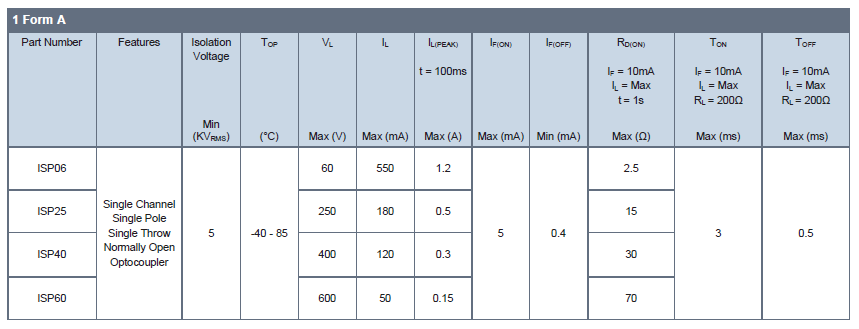

4 Pin SSR	4 Pin SSR

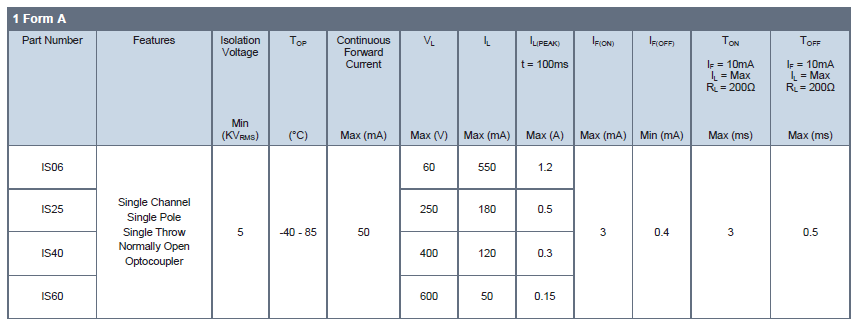

6 Pin SSR	6 Pin SSR

Applications

Know How

Why use an Optocoupler?

• Provide a low cost, sapace efficient, easy to use solution to high voltage isolation requirements
• With careful PCB design the input can be electonically isolated from the output stage for up to 7.500 volts peak diffenential

Which Optocouplers?

• For those new to optocouplers the array of varieties may seem bewildering
• But by considering the specific application the right optocoupler can usually be selected easily

Transistor

• Transistor optocouplers can be used in most circumstances
• If the base lead of the output transistor is not required in the circuit then the packages with no base lead connection provide additional protection against noise
• The special dual and quad packages provide excellent PCB space savings where several optocouplers are required on the same circuit board

AC Input

• AC input devices switch on the output transistor when an AC voltage (or a DC voltage of either polarity) is applied to the input
• A typical application of this device is to detect the presence, or lack of, an AC voltage

Darlington

• Where high gain is required a darlington pair output device can provide up to 100% Current Transfer Ratio(CTR)

Schmitt Trigger

• Where hystersis control is needed together with a degree of speed, the Schmitt trigger devices provide an ideal solution

Triac

• Provide control of AC voltages.
• For very high current applications, Isocom Components' Traic optocouplers can be used to control an external Power Triac

IGBT Optocoupler

• Isocom's newly developed ICPL3120 incorporates an infrared emitting diode optically coupled to an integrated circuit with a Power Output stage
• It is suited for driving power IGBT's and MOSFETS in motor control applications.

Mini Flat Packages

• A range of space saving optocouplers with various outputs including Zero Crossin Triacs and Random Phase Triacs

Half Pitch Packages

• a range of super small devices with both AC & DC inputs coupled with a phototransistor output

High Speed

• a ramge of industry standard High Speed optocouplers with data rates in excess of 10 Mbits/sec

Solid State Relays (PhotoMOS)

• a range of Photo MOSFET optocouplers in 1 Form A configuration.
• Suitable for controls nd data transmission in industrial controls and meter reading
