About Itacoil

• Location: Italy
• Certifications: ISO9000, EN61558
• Itacoil produces standard and custom-made transformers and inductors
• Founded 1981
• MARKET LEADER IN THE DESIGN OF LLC INTEGRATED RESONANT TRANSFORMERS


• Skills and proprietary development tool (based on High Frequency SPICE methodology)
• First shot resonant converter design
• Tank and magnetics design
• Design simple as for a flyback
• Samples ready in few days
• Project ready in a week


• SMPS design service available


• Totally cost effective
• Design
• Magnetics
• Itacoil also has offices in Asia aimed at the coordination and control of their activities
• This allows them to apply their quality standards to the competitiveness of local productions.
• Thanks to the presence of highly qualified employees and to robotized production and testing they can supply their products with quality guarantee according to the European UNI EN ISO 9001:2000standard.
• Almost all manufacturing plants are built in their company by means of very modern technologies, as for example robots, artificial vision systems, automatic testing systems, and so on
• This means producing at a very competitive price without neglecting a very high quality standard
• Their great interest in innovation also translates into a continued search for sustainable technological solutions, such as the study of new, eco-compatible manufacturing processes, the exclusive use of energy from renewable sources, the selection of low pollution chemical products and, last but not least, energy saving.

Products

Picture	Features	Details

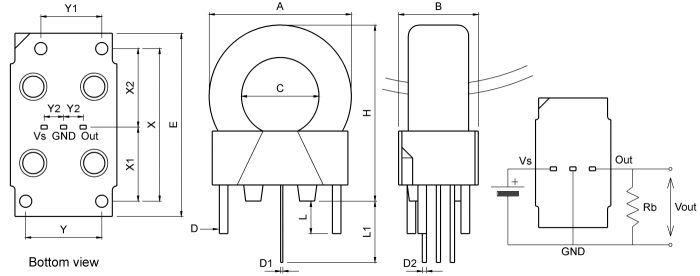

New: AC-DC current sensor 38...90A
	-Precision open loop AC/DC current sensor -Cost effective solution in digital measurement systems -DC to over 100KHz bandwidth -Low and constant phase shift -Low temperature drift -Working temperature up to 65°, 95°C with current derating -Quick response time -High insulation and creepage-clearance Custom versions on request
New: 100W LLC integrated resonant
	-Designed for best performances on LLC power supply -Efficiency up to 96% with simplest hardware solutions -Continuous power up to 115W -Max power up to 190W -Extremely compact size (26.4x28.9x16.1mm max) -Integrated resonant inductor -With or without PFC
LLC Resonant Transformers
	3D drawings are available for download for the most of the transformers Designed for best performances on high efficiency LLC resonant power supply with PFC pre-regulator stage Suited for converters based on chips ST Microelectronics, Fairchild, Texas Instruments, ON Semiconductor Motorola, NXP Philips, Power Integrations, Infineon, International Rectifier, and many others. Integrated resonant inductor and extremely compact size Power supply efficiency up to 96% with simplest hardware solutions, without synchronous rectification High creepage/clearance/DTI for reinforced insulation, to meet EN61558, EN60950, etc. RoHS compliant Usually on stock Custom versions on request The design of a LLC resonant converter with high efficiency target (both energetic and economic) should consider the constraints related to the physical parameters of the transformer which is supposed to use. Thanks to our proprietary software we are able to provide a quick and efficient support, working with electronic designers, in defining the "resonant tank" parameters in order to minimize the losses (including MOSFET's conduction losses) to obtain the best efficiency in each of our formats.
Transformers for SMPS, DC/DC converter and inverters - THD
	3D drawings are available for download for the most of the transformers Power transformers with ferrite core or other magnetic materials, for flyback, push-pull, forward and other converter topologies, produced to meet clients requirements. They can be supplied with every available size, with linear or toroidal shape. According to customer's technical and safety requirements we are able to wind with litz wire, flat enamelled wire, copper foils, triple insulated wire (TIW) etc.
