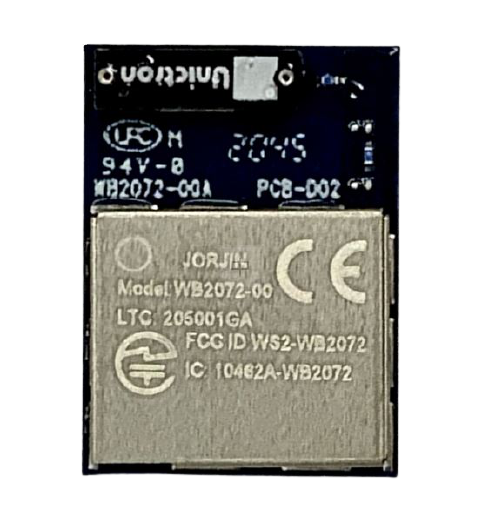

WB2072-00

• High performance and ultra low power Cortex M0+ 32 bit , 64 MHz
• 256 KB Flash, 64 KB SRAM, 1 KB OTP, 7KB MPU
• Operating supply voltage: from 1.7 to 3.6 V
• Dynamic current consumption: 18 μA/MHz
• Extensive peripheral set: 2 x SPI / I2S, 1x SPI, 2 x I²C, 1 x USART, 1 x UART, 6 x PWM, 1 x PDM, 1 x 12 bit ADC
• Embedded UART bootloader
• Enhanced security mechanisms such as:
• Flash read/write protection
• SWD access can be disabled
• Secure bootloader
• LGA 42pins package
• Dimension 15 mm(L) x 11 mm(W) x 2.6 mm(H)
• Temperature range: -40° to +85°C

WS2116-A0/F0

• Sub-1 Ghz + BLE low power wireless module
• Sigfox Monarch roaming feature
• RC1 to 6 bands, 865 - 923 MHz
• STM S2-LP and ST BlueNRG-2 chip
• UART, I2C interface
• Cortex-M0 32 Bit controller
• Output power BLE: up to +8 dBm
• Output power Sigfox: up to +24 dBm
• 22mm(L) x 22mm(W) x 2.8mm(H)
• Operating temperature -40°C - +85°C

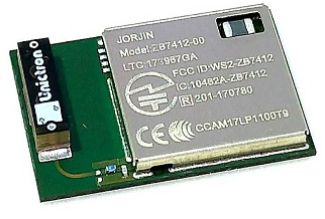

ZB7412-00

• BLE module
• Bluetooth 4.2 and 5.0
• UART interface
• TI CC2640R2F with Cortex-M3
• LGA 25 Pins
• 16.9mm(L) x 11mm(W) x 2.45mm(H)
• Integrated antenna
• Operating temperature -40°C - +85°C

WG7837-V0

• WiFi+BT/BLE SIP module
• IEEE 802.11a/b/g/n+BT/BLE
• SDIO interface
• TI CC2640R2F with Cortex M3
• LGA 100 Pins
• 13.3mm(L) x 13.4mm(W) x 2.0mm(H)
• WiFi 2.4 GHz 2T2R
• WiFi 5 Ghz 1T1R
• Operating Temperature -40°C - +85°C

WS2118-00

• Sub-1 Ghz + BLE low power wireless module
• STM S2-LP and BlueNRG-1 chip
• UART interface
• Stamp-hole 38 pins package
• 2 U.FL connectors
• Cortex-M0 32 Bit controller
• Receiver sensitivity: -88dBm (BLE), -130dBm (Sub-1GHz)
• 22mm(L) x 24mm(W) x 2.8mm(H)
• Operating temperature -40°C - +85°C

WG7831DELF

• WiFi+BT/BLE module
• IEEE 802.11b/g/n+BT/BLE
• SDIO interface

• TI WL1831 chipset
• Stamp hole package
• 25mm(L) x 25mm(W) x 2.5mm(H)
• Integrated antenna
• Operating temperature -20°C - +75°C

WL6031-00

• WiFi SIP module
• IEEE 802.11b/g/n
• SPI/SDIO interface

• Realtek RTL8189EM
• LGA 20 pins package
• 13mm(L) x 13mm(W) x 2.35mm(H)
• External antenna, 1T1R
• Operating temperature 0°C - +70°C
