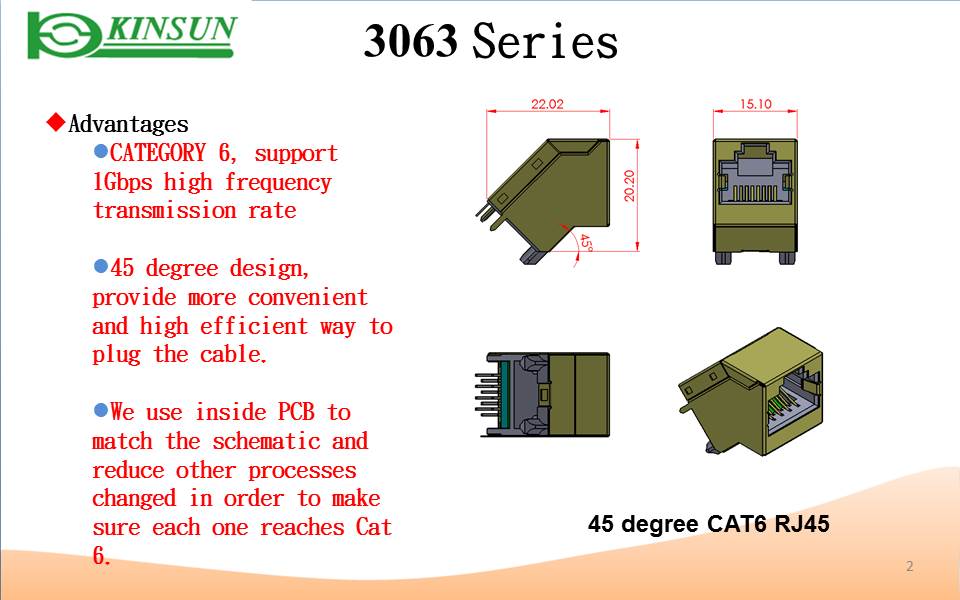

45 degree CAT6 RJ45 Jacks





Datasheet

Products Highlights

RF Antenna

Picture Features

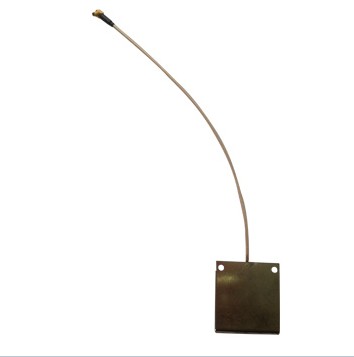

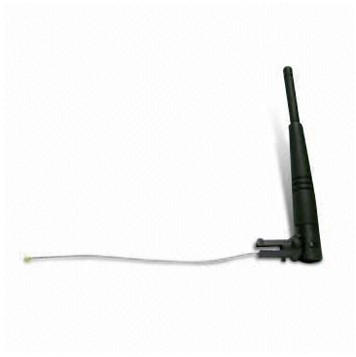

2,4/5 GHz Dualband Antenna (Product Number:6604)
    Electrical:
  • Frequency range: 2.4 to 5.8GHz
  • Impedance: 50 Ω
  • V.S.W.R.: ≤2.0
  • Gain: 2.4GHz 2.0dBi, 5.8GHz 3.0dBi
  • Radiation: 0mni
  • Polarization: Vertical
  • Electrical wave: 1/4 λ, Dipole
  • Cable: RG-178

    • Mechanical
  • Antenna cover: Plastic
  • Antenna base: Plastic
  • Color: Black
  • Operating temperature: -20 to +65 degrees Celsius
  • Storage temperature: -30 to +75 degrees Celsius
  • Cable: 1.13
  • Connector: UFL

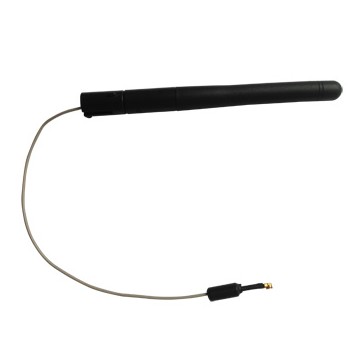

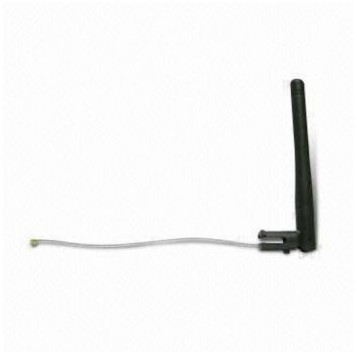

2,4/5 GHz Dualband Antenna (Product Number: 6602)
    Electrical:
  • Frequency range: 2.4 to 5.8GHz
  • Impedance: 50 Ω
  • VSWR: ≤ 2.0
  • Gain: 2.4GHz, 2.0dBi, 5.8GHz and 3.0dBi
  • Radiation: 0mni
  • Polarization: Vertical
  • Electrical wave: 1/4 λ, dipole
  • Cable: RG-178

    • Mechanical:
  • Antenna cover: Plastic
  • Antenna base: Plastic
  • Available in black
  • Operating temperatures: -20 to +65°C
  • Storage temperatures: -30 to +75°C
  • Cable: 1.13
  • Connector: UFL

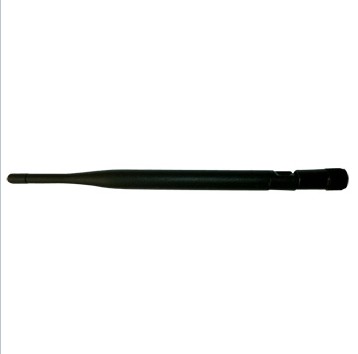

2,4/5 GHz Dualband Antenna (Product Number: 6610)
    Electrical:
  • Frequency Range: 2.4&5.8GHz
  • Impedance: 50ohm
  • VSWR: ≤2.0
  • Gain: 2.4GHz:2dBi 5.8GHz3dBi
  • Radiation:0mni
  • Polarization:Linear

    • Mechanical:
  • Antenna Housing: Engineering Plastics
  • Color: Black
  • Operating Temperature:-20?~+65?
  • Storage Temperature: -30?~-75?
  • Connector: SMA Male Reverse

2,4/5 GHz Dualband Antenna (Product Number: 6602)

    Electrical:
  • Frequency Range: 2.4GHz & 5.8GHz
  • Impedance: 50ohm
  • VSWR: ≤2.0
  • Gain: Depend on length
  • Radiation:Omni
  • Polarization:Linear

    • Mechanical:
  • Antenna Housing: Engineering Plastics
  • Color: Black
  • Operating Temperature:-20~+65°C
  • Storage Temperature: -30~-75°C
  • Connector: MHF(l -pex)
  • Cable: 1.13

2,4/5 GHz Dualband Antenna (Product Number: 6603)

    Electrical:
  • Frequency Range: 2.4GHz & 5.8GHz
  • Impedance: 50ohm
  • VSWR: ≤2.0
  • Gain: Depend on length
  • Radiation:Omni
  • Polarization:Linear

    • Mechanical:
  • Antenna Housing: Engineering Plastics
  • Color: Black
  • Operating Temperature:-20~+65°C
  • Storage Temperature: -30~-75°C
  • Connector: MHF(l -pex)
  • Cable: 1.13

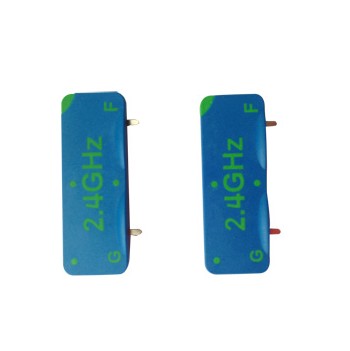

Insert Antenna (Product Number: 6683)

    Electrical:
  • Frequency Range: 2.4GHz
  • Impedance: 50ohm
  • VSWR: ≤2.0
  • Gain: Depend on length
  • Radiation:Directional
  • Polarization:Linear

    • Mechanical:
  • Antenna Housing: Engineering Thermoplastic
  • Color: Blue
  • Operating Temperature:-20~+65°C
  • Storage Temperature: -30~-75°C
  • Connector: DIP

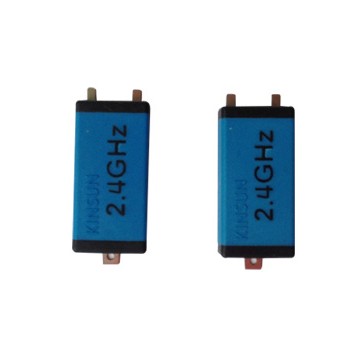

Insert Antenna (Product Number: 6682)

    Electrical:
  • Frequency Range: 2.4GHz
  • Impedance: 50ohm
  • VSWR: ≤2.0
  • Gain: Depend on length
  • Radiation:Directional
  • Polarization:Linear

    • Mechanical:
  • Antenna Housing: Engineering Thermoplastic
  • Color: Blue
  • Operating Temperature:-20~+65°C
  • Storage Temperature: -30~-75°C
    Connector: SMT

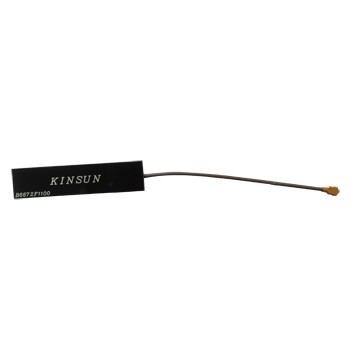

Internal Antenna (Product Number: 6672)

    Electrical:
  • Frequency Range: 2.4GHz
  • Impedance: 50ohm
  • VSWR: ≤2.0
  • Gain: Depend on ground
  • Radiation:Directional
  • Polarization:Linear

    • Mechanical:
  • Material: FR-4PCB
  • Color:Black
  • Operating Temperature:-20~+65°C
  • Storage Temperature: -30~-75°C
  • Connector: MHF(l-pex)
  • Cable: 1.13

Internal Antenna (Product Number: 6660)

    Electrical:
  • Frequency Range: 2.4GHz
  • Impedance: 50ohm
  • VSWR: ≤2.0
  • Gain: Depend on ground
  • Radiation:Directional
  • Polarization:Linear

    • Mechanical:
  • Material: Tinplate
  • Operating Temperature:-20~+65°C
  • Storage Temperature: -30~-75°C
  • Connector: MHF(l-pex)
  • Cable: 1.13

Connectors



IMPORTANT question about soldering: Should the Through Hole Jacks/Connectors be suitable for Reflow soldering also (THR)? Yes or No?



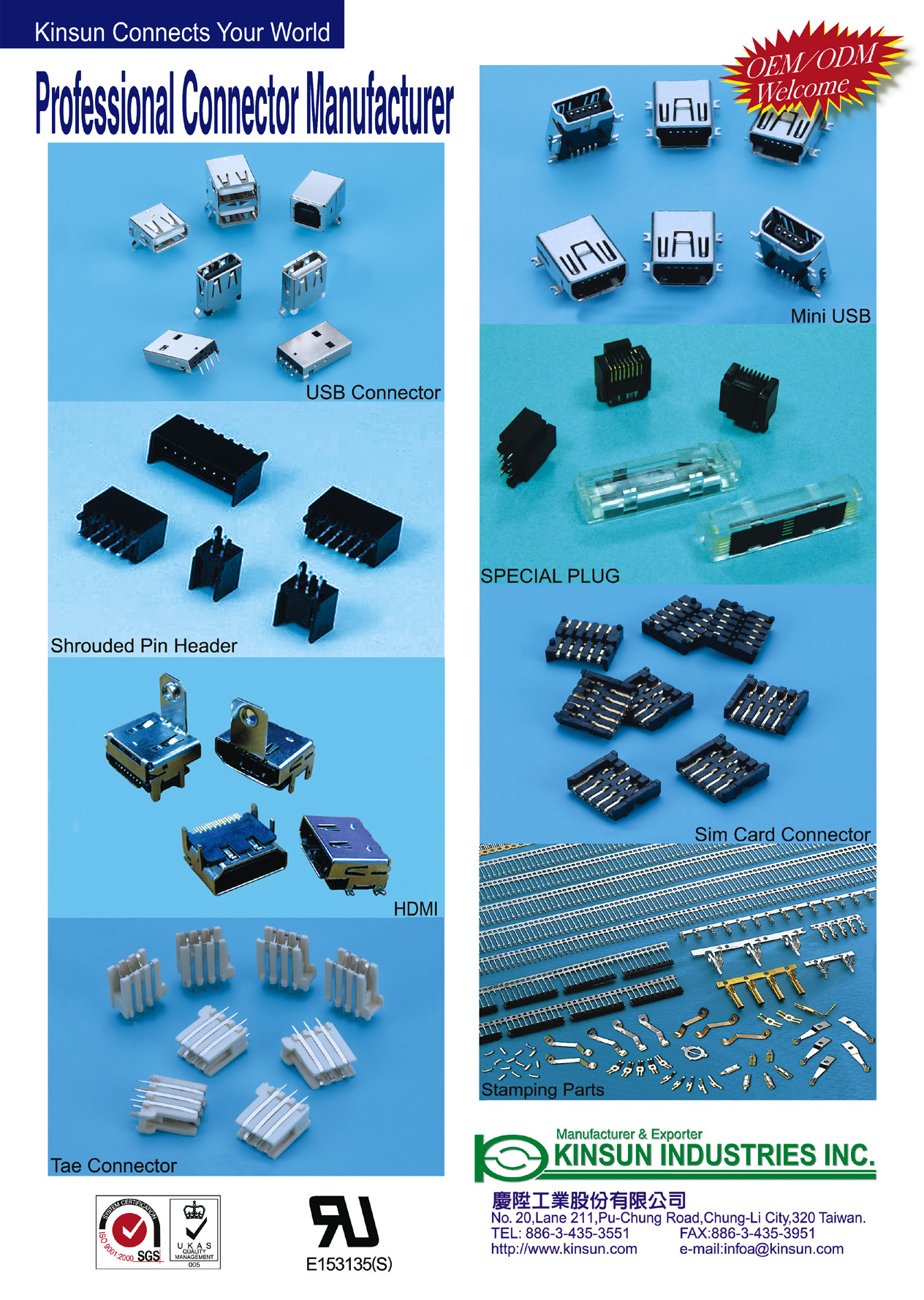

Connectors - Products Catalogue

RJ45 Jacks



IMPORTANT question about soldering: Should the Through Hole Jacks/Connectors be suitable for Reflow soldering also (THR)? Yes or No?



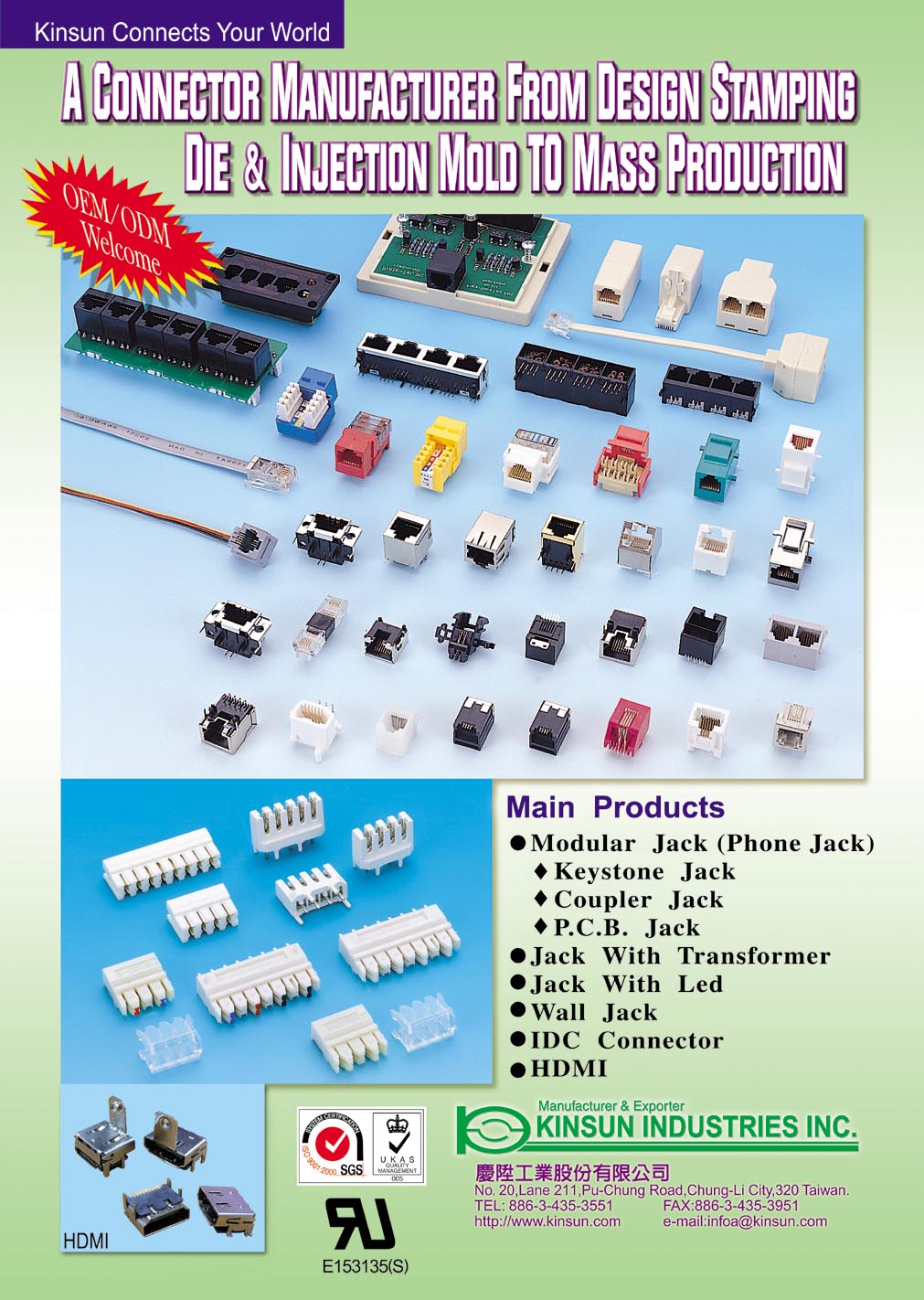

RJ45 - Products Catalogue

Waterproof Connector





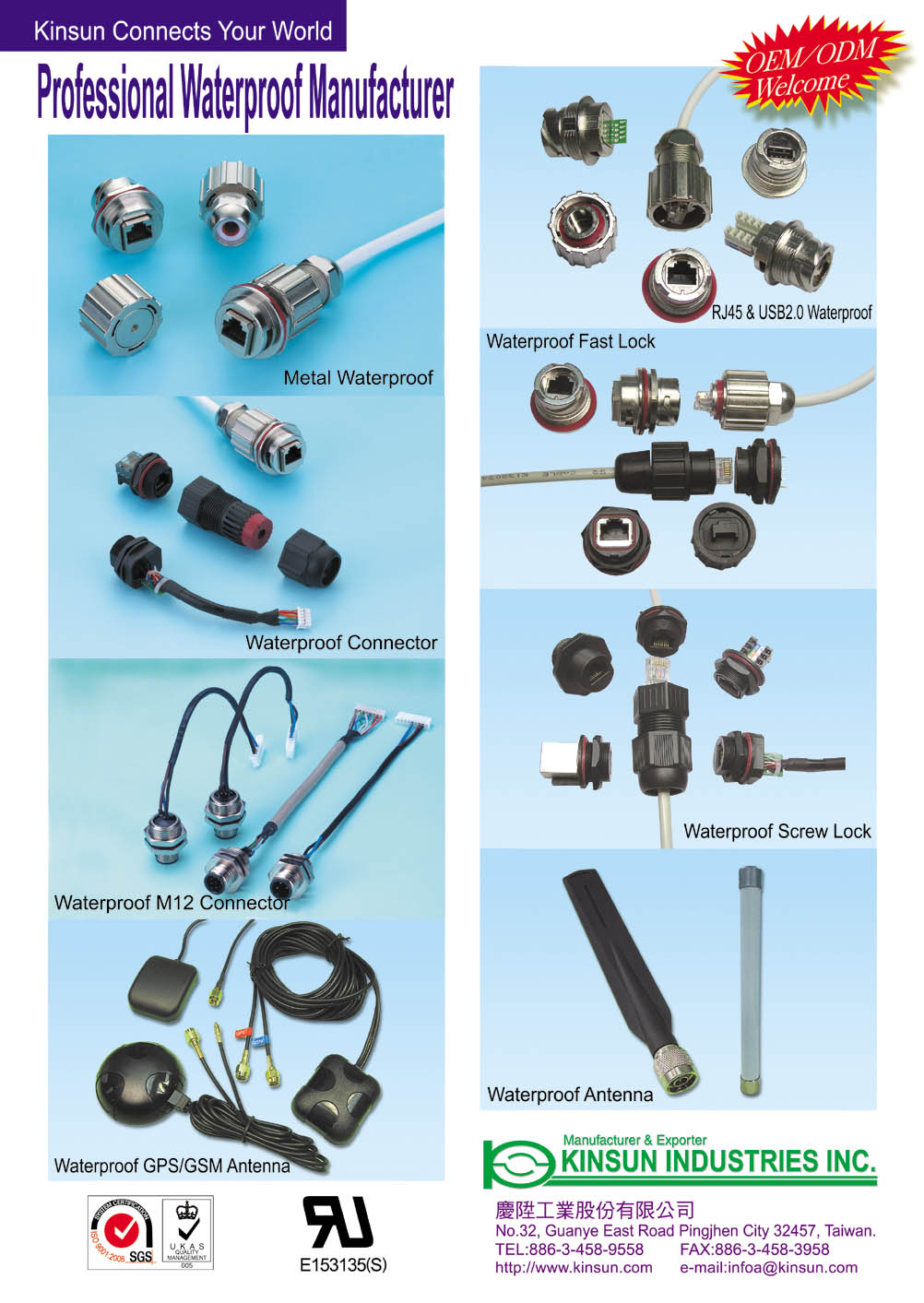

Waterproof Connectors - Products Catalogue

Products

Circle / Sensor Connector

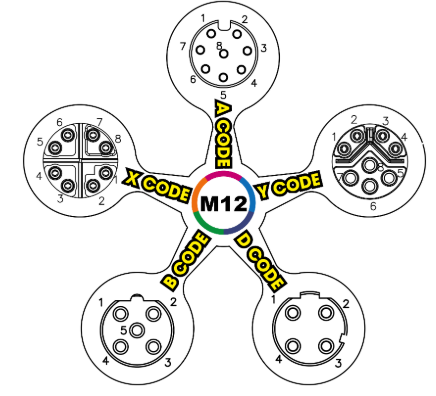

M12 Waterproof Connector

Picture Partnumber Product Descriptions Links
4001 M12 Dust Cap
Coming Soon


Selector Guide M12
4002 Micro USB Connectors Panel Side PCB Mount
A-code Connectors Panel Side PCB Mount
A-code Connectors Panel with Wire
D-code Connector Panel Side PCB Mount
B-code Connector Panel Side PCB Mount
4003 X-code Connector Panel Side PCB Mount
4004 Y-code Connector Panel Side PCB Mount
4005 L-code Connector Panel Side PCB Mount
4006 A-code Male Connector with Cable
A-code Female Connector with Cable
D-code Connector with Cable
4007 X-code Connector with Cable

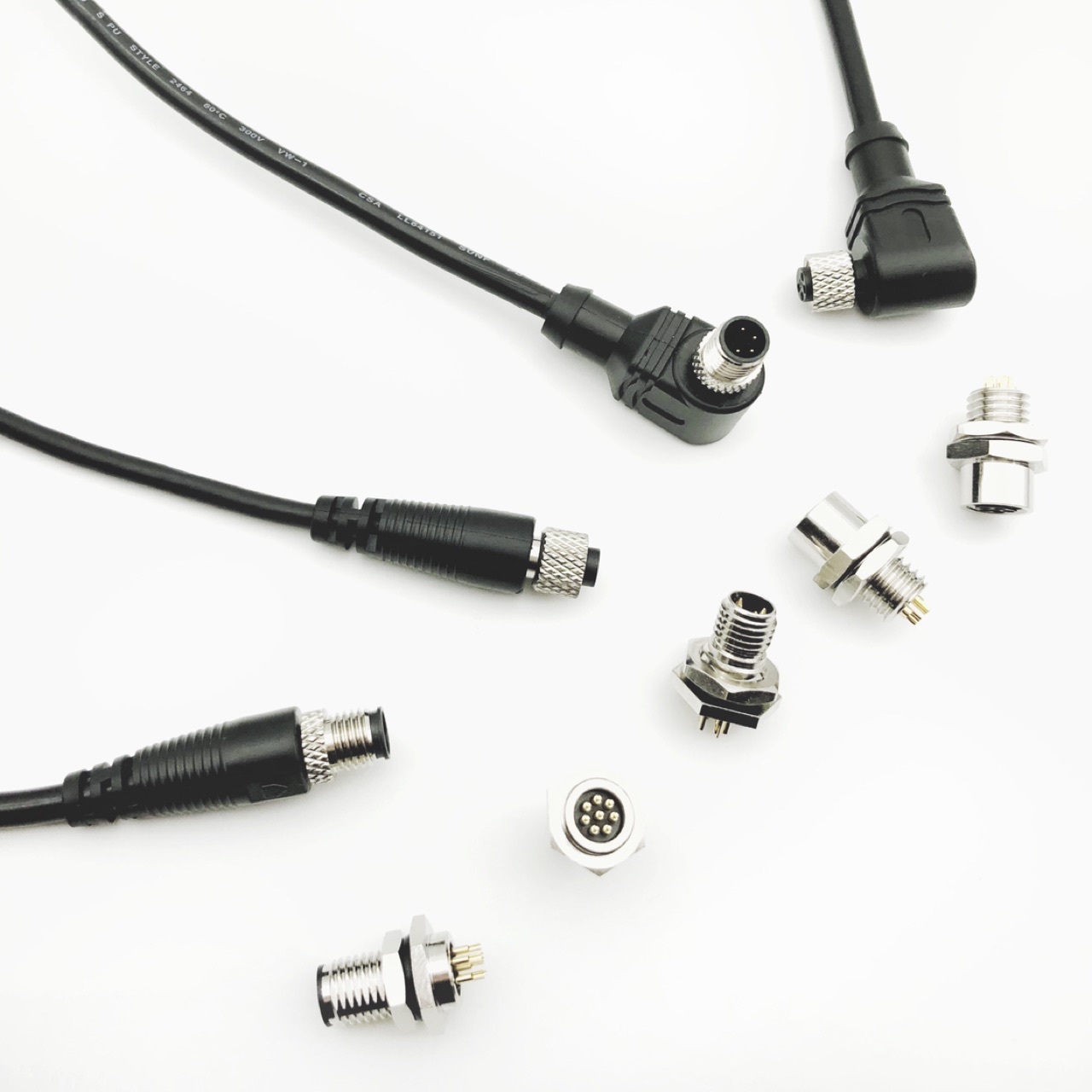

M8 Waterproof Connector

Picture Part Number Product Description Datasheets
4012 Female PCB Mounting Connectors
Coming Soon
Male Waterproof Connectors
4012A Male Waterproof Connectors
4016 Female Waterproof Connectors
Right Angle Waterproof Connectors With Cable
Waterproof Connectors With Cable

M23 Waterproof Connector

Part Number Product Description Features Specifications Datasheets
4031 Signal and Power Built in Connectors
  • Waterproof M23 Male / Female with Cable
  • Cost-saving
  • Number of contacts: 4 -19 pins
  • Anti-oxidization and anti-UV
  • Compliant with the RoHS Directive
  • Customized orders are welcome
  • Plastic Housing: Engineering Thermoplastic Flammability Rating UL 94V-0
  • Contacts: Copper Alloy
  • Plating: Gold Plating Over Nickel in Contact
  • O-Ring: Silicone Rubber Black Color
  • Cable: UL 2464 22AWG, OD 5.5mm, Color Black
  • Shielded: Brass with Nickel Platedurrent Rating: 4A (2 to 5Pin), 2A (6 to 8Pin), 1.5A (9 to 12Pin)
  • Rated Voltage: 250V AC/DC (2 to 4Pin), 60V AC/DC (5Pin), 30V AC/DC (6 to 8Pin), 30V AC/DC (9 to 12Pin)
  • Insulation Resistance: 10⁸ MΩ
Coming Soon

M9 Waterproof Connector

Picture Part Number Description Features Specifications Datasheets

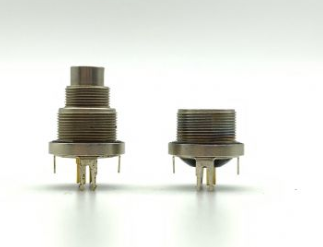

4022 Connectors Panel Side PCB Mount
  • Waterproof M9 Male & Female Front Mount
  • Cost-saving
  • IP69K waterproof connectors to cable assemblies
  • Anti-oxidization and anti-UV
  • Compliant with the RoHS Directive
  • Customized orders are welcome
  • Plastic Housing: Engineering Thermoplastic Flammability Rating UL 94V-0
  • Contacts: Copper Alloy
  • Plating: Gold Plating Over Nickel in Contact
  • O-Ring: Silicone Rubber Black Color
  • Cable: UL 2464 22AWG, OD 5.4mm, Color Black
  • Shielded: Brass with Nickel Plated
  • Current Rating: 4A (2 to 5Pin), 2A (6 to 8Pin), 1.5A (9 to 12Pin)
  • Rated Voltage: 250V AC/DC (2 to 4Pin), 60V AC/DC (5Pin), 30V AC/DC (6 to 8Pin), 30V AC/DC (9 to 12Pin)
  • Insulation Resistance: 10⁸ MΩ

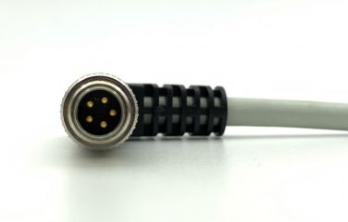

4026 Connector with Cable
  • Waterproof M12 Male / Female with Cable
  • Cost-saving
  • IP69K waterproof connectors to cable assemblies
  • Anti-oxidization and anti-UV
  • Compliant with the RoHS Directive
  • Customized orders are welcome
  • Plastic Housing: Engineering Thermoplastic Flammability Rating UL 94V-0
  • Contacts: Copper Alloy
  • Plating: Gold Plating Over Nickel in Contact
  • O-Ring: Silicone Rubber Black Color
  • Cable: UL 2464 22AWG, OD 5.4mm, Color Black
  • Shielded: Brass with Nickel Plated
  • Current Rating: 4A (2 to 5Pin), 2A (6 to 8Pin), 1.5A (9 to 12Pin)
  • Rated Voltage: 250V AC/DC (2 to 4Pin), 60V AC/DC (5Pin), 30V AC/DC (6 to 8Pin), 30V AC/DC (9 to 12Pin)
  • Insulation Resistance: 10⁸ MΩ

Waterproof for RJ45 etc.

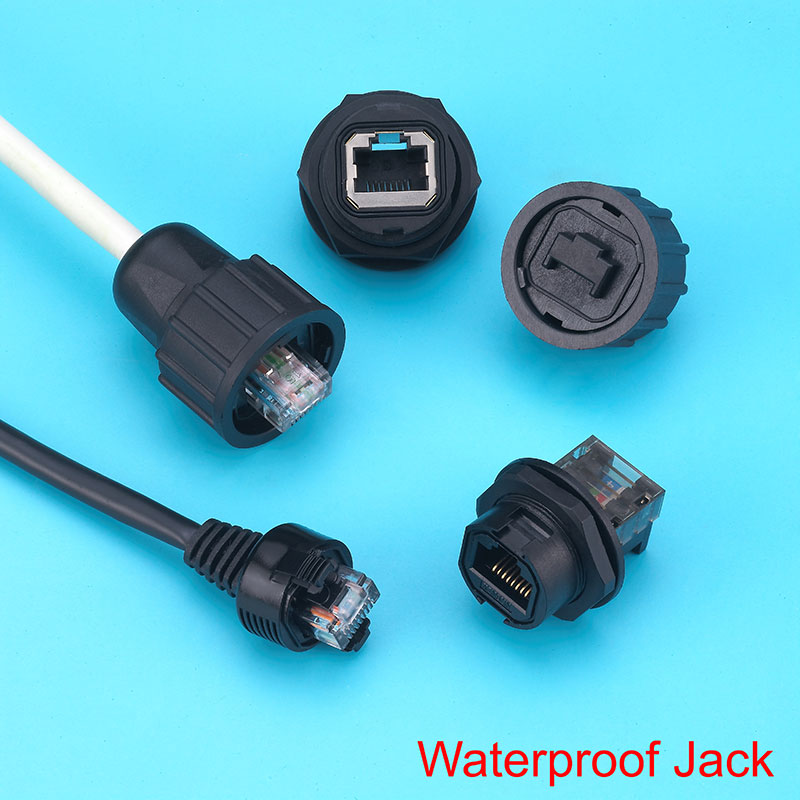

Waterproof Connector Quick Lock

Picture Part Number Description Datasheets
3351A Waterproof Cap Quick Lock
Coming Soon
3351D Waterproof Connector Panel Side DIP Type Quick Lock
Waterproof Connector Panel Side with Wafer Quick Lock
3351F Waterproof Connector Panel Side with IDC Quick Lock
3351L Waterproof Connector Cable Side Quick Lock
3353A Metal Waterproof Cap Quick Lock
3353L Metal Waterproof Connector Cable Side Quick Lock
3353 Metal Waterproof Connector Panel Side Quick Lock

Waterproof Connector Screw Type

Picture Part Number Description Datasheets
3352 Waterproof Screw Lock
Coming Soon
Waterproof Screw Lock
3352 Cable Side Connector Box Side
3352F Waterproof RJ45 Coupler
3352K RJ45 Jack with Plug & Wire
3352L Waterproof Cable Side (IP68)
3352A Waterproof Cap (IP68)
3352G Waterproof Cate5e, Cat6A Coupler
3352D Waterproof RJ45 Jack with Cable and Plug
3352E02010 Waterproof RJ45 Jack with Cable and Wafer
3352E22010 Waterproof RJ45 Jack with Cable and Wafer
3356 Waterlight Connectors
Wtaerproof right angle coupler

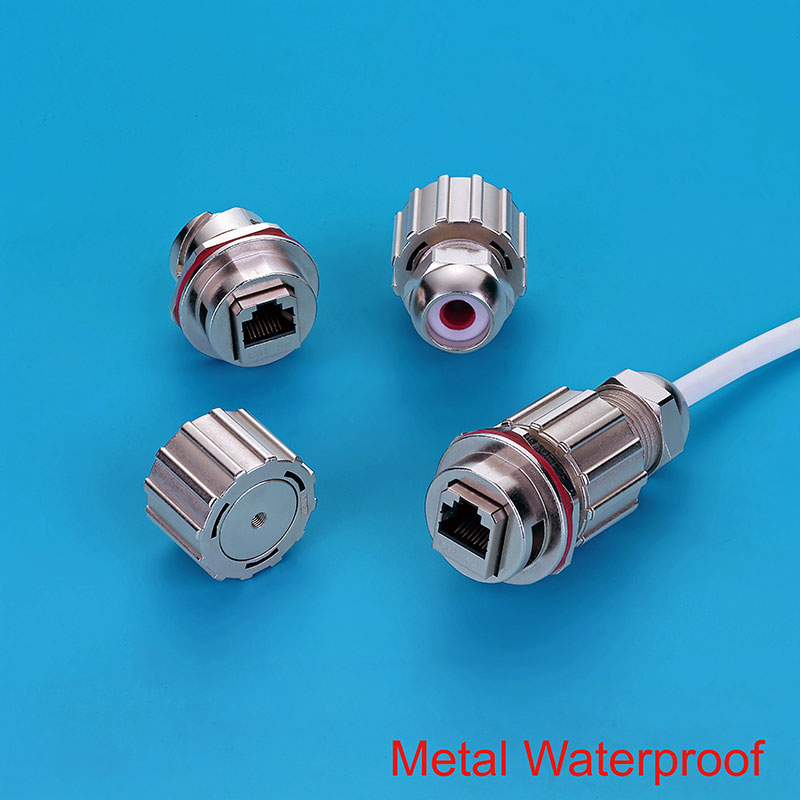

Waterproof Connector Metal Quick Lock

Picture Part Number Description Datasheets
3353A Metal Waterproof Cap
Coming Soon
3353D Metal Cat. 5e Coulpler Jack
3353E Metal RJ45 for PCB
3353F Metal Waterproof RJ45 Jack with PCB
3353H Metal Waterproof Cat. 5e Jack with IDC
3353K Metal Waterproof USB / A Coupler
3353L Metal type Side
4022 Waterproof Cable Side

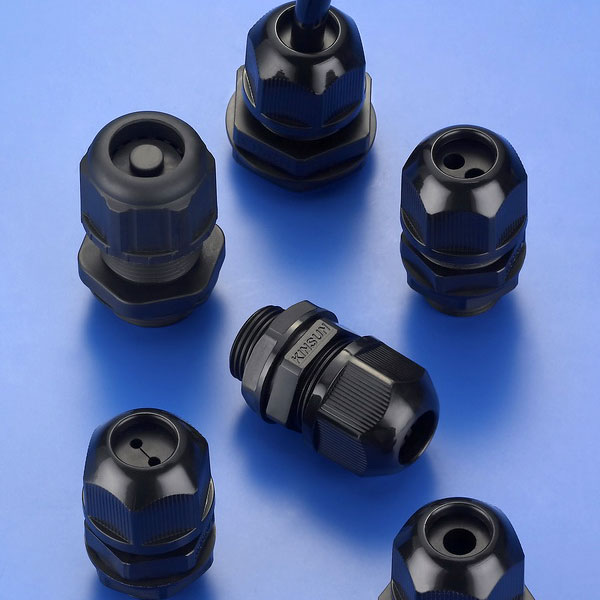

Cable Gland

Picture Part Number Description Features Datasheets
4301 Cable Gland IP68 (M16x1.5p)
  • M16 Cable Gland
  • Cost-saving
  • IP69K waterproof connectors to cable assemblies
  • Anti-oxidization and anti-UV
  • Compliant with the RoHS Directive
  • Customized orders are welcome
Coming Soon
Cable Gland IP68 (M20x1.5p)
Cable Gland IP68 (M25x1.5p)

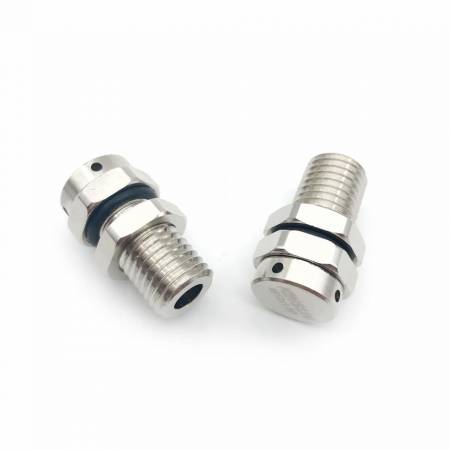

Vent Plug

Picture Product Features Specifications Datasheets

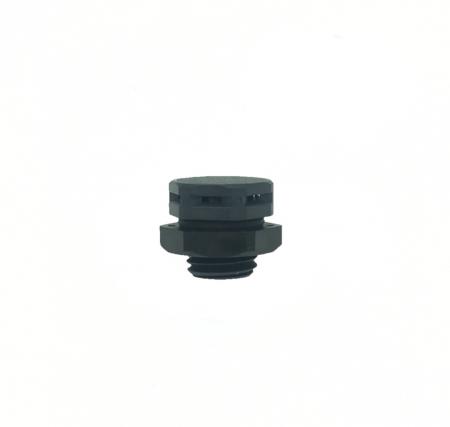

Vent Plug IP68
  • Waterproof Protective Vent Plug
  • Cost-saving
  • IP67 & IP69K waterproof connectors to cable assemblies
  • Anti-oxidization and anti-UV
  • Compliant with the RoHS Directive
  • Customized orders are welcome
  • IP Grade: IP64 / IP65 / IP67 / IP69K
  • Housing: C3604 Cap: C3604
  • Nut: C3604
  • Membrance: PTFE
  • Rubber: Silicone 70°, Black
  • O-Ring: EPDM 70°, Black
  • Temperature Range: -40°C to -125°C
Coming Soon
Vent Plug IP68 (Plastic)
  • Waterproof Protective Vent Plug
  • Cost-saving
  • IP69K waterproof connectors to cable assemblies
  • Anti-oxidization and anti-UV
  • Compliant with the RoHS Directive
  • Customized orders are welcome
  • IP Grade: IP64 / IP65 / IP67 / IP69K
  • Housing: C3604 Cap: C3604
  • Nut: C3604
  • Membrance: PTFE
  • Rubber: Silicone 70°, Black
  • O-Ring: EPDM 70°, Black
  • Temperature Range: -40°C to -125°C

Telecommunication Connector

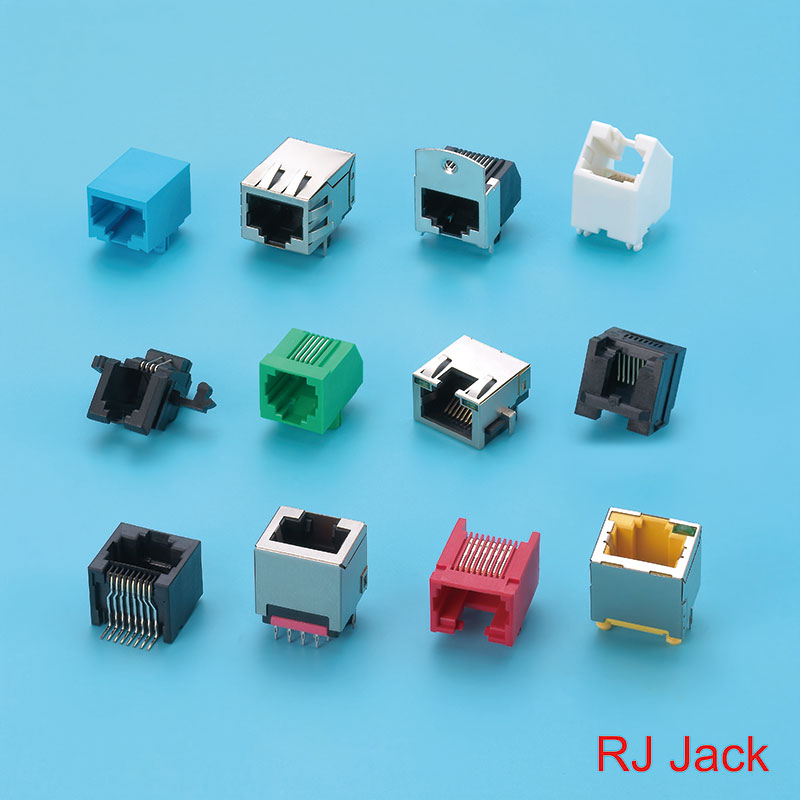

RJ Jack

Picture Product-Types Datasheets
PCB-Mount RJ Jack
Coming Soon
PCB-Mount RJ Jack with Magnetic
Non-PCB Mount RJ Jack

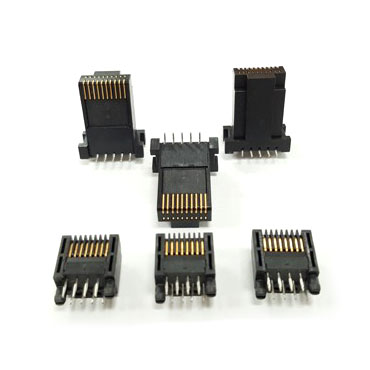

PCB Plug

Picture Product Number Description Datasheets
3711 DIP PCB Plug Connector
Coming Soon
3710 SMT PCB Plug Connector

IDC Block

Picture Description Datasheets
Connector Sockets
Coming Soon
IDC Connector Sockets
IDC Krone Connector
IDC PCB Connector
IDC Toolless Connector

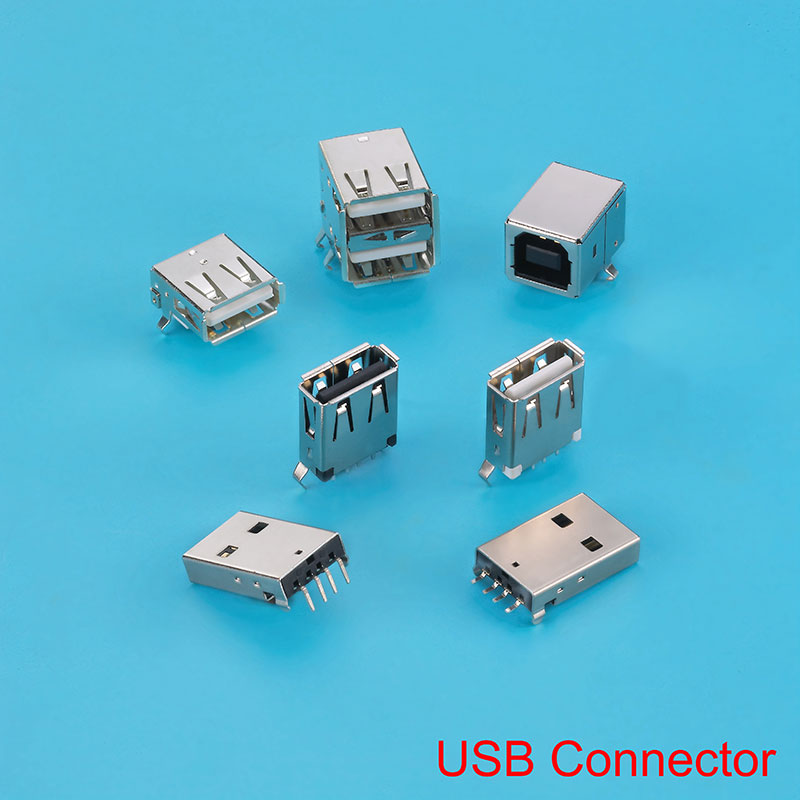

USB Connector

Picture Product Types Product Number Description Datasheets
Micro USB Connector 6135 Micro USB Type B Connector
Coming Soon
6146 USB 3.0 Micro-AB Receptacle
Mini USB Connector 6130 Mini USB B Connector
USB 3.0 Connector & Cable 6105 USB 3.0 Extension Cable
6105A & 6106 USB 3.0 Standard-A Receptacle
6152 USB 3.0 Extension Cable
6155 USB 3.0 Extension Cable
USB A Type Connector 6100 Vertical Mini USB Connector
USB B Type Connector 6110 Embedded Type Jack

Mini Fit / Micro Fit

Picture Product Number Description Datasheets
5030 Mini Fit Connector
Coming Soon
5036 Micro Fit Connector

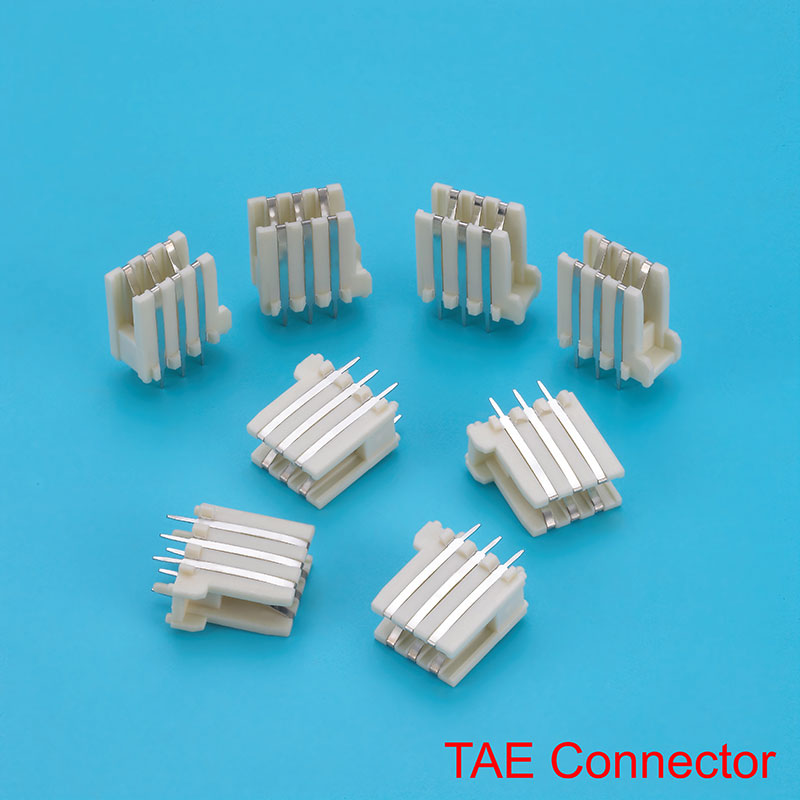

Mobile Phone Connector

Picture Product Number Description Datasheets
3800 Phone Jack
Coming Soon

Automotive Connector

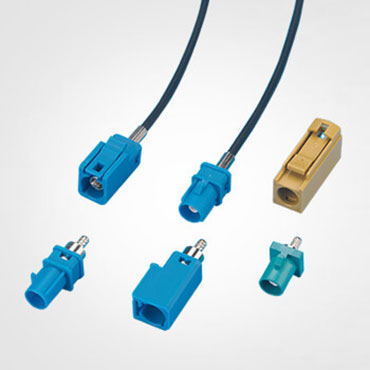

Fakra Connector

Picture Product Number Description Specifications Datasheets
6460 Fakra HSD Connector
  • Center Contact: Spring Bronze. Plating: In Contact Area: Min 6μ" gold over nickel, Min 50μ" nickel
  • Outer Contact: Brass. Plating: All Nickel Min 100U"
  • Insulator: LCP, Colour: Natural
  • Housing: PBT
  • Secondary Lock: PBT
  • Cable Type: Dacar 538
Coming Soon

European Socket

Picture Product Type Product Number Description Datasheets
AC Power 4520 AC Power Socket
Coming Soon

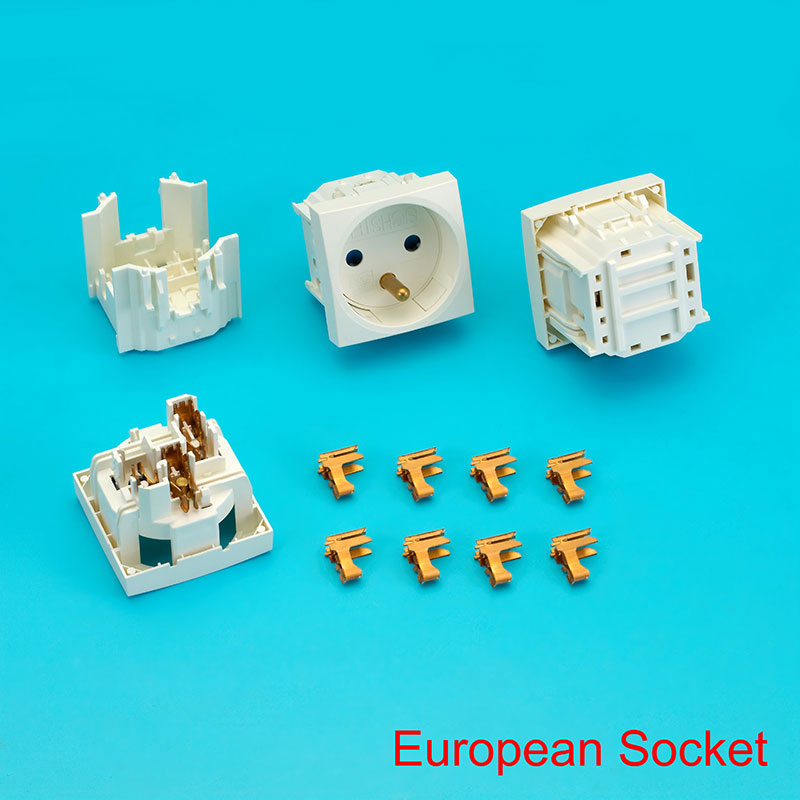

European Socket 4501 European Socket

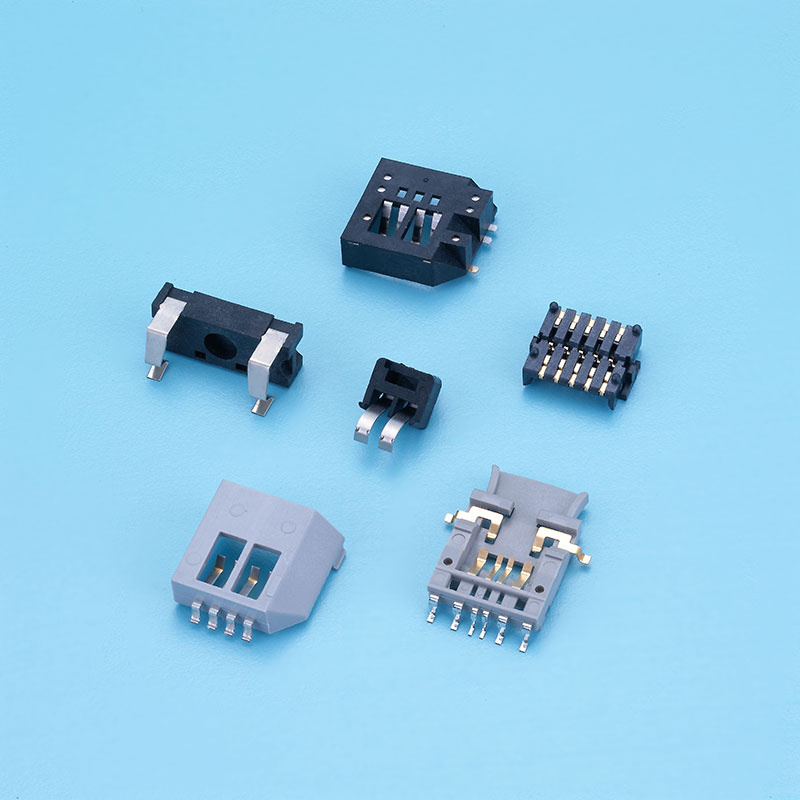

Medical Connector

Picture Product Number Description Datasheets
1705 Industry Medical Connector
Coming Soon
1713 Medical Connector Design
9010 Medical Connector Socket
9011 Medical Connector Housing

Microwave Transmission

Antenna

Product Family Picture Part Number Description Datasheets

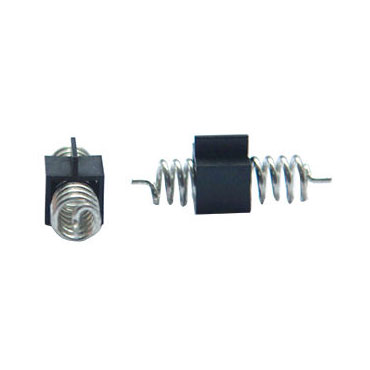

IoT RF Antenna H6687 433MHz Internal Antenna for IoT
Coming Soon
LTE Antenna 6624 4G LTE Antenna
868MHz-Antenna H6687 868MHz Antenna for IoT
6602 868MHz Antenna-SMA M/S

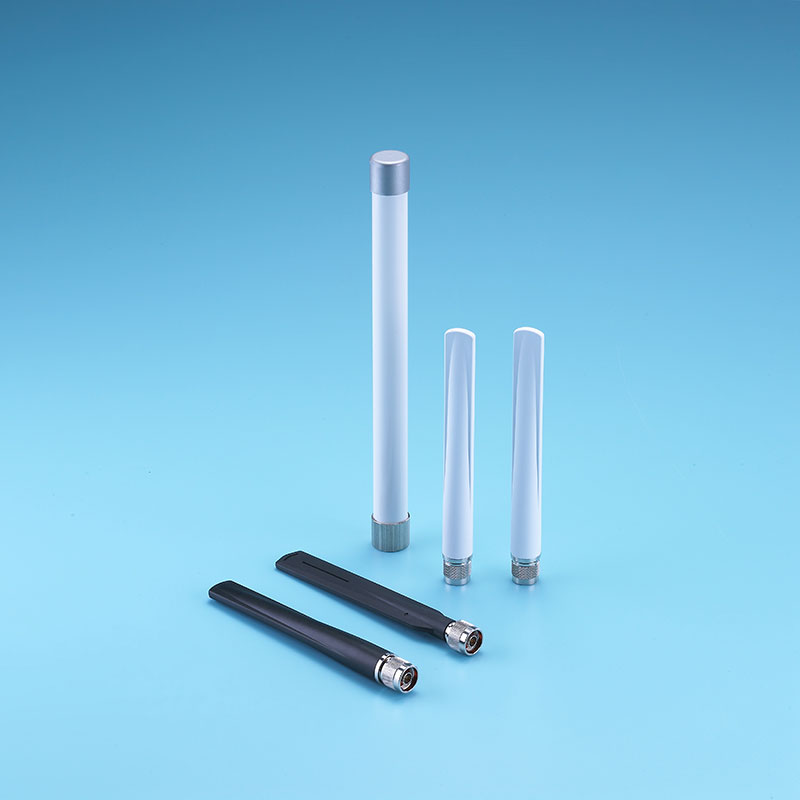

Waterproof Antenna 6611 2.4GHz High Gain Waterproof Antenna
6613 2.4GHz High Gain Waterproof Antenna
6692 GPS / GSM Antenna with Magnetic
6710 2.4GHz 5dBi Waterproof Antenna

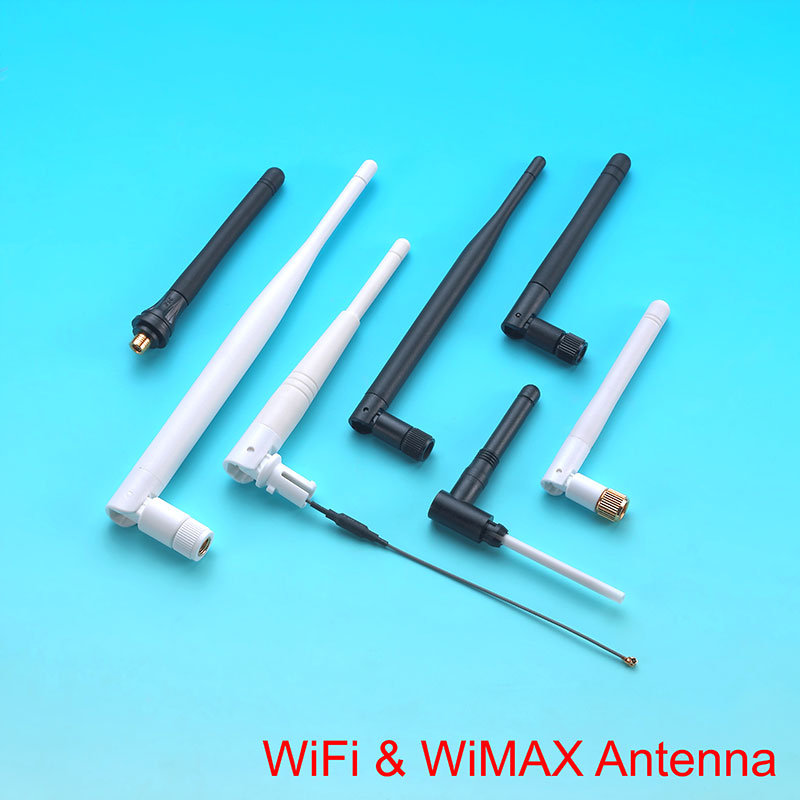

WiMAX Antenna 6610 WiMax Swivel Antenna
6611 WiMAX Waterproof Antenna
6624 WiFi & WiMAX Antenna
6675 Internal WiMAX Antenna
GSM Antenna 6602 Mobile Phone Antenna
6604 Five Band GSM Swivel Antenna
6605 Five Band GSM Short Antenna
6610 Quadband GSM Antenna
6623 Four Band GSM Antenna
6624 WiFi Antenna
6626 Car DVB-T Antenna
6640 Three Band GSM Magnetic Antenna
6641 GSM Magnetic Antenna
6650 GSM Mount Antenna
6671 PIFA Antenna
6671B Triband GSM PCB Antenna
6671C Four Band GSM PCB Antenna
6673 PCB Antenna
6641 Full Band Antenna with Magnetic
6650 Four Band GSM Magnetic Antenna
6623 Four Band GSM Swivel Antenna
6610 Five Band GSM Swivel Antenna

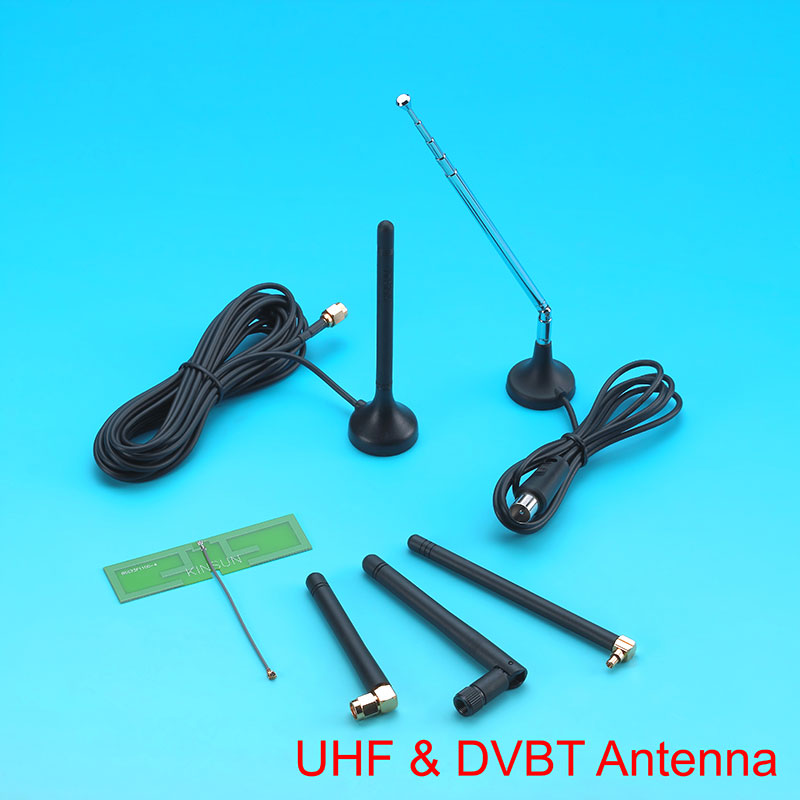

UHF Antenna 6602 433MHz UHF Antenna
6605 UHF Short Antenna
6650 Laptop DVB-T Antenna
DVB-T Antenna 6602 DVB-T Swivel Antenna
6607 DVB-T Antenna
6641 DVB-T Antenna with Magnetic
6643 DVB-T Antenna with Magnetic and LNA
6651 DVB-T Antenna with Magnetic
6652 Telescopic DVB-T Antenna

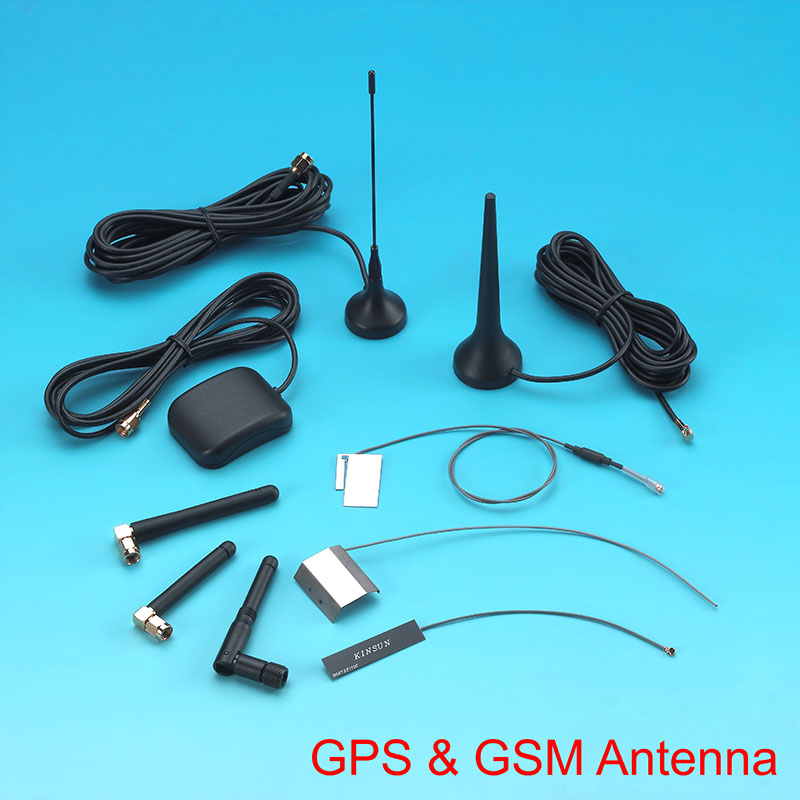

GPS Antenna 6690 Waterproof GPS Antenna
6691 GPS Antenna
6692 GPS Antenna

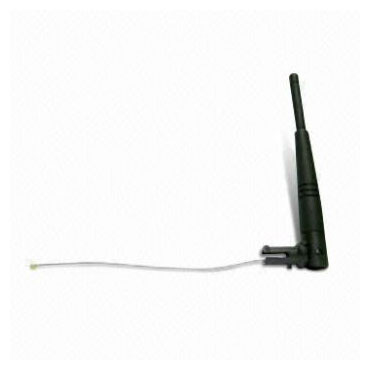

2.4 GHz Antenna 6601 2.4 GHz RF Antenna
Swivel Antenna with SMS Connector
6602 2.4 GHz Swivel Antenna with Cable
2.4 GHz Bluetooth Antenna
6604 2.4 GHz Swivel Antenna / With Cable
6605 2.4 GHz Bluetooth Antenna
6610 2.4 GHz Swivel Antenna
6611 2.4 GHz WLAN Antenna
6612 2.4 GHz Bluetooth Antenna
6613 2.4 GHz WLAN Antenna
6623 2.4 GHz WLAN Antenna
6624 2.4 GHz Wi-Fi Antenna
6625 2.4 GHz WLAN Antenna
6640 2.4 GHz Mobile Phone Antenna
6660 2.4 GHz PIFA U Shape Antenna
6670 2.4 GHz PCB Antenna
6672 2.4 GHz PCB Antenna
Internal Antenna using in LED
6680 Mimo Antenna with Magnetic
6682 2.4 GHz Insert SMT Antenna
6683 2.4 GHz Insert DIP Antenna

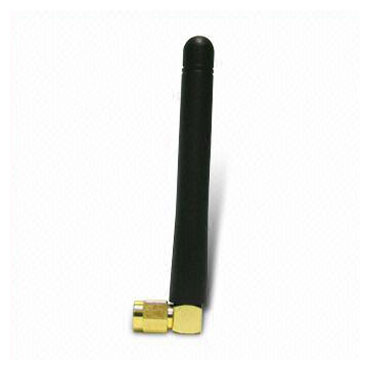

5.8 GHz Antenna 6602 5.8 GHZ WLAN Antenna
6602 5.8 GHz Swivel Antenna
2.4 / 5.8 GHz Antenna 6602 Dual Band WLAN Antenna
6602 with Cable Dual Band WLAN Antenna with Cable
6603 Dual Band Swivel Antenna
6604 Dual Band Bluetooth Antenna
6604 with Cable Dual Band Bluetooth Antenna with Cable
6610 2.4 / 5.8 GHz Dual Band Antenna
6672 PIFA Dual Band Antenna

Coaxial Cable

Picture Products Specifications Applications Datasheets
Different Coaxial Connectors
  • VSWR:=/<2.0
  • Impedance: 50 Ω
  • Gain: 0 to 2.0 dB
  • Standard: WLL, ISM band, Bluetooth
  • Optional GSM, GPS, ISM Band
Coming Soon

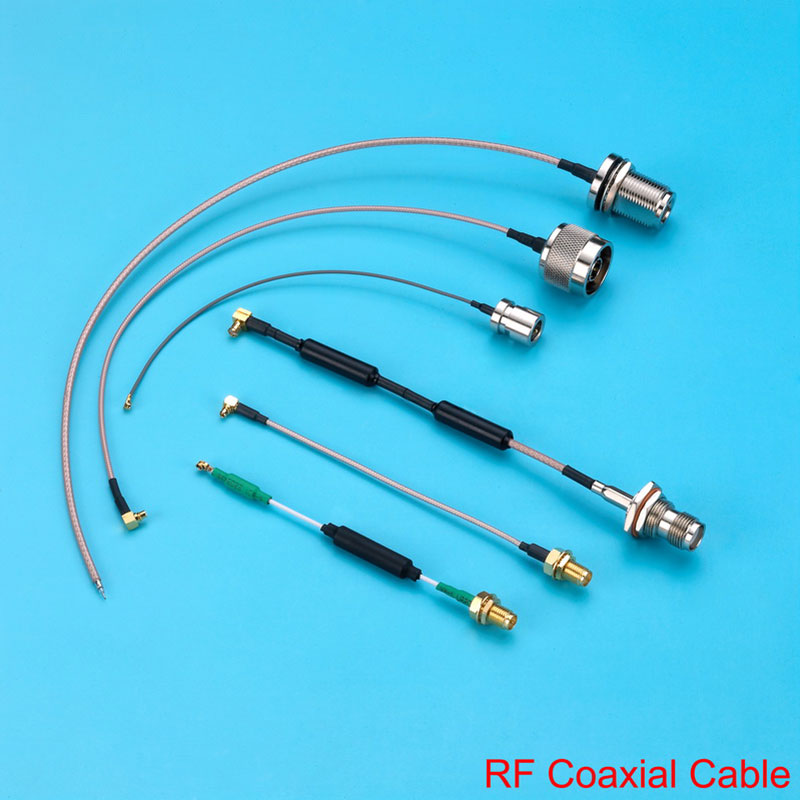

RF Coaxial Cable
  • VSWR:=/<2.0
  • Impedance: 50 Ω
  • Gain: 0 to 2.0 dB
  • Standard: WLL, ISM band, Bluetooth
  • Optional: GSM, GPS, ISM Band

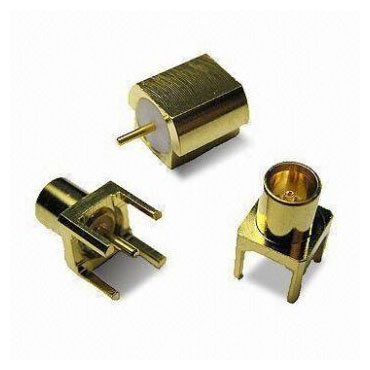

RF Connector

Picture Products Specifications Datasheets
Reversse SMA Femals Connector
  • Impedance: 50Ω
  • Body: Brass
  • With Gold Plated Finishes
  • Connectors: SMA Female Angle Reverse
Coming Soon
RF Coaxial Connectors
  • Impedance: 50Ω
  • Body: Brass
  • With Gold Plated Finishes
  • Connectors: SMA Female Angle
RF MCX Connectors
  • Impedance: 50Ω
  • Body: Brass
  • With Gold Plated Finishes
RF SMA Connectors
  • Impedance: 50Ω
  • Body: Brass
  • With Gold Plated Finishes
  • Connector: SMA Female Straight

Stamping Part

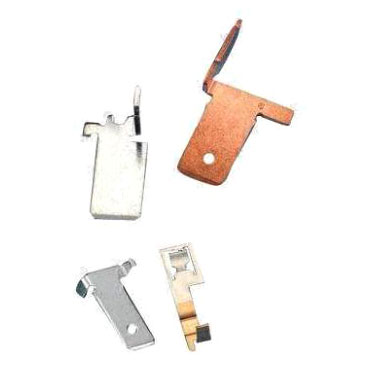

Relay-Metal Stamping

Picture Features Datasheets
  • Stamping Relay Parts for 1024 Series
  • Power Contact Pads
  • Customized Part
  • Compliant with RoHS Directive
Coming Soon

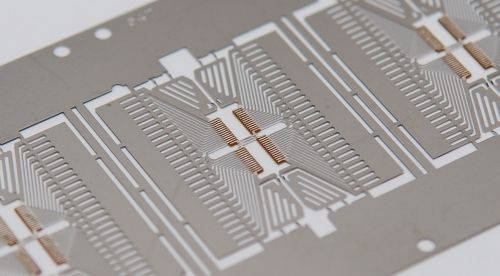

Lead Frame

Picture Product Number Description Features Datasheets
Automotive Stamped Parts
  • Lead frame and terminals
  • Used in PCB and computer connectors
  • With lead pin frames
  • OEM and ODM orders are accepted
  • With battery springs
  • Customized metal stamping are welcome
Coming Soon
S1212 Guide Pin
  • Lead frame and terminals
  • Used in PCB and computer connectors
  • With lead pin frames
  • OEM and ODM orders are accepted
  • With battery springs
  • Customized metal stamping are welcome

Automotive Terminal

Picture Product Features Specifications Datasheets

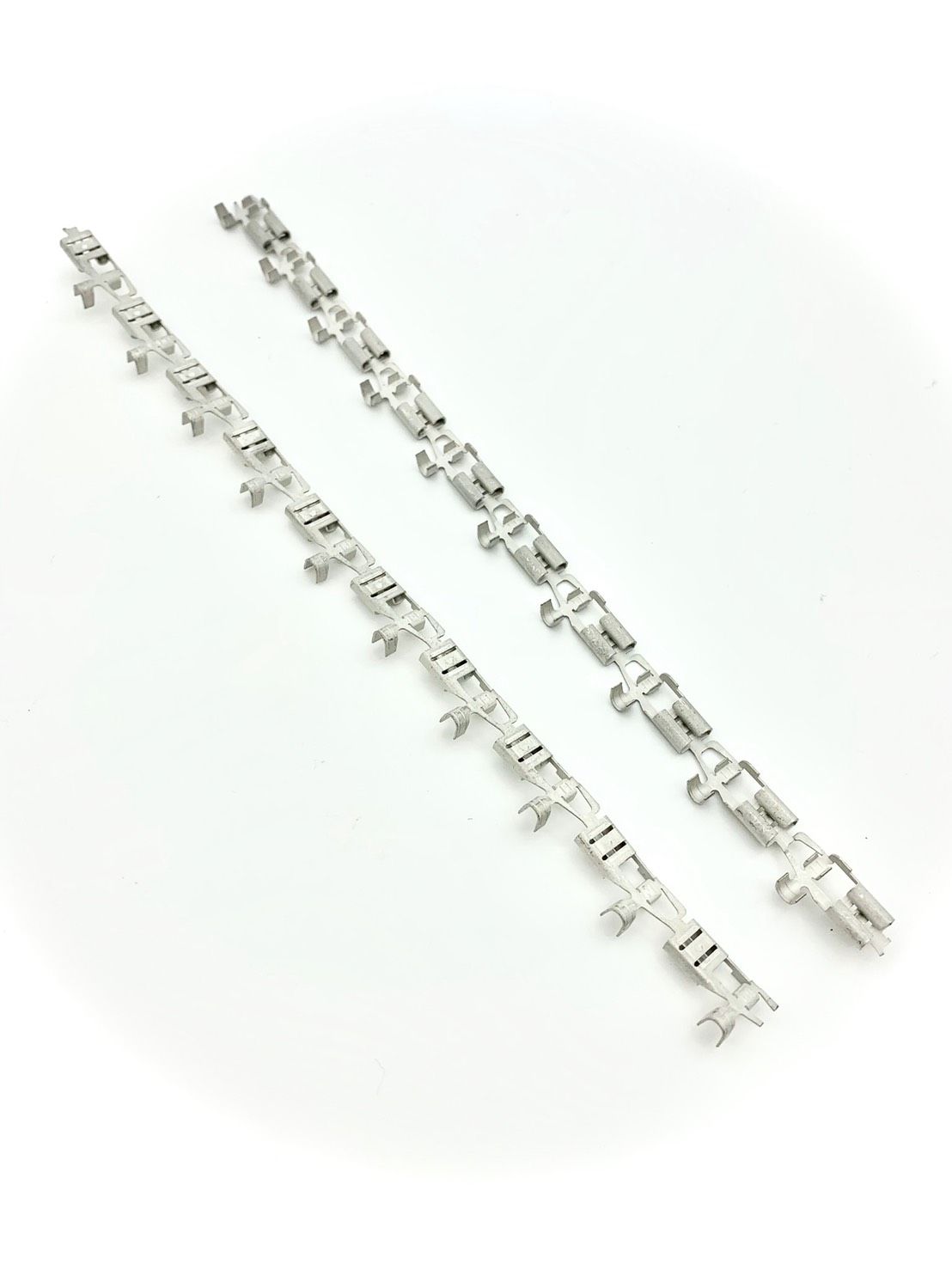

Flag Terminal
  • Flag Terminal for S1031 series
  • Automotive terminal
  • Customized part
  • Compliant with RoHS Directive
  • Contact: Phosphor Brass
  • Plating: Nicket 150u" over entire part. Tin 1000u" (min)over entire part
Coming Soon

Cable Assembly

Product Type Picture Specifications Datasheets

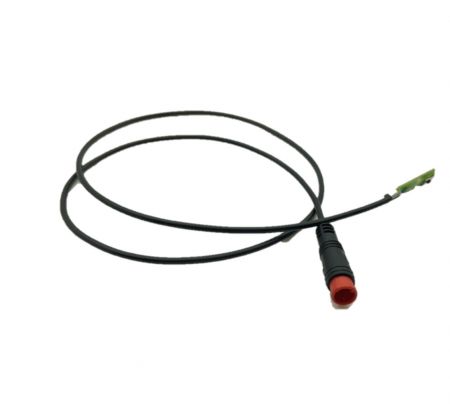

E-Bike Brake Switch Assembly
Coming Soon

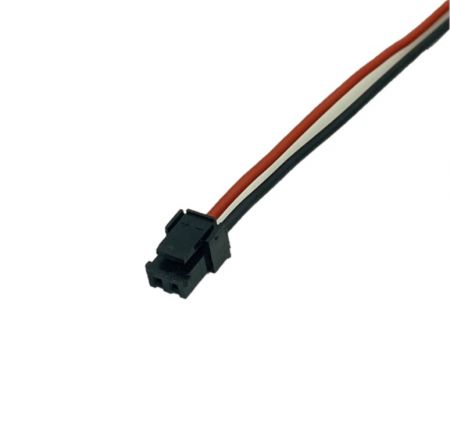

Valve Cable Assembly
  • Housing: Engineering Thermoplastic. Flammability Rating UL 94V-0
  • Contact Pin: Phosphor Bronze
  • Pins number: 2~3 Pins
  • Patedm Voltage: 125Vpms/Vac
  • Withstand voltage: 500Vpms for one minute

Mechanical Parts

Product Picture Features Datasheet

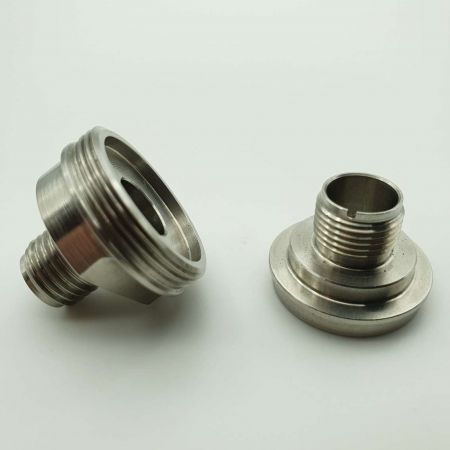

Mechanical Parts for M12 Connector
  • Machanical Parts
  • Customized part
  • Compliant with RoHS Directive
Coming Soon

Applications

IoT Signal Connection

IoT is present in many vertical markets and applications, including smart factories, smart meters, smart sub-stations, smart ships, Internet of Vehicles, smart hospitals equipment, etc.
KINSUN has the right products for all connectivity-related requirements, including:
  • RF antennas
  • Waterproof connectors
  • RJ Jack
  • IoT cables and connectors
Their products featuring dust tightness, shock and vibration properties are all available as well and can be used in various IoT applications and industries.

Industrial

KINSUN has more than 35 years experience in connector, antenna for Industrial Equipment appliance
KINSUN developed a reputation for quality control, innovation and commitment to delivering cost saving, reliable solutions that help our customers gain competitive advantage.
They supply customized connector and antenna to the various Industrial as that includes:
  • Automation
  • Induction Equipment
  • Controls
  • Robot Arms
  • ETC Transport Equipment Connectors

Automotive

KINSUN have experience manufacturing connector and antenna for many different Automotive, Motorcycle, Electric Vehicle and Heavy Equipment.
Their designs and manufactures of customized connector product, in which meets the demand of today's energy markets and the desires of consumers.
They are certified of IATF-16949, ISO-9001 and ISO-14001. They also supply customized connector and antenna to the automotive as that includes:
  • Vehicle electronics
  • Audio-visual equipment
  • Vehicle GPS
  • Tire pressure data transmission
  • Reverse image transmission
  • Driving recorder transmission
  • Vehicle relay

Medical

KINSUN's Connector products are ideal for use with medical electronic equipment, including:
  • Blood glucose tester connector
  • Medical bed lift actuator
Their medical connectors product line can be Custom designs are available to meet specific application requirements.
Their product platforms and tailored solutions offer:
  • Lighter weight
  • High density
  • High power
  • Protection
  • Shielded connectors
  • RF
  • Long cycle life
  • Low contact resistance
  • Shock and vibration immunity
  • Exceptional design flexibility

Safety

KINSUN's Connector products are ideal for use with safety application products, including:
  • Monitoring system
  • Navigation system transmission
  • Waterproof connection application
Their connectors and antenna product line can be Custom designs are available to meet specific application requirements.
Their product platforms and tailored solutions offer:
  • Lighter weight
  • High density
  • High power
  • Protection
  • Shielded connectors
  • RF
  • Long cycle life
  • Low contact resistance
  • Shock and vibration immunity
  • Exceptional design flexibility

Telecommunication & 3C

KINSUN is the leading manufacturer of connector and antenna. They are providing comprehensive solutions that include the customer unique design (OEM service) in cost-effective way.
They supply customized service to apply with Telecommunication & 3C Application, including:
  • Mobile phones
  • Laptops
  • Routers
  • 3C equipment
  • Office equipment
  • Base stations
  • Telecommunications switches
  • Traffic systems

Stamping Part

KINSUN has very complete stamping part products. They are providing comprehensive solutions that include the customer unique design (OEM service) in cost-effective way.
They supply customized service to apply with Stamping parts Application, including:
  • Relay parts
  • Battery holder
  • Lead frame
