About Nichicon

• Head Office Location: Karasumadori Oike-agaru, Nakagyo-ku, Kyoto, 604-0845 Japan
• Established: August 1, 1950
• Capital Stock: 14,286 million yen (As of March 31, 2020)
• Net Sales: 119,675 million yen (As of March 31, 2020 Consolidated)
• Employees: 5,409 (As of March 31, 2020 Consolidated)
• Listings: First section, Tokyo Stock Exchange
• Product Lines:
• Aluminum electrolytic capacitors
• Plastic film capacitors
• Small Li-Ion Rechargeable Batteries
• Positive thermistors “Posi-R”
• Household energy storage systems
• Vehicle-to-Home (V2H) systems
• EVs/PHVs Quick Charger
• Public and industrial power storage system
• Switching power supplies
• Function modules
• Power sources for medical accelerator
• Power sources for academic study accelerator
• Momentary voltage sag compensator
• Power outage compensator
• Acquisition of ISO 9001 Certification
• Acquisition of IATF 16949 Certification

New Products

Conductive Polymer Aluminum Solid Electrolytic Capacitors

Series	Picture	Description	Features	Datasheets
PCZ		Chip Type Higher Capacitance High Temperature Range	High reliability, Low ESR, High ripple current Long life of 2000 hours at 150°C SMD type : Lead free reflow soldering condition at 260°C peak complete correspondence Compliant to the RoHS directive (2011/65/EU,(EU)2015/863) ESR after Endurance at -40°C AEC-Q200 compliant
PCL		Chip Type Higher Capacitance LongLife Assurance	Long life of 20000 hours at 105°C High reliability, Low ESR, High ripple current SMD type : Lead free reflow soldering condition at 260°C peak correspondence Compliant to the RoHS directive (2011/65/EU,(EU)2015/863) AEC-Q200 compliant

Conductive Polymer Hybrid Aluminum Electrolytic Capacitors

Series	Picture	Description	Features	Datasheets
GYA		Chip Type 125°C High Reliability	High Reliability, Low ESR, High ripple current Long life of 4000 hours at 125°C Compliant to the RoHS directive (2011/65/EU,(EU)2015/863) AEC-Q200 compliant
GYE		Chip Type 125°C High Reliability	High Reliability, Low ESR, High ripple current Long life of 4000 hours at 125°C, High Capacitance Compliant to the RoHS directive (2011/65/EU,(EU)2015/863) AEC-Q200 compliant

Chip Type Aluminum Electrolytic Capacitors

Series	Picture	Description	Features	Datasheet
UBH		Chip Type High Temperature Range Vibration Resistance Low temperature ESR specification	Highly dependable reliability withstanding load life of 2000 hours at +150°C Compliant to the RoHS directive (2011/65/EU,(EU)2015/863) AEC-Q200 compliant

Products

Conductive Polymer Aluminum Solid Electrolytic Capacitors

Conductive Polymer Aluminum Solid Electrolytic Capacitors

Classification	Series	Configuration	Temp. Range (°C)	Rated Voltage Range (VDC)	Rated Capacitance Range (µF)	Tolerance on Rated Capacitance (%)	Links
Chip type	PCF	32	-55 to +105	2.5 to 25	6.8 to 1500	±20	Datasheets Catalog Selector Guide
	PCJ	32	-55 to +105	2.5 to 16	3.3 to 2700	±20
	PCK	32	-55 to +105	2.5 to 6.3	220 to 2200	±20
	PCG	32	-55 to +105	2.5 to 16	47 to 4700	±20
	PCS	32	-55 to +105	4 to 16	22 to 560	±20
	PCL	32	-55 to +105	4 to 25	12 to 2700	±20
	PCV	32	-55 to +105	16 to 125	5.6 to 680	±20
	PCX	32	-55 to +125	16 to 50	5.6 to 390	±20
	PCR	32	-55 to +125	16 to 80	22 to 1000	±20
	PCM	32	-55 to +125	16 to 80	12 to 1000	±20
	PCH	32	-55 to +135	16 to 80	12 to 1000	±20
	PCZ	32	-55 to +150	16 to 63	12 to 1000	±20
Radial Lead type	PLE	04	-55 to +105	2.5 to 25	6.8 to 1500	±20
	PLE	04	-55 to +105	2.5 to 6.3	470 to 1500	±20
	PLG	04	-55 to +105	2.5 to 16	330 to 3900	±20
	PLS	04	-55 to +105	2.5 to 16	100 to 1500	±20
	PLV	04	-55 to +105	16 to 100	6.8 to 470	±20
	PLX	04	-55 to +125	16 to 50	22 to 390	±20

FPCAP

Classification	Series	Note	Rated Voltage Range (VDC)	Capacitance Range (µF)	Endurance	Links
SMD Type	RPS/RPA	Standard (φ6.3, φ8, φ10)	2.5 to 63	8.2 to 1500	105°C 2000/5000Hrs	Datasheets Catalog Selector Guide
	RHS/RHA	High Capacitance (φ8)	2.5 to 35	56 to 1500	105°C 2000Hrs
	RSS/RSA/RSB	High Capacitance (φ6.3)	2.5 to 35	10 to 820	105°C 2000Hrs
	RFS/RFA	High Capacitance (φ4, φ5)	2.5 to 25	10 to 330	105°C 2000Hrs
	RSL	Low Profile (φ6.3)	2.5 to 25	15 to 330	105°C 2000Hrs
Radial Lead Type	RNS	Standard	4.0 to 25	10 to 1200	105°C 2000Hrs
	RR7	Low ESR	2.5 to 16	68 to 1500	105°C 2000/5000Hrs
	RR5	Ultra-Low ESR	2.5 to 6.3	390 to 1500	105°C 2000Hrs
	RL8	Low ESR and Low Profile (φ8)	2.5 to 35	100 to 1500	105°C 2000/5000Hrs
	RF5	Ultra-Low ESR and Low Profile (φ8)	2.5 to 4	560 to 820	105°C 2000Hrs
	RS8	Low ESR/ESL and Low Profile (φ6.3)	2.5 to 25	56 to 1200	105°C 2000/5000Hrs
	RF8	Low ESR/ESL and Low Profile (φ5)	2.5 to 6.3	100 to 560	105°C 2000Hrs
	RNU	High Capacitance	2.5 to 63	10 to 2700	105°C 2000/5000Hrs
	RNE	High Capacitance	2.5 to 25	100 to 1500	105°C 2000/5000Hrs
	RNL	Large Sized Capacitance	16 to 25	270 to 2200	105°C 2000/5000Hrs
	RS6	Miniature Sized High Capacitance	2.5 to 25	33 to 560	105°C 2000/5000Hrs
	RHT	High Temp. (125°C)	6.3 to 35	100 to 1000	125°C 1000Hrs

Conductive Polymer Hybrid Aluminum Electrolytic Capacitors

Classification	Type	Configuration	Temp. Range (°C)	Rated Voltage Range (VDC)	Rated Capacitance Range (µF)	Tolerance on Rated Capacitance (%)	Links
Chip Type	GYA	32	-55 to +125	16 to 63	10 to 470	±20	Datasheets Catalog Selector Guide
	GVB	32	-55 to +105	25 to 63	10 to 330	±20
	GVC	32	-55 to +135	25 to 63	10 to 330	±20
	GVD	32	-55 to +150	25 to 35	100 to 270	±20

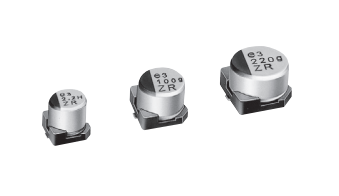

Aluminum Electrolytic Capacitors

Classification	Series	Configuration	Temp. Range (°C)	Rated Voltage Range (VDC)	Rated Capacitance Range (µF)	Tolerance on Rated Capacitance	Links
Surface Mount Type	UZR	32	-40 to +85	4 to 50	1 to 220	±20	Datasheets Catalog Selector Guide
	UZG		-40 to +105	6.3 to 50	1 to 100
	UZS		-40 to +85	4 to 50	1 to 220
	UZT		-40 to +105	6.3 to 50	1 to 100
	UWX		-40 to +85	4 to 50	1 to 330
	UWJ		-40 to +85	6.3 to 50	1 to 150
	UWP		-40 to +85	6.3 to 50	0.1 to 100
	UWT		-55 to +105	4 to 50	1 to 1500
	UWZ		-55 to +105	6.3 to 50	1 to 1500
	UWF		-55 to +105	6.3 to 35	1 to 220
	UWG		-55 to +105	6.3 to 50	1 to 1500
	UUP		-55 to +105	6.3 to 50	0.1 to 47
	UUT		-55 to +105	4 to 50	1 to 100
	UUA		-55 to +105	6.3 to 50	1 to 1000
	UUL		-40 to +105	6.3 to 50	1 to 1000
	UCB		-25 to +105	6.3 to 550	1 to 1000
	UCW		-25 to +105	6.3 to 50	10 to 470
	UCD		-55 to +105	6.3 to 100	1 to 3300
	UCL		-55 to +105	6.3 to 50	10 to 2200
	UCM		-55 to +105	6.3 to 100	10 to 5100
	UCV		-55 to +105	16 to 35	220 to 1500
	UUD		-55 to +105	6.3 to 50	1 to 1500
	UWD		-55 to +105	6.3 to 50	1 to 1500
	UUB		-40 to +125	10 to 400	1 to 330
	UWH		-40 to +125	10 to 50	10 to 330
	ULT		-40 to +125	160 to 500	1.8 to 33
	ULH		-40 to +125	160 to 450	2.2 to 27
	UCJ		-40 to +125	10 to 50	10 to 470
	UCZ		-40 to +125	10 to 100	10 to 3300
	UCH		-40 to +125	25 to 63	33 to 560
	UCX		-40 to +135	10 to 50	47 to 3300
	UUR		-40 to +85	4 to 100	3.3 to 1500
	UUX		-55 (-40) to +105	6.3 to 400	1 to 1000
	ULR		-40 to +105	160 to 500	2.7 to 39
	ULV		-40 to +105	160 to 500	1.8 to 33
	UUQ		-40 to +105	6.3 to 50	1 to 1000
	UCQ		-55 to +105	10 to 35	4.7 to 680
	UUG		-40 to +85	6.3 to 450	4.7 to 10000
	UUJ		-55 (-40) to +105	6.3 to 450	3.3 to 6800
	UUN		-55 to +105	6.3 to 100	22 to 2200
	UUE		-55 (-40) to +125	10 to 50	33 to 4700
	UBC		-55 (-40) to +150	10 to 50	33 to 3300

Plastic Film Capacitors

Type of Plastic Film Capacitors

Series	Electrode Construction	Dielectric	Outline	Temp. Range	Rated Volatage & Capacitance Range	Features	Links
QXK-(ZH)	Metallized Film Type	Metallized Polyester Film	Standard Type	-40 to +105°C	0.01 to 3.3µF 250 to 630VDC	Compact and lightweight Flame-retardant epoxy coating	Datasheets Catalog Selector Guide
QXK		Metallized Polyester Film	Compact Size Standard Type	-40 to +105°C	0.01 to 10µF 250 to 630VDC	Compact and lightweight Flame-retardant epoxy coating
QXP		Metallized Polypropylene Film	Standard Type For High Frequency Applications Dip Type	-40 to +105°C	0.01 to 3.3µF 250 to 800VDC	Compact and lightweight Excellent in temperature characteristics and high frequency operation Flame-retardant epoxy coating
QXT		Polypropylene Film Metallized Polypropylene Film	For High Frequency & Large current Application Dip Type	-40 to +105°C	0.0068 to 0.1µF 400 to 630VDC	Compact and lightweight Excellent in temperature characteristics and high frequency operation Flame-retardant epoxy coating
QXL		Metallized Polyester Film	Electrical Appliance and Material Safety Law Approved for AC power source Dip Type	-40 to +105°C	0.01 to 1.0µF 125 to 250VAC	Flame-retardant epoxy coating High reliability Compact and lightweight
QAK		Metallized Polyester Film	Tape-Wrapped Axial lead Type	-40 to +85°C	0.1 to 10µF 250 to 630VDC	Superior characteristics in protection from mechanical damage and high humidity Large capacitance
QAP		Metallized Polypropylene Film	Tape-Wrapped Axial lead Type For High Frequency Applications	-40 to +85°C	0.15 to 10µF 250 to 630VDC	Excellent in temperature coefficient and at high frequency operation Humidity resistance Large capacitance
QYX	Foil Type	Polyester Film	Miniaturized Standard Type	-40 to +85°C	0.001 to 0.47µF 50 to 100VDC	Uniform epoxy coating (clear-yellow) Optimum for auto-insertion

Type of Plastic Film Capacitors for AC Power

Series	Electrode Construction	Dielectric	Outline	Temp. Range	Rated Volatage & Capacitance Range	Features	Links
EEC	Metallized Film Type	Metallized Polypropylene Film	Encased Type	-25 to +85°C	1.0 to 50µF 200 to 400VAC	Flame-retardant epoxy cased coating Tab terminal, Pin terminal	Datasheets Catalog Selector Guide
EXH		Metallized Polypropylene Film	Dip Type	-25 to +85°C	6 to 12µF 250VAC	Flame-retardant epoxy resin coating

Electric Double Layer Capacitors

Series	Configuration	Temp. Range (°C)	Rated Voltage Range (VDC)	Rated Capacitance Range (F)	Tolerance on Rated Capacitance (%)	Applications	Links
JUM	04	-25 to +70	2.7	1 to 47	±20	Radial lead Type, Standard	Datasheets Catalog Selector Guide
JUW	04	-25 to +70	2.7	1 to 82	±20	Radial lead Type, High Capacitance
JUK	04	-25 to +70	2.5	6.8 to 27	±20	Radial lead Type, Lower Resistance
JJC	692	-25 to +60	2.5	56 to 200	±20	Snap-in Terminal Type, Standard
JJD	331	-25 to +60	2.5	1000 to 2500	±20	Screw Terminal High Energy Density Type
JJL	331	-25 to +60	2.5	700 to 2000	±20	Screw Terminal High Power Density Type
JUA	04	-40 to +70	2.7	2.5 to 4.7	±20	Radial lead Type, Lower Resistance, Long Life

Positive Thermistors

Category	Picture	Classes	Specifications	Links
For Overcurrent Protection		12V Class	16V Max. Operating Voltage	Datasheets Catalog Selector Guide
		25V Class	35V Max. Operating Voltage
		50V Class	60V Max. Operating Voltage
		120V Class	140V Max. Operating Voltage
		220V Class	265V Max. Operating Voltage
For In Rush Current Limitation, General Use		Case Type	276 Max.Operating Voltage(Vrms)
		Tap Terminal Type	300 / 500 Max.Operating Voltage(Vrms)
		Lead Type	144 / 276 Max.Operating Voltage(Vrms)
For Heater		Disc Type	Switching temperature: 280˚C max. Resistance: 0.3 to 3.0Ω (12V class) 100 to 2000Ω (100V class) 200 to 2000Ω (200V class)
		Square Type

Function Modules

Category	Picture	Product	Characteristics	Applications	Links
Toner Quantity Sensor		ZHDA1319	Sensor output is not influenced by a color of toner and quantity of toner was detected by this sensor stably Sensor output is analog voltage and can be gained in proportion of the toner unattached area Nichicon can design custom-made toner quantity sensor, based on the specific demand from the customer Miniaturized with high performance by COB technology The sensor has a structure to prevent stray light and reduces error of the output Adapted to the RoHS directive (2011/65/EU,(EU)2015/863)	For color copier For color laser printer	Datasheets Catalog Selector Guide
		ZHDA1350R	Low price version has the same performance as Standard type, and the cost is low Sensor outputs are analog voltage separates P-polarized and S-polarized Sensor outputs are not influenced by a color of toner and quantity of toner was detected by this sensor stably. By calculating sensor output P voltage and S voltage, can be gained in proportion of the toner unattached area Nichicon can design custom-made toner quantity sensor, based on the specific demand from the customer Miniaturized with high performance by COB technology The sensor has a structure to prevent stray light and reduces error of the output Adapted to the RoHS directive (2011 /65/EU,(EU)2015/863)
DC-DC Converter		ZHRM1R5x ZHRP1R5x ZHRM030x ZHRP030x	Thin and lightweight Excellent heat radiation and miniaturization due to alumina substrate Excellent isolation ability between input and output No attachment necessary Circuit with built-in excess current protection Adapted to the RoHS directive (2011/65/EU,(EU)2015/863)	Low Profile Applications
Custom-made Modules			Special function Shape and rational design Based on the specific circuitry from the customer Miniature molded semiconductors or chip-bonded semiconductors for high density mounting	Different Applications

Applications

Application	Description	Products	Links
	Solutions for: Powertrain Chassis & Safety Interior Exterior	Power Train: Plastic Film Capacitors Conductive Polymer Aluminum Solid Electrolytic Capacitors Chassis & Safety Aluminum Electrolytic Capacitors Conductive Polymer Aluminum Solid Electrolytic Capacitors Conductive Polymer Hybrid Aluminum Electrolytic Capacitors Interior Aluminum Electrolytic Capacitors Conductive Polymer Aluminum Solid Electrolytic Capacitors Exterior Aluminum Electrolytic Capacitors Conductive Polymer Aluminum Solid Electrolytic Capacitors Conductive Polymer Hybrid Aluminum Electrolytic Capacitors
	Supports for: Long-life High audio quality Miniature high capacity Permissible abnormal voltage High ripple current Low impedance	Aluminum Electrolytic Capacitors Electric Double Layer Capacitors Conductive Polymer Aluminum Solid Electrolytic Capacitors
		Conductive Polymer Aluminum Solid Electrolytic Capacitors Electric Double Layer Capacitors
	For different Segments in the Industrie: Power industry segment Plant business segment Logistics and transport segment Infrastructure business segment	Aluminum Electrolytic Capacitors Plastic Film Capacitors Electric Double Layer Capacitors
