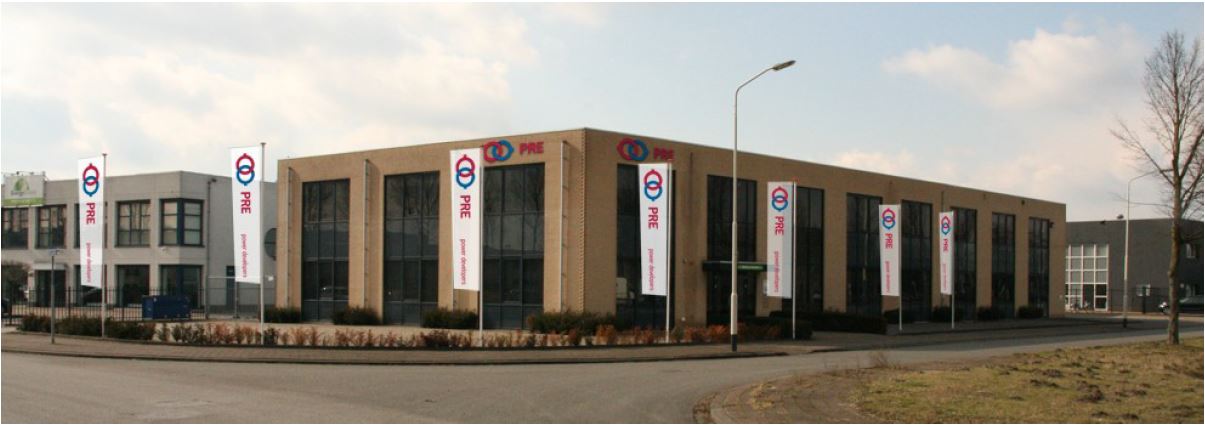

About Power Research Electronics

• Location: Breda, Netherlands
• Certifications: CE; UL; Ex; DNV; DEKRA; ENEC


• PRE was founded in 1983 under the name of Power Research Electronics by Mr. Jan Wanner
• Already in the starting years the company could distinguish itself by innovative solutions within the Power application field
• Products as DC/DC converters, Mains-supplies, Chargers and Inverters were designed and produced with leading edge technology


• In 2002 Jos Schijffelen and Menno Kardolus acquired the company and recently Mark Gröninger joined the board of Directors as well
• Power Research Electronics name was shortened to PRE with additional “Power Developers”, which underlines the innovation power
• Nowadays PRE aims more often on durable power topologies such as LED, Solar and Wind

Products

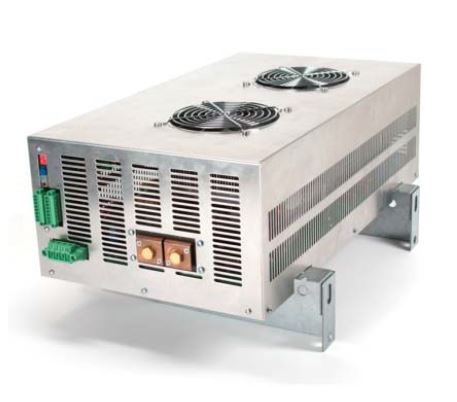

UPM (Universal programmable Power Supply)

Pmax	Input	Models	U range	I range(A)	Enclosure	Cooling	Datasheet
3kW	230V(L1+N)	16V	2-16VDC	0-100A	metal sheet	All in
3kW	230V(L1+N)	24V	2-30VDC	0-100A	metal sheet	All in
3kW	230V(L1+N)	48V	4-60VDC	0-50A	metal sheet	All in
3kW	230V(L1+N)	120V	2-120VDC	0-25A	metal sheet	All in
5kW	400V(L1+L2+L3+N)	24V	2-28VDC	0-200A	metal sheet	All in
5kW	400V(L1+L2+L3+N)	48V	4-56VDC	0-120A	metal sheet	All in
5kW	400V(L1+L2+L3+N)	96V	2-120VDC	0-50A	metal sheet	All in
5kW	400V(L1+L2+L3+N)	120V	2-120VDC	0-50A	metal sheet	All in
10kW	400V(L1+L2+L3)	500V	150-500VDC	0-28A	metal sheet	external Fans
10kW	400V(L1+L2+L3)	850V	300-850VDC	0-18A	metal sheet	external Fans
10kW	400V(L1+L2+L3)	950V	200-950VDC	0-15A	metal sheet	external Fans

EV Charger Modules

EV Fast Charging stations

Charger Module	Picture	Product	Specifications	Datasheets

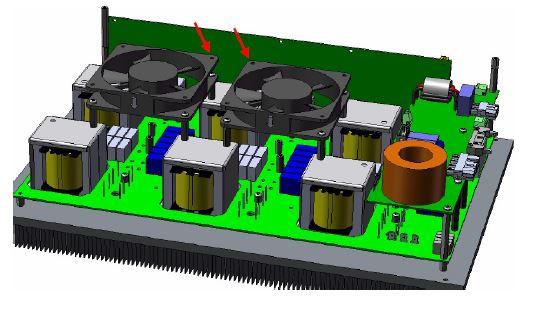

10 kW AC/DC Charger		EVC500V25A	Output Voltage Range: 150 - 550Vdc Input AC Voltage Range: 400Vac ± 10% Current Range: 0 - 25A (28A) Cooling: Fan cooled Efficiency (Max.): 93,5%
		EVC850V16A	Output Voltage Range: 300 - 850Vdc Input AC Voltage Range: 400Vac ± 10% Current Range: 0 - 16A (18A) Cooling: Fan cooled Efficiency (Max.): 94%
		EVC950V14A	Output Voltage Range: 200 - 950Vdc Input AC Voltage Range: 400Vac ± 10% Current Range: 0 - 14A (15A) Cooling: Fan cooled Efficiency (Max.): 94,5%

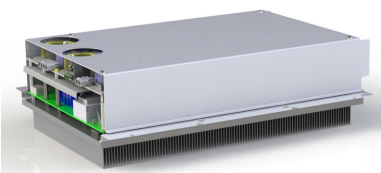

12.5 kW AC/DC Charger		EVC500V32A	Output Voltage Range: 100 - 500Vdc Input AC Voltage Range: 400Vac ± 10% Current Range: 0 - 32A Cooling: Fan cooled Efficiency (Max.): 93,5 %
		EVC100V16A	Output Voltage Range: 300 - 850Vdc Input AC Voltage Range: 400Vac ± 10% Current Range: 0 - 16A Cooling: Fan cooled Efficiency (Max.): 94%

EV Fast Charging Parks

Charger Module	Picture	Product	Specifications	Datasheet
25 kW DC/DC Charger		EVDC500V63A	Output Voltage Range: 150 - 500Vdc (300 - 1000Vdc) Input DC Voltage Range(Max.): 400 - 900V Current Range: 0 - 64Adc (0 - 32Adc) Cooling: Air cooled Efficiency (Max.): 98%

EV Home / Office Chargers

Charger Module	Picture	Product	Specifications	Datasheets

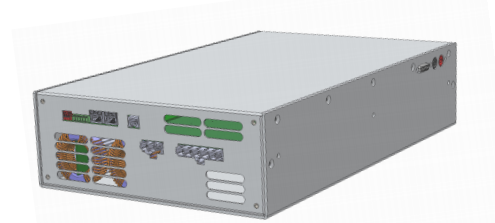

10kW Bidirectional Charger		V2G500V30A	Output Voltage Range: 50 - 500Vdc Input AC Voltage Range: 400Vac ± 10% Current Range: -30 - +30A Cooling: Fan cooled (Temperature controlled) Efficiency: >95 % @ 400Vac & Rated Power

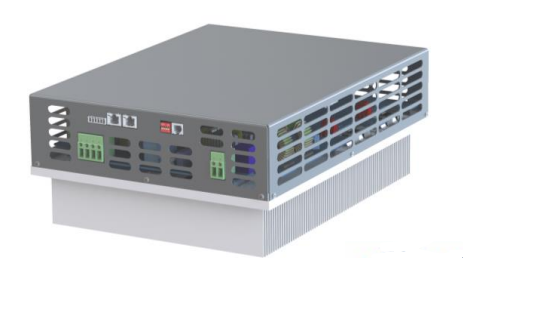

6kW V2G Charger		V2G500V15A	Output Voltage Range: 50 - 500Vdc Input AC Voltage Range: 230Vac ± 10% Current Range: -15 - +15A Cooling: Air cooled, IP20 Efficiency: >95 % @ 230Vac

Applications

LED Lightning

To get the maximum from LED Lighting, good power supplies and drivers are required. Only with the correct power supply and driver will a LED lamp achieve optimum efficiency: Low power consumption Long life time Functionality which is not feasible with traditional lighting

Renewable Energy

Solar- and Wind-Energy have achieved large steps in the past few years By this they are more often considered as realistic options to provide our daily Energy requirements The current they generate are nevertheless different then what our power grid is offering so in many cases not directly usable To match these differences PRE have developed countless solutions for several Power levels For these solutions we keep the efficiency which is required for the complete system as high as possible

Electrical Mobility

The Electrical Bicycle is nowadays no strange appearance in the modern traffic Also other directives of electrical transport, like the Scooter and Car are winning ground on popularity The advantages are numerous: Less pollution Less noise Energy Saving. The success of this new form of transportation is strongly depended on the ability of fast charging PRE has in short time, acquired extensive experience for several projects We put our knowledge gladly to use of your power requirements regarding electrical mobility

Industrial Applications

The first priority is to achieve a working concept After which we further look at features such as Communication Energy-saving Space-saving Our innovation power as example, already brought us to open Sea, in the Desert and into the swimming pool Special projects with particular solutions
