About Realtek

• Realtek Semiconductor Corp. is located in the Hsinchu Science-based Industrial Park — Taiwan's "Silicon Valley"
• Began with a small group of young, devoted engineers in 1987
• In nearly two decades, these young founding engineers built Realtek into one of the world's largest and most successful IC design houses.
• Realtek's provides the ultimate in pioneering IC technology for the following products:
• Communications Network ICs
• Such as Broadband Access and Gateway Controllers, Network Interface Controllers, PHYceivers and Ethernet Switch Controllers, WiFi ICs, …
• Computer Peripheral ICs
• Such as Audio Codecs, Class-D Audio Amplifiers, Card Readers and Camera Controllers.
• Multimedia ICs

Project Infos

• Generally Realtek focuses on high quantity projects.
• Technical support from supplier is limited.
• Please check with Line Management for details.
• General Project Information:
• Project Name:
• End Application:
• Annual qty. and target price:
• Mass Production Date:
• Prototype Date:
• Current Project Status
• End Costumer:
• Customer’s company website:
• Mass Production Location:
• Product Life Cycle:
• Quantity use per board:
• ODM maker:
• Technical requirements:
  for PHYs: e.g. DataRate; temperature range; required Interface (R)(S)(G)MII and corresponding voltage; special Ethernet features e.g. SyncEth, 1588, ...
  for NICs: e.g. DataRate; temperature range; required Interface USB2/USB3/PCI/PCIe; special Ethernet features e.g. SyncEth, 1588, ...
  for Switch: e.g. DataRate; temperature range; port configuration; number of integrated PHYs; additional Interfaces (R)(S)(G)MII;
  special Ethernet features e.g. SyncEth, 1588, ...; dumb switch or Level2/3 management features

Products

Single Pair Ethernet - **NEW**

Highlights RTL8201G

Support modes and cable length: IEEE 802.3/802.3u support (Traditional Fast Ethernet) IEEE 100BASE-T1 100Mbps@300meters for Cat 5e (1 pair) 100Mbps@500meters for Coaxial (75-5) 100Mbps@300meters for Coaxial (75-3) Realtek Long Distance Tech: LD10: 10Mbps@1000meters for Coaxial (75-5) LD10: 10Mbps@800meters for Cat 5e (1pair) LD100: 100Mbps@500meters for Cat 5e (2pairs) Features: Auto Negotiation EEE ready for IEEE802.3/802.3u (traditional FE PHY) WOL MII/RMII => QFN32 RMII => QFN24 Surge Line to Line up to 1.5KV Clock input : 25MHz XTAL or OSC, 50MHz OSC Interrupt Single power source 3.3V, and built in LDO for 1.0V U40nm Process

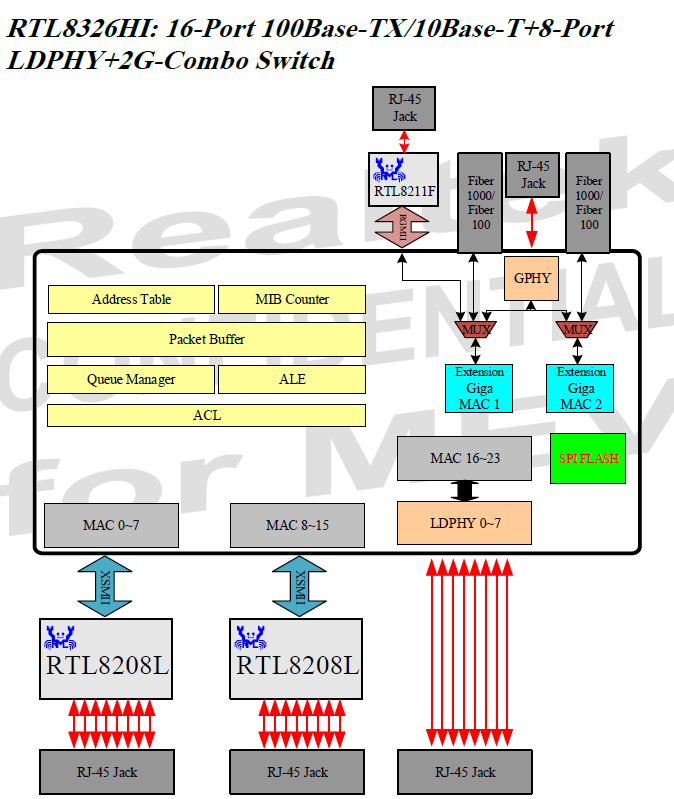

Switch products with integrated LD PHYs available: RTL8310H (8port) RTL8326H (24port)

Introduction for LDPHY

Audio Codecs and Amplifiers

Highlights

REALTEK Audio Codecs and Amplifiers - AC'97 Audio Codecs - High Definition Audio Codecs - I2S Audio Codecs - UAJ (Universal Audio Jack) - Stereo Class-D Amplifiers

Audio Roadmap

CE Audio Roadmap

Ethernet Switches

Highlights

REALTEK Ethernet Switches - 3 / 5 / 8 / 16 / 24 / 48-Port - Stand Alone and Embedded Switches - Integrated PHYs to enable Single Chip Solutions - Fast Ethernet, Gigabit Ethernet, 2.5G, 5G and 10G - Industrial Temperature Range available - Managed Switch and Dumb Switch -Switch Solutions on PCBA level available based on Realtek Chipset Customer and Project have to meet Realtek Project criteria. Please check out the: IndustrialSwitchRoadmap.pdf or the: Realtek general Switch Lineup.pdf Contact MEV Line Management for data sheet and ref design.

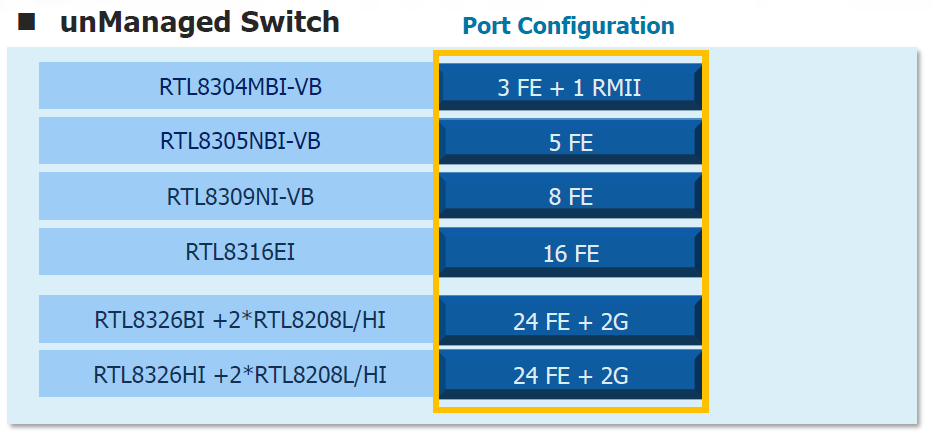

FE Industrial Grade Switches

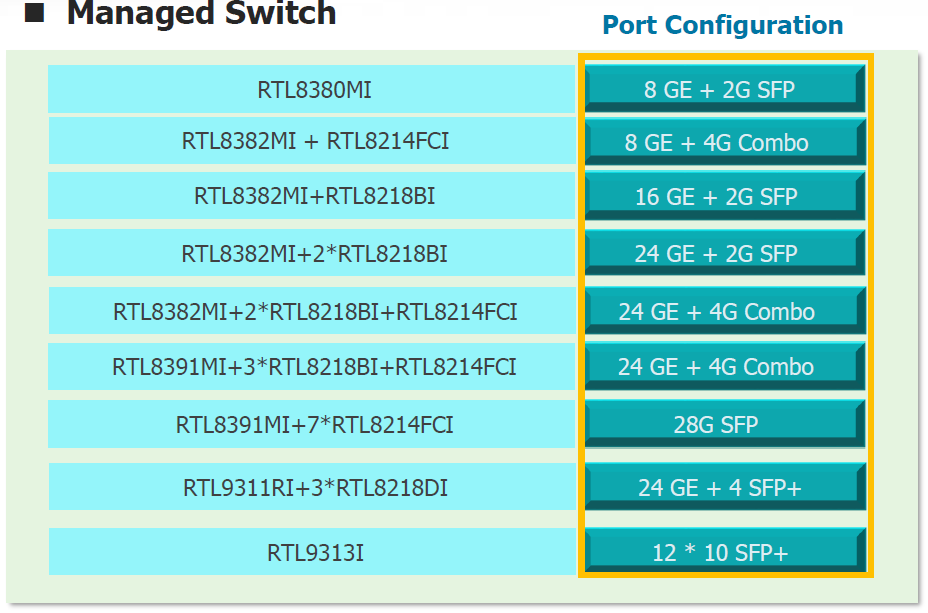

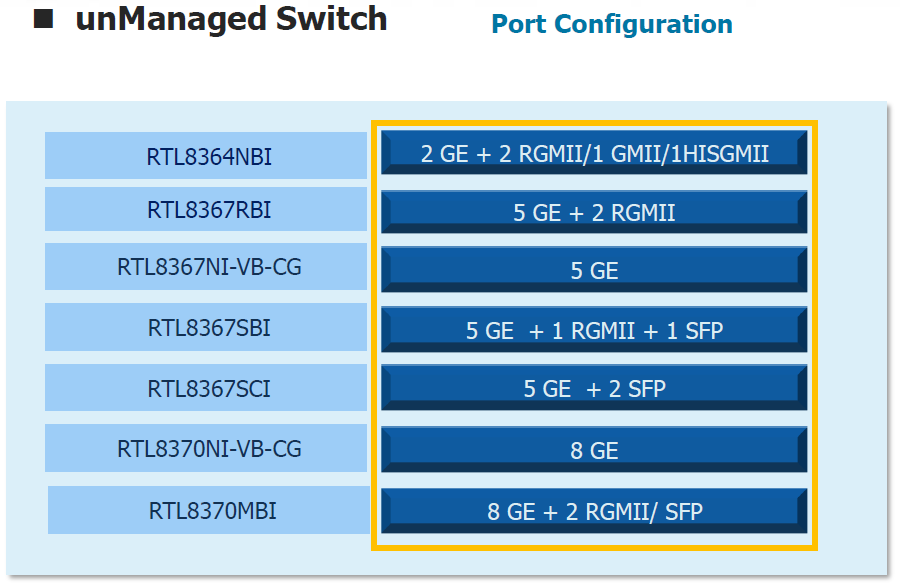

GbE Industrial Grade Switches

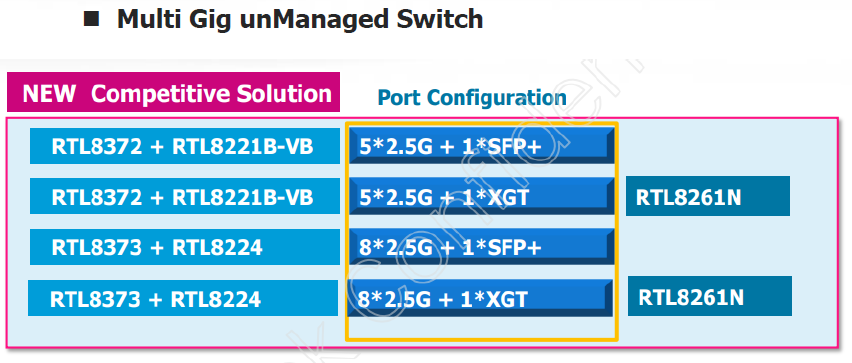

Multi Gig Industrial Grade Switches

Ethernet PHYs

Highlights

REALTEK Ethernet PHYs - EEE, Energy Efficient Ethernet (802.3az) - PHY based WOL (Wake On LAN) - IEEE-1588v2 - Products available - Fast Ethernet, Gigabit Ethernet, 2.5G and 5G (+10G) - Industrial Temperature Range available - RGMII/SGMII/GMII - RMII/MII - low power IO - Ultra low Power Consumption Customer and Project have to meet Realtek Project criteria. Please check out the: PHY-Roadmap.pdf Contact MEV Line Management for data sheet and ref design.

Network Interface Controllers (NIC)

Highlights

REALTEK Network Interface Controllers (NIC) - PCIe / USB2.0 / USB3.0 - Interface - Lowest Power Consumption - Smallest Package - Smallest BOM - Integrated PHYs - Fast Ethernet, Gigabit Ethernet, 2.5G, 5G and 10G - Industrial Temperature Range available Customer and Project have to meet Realtek Project criteria. Please check out the: NIC-Roadmap.pdf Contact MEV Line Management for data sheet and ref design.

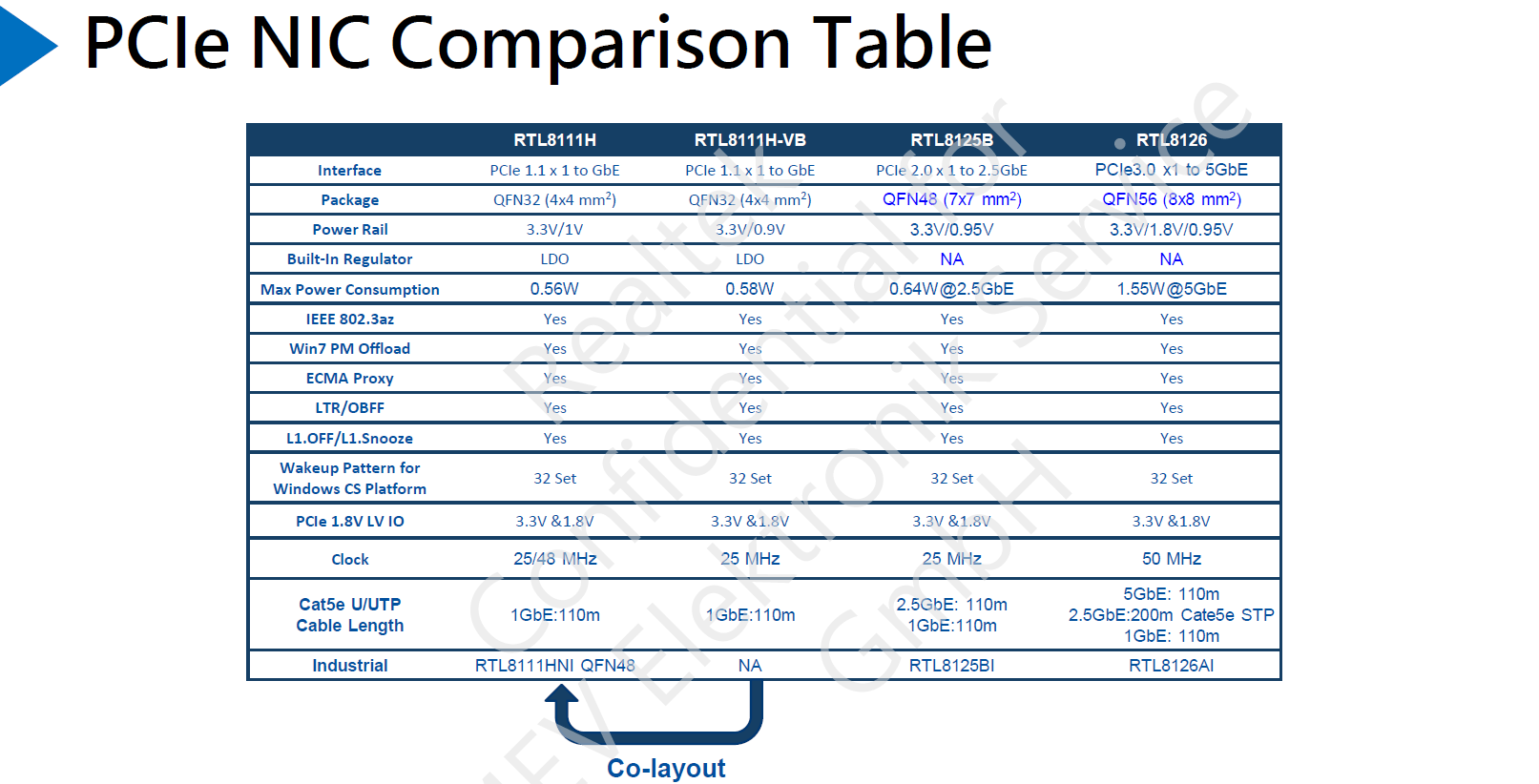

Single Port PCIe Ethernet Roadmap

IoT Controller SoCs

Highlights

REALTEK IoT Controller SoCs - Single Chip Solution - 2.4G WiFi (11n) - GPIO ports ADC, DAC, USB, SDIO Customer and Project have to meet Realtek Project criteria. Contact MEV Line Management for data sheet and ref design.

Wireless IoT Solutions

Highlights

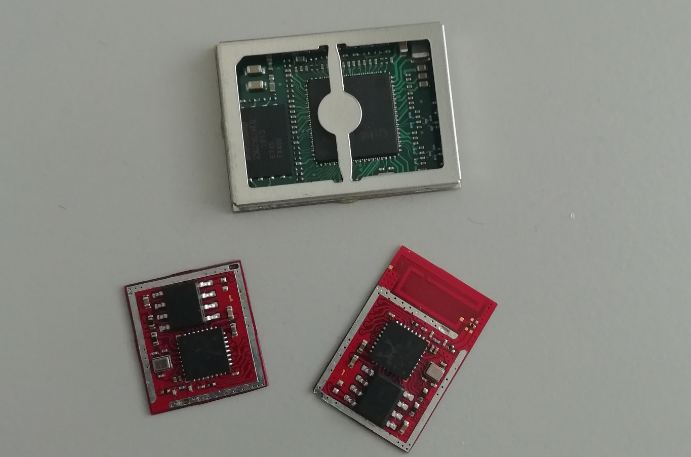

REALTEK AMEBA Family Product range - All WiFi standards from 802.11b up to WiFi6 supported - With and without BT / BLE - Single Chip - Smallest Package - Smallest BOM - Available as Chip and Module:               - Lowest Power Consumption - Industrial Temperature Range available Customer and Project have to meet Realtek Project criteria. Please check out the: IoT-Roadmap.pdf Contact MEV Line Management for data sheet and ref design.

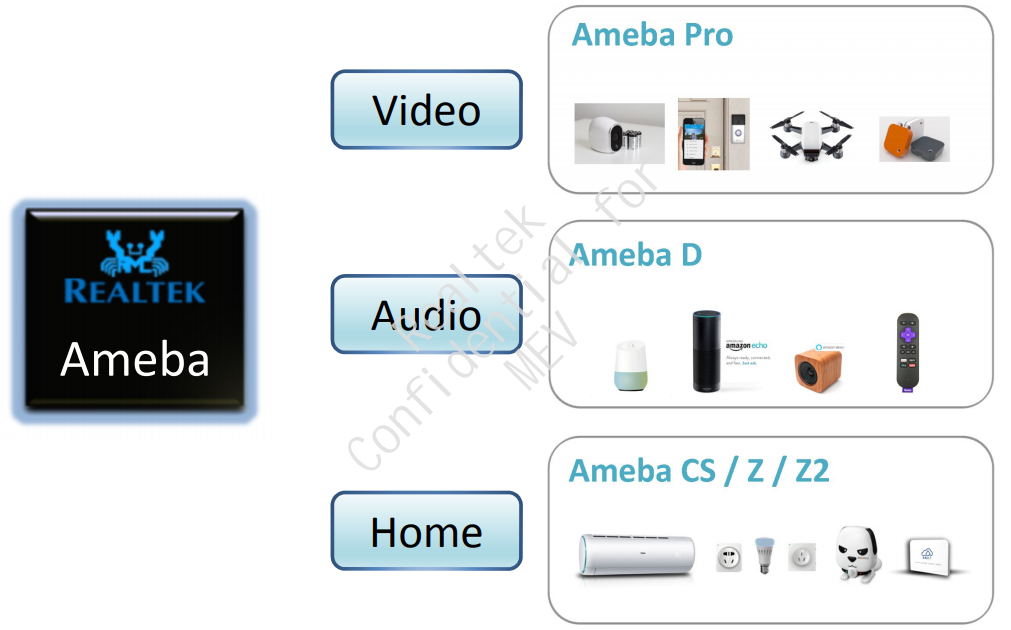

Realtek IoT

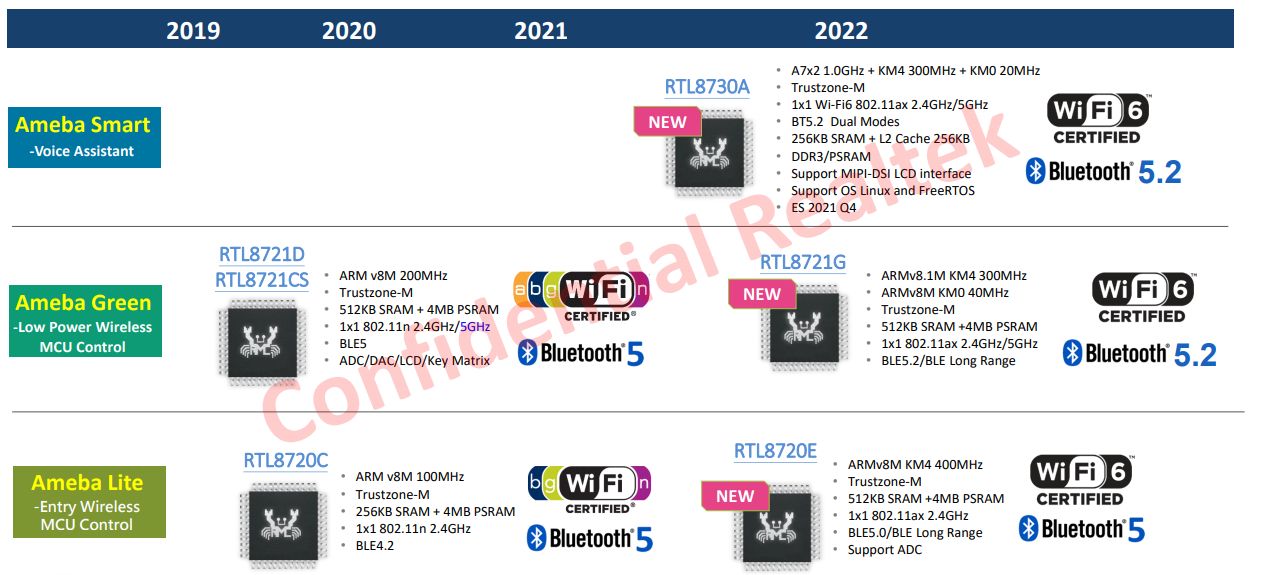

Realtek Ameba IoT Roadmap

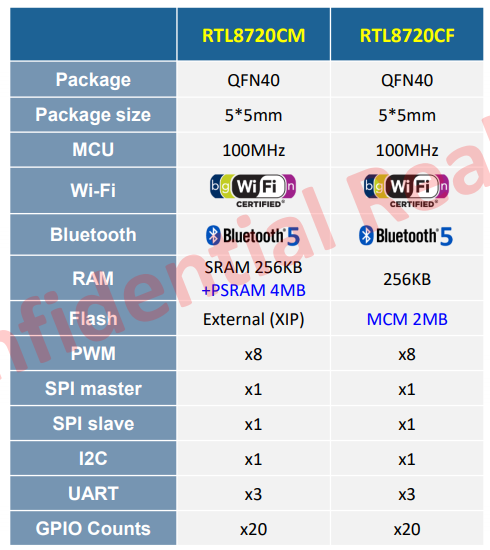

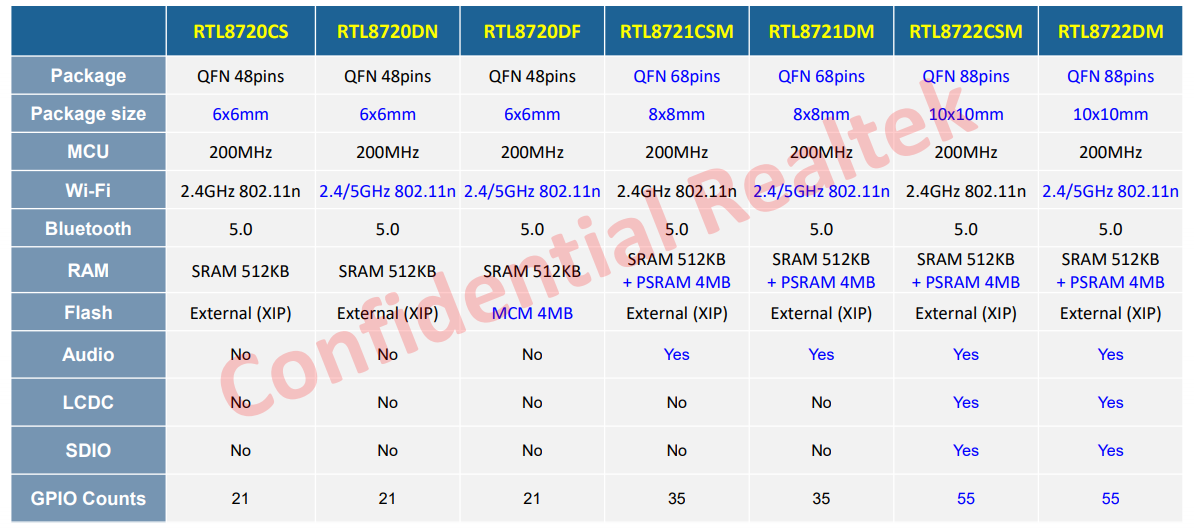

Product Comparison

BT Solution


BT presentation     Available as Chip and Module

WiFi NIC Controllers

Highlights

REALTEK WiFi Controller SoCs - 802.11ac 4x4, 2x2, 1x1 - 802.11bgn 4x4, 2x2, 1x1 - Interfaces: PCIe / USB / SDIO WiFi-NIC-Roadmap Customer and Project have to meet Realtek Project criteria. Contact MEV Line Management for product proposal, data sheet and ref design.

xDSL and G.Fast SoCs

Highlights

REALTEK xDSL and G.Fast SoCs - ADSL - VDSL - G.Fast Customer and Project have to meet Realtek Project criteria. Contact MEV Line Management for product proposal, data sheet and ref design.

xPON ICs

Highlights

REALTEK xPON ICs - GPON, EPON and active fiber mode - Interoperable with all major OLT Vendors - Up to 5 embedded GE Ports and WiFi Customer and Project have to meet Realtek Project criteria. Contact MEV Line Management for product proposal, data sheet and ref design.

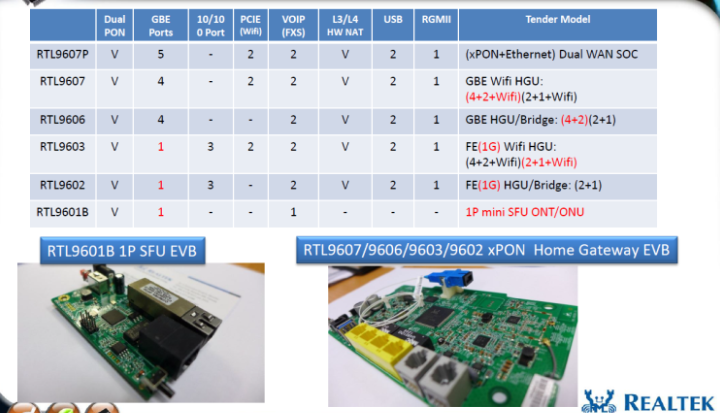

RTK xPON Product Matrix

USB Type C for Digital Audio Connection

Please contact Line Management for further information!

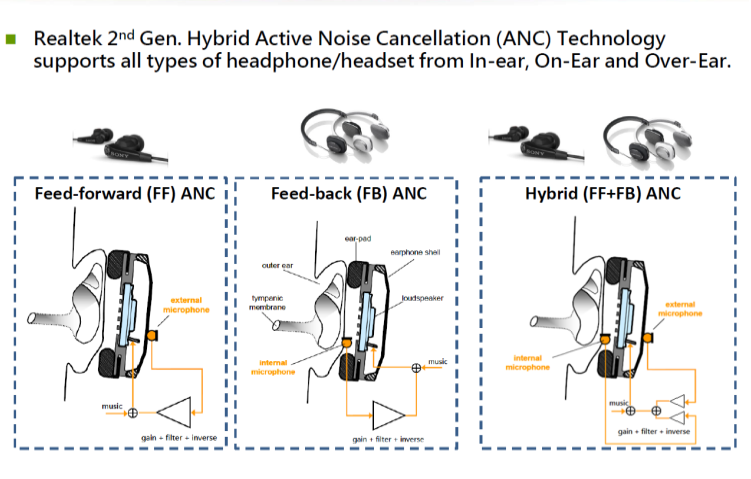

2^ndGen. Hybrid Active Noise Cancellation

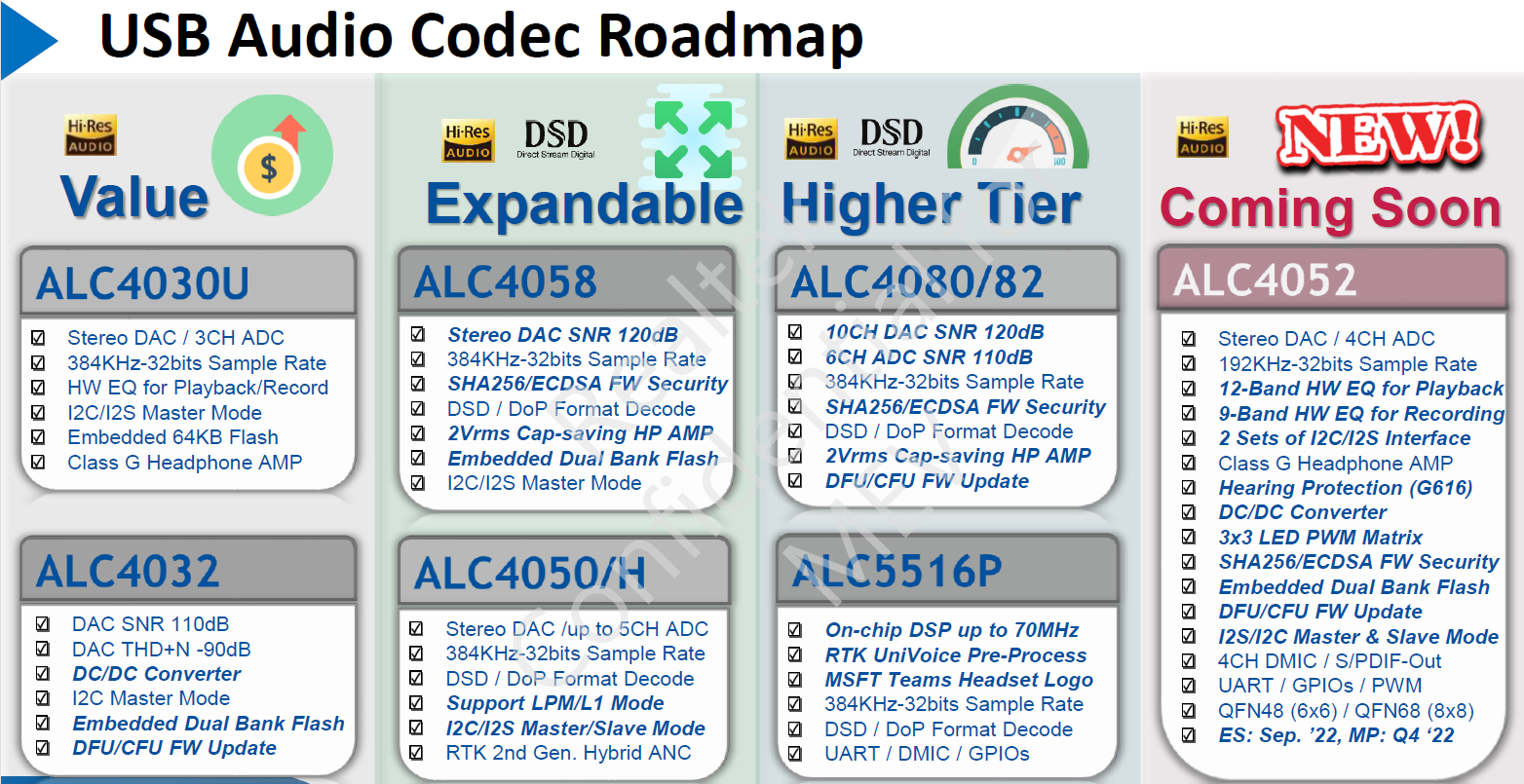

USB Audio Roadmap

USB Type C - Controllers

Please contact Line Management for further information!

Type-C Controller and Hub

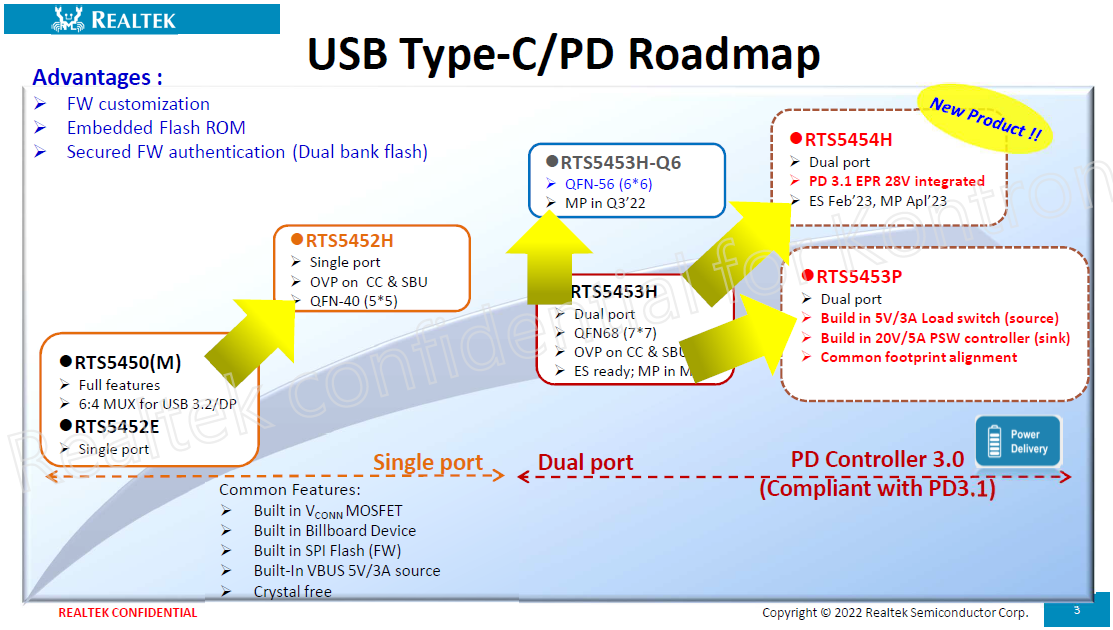

Type-C PD Controller Roadmap

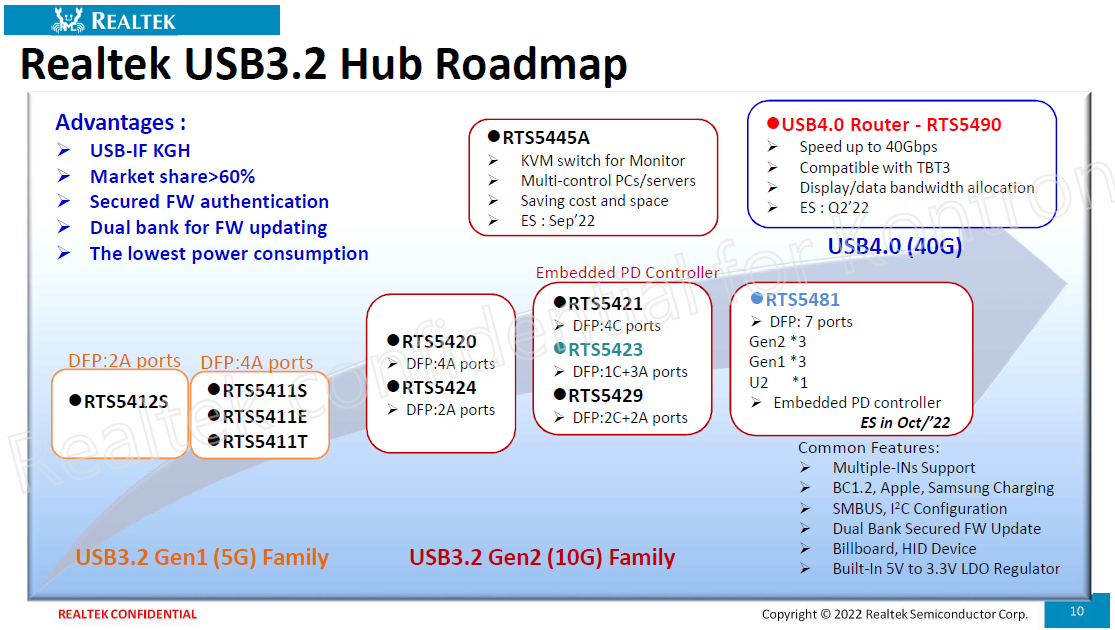

USB3.2 Gen1/Gen2 Hub

Card Reader Controllers

Highlights

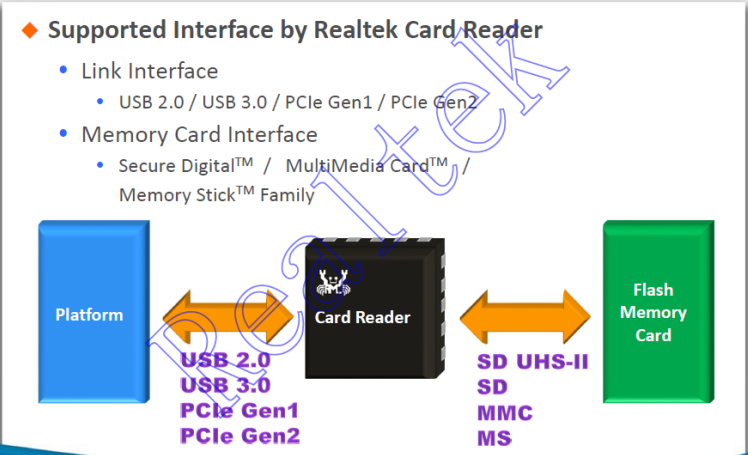

REALTEK Card Reader Controllers - Flash Card Interfaces: SD UHS-II / SD / MMC / MS - Host Interfaces: USB2.0 / USB3.0 / PCIe Customer and Project have to meet Realtek Project criteria. Contact MEV Line Management for data sheet and ref design.

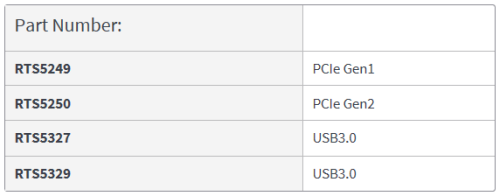

Realtek Card Reader Product Group

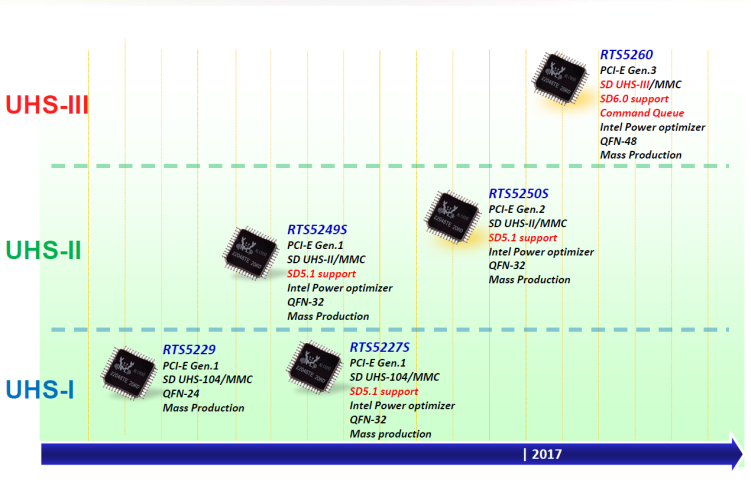

PCIE Card Reader Roadmap

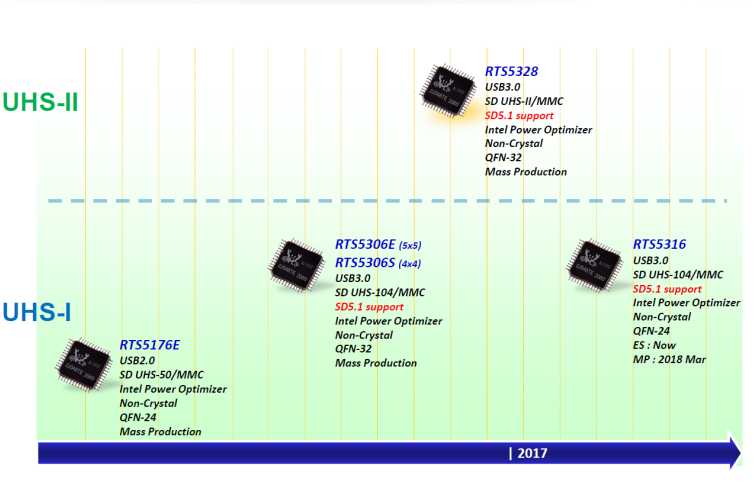

USB Card Reader Roadmap
