New Products - WiFi 6/6E

Picture Description Datasheets

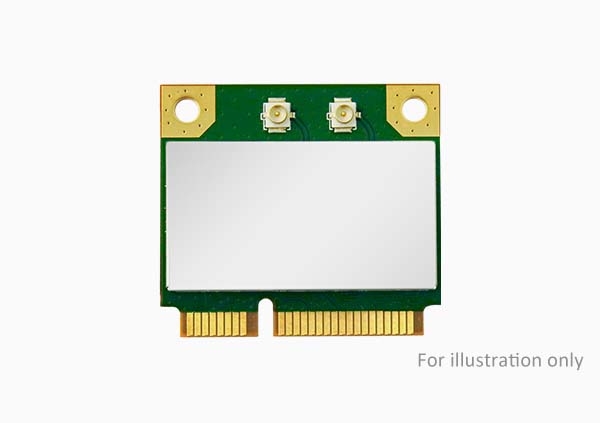

WPEQ-268AXI(BT)
  • Standard IEEE 802.11ax/ac/a/b/g/n Triple-Band
  • Bluetooth V5.2, V5.1, V5.0, V4.2, V4.1, V4.0LE, V3.0, V2.1+EDR
  • Interface PCI express: WLAN, USB: Bluetooth
  • Chipset Qualcomm Atheros WCN6856
  • Antenna 2 x IPEX MHF1 connector, 2T2R
  • Temperature Range -40°C to +75°C
  • Enhanced wireless security 64/128-bits WEP, WPA, WPA2, WPA3, 802.1x
  • Support Linux, Windows 10
  • Certification CE, FCC, IC, MIC

WNFQ-268AXI(BT)
  • Standard IEEE 802.11ax/ac/a/b/g/n Triple-Band
  • Bluetooth V5.2, V5.1, V5.0, V4.2, V4.1, V4.0LE, V3.0, V2.1+EDR
  • Interface PCI express: WLAN, USB: Bluetooth
  • Chipset Qualcomm Atheros WCN6856
  • Antenna 2 x IPEX MHF4 connector, 2T2R
  • Temperature Range -40°C to +75°C
  • Enhanced wireless security 64/128-bits WEP, WPA, WPA2, WPA3, 802.1x
  • Support Linux, Windows 10
  • Certification CE, FCC, IC, MIC

WNFT-238AX(BT)
  • Standard: IEEE 802.11ax/ac/a/b/g/n
  • Bluetooth: 5.2, V5.1, V5.0, V4.2, V4.1, V4.0LE, V3.0, V2.1+EDR
  • Interface: PCIe: WLAN, USB: Bluetooth
  • Chipset: Realtek RTL8852
  • Antenna: 2 x IPEX MHF4 connector, 2T2R
  • Temperature Range: 0°C to +70°C
  • Enhanced wireless security: 64/128-bits WEP, WPA, WPA2, WPA3, 802.1x
  • Support: Linux, Windows 10
  • Certification: CE, FCC, IC, MIC, Australia

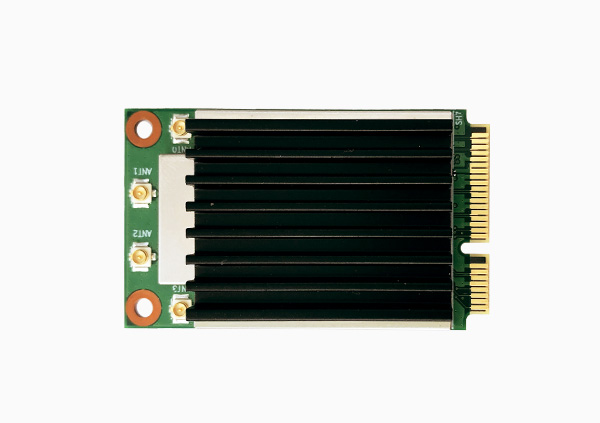

WPEQ-405AX
  • Standard: IEEE 802.11ax/ac/a/n
  • Interface: PCIe
  • Chipset: Qualcomm Atheros QCN9074
  • Antenna: 4 x IPEX MHF1 connector, 4T4R
  • Temperature Range: -20°C to +70°C
  • Enhanced wireless security: 64/128-bits WEP, WPA, WPA2, 802.1x
  • Support: Linux
  • Certification: CE, FCC, IC

Product Highlights

Picture Description Datasheets

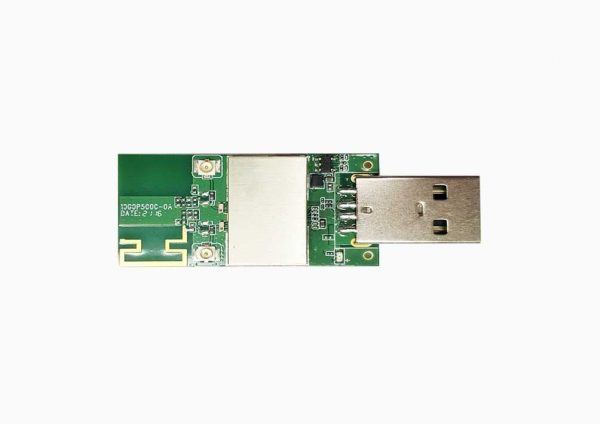

WUBT-239ACN(BT)
  • IEEE 802.11ac/a/b/g/n; Bluetooth
  • USB Interface
  • USB Type A or 4 Pin Wafer
  • RTL8822CU Chipset
  • 2T2R
  • Printed Antenna or U.FL Connector
  • -20°C - +70°C
  • Windows 7/8.1/10 support
  • CE, FCC, IC, TELEC/MIC certification

WNFT-237ACN(BT)
  • IEEE 802.11ac/a/b/g/n, Bluetooth V5.0, V4.2,V4.1 LE, V3.0+HS, V2.1+EDR
  • Realtek RTL8822CE
  • WLAN: PCIe, BT: USB
  • 2T2R MU-MIMO, MHF4 connector
  • Data Rate up to 867 Mbps
  • M.2 2230 form factor
  • 0°C - +70°C
  • Android, Linux and Windows support
  • CE, FCC, IC, MIC, ASNZS certification

WPEQ-261ACNI(BT)
  • IEEE 802.11ac/a/b/g/n
  • Bluetooth V4.2, V4.0 LE, V3.0+HS, V2.1+EDR
  • PCIe, Half Mini Card
  • Qualcomm QCA6174A-5
  • 2 x U.FL, 2T2R
  • up to 867 Mbps
  • -40°C - +85°C
  • Linux 4.9+, Windows 7/8.1/10 support
  • CE, FCC, IC, MIC certification

WNFQ-261ACNI(BT)
  • IEEE 802.11ac/a/b/g/n
  • Bluetooth V4.2, V4.0 LE, V3.0+HS, V2.1+EDR
  • PCIe, M.2 2230
  • Qualcomm QCA6174A-5
  • 2 x IPEX MHF4, 2T2R
  • up to 867 Mbps
  • -40°C - +85°C
  • Linux 4.9+, Windows 7/8.1/10 support
  • CE, FCC, IC, MIC certification

WUBQ-159ACN(BT)
  • IEEE 802.11ac/a/b/g/n; Bluetooth
  • USB Interface
  • QCA9377-7 Chipset
  • 1T1R
  • Printed Antenna or U.FL Connector
  • up to 433 Mbps
  • -20°C - +70°C
  • Windows 7/8.1/10 support
  • CE, FCC certification

WPEQ-160ACN
  • IEEE 802.11ac/a/b/g/n
  • PCIe, Mini Card
  • USB Interface
  • QCA9377-7 Chipset
  • 1T2R, 2 U.FL Connectors
  • up to 433 Mbps
  • -20°C - +70°C
  • Windows 7/8.1/10 support
  • CE, FCC certification (in progress)

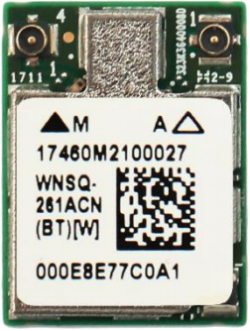

WNSQ-261ACN(BT)
  • IEEE 802.11ac/a/b/g/n, Bluetooth
  • M.2, LGA Type 1216
  • QCA6174A-5 Chipset
  • 2T2R, 2 IPEX Connectors
  • up to 867 Mbps
  • -10°C - +70°C
  • Windows 7/8.1/10 support
  • CE, FCC certification

WPEQ-261ACN(BT)
  • IEEE 802.11ac/a/b/g/n, Bluetooth
  • Half Mini PCIe
  • QCA6174A-5 Chipset
  • 2T2R, 2 IPEX Connectors
  • up to 867 Mbps
  • -10°C - +70°C
  • Windows 7/8.1/10 support
  • CE, FCC certification

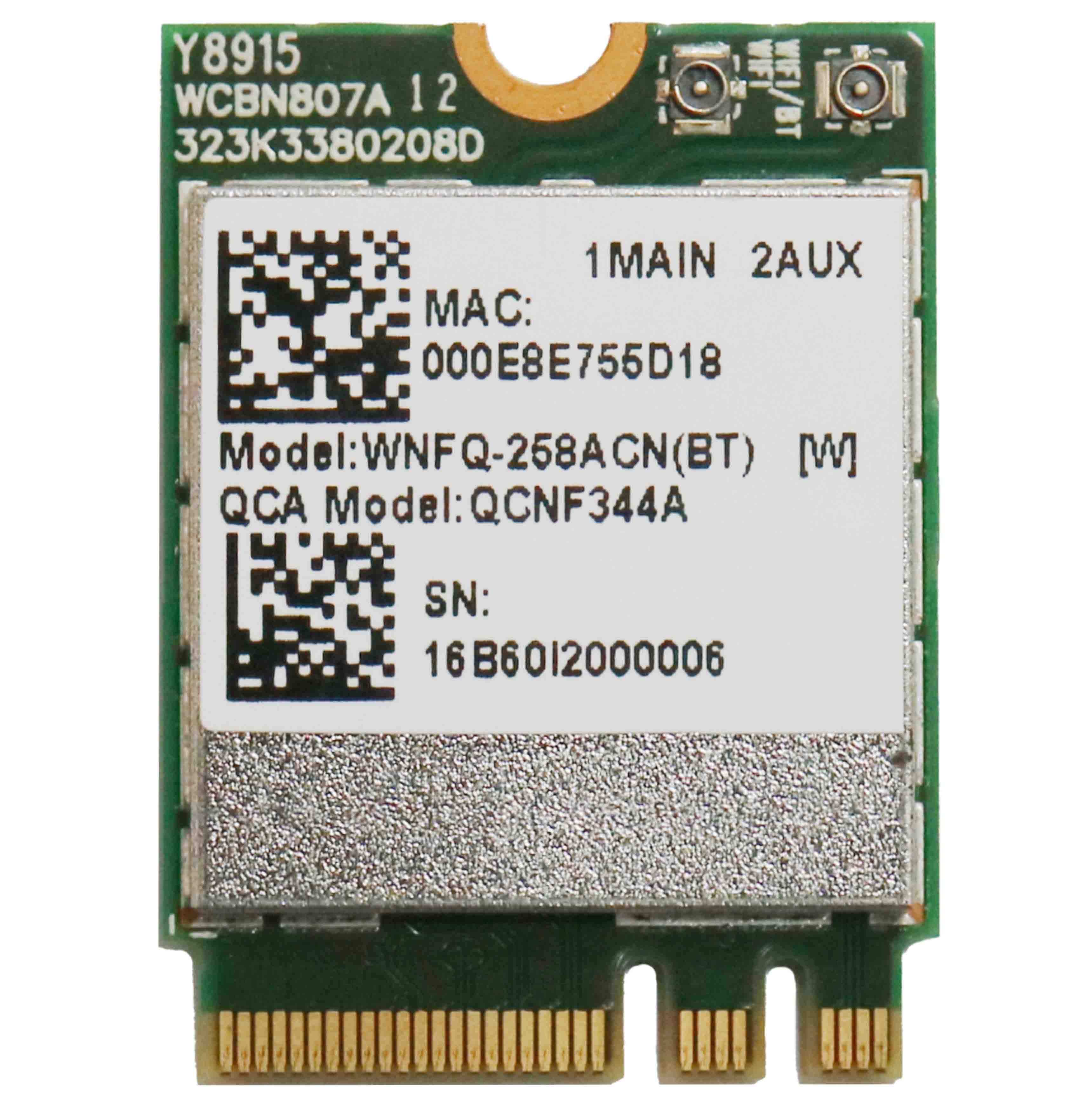

WNFQ-258ACN(BT)
  • IEEE 802.11ac/a/b/g/n + Bluetooth V4.1,V4.0 LE, V3.0+HS, V2.1+EDR
  • 2230 M.2 formfactor
  • PCIe: WiFi, USB: Bluetooth
  • QCA6174A-5 Chipset
  • 2 x IPEX MHF4, 2T2R
  • MU-MIMO support
  • Windows support
  • CE, FCC certification

WNFT-234ACN(BT)
  • IEEE 802.11ac/a/b/g/n + Bluetooth V4.2, V4.1, V3.0+HS, V2.1+EDR
  • Realtek RTL8822BE
  • WLAN: PCIe, BT: USB
  • 2T2R, MHF4 connector
  • M.2 2230 form factor
  • 0°C - +70°C
  • Android, Linux and Windows support
  • CE, FCC certificationin progress

Product Ranges (MEV-Offline)


PCIe modules
USB modules
AP boards

Applications

Healthcare

SparkLAN Wi-Fi Module, Ideal for Healthcare Integration
  • Medical device networking helps to do more with less
  • It reduces overall costs, improves patient monitoring, and even allows remote real-time monitoring
  • Patients’ daily life will be improved drastically
  • SparkLAN is striving to provide modules with quality and stable Wi-Fi connection to ensure your customers’ (the patients) have secure telehealth and telecare services anywhere anytime


Automotive

SparkLAN Wi-Fi Module, Ideal for M2M Automotive Applications
  • The evolving wireless M2M industry has helped to enable cost-effectivity and reliability and SparkLAN’s wireless modules play a very important role in M2M technology
  • Additionally, SparkLAN provides technical support and certifications during M2M manufacturers’ development process from early design stage all the way through testing stage


LPWAN / LoRaWAN

LPWAN / LORAWAN / Wireless Communication Network for IoT (Internet of Things) Applications
  • Key applications of LoRaWAN
    • Smart Lighting
    • Smart Parking
    • Waste Management
    • Elderly people assistance
    • Healthcare Application
    • Medical wearables
    • Facility Management
    • Factories and Industrial Applications
    • etc.
