NEVO+600 (M / S)

• 600 Watts in 3” x 5” x 1.61”
• User and field configurable
• Wide output voltage adjust range
• Remote current / voltage programming
• Efficiency up to 89%
• Intelligent fan control
• Parallel and series connection of modules
• Accurate current sharing
• Up to 8 isolated outputs
• Standard 5V 200mA bias supply (1A option)
• Low noise option
• UL60601 3rd Edition approved
• 3 year warranty

VCCM600 (M / S)

• World’s first conduction cooled modular configurable power supply
• 600 Watts conduction cooled rating
• 750 Watts peak rating (5 seconds)
• 500 Watts convection rating
• Standby power ? 1Watts (In primary inhibit mode)
• Efficiency up to 92%
• Unique module design (100% SMT)
• Up to 4 isolated outputs at 150 Watts per channel
• Wide output adjust range
• Voltage and current dynamically controllable
• 5V/1A bias supply
• Approval to EN60601-1-2 Edition 3
• Programmable start-up state (laser applications)
• 5 year warranty

NEVO+1200 (M / S)

• Up to 1200 Watts of output power
• 6” x 6” x 1.61” footprint
• Efficiency up to 89%
• Primary side remote on/off function
• Standby power ? 3 Watts
• UL60601 3rd Edition approved
• Industry leading power density (21W/in³)
• Lightest modular design – only 1.2kg – 1000Watts/kg
• Parallel and series connection of modules
• Remote current / voltage programming
• Accurate current sharing
• 2 x 5V 1A bias supply
• Field configurable
• RoHS compliant
• Low noise fan option
• 3 year warranty

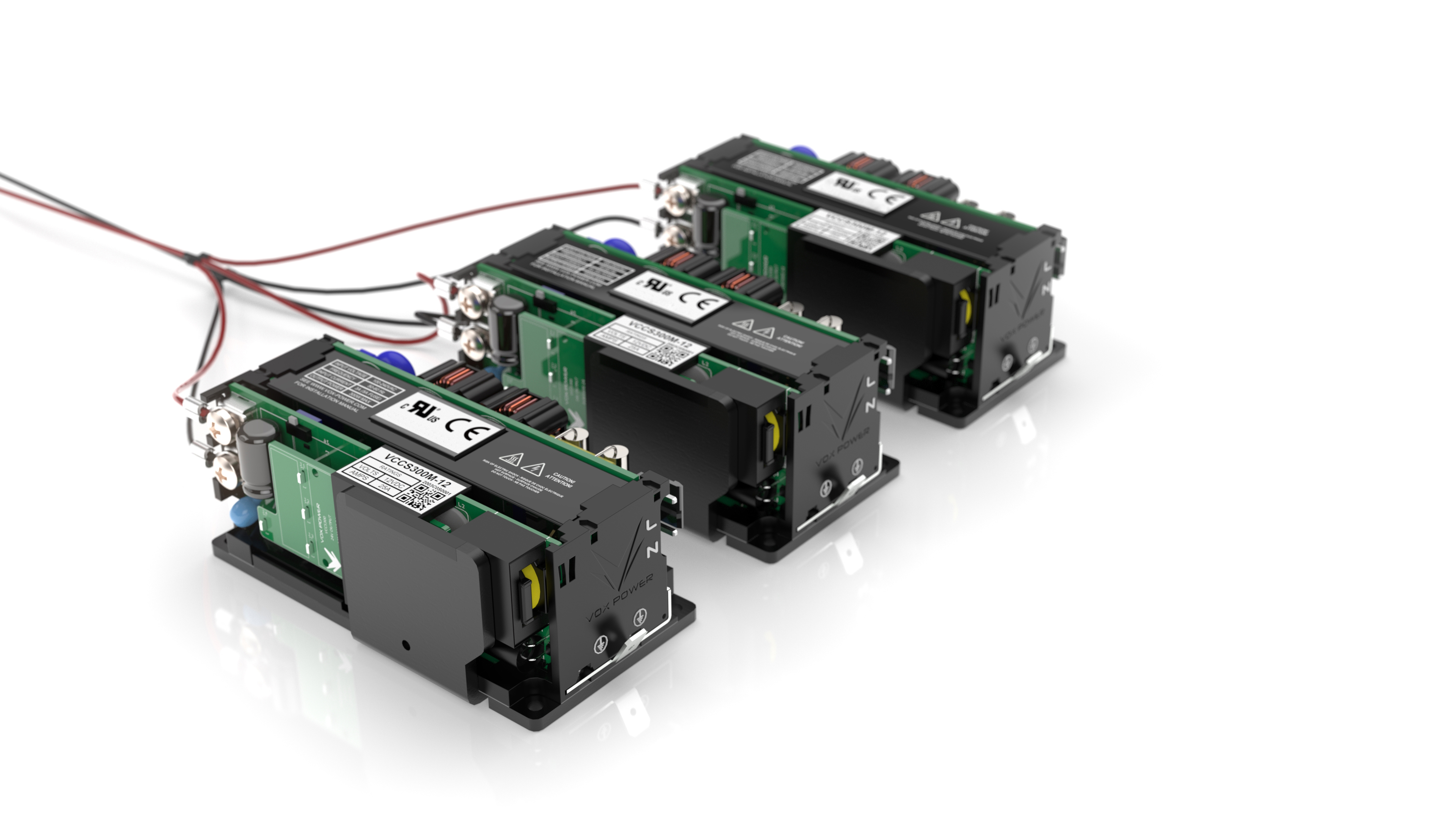

VCCS300 (M / S)

• 300 Watts output (Vin >120VRMS)
• 2” x 4” x 1.61” package
• Convection/Conduction/Forced-Air rated
• High efficiency – up to 95%
• Scalable power architecture
• High reliability
• Class I or II installations
• Operating Altitude up to 5000m
• Low Leakage and Touch Current
• Parallel units with droop current sharing
• BF Rated output
• MIL-STD 810G, MIL-STD 461F and MIL-STD 704F
• SEMI F47
• 5 year warranty
• Approved to latest standards:
• IEC/UL60601-1 3rd Edition
• IEC/UL60601-1-2 4th Edition (EMC)
