IGBTs

Products Picture Description Features/Benefits Applications Links
WG50N65DHW
  • High speed IGBT with anti-parallel diode in TO247 package
  • Very low saturation voltage, soft and fast anti-parallel diode
  • Halogen Free package and Pb-free lead finish, RoHS compliant
  • Low thermal resistance
  • Qualified according to JEDEC, Meets UL94V0 Flammability requirement
  • Positive Vcesat temperature coeficient
  • Trench gate filed stop technology

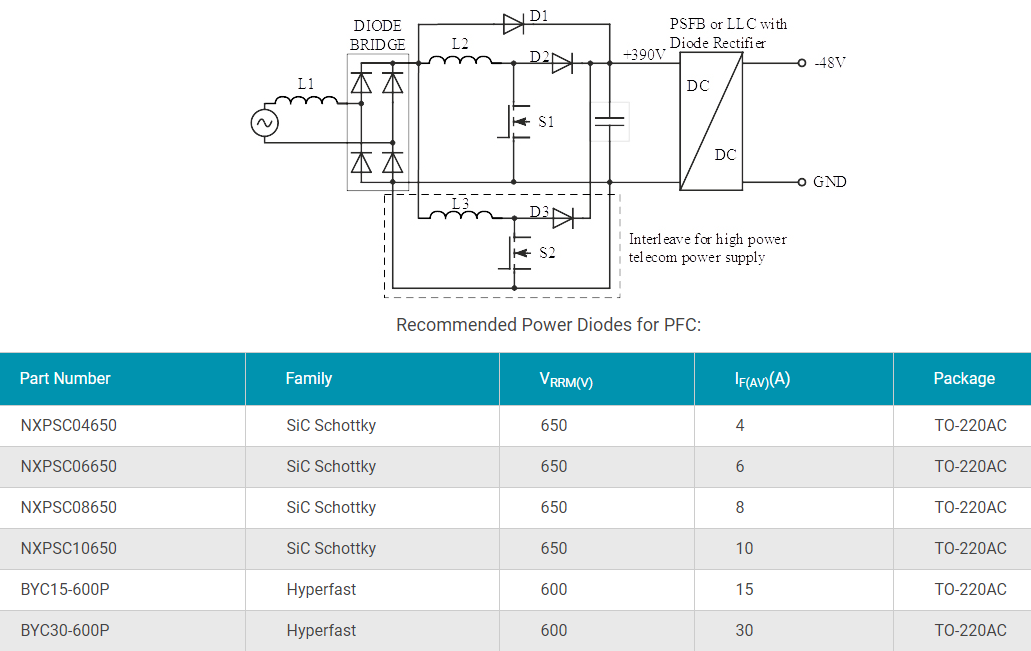

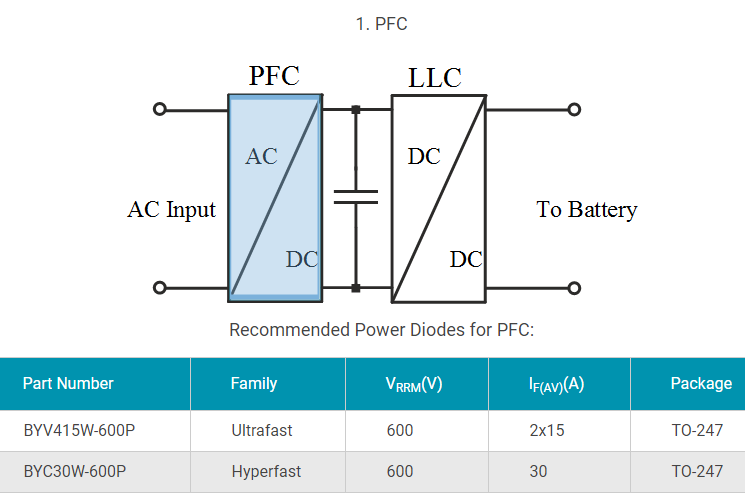

  • Power Factor correction
  • Welding Converter
  • Solar inverter
  • Industry inverter
  • UPS
Datasheets


IGBT Intro
WG40N65DFW
  • 40A 650V Trench Fieldstop IGBT with anti-parallel diode in TO247 pacakge
  • The WeEn WG40N65DFW uses advanced fieldstop technology. This device is ideal for Moto control and PFC
  • Advanced Trench Fieldstop technology
  • Very soft, fast recovery anti-parallel diode
  • High speed switching
  • EMI Improved Design
  • Moto control
  • PFC
  • ndustrial Inverter
Picture Features / Benefits / Applications Parameters Cross Reference Datasheets

WDMF75M16


Three Phase Rectifier Bridge

  • Three phase rectifiers
  • Heat transfer through aluminum oxide DBC, ceramic isolated metal baseplate
  • High voltage capability 1600V
  • High inrush current capability
  • Planar process for reliability
  • High operating temperature capability Tjmax = 150°C
  • Three phase rectification for power supplies
  • Rectification for DC motor field supplies
  • Battery charger rectifiers
  • Input rectification for variable frequency drives
  • 1600V, 75A
  • WMM01 package
  • Low forward voltage drop, maximum 1.6V at 75A/25’C and 1.5V at 75A/150’C
  • High inrush current Ifsm, maximum 900A@25’C and tp=8.3msec
  • Microsemi: MSDM75
  • WeEn: WDMF75M16

WND45P16D


Standard Power Diode


  • Planar technology
  • Standard Reverse Recovery
  • Low leakage current
  • Low forward voltage drop leads to low conduction losses
  • High voltage capability, 1600V
  • High inrush current capability
  • Maximum junction temperature 150°C
  • Good efficiency in customer application
  • Input rectifier
  • Bypass diode
  • Voltage doubler
  • Diode for mains rectification
  • For single and three phase bridge configurations (picture)
  • Supplies for DC power equipment

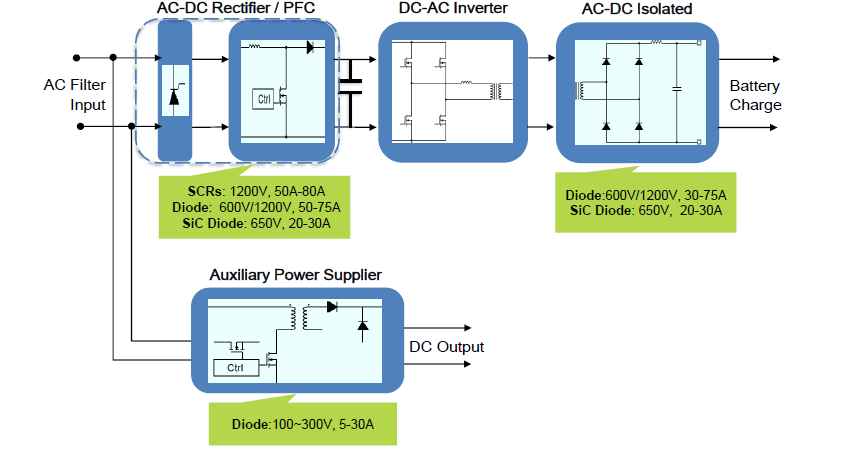

  • On-board and off-board EV battery chargers
  • Renewable energy inverters
  • Input rectifiers for PWM inverter
  • Battery DC power supplies
  • Field supply for DC motor (picture)
  • TO247, 2-pin, through hole package
  • 1600V, 45A, single die
  • Standard reverse recovery, not intended for fast switching applications, not for PFC
  • Low forward voltage drop, typically 1.2V@25’C
  • High inrush current Ifsm, maximum 523A @25’C and tp=8.3msec
  • Vishay: VS-45EPS16LHM3
  • IXYS: DSI45-16A
  • WeEn: WND45P16D

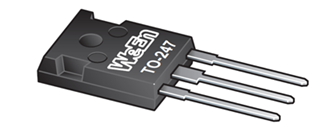

TYN50W-1600T


Silicon Controlled Rectifier

  • High junction operating temperature Tj(max)=150°C
  • Very high current surge capability
  • Planar passivated for voltage ruggedness and reliability
  • High thermal cycling performance
  • High voltage capability, 1600V
  • Low forward voltage drop
  • Enables the control of peak current at power supply switch-on, limits the use of passive components
  • Line rectifying 50/60 Hz
  • Soft start AC motor control
  • DC motor control
  • Power converter
  • AC power control
  • Lighting and temperature control
  • Uninterruptible Power Supply (UPS)

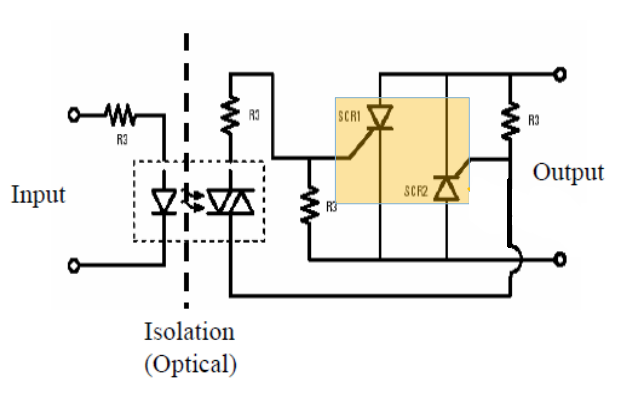

  • Solid State Relay (SSR)
  • Traction battery charging
  • Off-Board EV charger
  • TO-247, 3-pin, through hole package
  • 1600V, 50A maximum average current
  • Gate current Igt = 80mA
  • Low forward voltage drop VT = 1.3V max
  • Very high current surge Itsm = 715A @ 8.3ms and 650A @ 10ms
  • Vishay: VS-40TPS16LHM3
  • IXYS: CS60-16io1 (60A)
  • IXYS: CMA50E1600HB
  • WeEn: TYN50W-1600T

TYN80W-1600T


Silicon Controlled Rectifier

  • High junction operating temperature Tj(max)=150°C
  • Very high current surge capability
  • Planar passivated for voltage ruggedness and reliability
  • High thermal cycling performance
  • High voltage capability, 1600V
  • Low forward voltage drop
  • Enables the control of peak current at power supply switch-on, limits the use of passive components
  • Line rectifying 50/60 Hz
  • Soft start AC motor control
  • DC motor control
  • Power converter
  • AC power control
  • Lighting and temperature control
  • Uninterruptible Power Supply (UPS)
  • Solid State Relay (SSR)
  • Traction battery charging
  • Off-Board EV charger
  • TO-247, 3-pin, through hole package
  • 1600V, 80A maximum average current
  • Gate current Igt = 80mA
  • Low forward voltage drop VT = 1.47V max
  • Very high current surge Itsm = 930A @ 8.3ms and 850A @ 10ms
  • Vishay: 70TPS16 (70A)
  • IXYS: CS60-16io1 (60A)
  • IXYS: CMA80E1600HB
  • WeEn: TYN80W-1600T

Products

Diodes

Power Diodes (Hyperfast Recovery)

Type number Package version Package name number of diodes IF(AV)[max] IO(AV)[max] Tj[max] VRRM[max] IFSM[max]@ 50Hz VF[typ]@ Tj 150 °C @ IF trr[typ] @ VR= 400 V, Tj=25° C Datasheet
BYC10-600 SOD59 TO-220AC 1 10 150 600 1.4 10 19
BYC10-600CT SOT78 TO-220AB 2 10 150 600 1.4 5 19
BYC10-600P SOD59 TO-220AC 1 10 175 600 1.3 10 19
BYC100W-1200P TO247A-2L TO247-2L 1 100 175 1200 2.2 100 115
BYC10B-600 SOT404 D2PAK 1 10 150 600 1.4 10 19
BYC10D-600 SOD59 TO-220AC 1 10 150 600 1.4 10 18
BYC10DX-600 SOD113 TO-220F 1 10 150 600 1.4 10 18
BYC10X-600 SOD113 TO-220F 1 10 150 600 1.4 10 19
BYC10X-600P SOD113A TO-220F 1 10 175 600 1.3 10 19
BYC15-1200P SOD59 TO-220AC 1 15 175 1200 2.0 15 61
BYC15-600 SOD59 TO-220AC 1 15 150 600 1.4 15 19
BYC15-600P SOD59 TO-220AC 1 15 175 600 1.4 15 22
BYC15X-600 SOD113 TO-220F 1 15 150 600 1.4 15 19
BYC15X-600P SOD113A TO-220F 1 15 175 600 1.4 15 22
BYC20-600 SOD59 TO-220AC 1 20 150 600 1.4 20 19
BYC20D-600P SOD59 TO-220AC 1 20 175 600 1.2 20 26
BYC20DX-600P SOD113A TO-220F 1 20 175 600 1.2 20 26
BYC20X-600 SOD113 TO-220F 1 20 150 600 1.4 20 19
BYC20X-600P SOD113 TO-220F 1 20 175 600 1.2 20 25
BYC30-1200P SOD59 TO-220AC 1 30 60 175 1200 70
BYC30-600P SOD59 TO-220AC 1 30 175 600 1.38 30
BYC30B-600P SOT404 TO263(D2PAK) 1 30 175 600 1.38 30
BYC30DW-600P TO247-2L TO247-2L 1 30 175 600 1.5 30 26
BYC30W-1200P SOD142 TO-247 1 30 175 1200 2.1 30 70
BYC30W-600P SOD142 TO-247 1 30 175 600 1.38 30 29
BYC30W-600PT2 TO247-2L TO247-2L 1 30 175 600 1.38 30 26
BYC30WT-600P SOT429 TO-247 1 30 175 600 1.38 30 29
BYC30WT-600PS SOT429 TO-247 1 30 175 600 270 1.38 30
BYC30X-600P SOD113 TO-220F 1 30 175 600 1.38 30 27
BYC40W-1200P TO247A-2L TO247-2L 1 40 80 175 1200 2.2 40 91
BYC5-1200P SOD59 TO-220AC 1 5 175 1200 42
BYC5-600 SOD59 TO-220AC 1 5 150 600 1.4 5 19
BYC5-600P SOD59 TO-220AC 1 5 175 600 1.4 5 13
BYC58X-600 SOD113 TO-220F 1 8 150 600 2 8 12.5
BYC5B-600 SOT404 D2PAK 1 5 150 600 1.4 5 19
BYC5D-500 SOD59 TO-220AC 1 5 150 500 1.15 5 16
BYC5DX-500 SOD113 TO-220F 1 5 150 500 1.15 5 16
BYC5X-600 SOD113 TO-220F 1 5 150 600 1.4 5 19
BYC5X-600P SOD113A TO-220F 1 5 175 600 1.35 5 13
BYC60W-1200P TO247A-2L TO247-2L 1 60 120 175 1200 2.2 60 96
BYC60W-600P SOD142 TO-247 1 60.0 175 600 1.55 60.0 40
BYC75W-1200P TO247A-2L TO247-2L 1 75 150 175 1200 2.2 75 113
BYC75W-600P SOD142 TO-247 1 75 175 600 1.6 75 42
BYC8-1200P SOD59 TO-220AC 1 8 175 1200 2.0 8 46
BYC8-600 SOD59 TO-220AC 1 8 150 600 1.4 8 19
BYC8-600P SOD59 TO-220AC 1 8 175 600 1.4 8 19
BYC8B-600 SOT404 D2PAK 1 8 150 600 1.4 8 19
BYC8B-600P SOT404 D2PAK 1 8 175 600 1.4 8 19
BYC8D-600 SOD59 TO-220AC 1 8 150 600 1.5 8 20
BYC8DX-600 SOD113 TO-220F 1 8 150 600 1.5 8 20
BYC8X-600 SOD113 TO-220F 1 8 150 600 1.4 8 19
BYC8X-600P SOD113 TO-220F 1 8 175 600 1.4 8 19

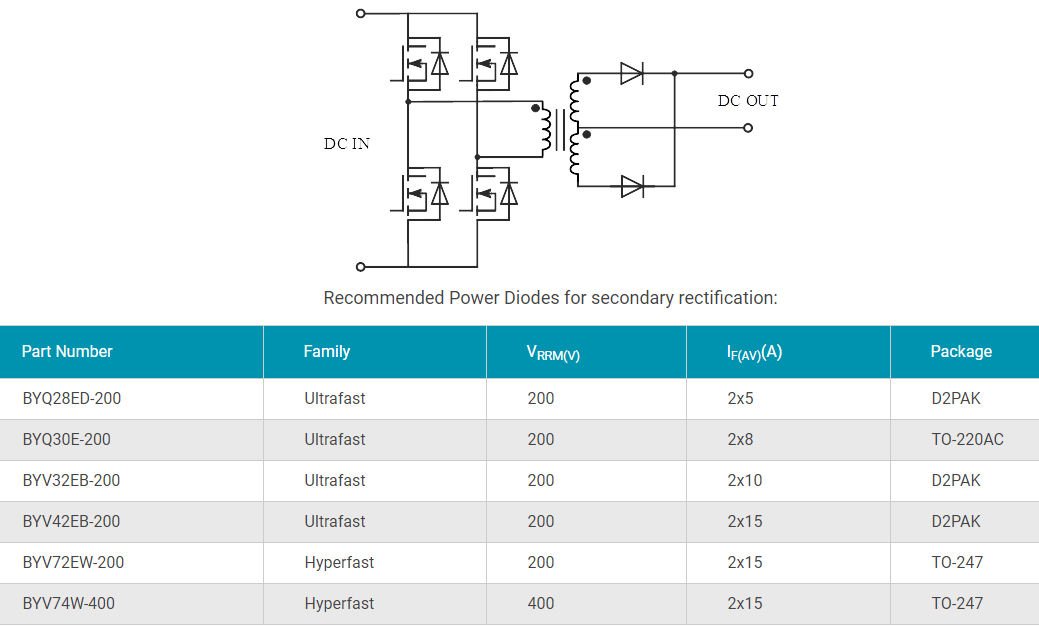

Power Diodes (Ultrafast Recovery)

Type number Package version Package name number of diodes IF(AV)[max] IO(AV)[max] Tj[max] VRRM[max] VF[typ] @ Tj= 150 °C @ IF trr[typ] @ VR= 400 V, Tj= 25 °C trr[typ] @ IF= 1 A, VR= 30 V Datasheet
BYQ28E-200 SOT78 TO-220AB 2 10 150 200 0.8 5 15
BYQ28E-200E SOT78 TO-220AB 2 10 150 200 0.8 5 15
BYQ28ED-200 SOT428 DPAK 2 10 150 200 0.8 5 15
BYQ28ED-200PL SOT428 TO252 2 10 150 200 0.8 5 15
BYQ28X-200 SOT186A TO-220F 2 10 150 200 0.8 5 15
BYQ28X-200E SOT186A TO-220F 2 10 150 200 0.95 5 15
BYQ30E-200 SOT78 TO-220AB 2 16 150 200 0.84 8 20
BYQ42E-200 SOT78 TO-220AB 2 15 30 150 200 0.78 15 18
BYQ72EK-200 SOT1259 TO3P 2 15 30 150 200 0.78 15 18
BYQ72EW-200 SOT429 TO-247 2 15 30 150 200 0.78 15 18
BYR16W-1200 SOD142 TO-247 1 16 150 1200 40; 50
BYR29-600 SOD59 TO-220AC 1 8 150 600 1.07 8 60
BYR29-800 SOD59 TO-220AC 1 8 150 800 1.07 8 60
BYR29X-600 SOD113 TO-220F 1 8 150 600 1.07 8 60
BYR29X-800 SOD113 TO-220F 1 8 150 800 1.07 8 60
BYR29X-800P SOD113 TO-220F 1 8 175 800 1.2 8 40
BYR5D-1200P TO-252 DPAK 1 5 175 1200 1.55 5 50
BYT28-300 SOT78 TO-220AB 2 10 150 300 0.95 5 50
BYT28-500 SOT78 TO-220AB 2 10 150 500 0.95 5 50
BYT28X-500 SOT186A TO-220F 2 10 150 500 5
BYT79-500 SOD59 TO-220AC 1 14 150 500 0.9 15 50
BYT79-600 SOD59 TO-220AC 1 15 150 600 1 15 50
BYT79B-600P SOT404 TO263 1 15 175 600 50
BYT79X-600 SOD113 TO-220F 1 15 150 600 1.01 15 50
BYT79X-600P SOD113 TO-220F 15 175 600 0.96 15 50
BYV10-600P SOD59 TO-220AC 1 175 600 10 20; 35
BYV10ED-600P SOT428 DPAK 1 10 175 600 10 35
BYV10EX-600P SOD113 TO-220F 1 10 175 600 10 35
BYV10X-600P SOD113 TO-220F 1 10 175 600 10 20; 35
BYV25D-600 SOT428 DPAK 1 5 150 600 40
BYV25F-600 SOD59 TO-220AC 1 5 150 600 1.1 5 17.5
BYV25FB-600 SOT404 D2PAK 1 5 150 600 1.1 5 17.5
BYV25FD-600 SOT428 DPAK 1 5 150 600 1.1 5 17.5
BYV25FX-600 SOD113 TO-220F 1 5 150 600 1.1 5 17.5
BYV25G-600 SOT226A I2PAK 1 5 150 600 50
BYV25X-600 SOD113 TO-220F 1 5 150 600 0.97 5 50
BYV29-400 SOD59 TO-220AC 1 9 150 400 0.9 8 50
BYV29-500 SOD59 TO-220AC 1 9 150 500 0.9 8 50
BYV29-600 SOD59 TO-220AC 1 9 150 600 0.97 8 50
BYV29-600P TO-220AB TO-220AB 1 9 175 600 0.9 8 40
BYV29B-500 SOT404 D2PAK 1 9 150 500 0.9 8 50
BYV29B-600 SOT404 D2PAK 1 9 150 600 0.97 8 50
BYV29B-600P SOT404 D2PAK 1 9 175 600 0.9 8 40
BYV29D-600P SOT428 DPAK 1 9 175 600 0.9 8 40
BYV29F-600 SOD59 TO-220AC 1 9 150 600 1.25 8 17.5
BYV29FB-600 SOT404 D2PAK 1 9 150 600 1.25 8 17.5
BYV29FD-600 TO-252 DPAK 1 9 150 600 1.25 8 17.5
BYV29FX-600 SOD113 TO-220F 1 9 150 600 1.25 8 17.5
BYV29G-600 SOT226A I2PAK 1 9 150 600 0.97 8 50
BYV29G-600P I2PAK TO-262 1 9 175 600 0.9 8 40
BYV29X-500 SOD113 TO-220F 1 9 150 500 0.9 8 50
BYV29X-600 SOD113 TO-220F 1 9 150 600 0.97 8 50
BYV29X-600P TO-220F TO-220F 1 9 175 600 0.9 8 40
BYV30-600P TO-220AC SOD59 1 30 175 600 0.98 30 42
BYV30B-600P TO-263 D2PAK 1 30 175 600 0.98 30 42
BYV30JT-600P TO3PF TO3PF 1 30 175 600 0.96 30 37
BYV30W-600P TO-247 SOD142 1 30 175 600 0.98 30 42
BYV30X-600P TO-220F SOD113A 1 30 175 600 0.98 30 42
BYV32E-100 SOT78 TO-220AB 2 20 150 100 0.72 8 20
BYV32E-150 SOT78 TO-220AB 2 20 150 150 0.72 8 20
BYV32E-200 SOT78 TO-220AB 2 20 150 200 0.72 8 20
BYV32E-200P SOT78 TO-220AB 2 10 20 175 200 0.76 8 18
BYV32EB-200 SOT404 D2PAK 2 20 150 200 0.72 8 20
BYV32EB-200P SOT404 TO263 2 20 175 200 0.85 8 18
BYV32EX-300P SOT186A TO-220F 2 10 20 175 300 0.81 10
BYV32G-200 SOT226A I2PAK 2 20 150 200 0.72 8 20
BYV34-400 SOT78 TO-220AB 2 20 150 400 0.87 10 50
BYV34-500 SOT78 TO-220AB 2 20 150 500 0.87 10 50
BYV34-600 SOT78 TO-220AB 2 20 150 600 0.92 10 50
BYV34G-600 SOT226 I2PAK 2 20 150 600 0.92 10 50
BYV34X-600 SOT186A TO-220F 2 20 150 600 0.92 10 50
BYV40E-150 SOT223 SC-73 2 1.5 150 150 0.5 0.5 10
BYV40W-600P TO247-2L TO247-2L 1 40 175 600 0.97 40 52
BYV410-600 SOT78 TO-220AB 2 20 150 600 1.3 10 20
BYV410X-600 SOT186A TO-220F 2 20 150 600 1.3 10 20
BYV410X-600P TO-220F SOT186A 2 10 20 175 600 1.35 10 30
BYV415J-600P TO3PF TO3PF 2 15 30 175 600 1.1 15 38
BYV415K-600P SOT1259 TO3P 2 15 30 175 600 1.1 15 25
BYV415W-600P SOT429 TO-247 2 15 30 175 600 1.1 15 25
BYV42E-150 SOT78 TO-220AB 2 30 150 150 0.78 15 20
BYV42E-200 SOT78 TO-220AB 2 30 150 200 0.78 15 20
BYV42EB-200 SOT404 D2PAK 2 30 150 200 0.78 15 20
BYV42G-200 SOT226A I2PAK 2 30 150 200 0.78 15 20
BYV430J-600P TO3PF TO3PF 2 30 60 175 600 1.25 30
BYV430K-300P SOT1259 TO3P 2 30 60 175 300 0.85 30
BYV430W-300P SOT429 TO-247 2 30 60 175 300 0.85 30
BYV44-500 SOT78 TO-220AB 2 30 150 500 0.95 15 50
BYV5ED-600P TO252N DPAK 1 5 175 600 5 38
BYV60W-600P SOD142 TO-247 1 60 175 600 1.2 60 53
BYV60W-600PS SOD142 TO-247 1 60 175 600 1.2 60 53 53
BYV72EW-200 SOT429 TO-247 2 15 30 150 200 0.78 15 20
BYV74W-400 SOT429 TO-247 2 15 30 150 400 0.95 15 35
BYV79E-200 SOD59 TO-220AC 1 14 150 200 0.83 14 20
BYW29E-100 SOD59 TO-220AC 1 8 150 100 0.8 8 20
BYW29E-150 SOD59 TO-220AC 1 8 150 150 0.8 8 20
BYW29E-200 SOD59 TO-220AC 1 8 150 200 0.8 8 20
BYW29ED-200 SOT428 DPAK 1 8 150 200 0.8 8 20
BYW29EX-200 SOD113 TO-220F 1 8 150 200 0.8 8 20
MUR560 SMC SMC 1 5 175 600 0.9 5 45
MURS360B SMB SMB 1 3 175 600 0.88 3 50

Power Schottky Diodes

Type number Package version Package name number of diodes IF(AV)[max] IO(AV)[max] Tj[max] VRRM[max] IR[max] @ Tj = 25 °C VF[max] @ Tj = 25 °C Datasheet
WNS20S100CX SOT186A TO-220F 2 10 20 150 100 50 0.95
WNS20H100C TO-220E TO-220E 2 10 20 150 100 50 0.75
WNS20S100C TO-220E TO-220E 2 10 20 150 100 50 0.95
WNS30H100C TO-220E TO-200E 2 15 30 150 100 50 0.63
WNS40100C TO-220E TO-220E 2 20 40 150 100 50 0.63
WNS40H100C TO-220E TO-220E 2 20 40 150 100 50 0.59
WNS40H100CG TO-262E TO-262 2 20 40 150 100 50 0.59
WNS20H100CB TO-263E TO-263E 2 10 20 150 100 50 0.75
WNS20S100CB TO-263E TO-263E 2 10 20 150 100 50 0.95
WNS30H100CB TO-263E TO-263E 2 15 30 150 100 50 0.63
WNS40H100CB TO-263E TO-263E 2 20 40 150 100 50 0.59

Silicon Carbide Diodes

Type number Package version Package name IF(AV)[max] Tj[max] VRRM[max] Qr[typ] VF[typ] @ Tj = 25 °C @ IF Datasheet
NXPSC16650B TO263N D2PAK 16 175 650 26 1.5 16
NXPSC12650B TO263N D2PAK 12 175 650 18 1.5 12
NXPSC10650B TO263N D2PAK 10 175 650 15 1.5 10
NXPSC08650B TO263N D2PAK 8 175 650 13 1.5 8
NXPSC06650B TO263N D2PAK 6 175 650 10 1.5 6
NXPSC04650B TO263N D2PAK 4 175 650 7 1.5 4
NXPSC10650D TO252NS DPAK 10 175 650 15 1.5 10
NXPSC08650D TO252NS DPAK 8 175 650 13 1.5 8
NXPSC06650D TO252NS DPAK 6 175 650 7 1.5 6
NXPSC04650D TO252NS DPAK 4 175 650 7 1.5 4
NXPSC10650X TO220FP-2L TO220FP 10 175 650 15 1.5 10
NXPSC08650X TO220FP-2L TO220FP 8 175 650 13 1.5 8
NXPSC06650X TO220FP-2L TO220FP 6 175 650 10 1.5 6
NXPSC04650X TO220FP-2L TO220FP 4 175 650 7 1.5 4
NXPSC20650W SOT429N TO-247 20 175 650 14 1.5 10
NXPLQSC30650W SOT429N TO-247 30 175 650 15 1.5 15
NXPLQSC20650W SOT429N TO-247 20 175 650 11 1.85 10
NXPSC20650 SOD59A TO-220AC 20 175 650 28 1.5 20
NXPSC16650 SOD59A TO-220AC 16 175 650 1.5
NXPSC12650 SOD59A TO-220AC 175 650 18 1.5
NXPSC10650 SOD59A TO-220AC 10 175 650 15 1.5 10
NXPSC08650 SOD59A TO-220AC 8 175 650 13 1.5 8
NXPSC06650 SOD59A TO-220AC 6 175 650 10 1.5 6
NXPSC04650 SOD59A TO-220AC 4 175 650 7 1.5 4
NXPLQSC10650 SOD59A TO-220AC 10 175 650 12 1.65 10

Standard Power Diodes

Type number Package version Package name number of diodes IF(AV)[max] Tj[max] VRRM[max] IFSM[max] @ 50 HZ VF[typ] @ Tj= 150 °C @ IF Datasheet
WND08P16D TO252N DAPK 1 8 150 1600 150 0.95 8
SK8D TO252N TO252 (DPAK) 1 8 150 800 165 0.84 8
WND60P16W TO247L-2L TO247L-2L 1 60 150 1600 950 0.99 60
WND45P16W TO247L-2L TO247L-2L 1 45 150 1600 475 1.1 45
WND10P08X TO-220F TO-220F 1 10 150 800 180 0.99 10
WND08P16X TO-220F TO-220F 1 8 150 1600 180 0.99 8

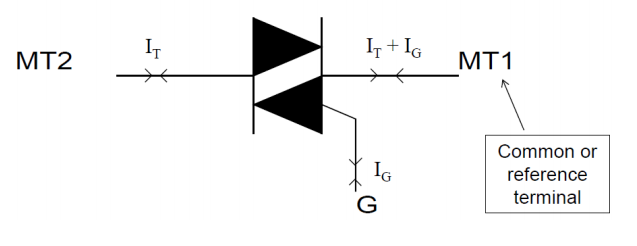

Thyristors

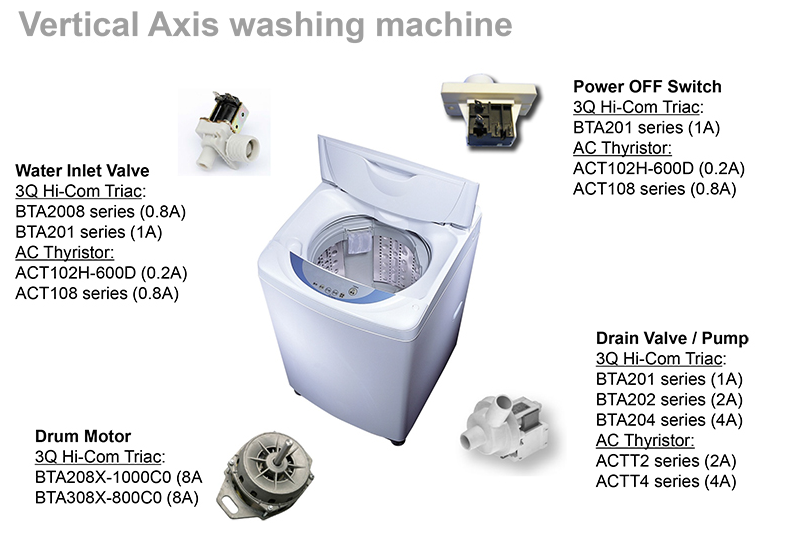

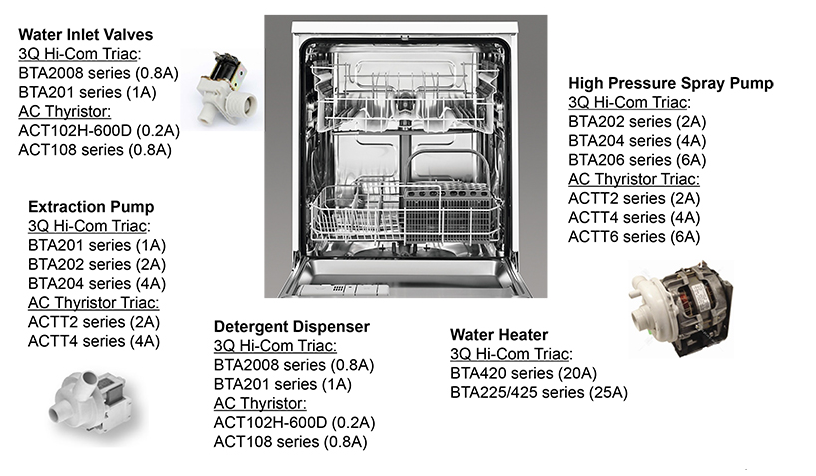

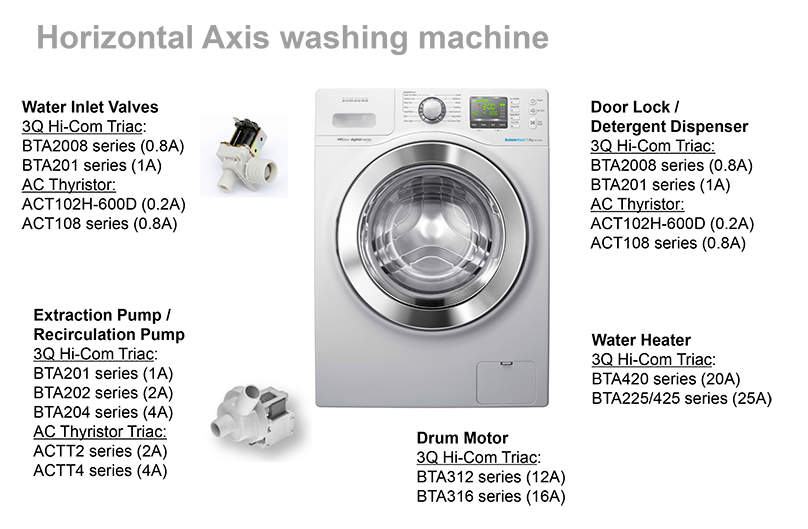

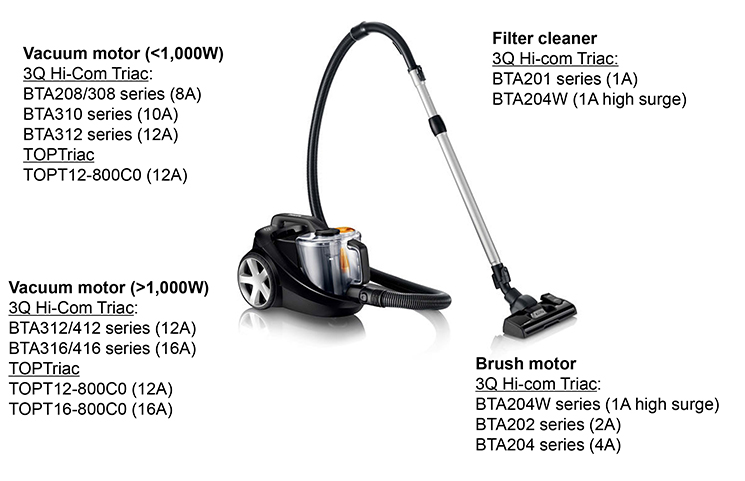

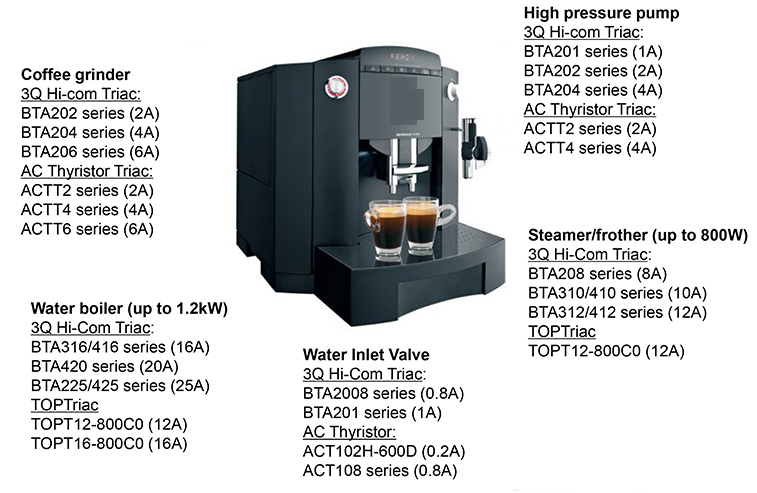

3-Quadrant Triacs (High Commutation)

Type number Package version Package name VDRM[max] IT(RMS)[max] IGT1[max] IGT2[max] IGT3[max] ITSM[max] @ 50 Hz Tj[max] Datasheet
BTA202X-600E SOT186A TO-220F 600 2 10 10 10 14 125
BTA445Z-800BT SOT1292 IITO3P 800 45 50 50 50 495 150
BTA440Z-800BT SOT1292 IITO3P 800 40 50 50 50 440 150
BTA425Y-800CT SOT78D TO-220AB 800 25 35 35 35 250 150
BTA425Y-800BT SOT78D TO-220AB 800 25 50 50 50 250 150
BTA425X-800BT SOT186A TO-220F 800 25 50 50 50 250 150
BTA425X-800B SOT186A TO-220F 800 25 50 50 50 250 125
BTA420Y-800CT SOT78D TO-220AB 800 20 35 35 35 200 150
BTA420Y-800BT SOT78D TO-220AB 800 20 50 50 50 200 150
BTA420X-800CT SOT186A TO-220F 800 20 35 35 35 200 150
BTA420X-800BT SOT186A TO-220F 800 20 50 50 50 200 150
BTA420-800CT SOT78 TO-220AB 800 20 35 35 35 200 150
BTA420-800BT SOT78 TO-220AB 800 20 50 50 50 200 150
BTA416Y-800C SOT78D TO-220AB 800 16 35 35 35 160 150
BTA416Y-800B SOT78D TO-220AB 800 16 50 50 50 160 150
BTA416Y-600C SOT78D TO-220AB 600 16 35 35 35 160 150
BTA416Y-600B SOT78D TO-220AB 600 16 50 50 50 160 150
BTA412Y-800ET SOT78D TO-220AB 800 12 10 10 10 140 150
BTA412Y-800C SOT78D TO-220AB 800 12 35 35 35 140 150
BTA412Y-800B SOT78D TO-220AB 800 12 50 50 50 140 150
BTA412Y-600ET SOT78D TO-220AB 600 12 10 10 10 140 150
BTA412Y-600C SOT78D TO-220AB 600 12 35 35 35 140 150
BTA412Y-600B SOT78D TO-220AB 600 12 50 50 50 140 150
BTA410Y-800ET SOT78D TO-220AB 800 10 10 10 10 100 150
BTA410Y-800CT SOT78D TO-220AB 800 10 35 35 35 100 150
BTA410Y-800BT SOT78D TO-220AB 800 10 50 50 50 100 150
BTA410Y-600ET SOT78D TO-220AB 600 10 10 10 10 100 150
BTA410Y-600CT SOT78D TO-220AB 600 10 35 35 35 100 150
BTA410Y-600BT SOT78D TO-220AB 600 10 50 50 50 100 150
BTA410X-800ET SOT186A TO-220F 800 10 10 10 10 100 150
BTA410X-800CT SOT186A TO-220F 800 10 35 35 35 100 150
BTA410X-800BT SOT186A TO-220F 800 10 50 50 50 100 150
BTA410X-600ET SOT186A TO-220F 600 10 10 10 10 100 150
BTA410X-600CT SOT186A TO-220F 600 10 35 35 35 100 150
BTA410X-600BT SOT186A TO-220F 600 10 50 50 50 100 150
BTA410-800ET SOT78 TO-220AB 800 10 10 10 10 100 150
BTA410-800CT SOT78 TO-220AB 800 10 35 35 35 100 150
BTA410-800BT SOT78 TO-220AB 800 10 50 50 50 100 150
BTA410-600ET SOT78 TO-220AB 600 10 10 10 10 100 150
BTA410-600CT SOT78 TO-220AB 600 10 35 35 35 100 150
BTA410-600BT SOT78 TO-220AB 600 10 50 50 50 100 150
BTA408X-1000C0T SOT186A TO-220F 1000 8 35 35 35 100 150
BTA330Y-800CT SOT78D TO-220AB 800 30 35 35 35 270 150
BTA330Y-800BT SOT78D TO-220AB 800 30 50 50 50 270 150
BTA330X-800BT SOT186A TO-220F 800 30 50 50 50 270 150
BTA330-800BT SOT78 TO-220AB 800 30 50 50 50 270 150
BTA316Y-800CT IITO-220E SOT78D 800 16 35 35 35 160 150
BTA316Y-800BT IITO-220E SOT78D 800 16 50 50 50 160 150
BTA316X-800E SOT186A TO-220F 800 16 10 10 10 140 125
BTA316X-800CT SOT186A TO-220F 800 16 35 35 35 140 150
BTA316X-800C SOT186A TO-220F 800 16 35 35 35 140 125
BTA316X-800B0 SOT186A TO-220F 800 16 50 50 50 140 125
BTA316X-800B SOT186A TO-220F 800 16 50 50 50 140 125
BTA316X-600E SOT186A TO-220F 600 16 10 10 10 140 125
BTA316X-600C SOT186A TO-220F 600 16 35 35 35 140 125
BTA316X-600B SOT186A TO-220F 600 16 50 50 50 140 125
BTA316B-800E SOT404 D2PAK 800 16 10 10 10 140 125
BTA316B-800C SOT404 D2PAK 800 16 35 35 35 140 125
BTA316B-800B SOT404 D2PAK 800 16 50 50 50 140 125
BTA316B-600E SOT404 D2PAK 600 16 10 10 10 140 125
BTA316B-600CT SOT404 TO263 600 16 35 35 35 140 150
BTA316B-600C SOT404 D2PAK 600 16 35 35 35 140 125
BTA316B-600BT SOT404 D2PAK 600 16 50 50 50 140 150
BTA316B-600B0 SOT404 D2PAK 600 16 50 50 50 140 125
BTA316B-600B SOT404 D2PAK 600 16 50 50 50 140 125
BTA316-800ET SOT78 TO-220AB 800 16 10 10 10 140 150
BTA316-800E SOT78 TO-220AB 800 16 10 10 10 140 125
BTA316-800CT SOT78 TO-220AB 800 16 35 35 35 140 150
BTA316-800C SOT78 TO-220AB 800 16 35 35 35 140 125
BTA316-800B0 SOT78 TO-220AB 800 16 50 50 50 140 125
BTA316-800B SOT78 TO-220AB 800 16 50 50 50 140 125
BTA316-600ET SOT78 TO-220AB 600 16 10 10 10 140 150
BTA316-600E SOT78 TO-220AB 600 16 10 10 10 140 125
BTA316-600D SOT78 TO-220AB 600 6 5 5 5 140 125
BTA316-600C SOT78 TO-220AB 600 16 35 35 35 140 125
BTA316-600BT SOT78 TO-220AB 600 16 50 50 50 140 150
BTA316-600B0 SOT78 TO-220AB 600 16 50 50 50 140 125
BTA316-600B SOT78 TO-220AB 600 16 50 50 50 140 125
BTA312Y-800C SOT78D TO-220AB 800 12 35 35 35 100 125
BTA312Y-600C SOT78D TO-220AB 600 12 35 35 35 100 125
BTA312X-800E SOT186A TO-220F 800 12 10 10 10 100 125
BTA312X-800CT SOT186A TO-220F 800 12 35 35 35 100 150
BTA312X-800C SOT186A TO-220F 800 12 35 35 35 100 125
BTA312X-800B SOT186A TO-220F 800 12 50 50 50 100 125
BTA312X-600E SOT186A TO-220F 600 12 10 10 10 100 125
BTA312X-600D SOT186A TO-220F 600 12 5 5 5 100 125
BTA312X-600C SOT186A TO-220F 600 12 35 35 35 100 125
BTA312X-600B SOT186A TO-220F 600 12 50 50 50 100 125
BTA312G-600CT SOT226A I2PAK 600 12 35 35 35 100 150
BTA312B-800ET SOT404 D2PAK 800 12 10 10 10 100 150
BTA312B-800E SOT404 D2PAK 800 12 10 10 10 100 125
BTA312B-800C SOT404 D2PAK 800 12 35 35 35 100 125
BTA312B-800B SOT404 D2PAK 800 12 50 50 60 100 125
BTA312B-600E SOT404 D2PAK 600 12 10 10 10 100 125
BTA312B-600D SOT404 D2PAK 600 12 5 5 5 100 125
BTA312B-600CT SOT404 D2PAK 600 12 35 35 35 100 150
BTA312B-600C SOT404 D2PAK 600 12 35 35 35 100 125
BTA312B-600B SOT404 D2PAK 600 12 50 50 50 100 125
BTA312-800ET SOT78 TO-220AB 800 12 10 10 10 100 150
BTA312-800E SOT78 TO-220AB 800 12 10 10 10 100 125
BTA312-800CT SOT78 TO-220AB 800 12 35 35 35 100 150
BTA312-800C SOT78 TO-220AB 800 12 35 35 35 100 125
BTA312-800B SOT78 TO-220AB 800 12 50 50 50 100 125
BTA312-600E SOT78 TO-220AB 600 12 10 10 10 100 125
BTA312-600D SOT78 TO-220AB 600 12 5 5 5 100 125
BTA312-600CT SOT78 TO-220AB 600 12 35 35 35 100 150
BTA312-600C SOT78 TO-220AB 600 12 35 35 35 100 125
BTA312-600B SOT78 TO-220AB 600 12 50 50 50 100 125
BTA310X-800E SOT186A TO-220F 800 10 10 10 10 85; 93 125
BTA310X-800D SOT186A TO-220F 800 10 5 5 5 85 125
BTA310X-800C SOT186A TO-220F 800 10 35 35 35 85 125
BTA310X-600E SOT186A TO-220F 600 10 10 10 10 85 125
BTA310X-600D SOT186A TO-220F 600 10 5 5 5 85 125
BTA310X-600C SOT186A TO-220F 600 10 35 35 35 85 125
BTA310-800E SOT78 TO-220AB 800 10 10 10 10 85 125
BTA310-800D SOT78 TO-220AB 800 10 5 5 5 85 125
BTA310-800C SOT78 TO-220AB 800 10 35 35 35 85 125
BTA310-600E SOT78 TO-220AB 600 10 10 10 10 85 125
BTA310-600D SOT78 TO-220AB 600 10 5 5 5 85 125
BTA310-600C SOT78 TO-220AB 600 10 50 50 50 85 125
BTA308Y-800C0T IITO-220E IITO-220E 800 8 35 35 35 60 150
BTA308X-800F0 SOT186A TO-220F 800 8 20 20 20 60 150
BTA308X-800ET TO-220F SOT186A 800 8 10mA 10mA 10mA 60 150
BTA308X-800C0 SOT186A TO-220F 800 8 35 35 35 60 125
BTA308X-800B0 SOT186A TO-220F 800 8 50 50 50 60 125
BTA308S-800ET TO-252 SOT428 800 8 10mA 10mA 10mA 60 150
BTA308-800ET SOT78 TO220AB 800 8 10mA 10mA 10mA 60 150
BTA225B-800BT SOT404A D2PAK 800 25 50 50 50 190 150
BTA225B-800B SOT404 D2PAK 800 25 50 50 50 190 125
BTA225B-600B SOT404 D2PAK 600 25 50 50 50 190 125
BTA225-800B SOT78 TO-220AB 800 25 50 50 50 190 125
BTA225-600BT SOT78 TO-220AB 600 25 50 50 50 200 150
BTA225-600B SOT78 TO-220AB 600 25 50 50 50 190 125
BTA216X-800B SOT186A TO-220F 800 16 50 50 50 140 125
BTA216X-600F SOT186A TO-220F 600 16 25 25 25 140 125
BTA216X-600E SOT186A TO-220F 600 16 10 10 10 140 125
BTA216X-600D SOT186A TO-220F 600 16 5 5 5 140 125
BTA216X-600B SOT186A TO-220F 600 16 50 50 50 140 125
BTA216B-800B SOT404 D2PAK 800 16 50 50 50 140 125
BTA216B-600F SOT404 D2PAK 600 16 25 25 25 140 125
BTA216B-600E SOT404 D2PAK 600 16 10 10 10 140 125
BTA216B-600D SOT404 D2PAK 600 16 5 5 5 140 125
BTA216B-600B SOT404 D2PAK 600 16 50 50 50 140 125
BTA216-800B SOT78 TO-220AB 800 16 50 50 50 140 125
BTA216-600F SOT78 TO-220AB 600 16 25 25 25 140 125
BTA216-600E SOT78 TO-220AB 600 16 10 10 10 140 125
BTA216-600D SOT78 TO-220AB 600 16 5 5 5 140 125
BTA216-600BT SOT78 TO-220AB 600 16 50 50 50 140 150
BTA216-600B SOT78 TO-220AB 600 16 50 50 50 140 125
BTA212X-800E SOT186A TO-220F 800 12 10 10 10 95 125
BTA212X-800B SOT186A TO-220F 800 12 50 50 50 95 125
BTA212X-600F SOT186A TO-220F 600 12 25 25 25 95 125
BTA212X-600E SOT186A TO-220F 600 12 10 10 10 95 125
BTA212X-600D SOT186A TO-220F 600 12 5 5 5 95 125
BTA212X-600B SOT186A TO-220F 600 12 50 50 50 95 125
BTA212B-800E SOT404 D2PAK 800 12 10 10 10 95 125
BTA212B-800B SOT404 D2PAK 800 12 50 50 50 95 125
BTA212B-600F SOT404 D2PAK 600 12 25 25 25 95 125
BTA212B-600E SOT404 D2PAK 600 12 10 10 10 95 125
BTA212B-600D SOT404 D2PAK 600 12 5 5 5 95 125
BTA212B-600B SOT404 D2PAK 600 12 50 50 50 95 125
BTA212-800B SOT78 TO-220AB 800 12 50 50 50 95 125
BTA212-600F SOT78 TO-220AB 600 12 25 25 25 95 125
BTA212-600E SOT78 TO-220AB 600 12 10 10 10 95 125
BTA212-600D SOT78 TO-220AB 600 12 5 5 5 95 125
BTA212-600B SOT78 TO-220AB 600 12 50 50 50 95 125
BTA208X-800F SOT186A TO-220F 800 8 25 25 25 65 125
BTA208X-800E SOT186A TO-220F 800 8 10 10 10 65 125
BTA208X-800B SOT186A TO-220F 800 8 50 50 50 65 125
BTA208X-600F SOT186A TO-220F 600 8 25 25 25 65 125
TA208X-600E SOT186A TO-220F 600 8 10 10 10 65 125
BTA208X-600D SOT186A TO-220F 600 8 5 5 5 65 125
BTA208X-600B SOT186A TO-220F 600 8 50 50 50 65 125
BTA208X-1000C0 SOT186A TO-220F 1000 8 35 35 35 65 125
BTA208X-1000C SOT186A TO-220F 1000 8 35 35 35 65 125
BTA208X-1000B SOT186A TO-220F 1000 8 50 50 50 65 125
BTA208S-800F SOT428 DPAK 800 8 25 25 25 65 125
BTA208S-800E SOT428 DPAK 800 8 10 10 10 65 125
BTA208S-800B SOT428 DPAK 800 8 50 50 50 65 125
BTA208S-600F SOT428 DPAK 600 8 25 25 25 65 125
BTA208S-600E SOT428 DPAK 600 8 10 10 10 65 125
BTA208S-600D SOT428 DPAK 600 8 5 5 5 65 125
BTA208S-600B SOT428 DPAK 600 8 50 50 50 65 125
BTA208B-1000C SOT404 D2PAK 1000 8 35 35 35 65 125
BTA208-800F SOT78 TO-220AB 800 8 25 25 25 65 125
BTA208-800E SOT78 TO-220AB 800 8 10 10 10 65 125
BTA208-800B SOT78 TO-220AB 800 8 50 50 50 65 125
BTA208-600F SOT78 TO-220AB 600 8 25 25 25 65 125
BTA208-600E SOT78 TO-220AB 600 8 10 10 10 65 125
BTA208-600D SOT78 TO-220AB 600 8 5 5 5 65 125
BTA208-600B SOT78 TO-220AB 600 8 50 50 50 65 125
BTA206X-800ET SOT186A TO-220F 800 6 10 10 10 60 150
BTA206X-800CT SOT186A TO-220F 800 6 35 35 35 60 150
BTA206-800ET SOT78 TO-220AB 800 6 10 10 10 60 150
BTA206-800CT SOT78 TO-220AB 800 6 35 35 35 60 150
BTA204X-800E SOT186A TO-220F 800 4 10 10 10 25 125
BTA204X-800C SOT186A TO-220F 800 4 35 35 35 25 125
BTA204X-600F SOT186A TO-220F 600 4 25 25 25 25 125
BTA204X-600E SOT186A TO-220F 600 4 10 10 10 25 125
BTA204X-600D SOT186A TO-220F 600 4 5 5 5 25 125
BTA204X-600C SOT186A TO-220F 600 4 35 35 35 25 125
BTA204X-600B SOT186A TO-220F 600 4 50 50 50 25 125
BTA204X-1000C SOT186A TO-220F 1000 4 35 35 35 25 125
BTA204W-800E SOT223 SC-73 800 1 10 10 10 10 125
BTA204W-800C SOT223 SC-73 800 1 35 35 35 10 125
BTA204W-600F SOT223 SC-73 600 1 25 25 25 10 125
BTA204W-600E SOT223 SC-73 600 1 10 10 10 10 125
BTA204W-600D SOT223 SC-73 600 1 5 5 5 10 125
BTA204W-600C SOT223 SC-73 600 1 35 35 35 10 125
BTA204W-600B SOT223 SC-73 600 1 50 50 50 10 125
BTA204S-800E SOT428 DPAK 800 4 10 10 10 25 125
BTA204S-800C SOT428 DPAK 800 4 35 35 35 25 125
BTA204S-800B SOT428 DPAK 800 4 50 50 50 25 125
BTA204S-600F SOT428 DPAK 600 4 25 25 25 25 125
BTA204S-600E SOT428 DPAK 600 4 10 10 10 25 125
BTA204S-600D SOT428 DPAK 600 4 5 5 5 25 125
BTA204S-600C SOT428 DPAK 600 4 35 35 35 25 125
BTA204S-600B SOT428 DPAK 600 4 50 50 50 25 125
BTA204S-1000C SOT428 DPAK 1000 4 35 35 35 25 125
BTA204-800E SOT78 TO-220AB 800 4 10 10 10 25 125
BTA204-800C SOT78 TO-220AB 800 4 35 35 35 25 125
BTA204-800B SOT78 TO-220AB 800 4 50 50 50 25 125
BTA204-600F SOT78 TO-220AB 600 4 25 25 25 25 125
BTA204-600E SOT78 TO-220AB 600 4 10 10 10 25 125
BTA204-600D SOT78 TO-220AB 600 4 5 5 5 25 125
BTA204-600C SOT78 TO-220AB 600 4 35 35 35 25 125
BTA204-600B SOT78 TO-220AB 600 4 50 50 50 25 125
BTA203-800CT SOT54 TO-92 800 3 30 30 30 27 150
BTA202X-800E SOT186A TO-220F 800 2 10 10 10 14 125
BTA202X-800D SOT186A TO-220F 800 2 5 5 5 14 125
BTA202X-600D SOT186A TO-220F 600 2 5 5 5 14 125
BTA201W-800E SOT223 SC-73 800 1 10 10 10 12.5 125
BTA201W-600E SOT223 SC-73 600 1 10 10 10 12.5 125
BTA201-800ER SOT54 TO-92 800 1 10 10 10 12.5 125
BTA201-800E/L01 SOT54 TO-92 800 1 10 10 10 12.5 125
BTA201-800E SOT54 TO-92 800 1 10 10 10 12.5 125
BTA201-800B SOT54 TO-92 800 1 50 50 50 12.5 125
BTA201-600E SOT54 TO-92 600 1 10 10 10 12.5 125
BTA201-600B SOT54 TO-92 600 1 50 50 50 12.5 125
BTA2008W-800D SOT223 SC-73 800 0.8 5 5 5 9 125
BTA2008W-600D SOT223 SC-73 600 0.8 5 5 5 9 125
BTA2008-800E SOT54 TO-92 800 0.8 10 10 10 9 125
BTA2008-800D SOT54 TO-92 800 0.8 5 5 5 9 125
BTA2008-600E SOT54 TO-92 600 0.8 10 10 10 9 125
BTA2008-600D SOT54 TO-92 600 0.8 5 5 5 9 125
BTA2008-1000DN SOT54 TO-92 1000 0.8 5 5 5 9 125
BTA2008-1000D SOT54 TO-92 1000 0.8 5 5 5 9 125

4-Quadrant Triacs

Type number Package version Package name VDRM[max] IT(RMS)[max] IGT1[max] IGT2[max] IGT3[max] IGT4[max] ITSM[max] @ 50 Hz Tj[max] Datasheet
Z0109NN0 SOT223 SC-73 800 1 10 10 10 10 12.5 125
Z0109NN SOT223 SC-73 800 1 10 10 10 10 8 125
Z0109NA0 SOT54 TO-92 800 1 10 10 10 10 12.5 125
Z0109NA SOT54 TO-92 800 1 10 10 10 10 8 125
Z0109MN0 SOT223 SC-73 600 1 10 10 10 10 12.5 125
Z0109MN SOT223 SC-73 600 1 10 10 10 10 8 125
Z0109MA0 SOT54 TO-92 600 1 10 10 10 10 12.5 125
Z0109MA SOT54 TO-92 600 1 10 10 10 10 8 125
Z0107NN0 SOT223 SC-73 800 1 5 5 5 7 12.5 125
Z0107NN SOT223 SC-73 800 1 5 5 5 7 8 125
Z0107NA0 SOT54 TO-92 800 1 5 5 5 7 12.5 125
Z0107NA SOT54 TO-92 800 1 5 5 5 7 8 125
Z0107MN0 SOT223 SC-73 600 1 5 5 5 7 12.5 125
Z0107MN SOT223 SC-73 600 1 5 5 5 7 8 125
Z0107MA0 SOT54 TO-92 600 1 5 5 5 7 12.5 125
Z0107MA SOT54 TO-92 600 1 5 5 5 7 8 125
Z0103NN0 SOT223 SC-73 800 1 3 3 3 5 12.5 125
Z0103NN SOT223 SC-73 800 1 3 3 3 5 8 125
Z0103NA0 SOT54 TO-92 800 1 3 3 3 5 12.5 125
Z0103NA SOT54 TO-92 800 1 3 3 3 5 8 125
Z0103MN0 SOT223 SC-73 600 1 3 3 3 5 12.5 125
Z0103MN SOT223 SC-73 600 1 3 3 3 3 8 125
Z0103MA0 SOT54 TO-92 600 1 3 3 3 5 12.5 125
Z0103MA SOT54 TO-92 600 1 3 3 3 5 8 125
MAC97A8 SOT54 TO-92 600 0.6 5 5 5 7 8 125
MAC97A6 SOT54 TO-92 400 0.6 5 5 5 7 8 125
MAC223A8X SOT186A TO-220F 600 20 50 50 50 75 190 125
MAC223A6 SOT78 TO-220AB 400 25 50 50 50 75 190 125
BTA45-800B SOT1292 IITO3P 800 45 50 50 50 70 450 150
BTA41-800B SOT1292 IITO3P 800 40 50 50 50 70 400 150
BTA41-600B SOT1292 IITO3P 600 40 50 50 50 70 400 150
BTA16-800B SOT78D IITO-220E 800 16 50 50 50 70 160 150
BTA16-600B SOT78D IITO-220E 600 16 50 50 50 70 160 150
BTA140-800 SOT78 TO-220AB 800 25 35 35 35 70 190 125
BTA140-600G0T SOT78 TO-220AB 600 25 50 50 50 100 190 150
BTA140-600G0 SOT78 TO-220AB 600 25 50 50 50 100 190 125
BTA140-600 SOT78 TO-220AB 600 25 35 35 35 70 190 125
BT236X-800G SOT186A TO-220F 800 6 50 50 50 100 65 125
BT236X-800 SOT186A TO-220F 800 6 35 35 35 70 65 125
BT236X-600G SOT186A TO-220F 600 6 50 50 50 100 65 125
BT236X-600F SOT186A TO-220F 600 6 25 25 25 70 65 125
BT236X-600 SOT186A TO-220F 600 6 35 35 35 70 65 125
BT234X-800E SOT186A TO-220F 800 4 10 10 10 25 35 125
BT234X-800D SOT186A TO-220F 800 4 5 5 5 10 35 125
BT234X-600E SOT186A TO-220F 600 4 10 10 10 25 35 125
BT234X-600D SOT186A TO-220F 600 4 5 5 5 10 35 125
BT234-800E SOT78 TO-220AB 800 4 10 10 10 25 35 125
BT234-800D SOT78 TO-220AB 800 4 5 5 5 10 35 125
BT234-600E SOT78 TO-220AB 600 4 10 10 10 25 35 125
BT234-600D SOT78 TO-220AB 600 4 5 5 5 10 35 125
BT139X-800 SOT186A TO-220F 800 16 35 35 35 70 155 125
BT139X-600G SOT186A TO-220F 600 16 50 50 50 100 155 125
BT139X-600F SOT186A TO-220F 600 16 25 25 25 70 155 125
BT139X-600E SOT186A TO-220F 600 16 10 10 10 25 155 125
BT139X-600 SOT186A TO-220F 600 16 35 35 35 70 155 125
BT139B-800G SOT404 D2PAK 800 16 50 50 50 100 155 125
BT139B-800F SOT404 D2PAK 800 16 25 25 25 70 155 125
BT139B-800E SOT404 D2PAK 800 16 10 10 10 25 155 125
BT139B-800 SOT404 D2PAK 800 16 35 35 35 70 155 125
BT139B-600G SOT404 D2PAK 600 16 50 50 50 100 155 125
BT139B-600F SOT404 D2PAK 600 16 25 25 25 70 155 125
BT139B-600E SOT404 D2PAK 600 16 10 10 10 25 155 125
BT139B-600 SOT404 D2PAK 600 16 35 35 35 70 155 125
BT139-800G SOT78 TO-220AB 800 16 50 50 50 100 155 125
BT139-800E SOT78 TO-220AB 800 16 10 10 10 25 155 125
BT139-800 SOT78 TO-220AB 800 16 35 35 35 70 155 125
BT139-600G0T SOT78 TO-220AB 600 16 50 50 50 100 155 150
BT139-600G0 SOT78 TO-220AB 600 16 50 50 50 100 155 125
BT139-600E SOT78 TO-220AB 600 16 10 10 10 25 155 125
BT139-600 SOT78 TO-220AB 600 16 35 35 35 70 155 125
BT138Y-800E SOT78D TO-220AB 800 12 10 10 25 10 95 125
BT138Y-600E SOT78D TO-220AB 600 12 10 10 25 10 95 125
BT138X-800F SOT186A TO-220F 800 12 25 25 25 70 95 125
BT138X-800E SOT186A TO-220F 800 12 10 10 10 25 95 125
BT138X-800 SOT186A TO-220F 800 12 35 35 35 70 95 125
BT138X-600G SOT186A TO-220F 600 12 50 50 50 100 95 125
BT138X-600F SOT186A TO-220F 600 12 25 25 25 70 95 125
BT138X-600E SOT186A TO-220F 600 12 10 10 10 25 95 125
BT138X-600D SOT186A TO-220F 600 12 5 5 5 10 95 125
BT138X-600 SOT186A TO-220F 600 12 35 35 35 70 95 125
BT138B-800E SOT404 D2PAK 800 12 10 10 10 25 95 125
BT138B-600G SOT404 D2PAK 600 12 50 50 50 100 95 125
BT138B-600F SOT404 D2PAK 600 12 25 25 25 70 95 125
BT138B-600E SOT404 D2PAK 600 12 10 10 10 25 95 125
BT138B-600 SOT404 D2PAK 600 12 35 35 35 70 95 125
BT138-800G SOT78 TO-220AB 800 12 50 50 50 100 95 125
BT138-800E SOT78 TO-220AB 800 12 10 10 10 25 95 125
BT138-800 SOT78 TO-220AB 800 12 35 35 35 70 95 125
BT138-600G0T SOT78 TO-220AB 600 12 50 50 50 100 95 150
BT138-600G0 SOT78 TO-220AB 600 12 50 50 50 100 95 125
BT138-600G SOT78 TO-220AB 600 12 50 50 50 100 95 125
BT138-600E SOT78 TO-220AB 600 12 10 10 10 25 95 125
BT138-600D SOT78 TO-220AB 600 12 5 5 5 10 95 125
BT138-600 SOT78 TO-220AB 600 12 35 35 35 70 95 125
BT137X-800E SOT186A TO-220F 800 8 10 10 10 25 65 125
BT137X-800 SOT186A TO-220F 800 8 35 35 35 70 65 125
BT137X-600G SOT186A TO-220F 600 8 50 50 50 100 65 125
BT137X-600F SOT186A TO-220F 600 8 25 25 25 70 65 125
BT137X-600E SOT186A TO-220F 600 8 10 10 10 20 65 125
BT137X-600D SOT186A TO-220F 600 8 5 5 5 10 65 125
BT137X-600 SOT186A TO-220F 600 8 35 35 35 70 65 125
BT137S-800G SOT428 DPAK 800 8 50 50 50 100 65 125
BT137S-800F SOT428 DPAK 800 8 25 25 25 70 65 125
BT137S-800E SOT428 DPAK 800 8 10 10 10 25 65 125
BT137S-600G SOT428 DPAK 600 8 50 50 50 100 65 125
BT137S-600F SOT428 DPAK 600 8 25 25 25 70 65 125
BT137S-600E SOT428 DPAK 600 8 10 10 10 25 65 125
BT137S-600D SOT428 DPAK 600 8 5 5 5 10 65 125
BT137S-600 SOT428 DPAK 600 8 35 35 35 70 65 125
BT137B-800G SOT404 D2PAK 800 8 50 50 50 100 65 125
BT137B-800F SOT404 D2PAK 800 8 25 25 25 70 65 125
BT137B-800 SOT404 D2PAK 800 8 35 35 35 70 65 125
BT137B-600F SOT404 D2PAK 600 8 25 25 25 70 65 125
BT137B-600E SOT404 D2PAK 600 8 10 10 10 25 65 125
BT137-800G0T SOT78 TO-220AB 800 8 50 50 50 100 65 150
BT137-800G0 SOT78 TO-220AB 800 8 50 50 50 100 65 125
BT137-800E SOT78 TO-220AB 800 8 10 10 10 25 65 125
BT137-800 SOT78 TO-220AB 800 8 35 35 35 70 65 125
BT137-600G0T SOT78 TO-220AB 600 8 50 50 50 100 65 150
BT137-600G0 SOT78 TO-220AB 600 8 50 50 50 100 65 125
BT137-600G SOT78 TO-220AB 600 8 50 50 50 100 65 125
BT137-600E SOT78 TO-220AB 600 8 10 10 10 25 65 125
BT137-600D SOT78 TO-220AB 600 8 5 5 5 10 65 125
BT137-600 SOT78 TO-220AB 600 8 35 35 35 70 65 125
BT136X-800E SOT186A TO-220F 800 4 10 10 10 25 25 125
BT136X-800 SOT186A TO-220F 800 4 35 35 35 70 25 125
BT136X-600F SOT186A TO-220F 600 4 25 25 25 70 25 125
BT136X-600E SOT186A TO-220F 600 4 10 10 10 25 25 125
BT136X-600D SOT186A TO-220F 600 4 5 5 5 10 25 125
BT136X-600 SOT186A TO-220F 600 4 35 35 35 70 25 125
BT136S-800F SOT428 DPAK 800 4 25 25 25 70 25 125
BT136S-800E SOT428 DPAK 800 4 10 10 10 25 25 125
BT136S-800 SOT428 DPAK 800 4 35 35 35 70 25 125
BT136S-600F SOT428 DPAK 600 4 25 25 25 70 25 125
BT136S-600E SOT428 DPAK 600 4 10 10 10 25 25 125
BT136S-600D SOT428 DPAK 600 4 5 5 5 10 25 125
BT136S-600 SOT428 DPAK 600 4 35 35 35 70 25 125
BT136B-800E SOT404 D2PAK 800 4 10 10 10 25 25 125
BT136B-600E SOT404 D2PAK 600 4 10 10 10 25 25 125
BT136-800E SOT78 TO-220AB 800 4 10 10 10 25 25 125
BT136-600E SOT78 TO-220AB 600 4 10 10 10 25 25 125
BT136-600D SOT78 TO-220AB 600 4 5 5 5 10 25 125
BT136-600 SOT78 TO-220AB 600 4 35 35 35 70 25 125
BT134W-800 SOT223 SC-73 800 1 35 35 35 70 10 125
BT134W-600E SOT223 SC-73 600 1 10 10 10 25 10 125
BT134W-600D SOT223 SC-73 600 1 5 5 5 10 10 125
BT134W-600 SOT223 SC-73 600 1 35 35 35 70 10 125
BT134-800E SOT82 SIP3 800 4 10 10 10 25 25 125
BT134-800 SOT82 SIP3 800 4 35 35 35 70 25 125
BT134-600G SOT82 SIP3 600 4 50 50 50 100 25 125
BT134-600E SOT82 SIP3 600 4 10 10 10 25 25 125
BT134-600D SOT82 SIP3 600 4 5 5 5 10 25 125
BT134-600 SOT82 SIP3 600 4 35 35 35 70 25 125
BT132-600D SOT54 TO-92 600 1 5 5 5 10 16 125
BT131W-600 SOT223 SC-73 600 1 3 3 3 7 12.5 125
BT131-800E SOT54 TO-92 800 1 10 10 10 10 12.5 125
BT131-800D SOT54 TO-92 800 1 5 5 5 7 12.5 125
BT131-800 SOT54 TO-92 800 1 3 3 3 7 12.5 125
BT131-600E SOT54 TO-92 600 1 10 10 10 10 12.5 125
BT131-600D SOT54 TO-92 600 1 5 5 5 7 12.5 125
BT131-600 SOT54 TO-92 600 1 3 3 3 7 12.5 125
BT1308W-600D SOT223 SC-73 600 0.8 5 5 5 7 9 125
BT1308W-400D SOT223 SC-73 400 0.8 5 5 5 7 9 125

AC Thyristor Triacs

Type number Package version Package name VDRM[max] IT(RMS)[max] IGT[max] ITSM[max] @ 50 Hz Tj[max] Datasheet
ACTT6X-800E SOT186A TO-220F 800 6 10 51 125
ACTT8X-800CTN SOT186A TO-220F 800 8 35 80 150
ACTT8X-800C0T SOT186A TO-220F 800 8 30 80 150
ACTT8X-800C0 SOT186A TO-220F 800 8 30 80 125
ACTT8B-800CTN SOT404A D2PAK 800 8 35 80 150
ACTT8B-800C0T SOT404 D2PAK 800 8 30 80 150
ACTT8B-800C0 SOT404 D2PAK 800 8 30 80 125
ACTT8-800CTN SOT78 TO-220AB 800 8 35 80 150
ACTT8-800C0T SOT78 TO-220AB 800 8 30 80 150
ACTT8-800C0 SOT78 TO-220AB 800 8 30 80 125
ACTT6X-800CN SOT186A TO-220F 800 6 35 60 125
ACTT6G-800E SOT226A I2PAK 800 6 10 51 125
ACTT6B-800E SOT404 D2PAK 800 6 10 51 125
ACTT6B-800CN SOT404 D2PAK 800 6 35 60 125
ACTT6-800E SOT78 TO-220AB 800 6 10 51 125
ACTT6-800CN SOT78 TO-220AB 800 6 35 60 125
ACTT4X-800E SOT186A TO-220F 800 4 10 35 125
ACTT4X-800C SOT186A TO-220F 800 4 35 35 125
ACTT4S-800E SOT428 DPAK 800 4 10 35 125
ACTT4S-800C SOT428 DPAK 800 4 35 35 125
ACTT2X-800ETN SOT186A SOT186A (TO-220F) 800 2 10mA 18 150
ACTT2X-800E SOT186A TO-220F 800 2 10 14 125
ACTT2W-800ETN SOT223 SOT223 800 2 10mA 18 150
ACTT2S-800ETN SOT428 TO-252 800 2 10 18 150
ACTT2S-800E SOT428 DPAK 800 2 10 14 125
ACTT16X-800CTN SOT186A TO-220F 800 16 35 140 150
ACTT16B-800CTN SOT404A D2PAK 800 16 35 140 150
ACTT16-800CTN SOT78 TO-220AB 800 16 35 140 150
ACTT12X-800CTN SOT186A TO-220F 800 12 35 120 150
ACTT12X-800CT SOT186A TO-220F 800 12 35 120 150
ACTT12X-800C SOT186A TO-220F 800 12 35 120 125
ACTT12B-800CTN SOT404A D2PAK 800 12 35 120 150
ACTT12B-800CT SOT404 D2PAK 800 12 35 120 150
ACTT12B-800C SOT404 D2PAK 800 12 35 120 125
ACTT12-800CTN SOT78 TO-220AB 800 12 35 120 150
ACTT12-800CT SOT78 TO-220AB 800 12 35 120 150
ACTT12-800C SOT78 TO-220AB 800 12 35 120 125
ACTT10X-800CTN SOT186A TO-220F 800 10 35 90 150
ACTT10X-800CT SOT186A TO-220F 800 10 35 90 150
ACTT10X-800C SOT186A TO-220F 800 10 35 90 125
ACTT10B-800CTN SOT404 TO-263 800 10 35 90 150
ACTT10-800CTN SOT78 TO-220AB 800 10 35 90 150
ACTT10-800CT SOT78 TO-220AB 800 10 35 90 150
ACTT10-800C SOT78 TO-220AB 800 10 35 90 125

AC Thyristors

Type number Package version Package name VDRM[max] IT(RMS)[max] IGT2[max] IGT3[max] ITSM[max] @ 50 Hz Tj[max] Datasheet
ACT108W-800E SOT223 SC-73 800 0.8 10 10 13 125
ACT108W-600E SOT223 SC-73 600 0.8 10 10 8 125
ACT108W-600D SOT223 SC-73 600 0.8 5 5 8 125
ACT108-800E SOT54 TO-92 800 0.8 10 10 13 125
ACT108-600E SOT54 TO-92 600 0.8 10 10 13 125
ACT108-600D SOT54 TO-92 600 0.8 5 5 8 125
ACT102H-600D SOT96-1 SO8 600 0.2 5 5 8 125

SCRs

Type number Package version Package name VDRM[max] IT(RMS)[max] IGT[max] ITSM[max] @ 50 Hz Tj[max] Datasheet
TYN80W-1600T SOT429N TO-247 1600 126 80 850 150
TYN60K-1400T SOT1259 TO3P 1400 94 80 750 150
TYN50W-1600T SOT429N TO-247 1600 79 80 650 150
TYN40-800T SOT78 TO-220AB 800 40 15 450 150
TYN20X-800T SOT186A TO-220F 800 20 32 210 150
TYN20B-800T SOT404 D2PAK 800 20 32 210 150
TYN20B-600T SOT404 D2PAK 600 20 32 210 150
TYN20-800T SOT78 TO-220AB 800 20 32 210 150
TYN16X-800RT SOT186A TO-220F 800 16 25 210 150
TYN16X-600RT SOT186A TO-220F 600 16 25 210 150
TYN16X-600CT SOT186A TO-220F 600 16 15 180 150
TYN16S-600CT SOT428 SOT428 (TO252 / DPAK) 600 16 6 180 150
TYN16B-600CT SOT404 SOT404 (TO263 / D2PAK) 600 16 6 180 150
TYN16-800RT SOT78 TO-220AB 800 16 25 210 150
TYN16-600RT SOT78 TO-220AB 600 16 25 210 150
TYN16-600CT SOT78 TO-220AB 600 16 15 180 150
TYN12B-600LT TO-263E TO-263 600 12 5 120 150
NCR100W-12M SOT223 SC-73 1000 1.1 0.1 11 125
NCR100W-12L SOT223 SC-73 1000 1.1 0.05 11 125
NCR100W-10M SOT223 SC-73 850 1.1 0.1 11 125
NCR100W-10L SOT223 SC-73 850 1.1 0.05 11 125
N0118GA SOT54 TO-92 600 0.8 0.007 8 125
MCR08BT1 SOT223 SC-73 200 0.8 0.2 8 125
EC103D1W SOT223 SC-73 400 0.8 0.012 8 125
EC103D1 SOT54 TO-92 400 0.8 0.012 8 125
BTH151S-650R SOT428 DPAK 650 12 15 110 125
BT300S-600R SOT428 DPAK 600 8 5
BT258X-800R SOT186A TO-220F 800 8 0.2 75 125
BT258X-600R SOT186A TO-220F 600 8 0.2 75 125
BT258X-500R SOT186A TO-220F 500 8 0.2 75 150
BT258U-600R SOT533 IPAK 600 8 0.2 75 125
BT258S-800R SOT428 DPAK 800 8 0.2 75 125
BT258S-800LT SOT428 DPAK 800 8 0.05 75 150
BT258-800R SOT78 TO-220AB 800 8 0.2 75 125
BT258-600R SOT78 TO-220AB 600 8 0.2 75 125
BT258-500R SOT78 TO-220AB 500 8 0.2 75 125
BT169H-L SOT54 TO-92 800 0.8 0.05 9 125
BT169H SOT54 TO-92 800 0.8 0.1 9 125
BT169G-M SOT54 TO-92 600 0.8 0.06 8 125
BT169G-L SOT54 TO-92 600 0.8 0.05 8 125
BT169G SOT54 TO-92 600 0.8 0.2 8 125
BT169D-L SOT54 TO-92 400 0.8 0.05 8 125
BT169D SOT54 TO-92 400 0.8 0.2 8 125
BT169B SOT54 TO-92 200 0.8 0.2 8 125
BT168GWF SOT223 SC-73 600 1 0.45 8 125
BT168GW SOT223 SC-73 600 1 0.2 8 125
BT168G SOT54 TO-92 600 0.8 0.2 8 125
BT168E SOT54 TO-92 500 0.8 0.2 8 125
BT158W-1200T SOT429N TO-247 1200 126 70 1100 150
BT155Z-1200T SOT1292 IITO3P 1200 79 50 150
BT155W-1200T SOT429N TO-247 1200 79 50 150
BT155K-1200T SOT1259 TO3P 1200 79 50 650 150
BT152X-800R SOT186A TO-220F 800 20 32 200 125
BT152X-600R SOT186A TO-220F 600 20 32 200 125
BT152X-400R SOT186A TO-220F 400 20 32 200 125
BT152B-800R SOT404 D2PAK 800 20 32
BT152B-600R SOT404 D2PAK 650 20 32
BT152B-400R SOT404 D2PAK 450 20 32
BT152-800R SOT78 TO-220AB 800 20 32 200 125
BT152-600R SOT78 TO-220AB 650 20 32
BT152-500RT SOT78 TO-220AB 500 20 32 200 150
BT152-400R SOT78 TO-220AB 450 20 32
BT152-1200T SOT78 TO-220 1200 31 36 150
BT151X-800R SOT186A TO-220F 800 12 15 120 125
BT151X-800C SOT186A TO-220F 800 12 15 100 125
BT151X-650R SOT186A TO-220F 650 12 15 120 125
BT151X-650LTN SOT186A TO-220F 650 12 5 120 150
BT151X-650LT SOT186A TO-220F 650 12 5 120 150
BT151X-650C SOT186A TO-220F 650 12 15 100 125
BT151X-500R SOT186A TO-220F 500 12 15 120 125
BT151X-500C SOT186A TO-220F 500 12 15 100 125
BT151U-800C SOT533 IPAK 800 12 15
BT151U-650C SOT533 IPAK 650 12 15 100 125
BT151U-500C SOT533 IPAK 500 12 15
BT151S-800R SOT428 DPAK 800 12 15 120 125
BT151S-650S SOT428 DPAK 650 12 0.2 90 125
BT151S-650R SOT428 DPAK 650 12 15
BT151S-650L SOT428 DPAK 650 12 5 120 125
BT151S-500R SOT428 DPAK 500 12 15 120 125
BT151S-500L SOT428 DPAK 500 12 5 120 125
BT151-800R SOT78 TO-220AB 800 12 15 120 125
BT151-800C SOT78 TO-220AB 800 12 15
BT151-650R SOT78 TO-220AB 650 12 15 120 125
BT151-650LTN SOT78 TO-220 650 12 5 120 150
BT151-650L SOT78 TO-220AB 650 12 5 120 125
BT151-650C SOT78 TO-220AB 650 12 15
BT151-500RT SOT78 TO-220AB 500 12.5 15 120 150
BT151-500R SOT78 TO-220AB 500 12 15 120 125
BT151-500L SOT78 TO-220AB 500 12 5 120 125
BT151-500C SOT78 TO-220AB 500 12 15 100 125
BT151-1000RT SOT78 TO-220AB 1000 12 15 120 150
BT150S-600R SOT428 DPAK 600 4 0.2 35 125
BT150-500R SOT78 TO-220AB 500 4 0.2 35 125
BT149G SOT54 TO-92 600 0.8 0.2 8 125
BT149D SOT54 TO-92 400 0.8 0.2 8 125
BT148W-600R SOT223 SC-73 600 1 0.2 10 125
BT148-600R SOT82 SIP3 600 4 0.2 35 125
BT148-500R SOT82 SIP3 500 4 0.2 35 125
BT148-400R SOT82 SIP3 400 4 0.2 35 125
BT145X-800R SOT186A TO-220F 800 25 35 300 125
BT145-800RT SOT78 TO-220AB 800 25 10 300 150
BT145-800R SOT78 TO-220AB 800 25 35 300 125

Temperature and Overload Protected Triacs

Type number Package version VDRM[max] IT(RMS)[max] Tj[max] Datasheet
TOPT16-800C0 SOT78 800 16 150
TOPT12-800C0 SOT78 800 12 150

Automotive Grade Products

Thyristors

Type number Package version Package name VDRM[max] IT(RMS)[max] IGT[max] Tj[max] VRRM[max] Datasheet
BT155W-1200T-A TO-247N TO-247 1200 79 50 150 1200

Silicon Carbide Power Diode

Type number Package version Package name @IF IF(AV)[max] Qr [typ] Tj[max] VF[typ] @ Tj= 25 °C VRRM[max] Datasheet
NXPSC20650W-A SOT429N TO-247 10 20 16 175 1.5 650

Transistors

High Voltage Bipolar Transistors for Lighting, SMPS and Industrial Applications

Type number Package version Package name Size IC[max] VCESM[max] VCEO[max] Ptot[max] hFE[typ] @ IC tf[max] Datasheet
TB100 SOT54 TO-92 4.6 x 3.9 x 5.1 1 700 2 22 10
PHE13009 SOT78 TO-220AB 15.6 x 10.0 x 4.4 12 700 80 500
PHE13007 SOT78 TO-220AB 15.6 x 10.0 x 4.4 8 700 120
PHE13005X SOT186A TO-220F 15.5 x 10.0 x 4.3 4 700 400 26 20 1 500
PHE13005 SOT78 TO-220AB 15.6 x 10.0 x 4.4 4 700 400 75 20 1 500
PHE13003C SOT54 TO-92 4.6 x 3.9 x 5.1 1.5 700 400 2.1 9 1
PHE13003A SOT54 TO-92 4.6 x 3.9 x 5.1 1 700 400 2.1 7.5 0.8
PHD13005 SOT78 TO-220AB 15.6 x 10.0 x 4.4 4 700 400 75 20 1 900
PHD13003C SOT54 TO-92 4.6 x 3.9 x 5.1 1.5 700 400 2.1 9 1
BUJD203AX SOT186A TO-220F 15.5 x 10.0 x 4.3 4 850 425 26 15 1 120
BUJD203AD SOT428 DPAK 6.0 x 6.6 x 2.3 4 850 425 80 15 1 120
BUJD203A SOT78 TO-220AB 15.6 x 10.0 x 4.4 4 850 425 80 15 1 120
BUJD105AD SOT428 DPAK 6.0 x 6.6 x 2.3 8 700 400 80 17 1 50
BUJD103AD SOT428 DPAK 6.0 x 6.6 x 2.3 4 700 400 80 15 1 120
BUJ403A SOT78 TO-220AB 15.6 x 10.0 x 4.4 6 1200 300
BUJ303CD SOT428 DPAK 6.0 x 6.6 x 2.3 5 1050 400 80 34 10
BUJ303B SOT78 TO-220AB 15.6 x 10.0 x 4.4 5 1050
BUJ303AX SOT186A TO-220F 15.5 x 10.0 x 4.3 5 1000 500 32
BUJ303AD SOT428 DPAK 6.0 x 6.6 x 2.3 5 1000 500 80
BUJ303A SOT78 TO-220AB 15.6 x 10.0 x 4.4 5 1000 500 100 160
BUJ302AX SOT186A TO-220F 15.5 x 10.0 x 4.3 4 1050 400 26 42 0.8
BUJ302AD SOT428 DPAK 6.0 x 6.6 x 2.3 4 1050 400 80 42 0.8
BUJ302A SOT78 TO-220AB 15.6 x 10.0 x 4.4 4 1050 400 80 42 0.8
BUJ106A SOT78 TO-220AB 15.6 x 10.0 x 4.4 10 700 50
BUJ105AD SOT428 DPAK 6.0 x 6.6 x 2.3 8 700 50
BUJ105AB SOT404 D2PAK 11 x 10 x 4.3 8 700 50
BUJ105A SOT78 TO-220AB 15.6 x 10.0 x 4.4 8 700 50
BUJ103AX SOT186A TO-220F 15.5 x 10.0 x 4.3 4 700 400 26 80
BUJ103AD SOT428 DPAK 6.0 x 6.6 x 2.3 4 700 60
BUJ103A SOT78 TO-220AB 15.6 x 10.0 x 4.4 4 700 60
BUJ100LR SOT54 TO-92 4.6 x 3.9 x 5.1 1 700 400 2.1 7.5 0.8
BUJ100 SOT54 TO-92 4.6 x 3.9 x 5.1 1 700 14 0.750 70

IGBT

Product Picture Package Features/Benefits Links
WG50N65DHW TO247
  • Very low saturation voltage, soft and fast anti-parallel diode
  • Halogen Free package and Pb-free lead finish, RoHS compliant
  • Low thermal resistance
  • Qualified according to JEDEC, Meets UL94V0 Flammability requirement
  • Positive Vcesat temperature coeficient
  • Trench gate filed stop technology
Datasheets


IGBT Intro
WG40N65DFW TO247
  • Advanced Trench Fieldstop technology
  • Very soft, fast recovery anti-parallel diode
  • High speed switching
  • EMI Improved Design

Product Highlights

Triacs
New Triacs are releaed!!
  • Please see herethe latest Triacs releasess

Applications


Boost PFC Diagram in telecom power supply


Full bridge DC/DC converter disgram in telecom power supply


Washing machine



Dishwasher


Air conditioner


Vacuum Cleaner


Coffee Maker


Know How

Triacs


App Note Traics

What is a Triac?

Difference between 3Q Triacs and 4Q Triacs:

What are the 4 Quadrants?

The advantages of a 3Q Triac over a 4Q Triac:

Traics in SSR

Definition SSR Schematic Advantages
Solid Safety Relay is an electronic switching device that switches on or off when a small external voltage is applied across its control terminals. SSRs consist of a sensor which responds to an appropriate input (control signal), a solid-state electronic switching device which switches power to the load circuitry, and a coupling mechanism to enable the control signal to activate this switch without mechanical parts. The relay may be designed to switch either AC or DC to the load. It serves the same function as an electromechanical relay, but has no moving parts.
  • Double-sided glass mesa in 'copper sandwich'
  • Single-sided glass mesa with wire bonding
  • Planar with wire bonding

EV Charger


App Note EV Charger

System Block Diagram


WeEn Power Silicon Carbide (SiC) Solution

Product Plan Features Benefits Applications
  • JBS(Junction Barrier Schottky) Structure Diode
  • Voltage: 650V
  • Current: 4A~30A
  • Pb & Halogen Free
  • Package: Package: TO220/TO220FP/DPAK/D2PAK/TO247
  • Benchmark switching behavior
  • No reverse recovery charge
  • Temperature independent switching behavior
  • High operating temperature ( Tjmax 175°C)
  • System efficiency improvement compared to Si diodes
  • Reduced cooling requirements
  • Enabling higher frequency/increased power density
  • Higher system reliability due to lower operating temperature
  • Reduced EMI
  • PFC power supply
  • Industrial motor drives
  • PV inverter
  • UPS
  • EV Charger

WeEn Si Power Diodes-EEPPTM

Solution Overview Product Line-Up Definition EEPPTM Features
  • Voltage: 1200V
  • Current: 5A/8A/15A/30A/40A/60A/75A/100A
  • Packages: TO220 / TO247
  • Configuration: Single
  • Halogen free
  • BYC30 1200P/ BYC30W-1200P
  • BYC5 1200P/BYC8 1200P/BYC8D-1200P
  • BYC15 1200P
  • BYC40W 1200P
  • BYC60W 1200P
  • BYC75W 1200P
  • BYC75W 1200P
  • BYC100W 1200P
 EEPP utilizes state of the art planar technology which improves overall system reliability and power efficiency. Major process improvements are designed to:
  1. Reduce switching losses
  2. Maximize operating temperature
  3. Improve surge capability
  4. Reduce leakage to improve reliability
  • Fast recorvery
  • Soft recorvery
  • Low reverse recovery current/charge-IRM/Qr
  • Ultra low leakage current
  • Avalanche ruggedness to improve reliability
  • High operating temperature capability (Tjmax=175°C)
  • High IFSMcapability

WeEn Power Solution in AC/DC & PFC Control

Product Line-up Features Applications
  • NXPSC20650W/NXPLQSC20650W
  • BYC30W 600P/BYC60W 600P
  • BYC30W 1200P
  • BT155W(K) 1200T
  • BT158W 1200T
  • System efficiency improvement diodes
  • Reduced cooling requirements and EMI impact
  • Enabling higher frequency/increased power density
  • Higher system reliability due to lower operating temperature
  • 3.3KW/6.6KW OBC
  • 7-30KW Charger station

Lighting


App Note Lightning

High-Voltage Transistor

Inverter circuits Transistor voltage Application
Voltage Fed Push Pull(VFPP) VDC x 2 For longer industrial lamps (8foot)
Curent Fed Push Pull (CFPP) VDC x π
Current Fed Half Bridge (CFHB) VDC x π / 2 For basic discrete designs
Voltage Fed Half Bridge (VFHB) VDC For integrated Compact Fluorescent Lamps,
remote ballasts for CFLs and linear flourescent lamps,
electronic transformers for Low Voltage Tungsten Halogen Lamps

Advantages of Transistors

Power Tools


App Note Power Tools
Market Demands Applications Products opportunities
  • High performance & robust Power Tools
  • Electronics must survive when Power Tools are misused or motor stalls
  • Continuous high current capability
  • Electronics must be able to withstand high temperatures
  • High power density is required to combine small size and high power
  • Space reduction and lightweight solutions for modern designs
  • powered by the AC Mains, also called corded PT
  • powered by re-chargeable Lithium batteries, also called cordless PT
  • Home use / Light duty
  • Professional use / Heavy duty
  • Traics and SCRs:
    • Can be used for the motor speed control
    • For AC Power tools
  • Power Diodes
    • Can be used in battery charger
    • For Diode Applications
