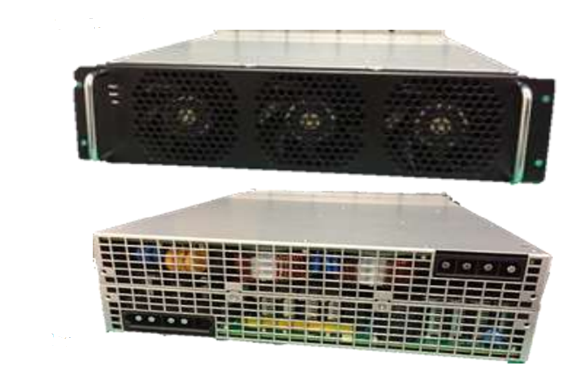

EV100H3N1K (DC Fast Charger Rectifier)

• Blind Mate, Pluggable
• CANBus Automotive Communications
• Wide operating temp. range (-20 to 65°C)
• >96% Peak Efficiency
• Remote Firmware Download supports Field Upgrades
• 2U Footprint, 19in rack width
• 380/480Vac 3 Φ AC input, 30kW Module
• Parallelable up to 12 Modules
• 1kV DC output, Output Range 50VDC to 1000VDC
• 336x 84x 438mm
• Safety: UL, VDC, CE

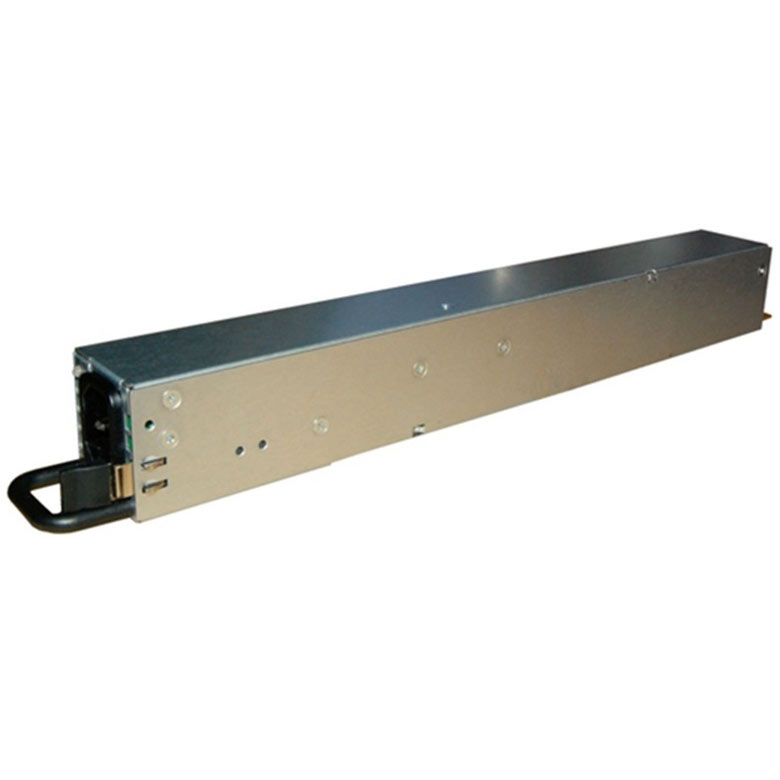

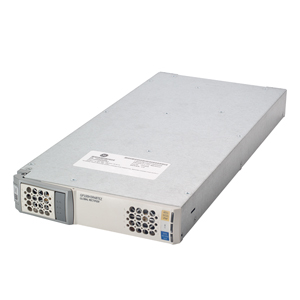

GP100

• 1U Profile with only 17.5" Depth
• 3ph Power Densities in excess of 28W/in³
• Constant Current Characertistic
• N+1 Redundance / Hot-Swap Operation
• 5VSB @1A Standby Voltage
• Dual I²C or RS485 Interfaces
• Active Load Sharing, Remote On/Off and sense functions

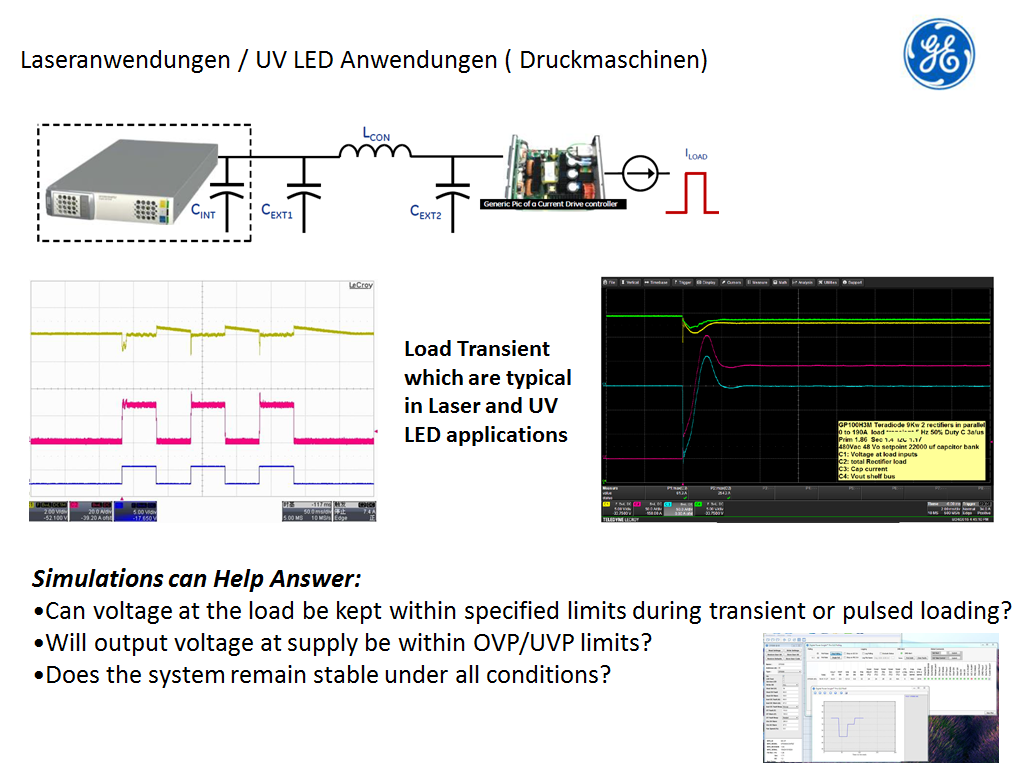

• Example of Laser UV LED Application

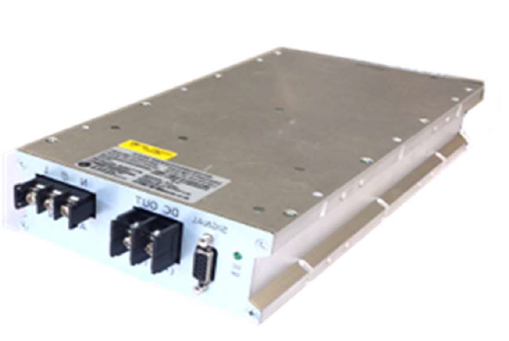

CC1600

• Efficiency exceeding 94%
• Compact form factor 11.52”L x 5.29”W x 1.83”H with max
• 1600W from nominal 200-240VAC <50oC baseplate
• 1200W from nominal 100–120VAC for VO < 52VDC, < 50oC
• baseplate
• Output voltage programmable from 42V – 58VDC
• Example of Laser UV LED Application

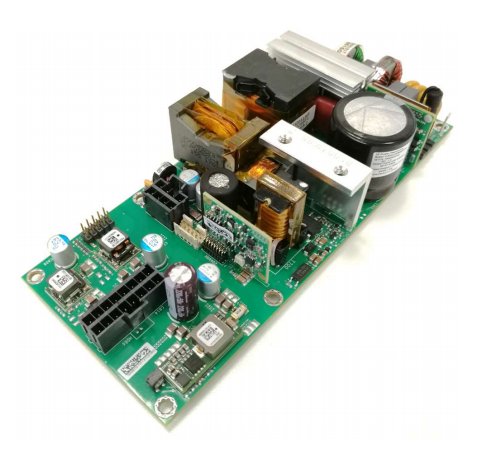

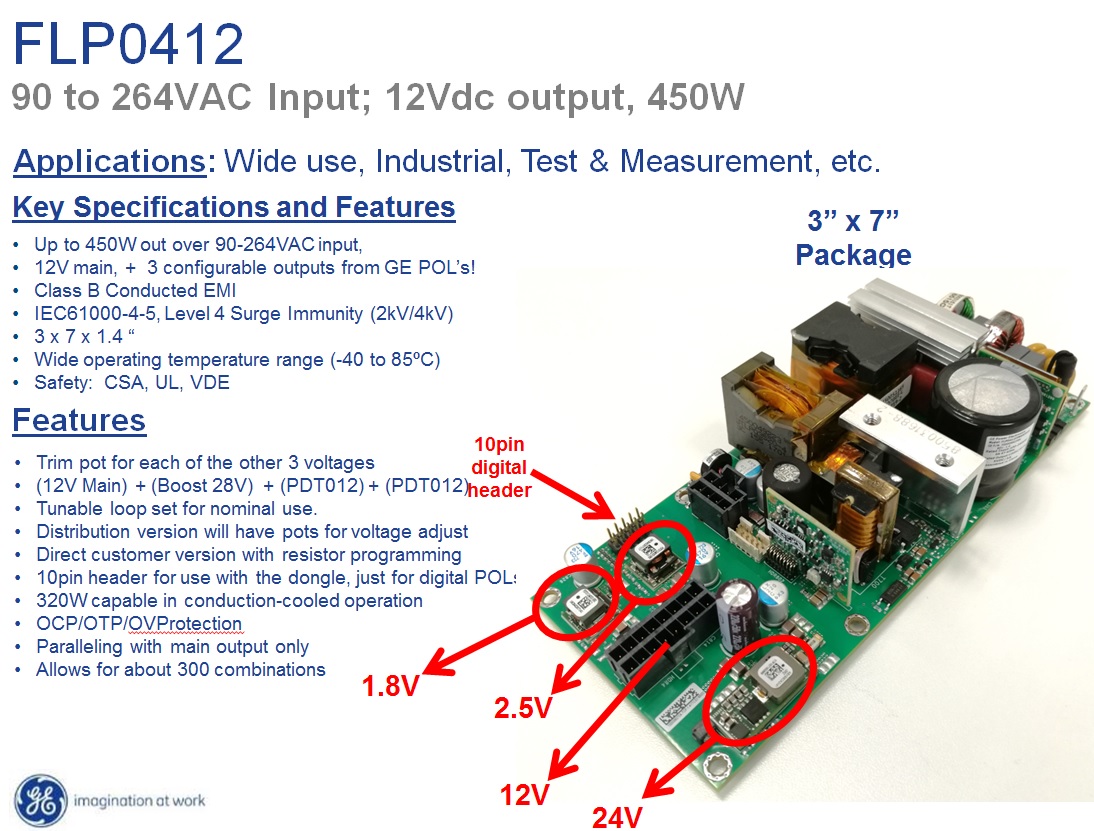

FLP0412FPx Open Frame Power Supply

• Up to 450W out over 90-264VAC input,
• 12V main, + 3 configurable outputs from GE POL’s!
• Details
• Class B Conducted EMI
• IEC61000-4-5, Level 4 Surge Immunity (2kV/4kV)
• 3 x 7 x 1.4 “
• Wide operating temperature range (-40 to 85ºC)
• Safety:  CSA, UL, VDE

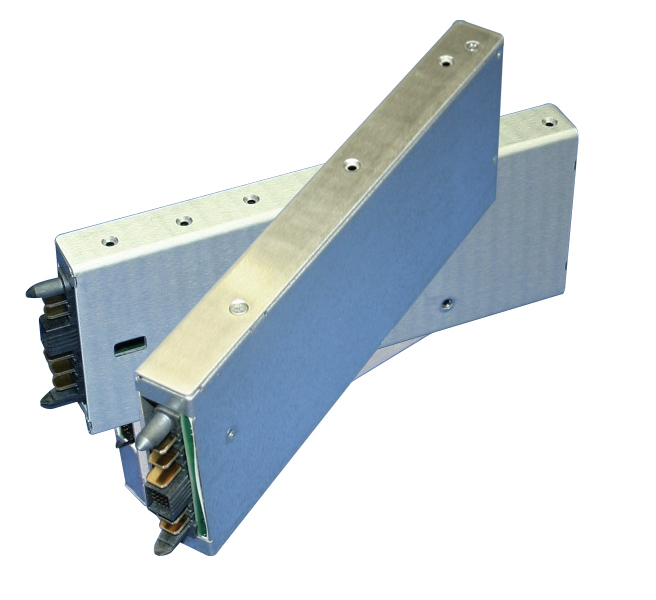

CCR0512 AC/DC Converter

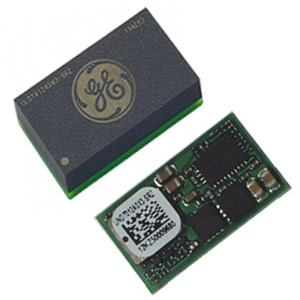

Point of Load Slim Lynx DC/DC Converter

12V Front Ends

48V Telecom/Industrial

24V Industrial

Performance:
• High power density
• High Efficiency, flat eff. curve
• High reliabilty
• Output tightly regulated
• Hold up time - 12mS
• Parallelable with current sharing

Features:
• Auto Fan speed control
• Universal AC input
• Remote on/off
• Current limit protection
• Short Circuit Protection

Applications:
• 12V Distributed Power Architecture
• Datacom/Telecom Applications
• Routers/Switches
• Test & Equipment
• 24V Industrial Applications
• Audio & Video Broadcasting

Features:
• Compact size 50.8 mm x 101.6 mm x 36.1 mm (2 in x 4 in x 1.4 in)
• Universal AC Input Range
• Standby output of 5V @ 0.25A (select models)
• High efficiency with 80 PLUS** Gold Certification
• Overtemperature protection
• Output overvoltage protection

Applications:
• Test and measurement equipment
• Embedded designs - Printers, noninvasive medical devices, small LED display signage
• Networking devices - Wireless Telecom and Datacom equipment
• Industrial Applications
• Routers and Switches

Features:
• Fanless design - Conduction cooled
• High power density (20W/in*3)
• High Efficiency - 95%
• No power derating at low line
• I2C/PMBus - Serial Port communication
• Safety: UL, TUV

Applications:
• 12V Distributed Power Architecture
• Datacom/Telecom Applications
• Routers/Switches
• Automated Test Equipment (ATE)

Features:
• 1U x 1U or 1.5U x 1.5U Compact Size
• Platinum Efficiency
• Outputs Available in 12V and 54V
• Hot insertion/removal (hot plug)
• Digital status & control: PMBus serial bus
• UL, TUV

Applications:
• 12V Distributed Power Architecture
• Mid-End & Blade Servers
• Routers & Switches
• Advanced Workstations
• Network Equipment & Storage
• Enterprise Networks

Features:
• 1U Profile with only 13.85" Depth
• Power Densities in excess of 40W/in3
• Constant Current Characteristic
• N+1 Redundancy / Hot-Swap Operation
• Up to 5VSB @ 2A Standby Voltage
• Dual I 2 C & RS485 Interfaces
• Active Load Sharing, Remote On/Off and sense functions

Applications:
• Wireless/Cellular
• Energy Systems
• Central Office Switching
• PCS Installations
• Bulk power for power architecture
• Automatic Test Equipment

Features:
• 1U Profile with only 17.5" Depth
• 3ph Power Densities in excess of 28W/in³
• Constant Current Characertistic
• N+1 Redundance / Hot-Swap Operation
• 5VSB @1A Standby Voltage
• Dual I²C or RS485 Interfaces
• Active Load Sharing, Remote On/Off and sense functions

Applications:
• Telecomm
• Data Centers
• Large Format Printing
• Laser Equipment
• LED UV Curing equipment

Features:
• Compact 1U x 1U form factor
• RS485 communications
• Industry leading controller features
• Centralized network management Reliability
• Advanced alarming
• Fault tolerant Investment Protection

Applications:
• Wireless/Cellular
• Energy Systems
• Central Office Switching
• PCS Installations
• Bulk power for power architecture
• Automatic Test Equipment (ATE)

Barracuda, Bus converters

Low Power Barracuda

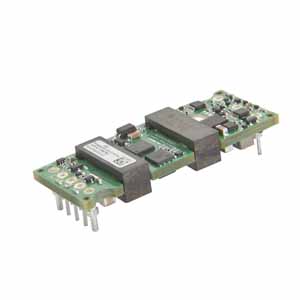

HammerHead, Wide input

Orca, wide output range

Filter Modules

Features:
• Delivers up to 94Adc output current
• Remote sense and output voltage trim
• DOSA-standard footprints
• Digital interface with PMBus
• Positive remote On/Off logic
• Output overcurrent/overvoltage protection
• Over temperature protection

Applications:
• Intermediate Bus Architecture
• ATCA Applications
• Servers & Storage
• Distributed Power Architectures
• Networking Equipment including
• Power over Ethernet (PoE)
• Fan Assemblies requiring tightly regulated output voltages

Features:
• Positive remote On/Off logic
• Constant switching frequency (300 kHz)
• High efficiency: 92% at 5.0V full load
• Basic insulation approved
• Output overcurrent protection
• Delivers up to 25A output current
• Output overvoltage protection
• Over temperature protection

Applications:
• Distributed power architectures
• Wireless networks
• Access and optical network equipment
• Microprocessor powered applications
• Enterprise networks
• Latest generation IC's (DSP, FPGA, ASIC)

Features:
• Ultra-wide Input Voltage Range
• No reverse current during output shutdown
• No minimum load
• Low profile height and reduced component skyline
• Constant switching frequency
• Low output ripple and noise

Applications:
• Distributed Power Architectures
• Wireless Networks
• Access and Optical Network Equipment
• Industrial Equipment

Features:
• Compliant to RoHS EU Directive 2002/95/EC
• High power density: 166W/in3 in half-brick, 139W/in3 in eighth-brick
• Industry standard half-brick & eighth-brick pin-out
• Low output ripple and noise
• Remote Sense
• Constant switching frequency
• Over temperature protection auto restart

Applications:
• RF Power Amplifier
• Wireless Networks
• Switching Networks

Features:
• Optimized for high-frequency DC-DC modules
• Available in 5A, 7A, 10A, 12A and 20A
• Exceptional thermal performance
• Designed to meet class B CISPR limits

Applications:
• Enterprise equipment
• Intermediate bus voltage application
• Wireless equipment
• Access and optical network equipment
• Distributed power architectures

DLnx^TM

Prolynx

Boost

Tlynx^TM

• Tunable Loop
• Digital Communication PMBus
• Total Efficiency architecture
• Superior thermal performance
• EZ-SEQUENCE
• Cost efficient open frame design

• Input Range: 3-14.4V, 4.5-14.4V
• Vout: 0.45-2V/5.5V, 0.6-2V/5.5V

• Distributed power architectures
• Data and Enterprise Networks
• Telecommunications equipment
• Broad range of embedded apps
• Industrial, process and test equipment
• Lans/Wans

• Tunable Loop technology enables the user to optimize dynamic response
• Synchronization and remote sense make designing for strict noise and set point requirements easier and more accurate
• Single module using two 12A parts achieves a higher density versus two individual modules
• Can support 12A at 1.2Vo up to 80 degrees C without airflow
• Interleaved 180 degrees out-of-phase to reduce input ripple when both outputs are operating

• Input Range: 4.5-14.4V
• Vout: 0.51-14.4V, 0.6-5.5V

• Distributed power architectures
• Intermediate bus voltage applications
• Telecommunications equipment
• Servers and storage applications
• Networking equipment
• Industrial equipment

• Convenient and powerful Digital Communication with PMBus
• Digital Tunable Loop saves even more board space
• Cost efficient open frame design
• Programmable output voltage for reduced BOM cost
• System Compatible Operation with fixed switching frequency

• Input Range: 4.5-14.4V, 7-14V
• Vout: 0.6-1.5V/3.63V/5.5V, 0.51-3.63V/5.5V, 0.5-2.0V

• Distributed power architectures
• Data and Enterprise Networks
• Telecommunications equipment
• Broad range of embedded apps
• Industrial, process and test equipment
• LANs/WANs

• Low profile 2.9mm height
• Ideal for height sensitive applications
• Can be used on bottom side reflow applications
• Compliant to RoHS EU Directive 2002/95/EC (Z version)
• Compatible in Pb-free/SnPb reflow environment (Z version)
• Compliant to IPC-9592 (Sept. 2008), Category 2, Class II
• DOSA based
• Wide Input voltage range (3.0Vdc-14.4Vdc)

• Input Range: 3-14.4V
• Vout: 0.45-5.5V, 0.6-5.5V

• Distributed power architectures
• Intermediate bus voltage applications
• Telecommunications equipment
• Servers and storage applications
• Networking equipment
• Industrial equipment

• Wide input range of 9 - 36Vdc
• Programmable Vout range of 3-18V
• Remote enable
• Over current / over temperature protection
• AutoLimit optimized power for the small package size
• Proven technology
• Faster time-to-market

• Input Range: 12 or 24V
• Vout: 3-18V

• Aerospace / Aviation
• Automotive
• Consumer
• Datacom
• Industrial
• Medical / Healthcare
• Military / Defense
• Telecommunication

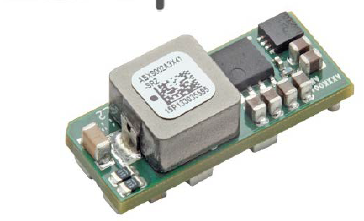

• Small, compact, board mounted 65W and 130W boost converters
• Complete, easy to design module solution
• Wide Input voltage range (8Vdc-16Vdc)
• Tunable Loop to optimize dynamic output voltage response
• Output overcurrent protection (non-latching)

• Input Range: 8-16V
• Vout: 16-34V or 32-54V

• Industrial Equipment
• Distributed Power Architecture
• Telecommunication

• Tunable Loop
• Very high efficiency
• Superior thermal performance
• EZ-SEQUENCE
• Cost efficient open frame design
• Output voltage programmable

• Input Range: 2.4-5.5V, 3-14V, 4.5-14V, 8-16V, 6-14V
• Vout:0.6-2V/3.63V/5.5V, 0.59-5.5V/8V,

• Intermediate bus architecture
• Distributed power architectures
• Data and Enterprise Networks
• Telecommunications equipment
• Broad range of embedded apps
• LANs/WANs

• Maximizing facility uptime
• Increased productivity - efficient sizes, ease of installation
• Minimizing dangers of electrical distribution
• Focus on sustainability

• Wide array of products aimed at minimizing downtime, improving efficiency and reducing the environmental impact of high energy demand
• Delivers fully configured power systems including switchgear, power transformers, unit substations, and SG UPS with eBoost
• Providing uninterruptible power with the industry’s highest efficiency
• Maintain the highest availability, improve operational efficiency and expense

To meet the challenge of healtcare you must:
• Maximize the reliability and efficiency of your system, so that it delivers high-quality normal and emergency power at the lowest possible cost
• Install devices that raise the level of safety and, in particular, protect your employees and equipment from the explosive energy of an arc flash
• Find a partner with the depth of expertise, the resources, and the commitment to support you through the entire system lifecycle

• Deliver comprehensive product and service solutions to meet your unique industry challenges
• Designed, built, installed and serviced the electrical distribution equipment that keeps industrial operations powered and productive
• Whether it's new construction or modernizing existing industrial facilities, ABB offers complete product and service solutions

• Reliability - Safety - Performance excellence
• Reliable, Efficient, and Continuous Operation
• Safety and Protection
• Project-Specific Support Capabilities

• Reduce the downtime and put profitability in your process
• By having a good understanding of your installation and operational needs, we have designed a unique solution for our oil & gas customers
• Full Service Local Support during Installation and Operation
• Reduce the Risk of Employee Incidents Resulting from Arc-Flash

• Provide a wide range of load center, circuit breaker and safety switch products for the home
• When temporary power is required our generator panels can connect home generators to the electrical system of the home
• Ensuring continuous operation of critical home appliances during a power outage

• Unique solutions, technology, and services capability for the largest datacenters to the most remote off-grid mountaintop, keep their networks powered
• Products & services are used by telecom, wireless and cable broadband service providers
• To ensure an uninterrupted power supply and convert AC power from a primary power source, such as the electric utility grid, into precisely controlled DC power used for:
  • datacenters
  • central offices
  • cell towers
  • outside plant fiber optics
  • customer premise facilities for mobile internet
  • cloud computing applications
• We also offer a turnkey platform of comprehensive telecom services ranging from network design and planning, detail engineering, furnishing and installing
