AM1114

• Slope Correcting Gain Block
• 2 - 18 GHz Frequency
• 5dB Gain Slope
• 5 dB gain @ 2 GHz, 10 dB gain @ 18 GHz
• 4 dB NF
• +27 dBm OIP3
• +17 dBm P1dB
• 3.3V Supply Voltage
• 3mm QFN

AM1144

• Low Noise Amplifier
• 17 - 40 GHz Frequency
• 3.5 dB NF
• +27dBm OIP3
• +16.5 dB P1dB
• +3.3V Sipply Voltage
• 3mm QFN

AM9012

• Tuner Module
• 0.002 - 6 GHz Frequency
• 13 dB NF
• +3 dBm IIP3
• 80 MHz Bandwidth
• 60 MHz Analog IF Output
• 4 W Power Consumption
• 1.44" x 2.33" x 0.26" Package

AM9017

• Tuner Module
• 0.1 - 18 GHz Frequency
• 15 dB NF
• +3 dBm IIP3
• 500 MHz Bandwidth
• 1 GHz Analog IF Output
• 4 W Power Consumption
• 1.38" x 2.69" x 0.26" Package

AM3089

• Analog tunable filter bank
• 2.0 GHz to 18 GHz
• Analog adjustable bandwidth
• Independant LP and HP control
• +37dBm IIP3 (typ.)
• Internal SP6T for filter selection
• +3V to +5V control
• +0.5V to +10V tuning voltage
• 10mm x 10mm QFN package

AM3136

• Analog tunable filter bank
• 8.0 GHz to 1.09 GHz
• Independant LP and HP control
• +40dBm IIP3 (typ.)
• +1V to +10V tuning voltage
• 5mm x 5mm QFN package

AM1065

• Bypassable Gain Block
• 0.02 - 8 GHz
• Gain 20 dB
• P1dB 17 dBm
• OIP3 32 dBm
• NF 2.5 dB

AM1067

• Bypassable Gain Block
• 5 - 20 GHz
• Gain 21 dB
• P1dB 15 dBm
• OIP3 25 dBm
• NF 3.5 dB

AM1070

• Gain Block
• DC - 18 GHz
• Gain 12 dB
• P1dB 15 dBm
• OIP3 27 dBm
• NF 3.0 dB
• 3mm x 3mm QFN

AM3025A

• Miniature filter bank
• 7 sub-octave filters
• Bypass option
• Cutoff frequency 400 - 6000 MHz
• Typical rejection 40 dB
• 9mm CQFN package

AM1063

• 15 dB Gain
• 2.5 dB Noise Figure
• +30 dBm OIP3
• +18 dBm P1dB
• +3.3V or +5.0V Operation
• 3mm QFN
• -40°C to +85°C Operation

AM1075

• 18 dB AVG Gain
• 4.0 dB TYP Insertion Loss in Bypass
• 4.0 dB Noise Figure
• +24 dBm OIP3
• +14 dBm P1dB
• +3.3 V, 82 mA TYP
• +3.3 V Logic
• -40°C to +85°C Operation
• 4mm QFN Package

AM2005

• Digital attenuator
• DC to 20-GHz frequency range
• 1 dB steps up to 31dB
• 2.5 dB Insertion loss
• +5V Supply
• +3V Control
• +40 dBm IP3
• 4mm QFN Package
• -40°C to +85°C Operation

AM6002A

• Single-Pole Double-Throw (SPDT) switch
• DC to 14 GHz frequency range
• 1.0dB insertion loss
• +5V supply
• +3V control
• 30dB isolation
• +42dBm IP3
• +27dBm P1dB
• 3mm QFN package
• -40°C to +85°C operation

AM6015

• Single-Pole Six-Throw (SP6T) switch
• DC to 18 GHz frequency range
• 2.0 dB Insertion Loss
• +40 dBm Input IP3
• +3.3V to +5V Supply
• +3V to +5V Control
• 30dB Isolation
• 4mm QFN Package
• -40°C to +85°C Operation

AM6017

• Single-Pole Four-Throw (SP4T) switch
• DC to 26.5 GHz frequency range
• 2.0 dB Insertion Loss
• +41 dBm Input IP3
• +3.3V to +5V Supply
• +3V to +5V Control
• >30 dB Isolation TYP
• 4mm QFN Package
• -40°C to +85°C Operation

AM3023B

• 100 MHz to 6000 MHz frequency range with a full 80-MHz overlap from 400 to 6000 MHz
• Sub-Octave Filter Bank
• Bypassable Amplifier Stage
• 5 dB Gain
• +3.3V DC Supply
• 0.20 Watts Power Consumption
• 20.5 mm L x 20.5 mm W x 3.3 mm H (0.807” L x 0.807” W x 0.13” H)
• 0.2 oz Weight
• -40°C to +85°C Operation

AM3025A

• 400 MHz to 6000 MHz frequency range with full 80-MHz
• Sub-Octave Filter Bank
• 6 dB Insertion Loss
• +3.3V or +5V DC Supply
• 0.09 Watts Power Consumption
• 9mm QFN Package
• -40°C to +85°C Operation

AM3063

• Digitally Tunable Bandpass Filters
• Independent LP and HP control
• +3.3V to +5.0V Supply
• 4.0 dB Insertion Loss
• Integrated Power and Control Line Filtering (See AM35 Datasheet)
• 6mm QFN Package
• +40 dBm Input IP3
• -40°C to +85°C Operation

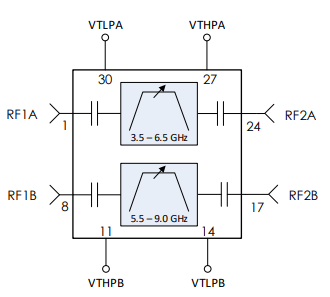

AM3135

• Dual MMIC analog voltage-tunable bandpass filter
• Covering the 3.5 to 6.5 GHz and 5.5 to 9.0 GHz frequency ranges
• Analog Tuning
• Independent LP and HP Control
• +40 dBm Typical IIP3
• 5 mm QFN Package
• -40°C to +85°C Operation
• +1V to +10V Tuning Voltage

AM3036

• Miniature digitally tunable highpass filter
• Covering the 330 to 700-MHz frequency range
• Discrete high pass cutoff steps
• 4-bit control, 3V or 5V Logic
• No calibration required
• +5V DC Supply
• 4mm QFN Package
• -40°C to +85°C Operation

AM3041

• Discrete high pass cutoff steps
• 4-bit control, 3V or 5V Logic
• No calibration required
• +5V DC Supply
• 4mm QFN Package
• -40°C to +85°C Operation

AM3108

• Discrete High Pass Cutoff Steps
• 5-bit Control, 3V or 5V Logic
• +3.3V to +5V DC Supply
• 5.0 dB AVG Insertion Loss
• +43 dBm Input IP3
• 4mm QFN Package
• -40°C to +85°C Operation
• No Calibration Required

AM3109

• Discrete High Pass Cutoff Steps
• 5-bit Control, 3V or 5V Logic
• +3.3V to +5V DC Supply
• 7.0 dB AVG Insertion Loss
• +36 dBm Input IP3
• 4mm QFN Package
• -40°C to +85°C Operation
• No Calibration Required

AM3029

• Miniature digitally tunable lowpass filter
• Covering the 1.5 to 3.0 GHz frequency range
• Discrete low pass cutoff steps
• 4-bit control, 3V or 5V Logic
• No calibration required
• +5V DC Supply
• 4mm QFN Package
• -40°C to +85°C Operation

AM3039

• Miniature digitally tunable lowpass filter
• Covering the 9 to 18-GHz frequency range
• Discrete low pass cutoff steps
• 4-bit control, 3V or 5V Logic
• No calibration required
• +5V DC Supply
• 4mm QFN Package
• -40°C to +85°C Operation

AM3110

• Miniature digitally tunable lowpass filter
• Covering the 18.0 to 26.5 GHz frequency range
• Discrete Low Pass Cutoff Steps
• 4-bit Control, 3V or 5V Logic
• +3.3V to +5V DC Supply
• 2.5 dB AVG Insertion Loss
• +41 dBm Input IP3
• 4mm QFN Package
• -40°C to +85°C Operation
• No Calibration Required

AM4001

• 1.7 dB Insertion Loss
• 20 dB Isolation
• 10 dB Return Loss
• 4mm QFN Package
• -40°C to +85°C Operation

AM4008

• Broadband, 2 to 26.5 GHz
• 2 dB Insertion Loss
• 22 dB Isolation
• 15 dB Return Loss
• 0.1 dB Amplitude Unbalance, TYP
• 0.5 deg Phase Unbalance, TYP
• 1.3mm x 2mm DFN Package
• -40°C to +85°C Operation

AM9012

• 2 MHz to 6 GHz Frequency Range
• 80-MHz Bandwidth
• 60-MHz IF Output Frequency
• Sub-Octave Preselection
• 13 dB Noise Figure, +3 dBm IIP3
• +3.3V DC Operation
• 4.0 W Power Consumption
• -40°C to +85°C Operation
• 1.44” x 2.33” x 0.26” (36.5 x 59.2 x 6.6 mm)

AM9017

• 0.1 GHz to 18 GHz Frequency Range
• 500 MHz Bandwidth
• 1 GHz IF Output Frequency
• Sub-Octave Preselection
• 15 dB Noise Figure, +3 dBm IIP3
• +5.0V and +3.3V DC Operation
• 4.0 W Power Consumption
• -40°C to +85°C Operation
• 1.38” x 2.69” x 0.26” (35.1 x 68.2 x 6.7 mm)
