AC/DC Power Supplies

Portfolio Highlights

• Open Frame, Desktop Adapter, PCB Mount, Configurable, DIN Rail, Baseplate, Customized
• Confirmal Coating possible
• Customization
• Different Temperature Ranges
• High Power density
• Inhouse FAE Support
• High Efficiency Products >97%
• EMI Lab for pre-compliance tests(EN55022)
• EMI EN55022 Class B radiated and conducted
• Medical, Industrial, Railway, Industrial and Defence Compliances
• CCC Certifications

Products:

Partner	Power Range	Type	Form factor	Approvals
	5-450W 10-300W	Open Frame Desktop Adapter	div div	Industrial Medical, Industrial
	6W-300W	Desktop Adapter 4th Generation	div	Medical, Industrial
	30W-550W 10W-220W	Open Frame Desktop Adapter	2"x3", 3"x5"	Medical, Industrial
	200W-450W up to 6kW	Open Frame Rack inlet	3"x5" 1U height	Industrial Industrial
	1W-60W 60W-300W	PCB Mount DIN Rail Industrial Desktop Adapter low cost Industrial Wallmount Adapter low cost	div div	Industrial, Railway Industrial
	Customized	Customized 3 Phase Input 24Vout/120W	Customized and Standard	Customized

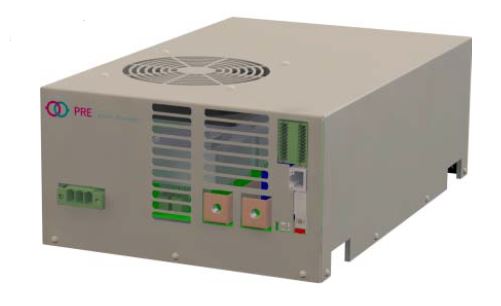

	3kW-10kW	Universal Power Supply Customized	520x340mm	Industrial
	600W-1200W	Configurable, with fan and without fan (Conduction cooled)	6x6" and 3x5"	Medical, Industrial
	0-3000W 0-250W 1-60W 65W-300W	Open Frame Desktop Adapter PCB Mount DIN Rail	2x3", 3x5"	Medical, Industrial Medical, Industrial, Mil Medical, Industrial, Railway Industrial
	300W	Railway Power Desktop Adpter PCI Express Power Supplies	div. PCI Express	Industrial, Railway
	300W-500W	Conduction cooled Brick Format AC/DC	Brick Format	Industrial, Medical

• Special requirement check on request
• For details click to the company logo

Product Highlights:

Name	Power	Partner	Benefit	Product	Voltages

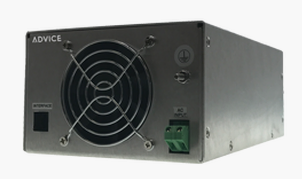

Capacitor Charger Power Supply	350-6000W		High efficiency, typically 90% Fast response and low noise Fully isolated input to output, allowing direct connection to an AC line		300V-1KV 400V-1KV,1.2KV,1.6KV

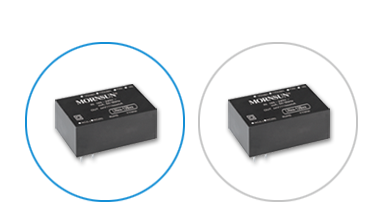

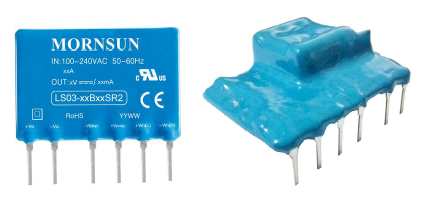

LN Series	1W-3W		AC/DC Power Supply without electrolytic capacitors		5,12,24V
LS Series	1-5W		SIP Package (Regulator + Inductance included) Ultra Slim SIP Footprint: 35mm x 18mm x 11mm No need to develop a complete AC/DC Power Supply		3.3,5,9,12,15,24V
LS03-16 3 x Phase Input	3W		3 Phase Input Power Supply 90-528VAC Input		3.3,5,9,12,15,24V
LOF Series	120 - 350W		High Power density, active PFC, high isolation voltage of 4000VAC and very low leakage current(<0.1mA), while meeting 2x MOPP level		85(90)~264V

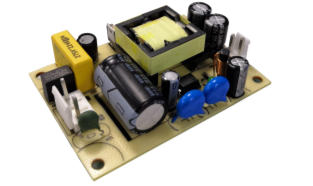

L015-10Bxx Series	9-15W		Compact size power converter, features universal AC input and at the same time accepts DC input voltage(85-264VAC or 100-370VDC)		3.3,5,9,12,15,24V
ECE05 Series	5W		Smallest 5W AC/DC converter in the World 1" x 1" Formfactor Ideal where space is critical EMI Class B filter integrated		3.3,5,9,12,15,24,48V

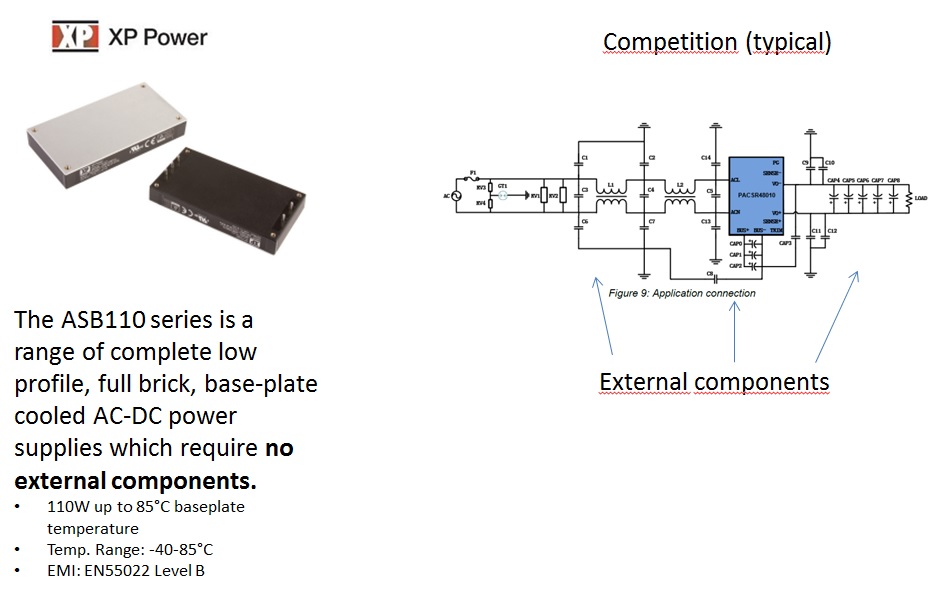

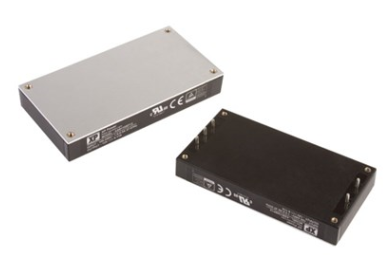

ASB110	110W		Low profile Brick Format, inclusive EMI Filter and buffer capacitors No extra components required		12-48V

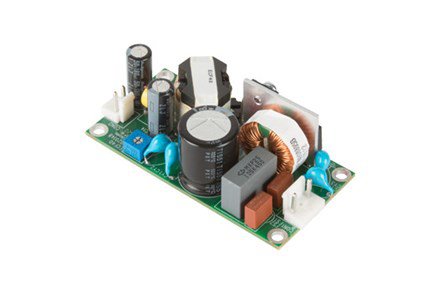

ECF40	40W		40W in 76,2x38,1x28mm (1,5x1,3x1,1") Smallest 40W Power Supply of the World (Comparison Footprint)		12,15,18,24,36,48V
ULP180/40/275 Series	40W/180W/275W		Ultra low profile AC/DC Power Supplies (Comparison Footprint)		12,15,24,30,48,58V
MWLP120	120W forced air cooling 100W convection cooled		2x3" Footprint Medical approved		12V-58V

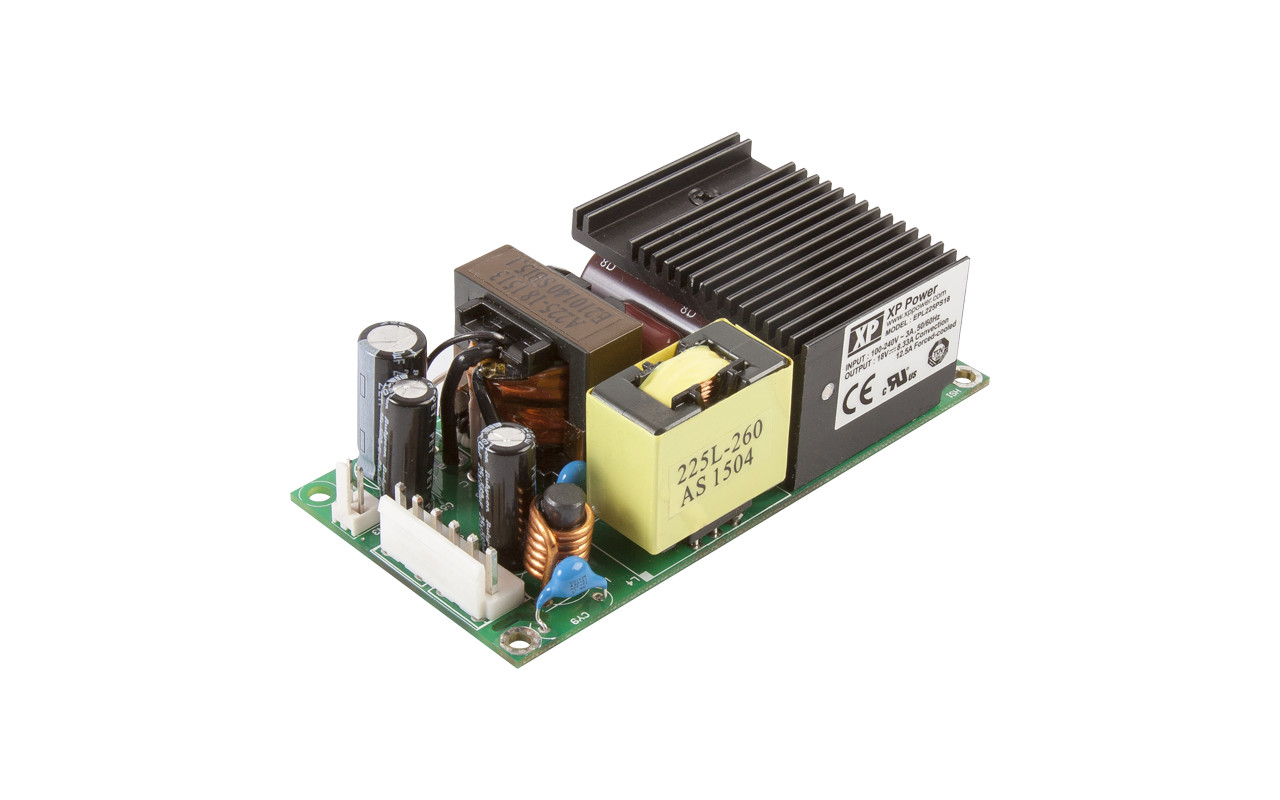

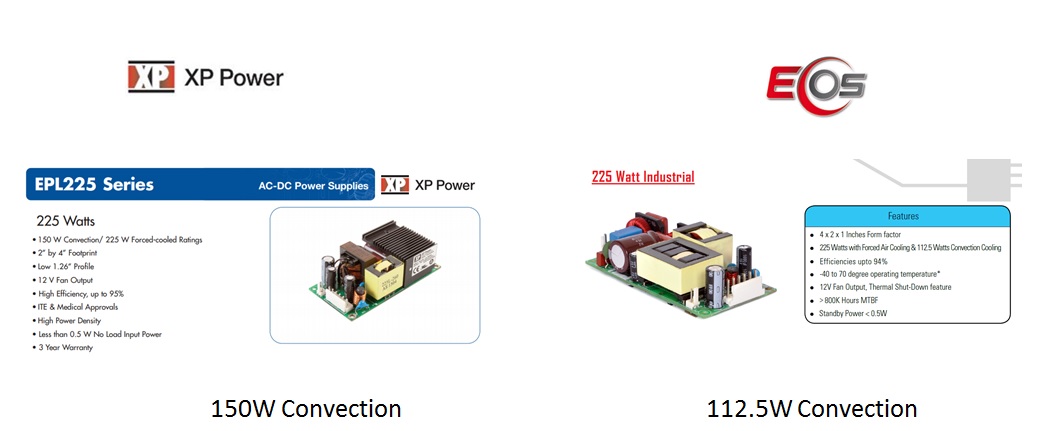

EPL225	225W forced air cooling 150W convection cooled		2x4" Footprint Medical approved Power + Size		12V-48V

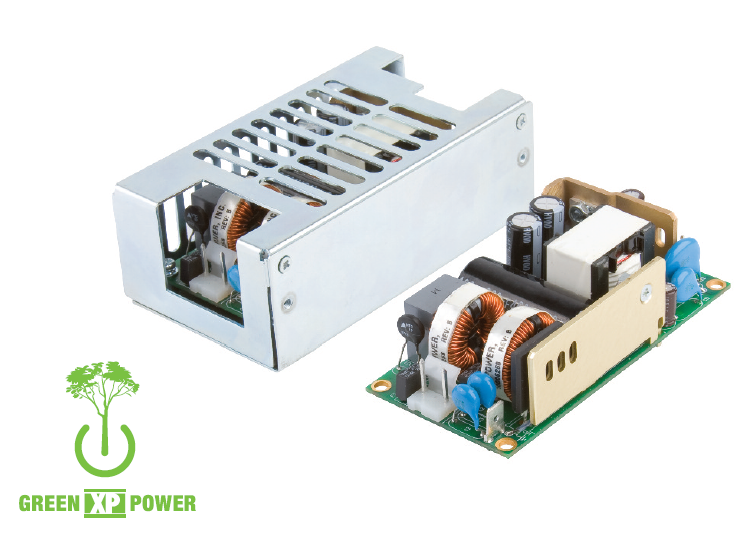

ECS65	65W		Industrial + Medical EMI: EN55022 Radiated Class B		12V 15V 18.5V 24V 28V 48V
UCP225 Series	225W		ultra low profile(29mm)		12V-48V

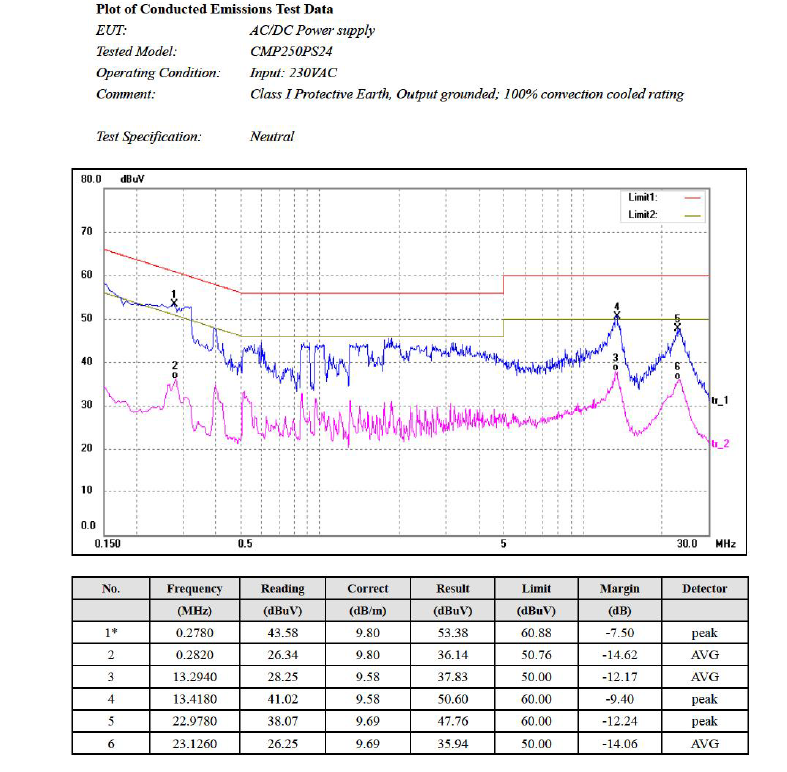

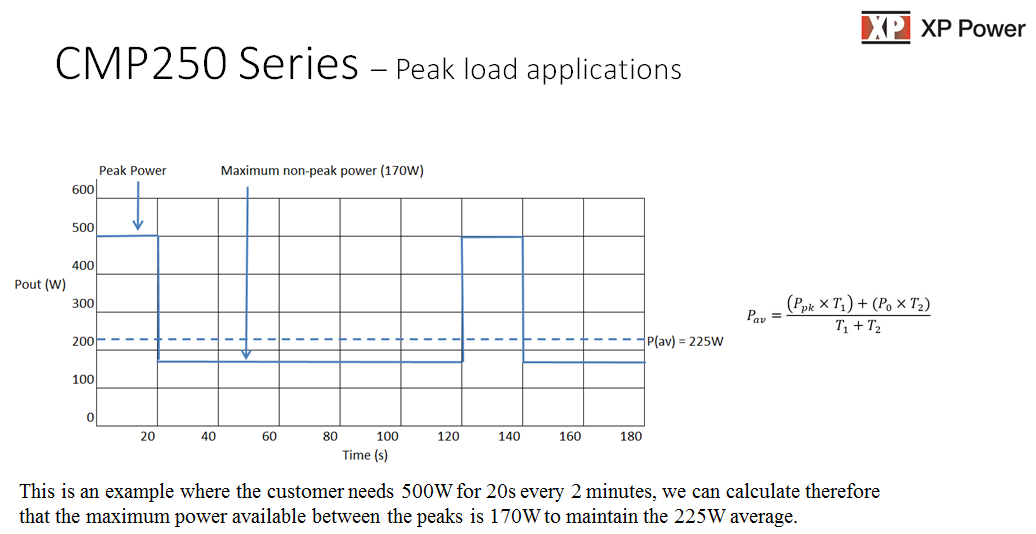

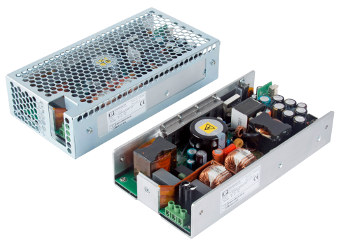

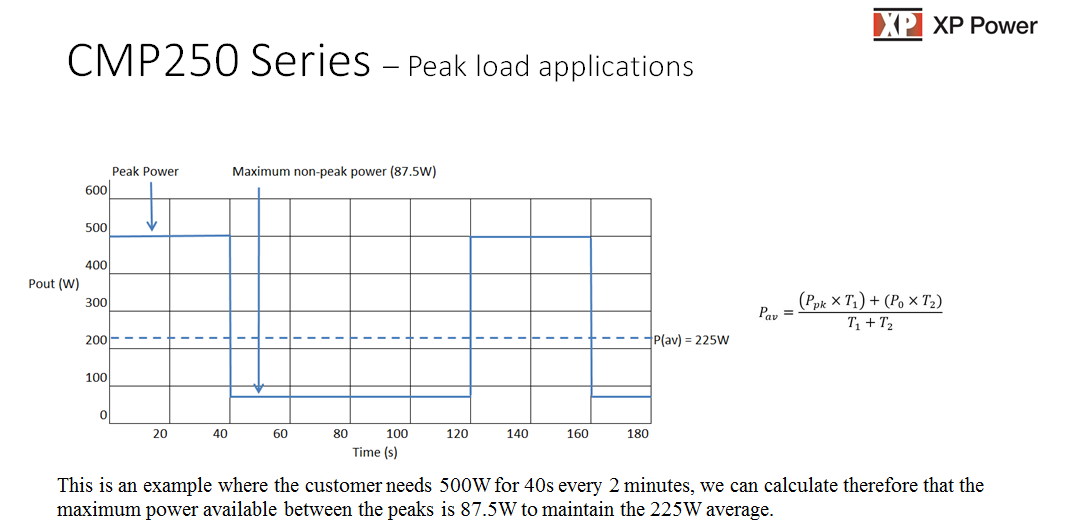

CMP250	500WPeak 225WAverage 250WConvection Motor-applications		Peak of 1 Minute 1 Example of Peak Load 2 Example of Peak Load EMI 6dB Margin Ideal for Motor- applications with Current Peaks at Start up.		24V/36V/48V

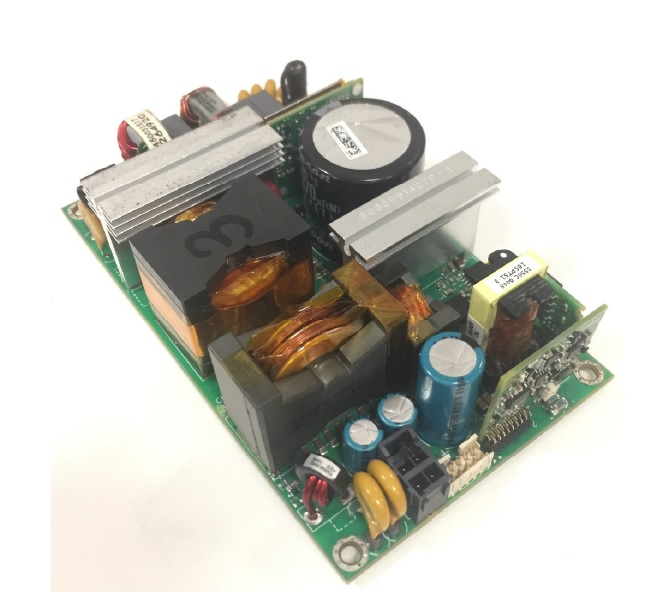

CLP0448FP	450W		PoE Complaint with 2250VDC isolation		48-54V
FLP0412FPx	450W		Multiple Output 37.5A/12V 2A/24V 12A/5V 12A/3.3V Total 450W max.		12V main 5V 3.3V 24V All outputs are changeable with Trimpotentiometers or resistors Details

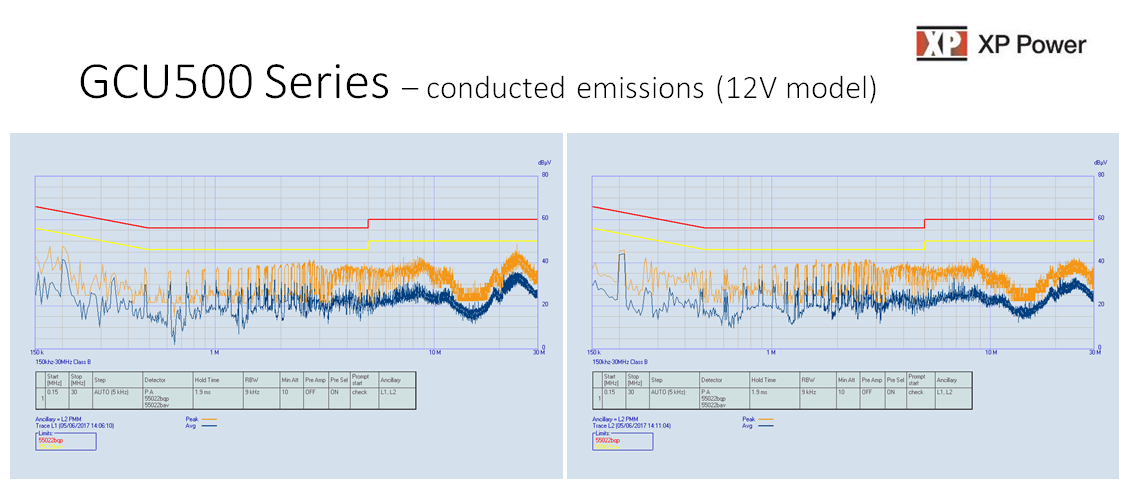

GCU500	500W with Fan 250W without Fan		Industrial + Medical -40°C-70°C 6dB EMI Margin 5V Standby Remote On/off		12V 15V 18V 24V 36V 48V
MWLC550	550W		convection, conduction or air cooling possible, 7 years warranty		12,15,24,30,48,56V

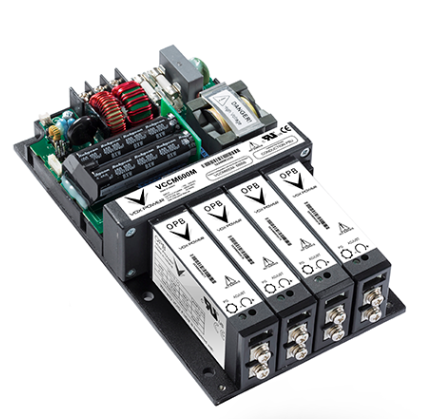

VCCM600 Series	600W		600W Conduction cooled without a fan Indutrial + Medical Versions		1,5V-58V

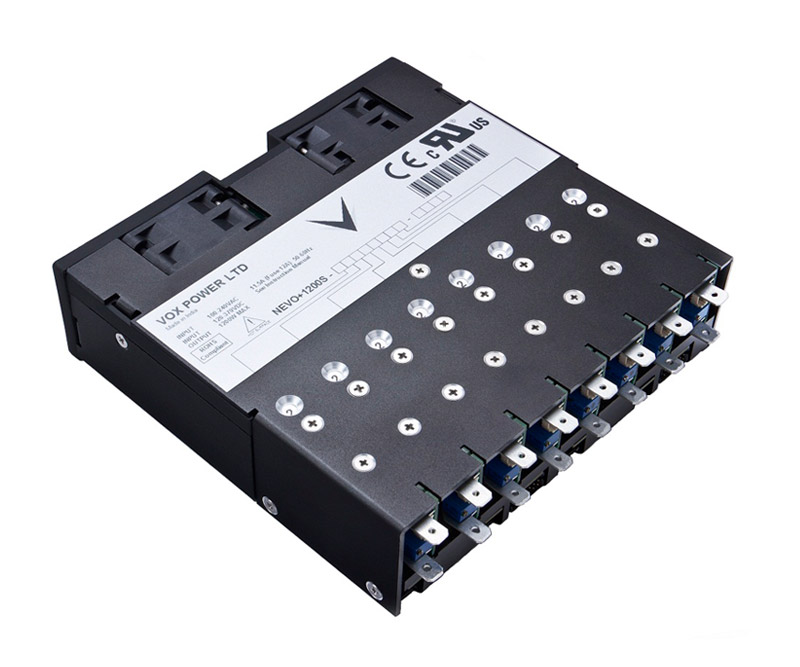

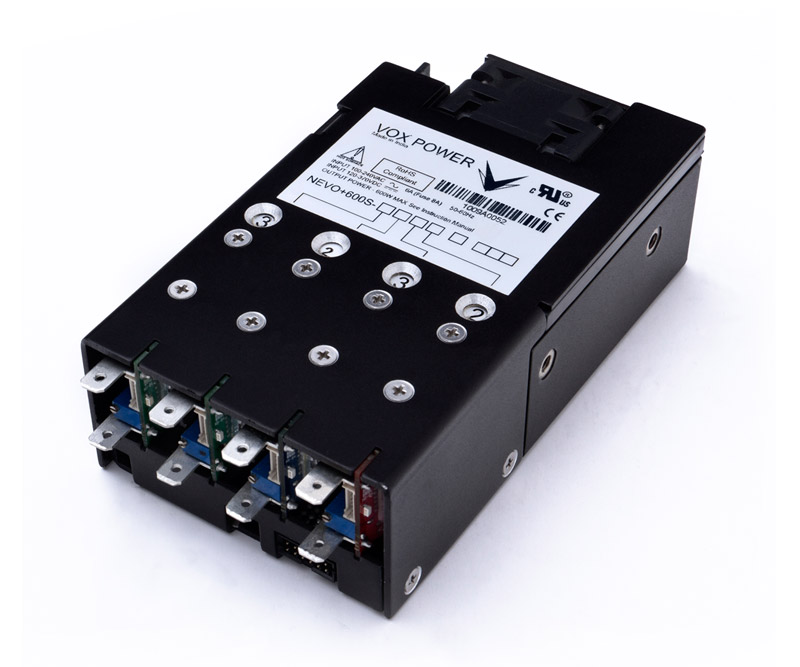

NEVO+600S/M	600W with fan cooling		Smallest 600W Power Supply of the World with 3" x 5". 4 Slots a 150W configurable Medical and Industrial approved		1.5V-58V
NEVO+1200S/M	1200W with fan cooling		Small Formfactor: 6" x 6" 8Slots a 150W configurable Medical and Industrial approved		1.5V-58V

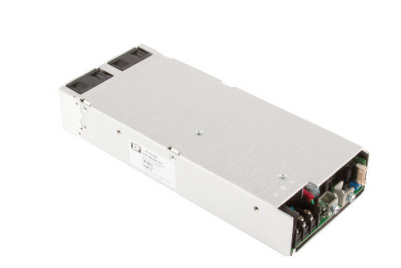

GSP750	750W 900W peak for 100ms		Industrial + Medical -40°C-70°C 5V/3A Stand-by Remote On/off		12V 24V 48V
HDR100 Series	100W		16,6-160V Input Range for Railway EN50155 Overview Railway products		24V
CCR0512	12V/42A 500W		Ultra Small Formfactor: Dimensions: 10.4" x 4.4" Low Height of 0,5U No fan, 500W Power		12V
CC1600	1600W		Baseplate Cooled No Fan		42-58V
Universal Power Module	3000W		Universal Power Supply Active PFC 5 units in parallel Ideal for cathodic protection and industrial usage		2-120V

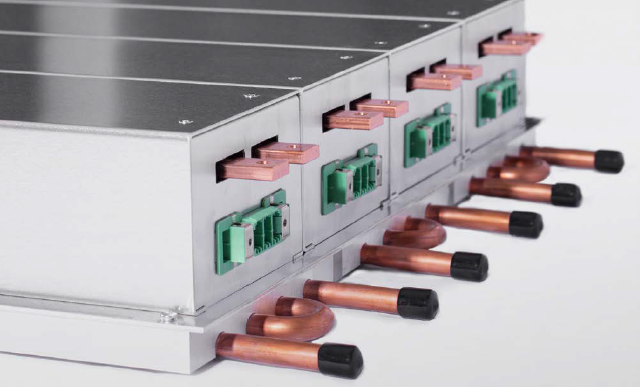

LAPS3500	3500W baseplate cooled		Water cooling option Parallel operation possible Voltage and/or current controlling Formfactor: 410mm x 100mm x 88mm Ideal for Laser Applications		10-60V
GP100	6kW output power 3 Phase input		Ultra small Footprint Ideal for Laser Applications I2C or RS484 Communication 97% Efficiency Example of Laser UV LED Application		48V-54V

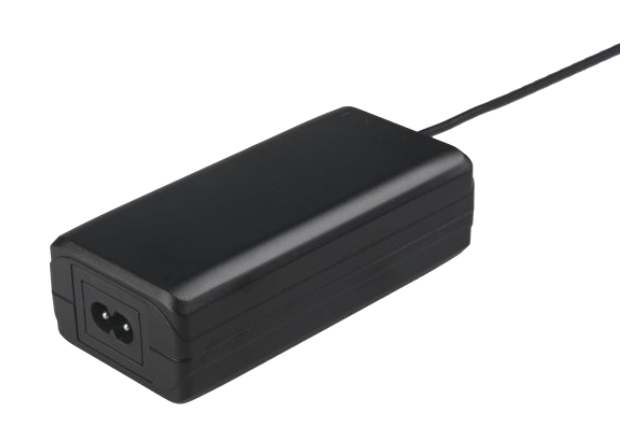

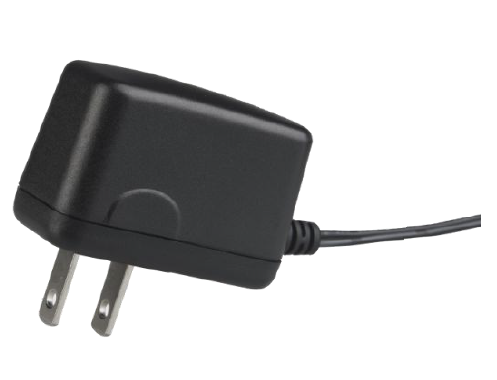

Wallmount Adapter	3-15W		Industrial low cost interchangeable Adapter		5-24V
Desktop Adapter	9-72W		Industrial Low cost		9-36V
EA1020	16W-36W		Level VI Desktop adapter CCC Certification		5V-24V

AC/DC Conversion IC's

Portfolio Highlights

• Big portfolio of regulators for AC/DC Flyback and buck Topologies
• Integrated MOSFETs (725V/900V)
• Integrated galvanic isolation
• Lowest BOM count
• Inhouse FAE Support
• EMI Measurements
• Transformer calculation and design
• Layouts
• Prototypes
• Measurements of critical components

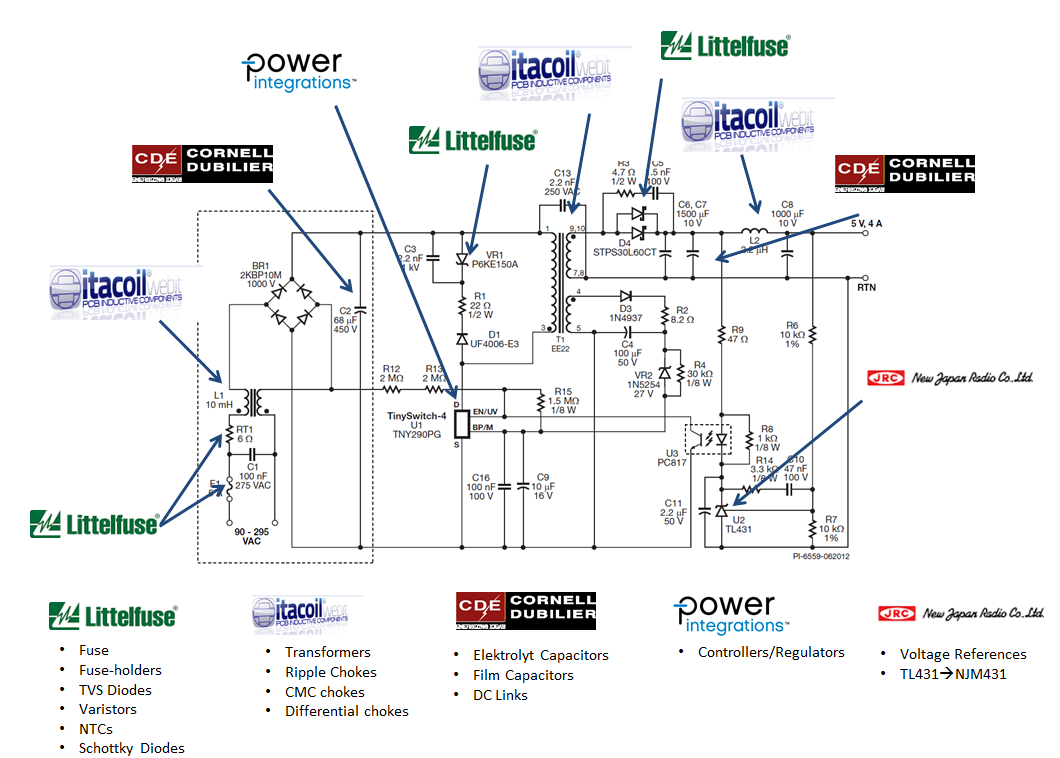

• Complete BOM of a Flyback AC/DC Converter by MEV

Portfolio overview

Products:

Partner	Power Range	Type	Integrated MOSFETs	Input Voltage Range	Series
	0,1W-1kW	Flyback	900V 725V 650V	85-265VAC 18-265VAC 85-440VAC	TNY-Switch TOP-Switch LNK-Switch INNO- Switch ..
	up to 360mA	Buck	725V	85-265VAC 18-265VAC	LNK-TN LNK-TN2

Special requirement check on request
For details click to the company logo

Product Highlights

Name	Output Current/Power	Partner	Benefit	Product

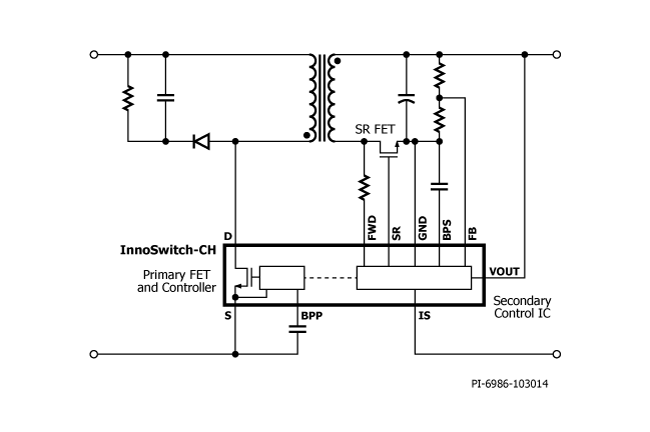

Innoswitch Family	up to 30W output power		integrated galv. Insolation Synchronus rectification 900V,725V or 650V integ. MOSFET

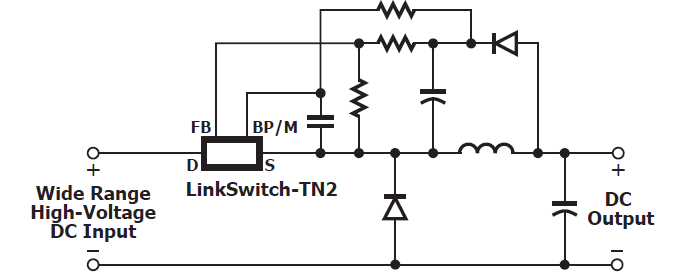

LNK-TN2	up to 360mA output current		Low no load power consumption Simple buck topology low cost, small BOM
InnoSwitch 3	up to 65W output Power		Quasi resonant >91% eff. integrated galv. Insolation Synchronus rectification 725V or 650V integ. MOSFET

DC/DC Converter Modules

Portfolio Highlights

• Very small DC/DC Converters
• Input Voltage Range 9-36V ; 18-75VDC; 36-48VDC and further more
• Power Levels from 1W-700W
• Different form factors: 1/32 Brick; 1/16 Brick; 1/8 Brick; 1/4 Brick; 1/2 Brick; Full Bricks and a lot of more
• Stable design with Phase margin (Bode plots and transient measurements/simulations)
• Baseplate Options for cooling
• Paralleling for redundancy or load sharing
• Support by layouting and schematic for low EMI and best performance (Line Load regulation; Load response)
• Typical System with different DC/DC components/Filters/Point of Loads and AC/DC components

Products:

Partner	Power Range	Type	Formfactor	Input Voltage Range
	15W-700W	SMD and THT	1/32 Brick; 1/16 Brick; 1/8 Brick; 1/4 Brick; 1/2 Brick; Full Brick; 1" x 1"	18-75VDC 36-48VDC 18-36VDC 9-36VDC
	1W-40W	SMD and THT	SIP; SMD; Different sizes available; Din Rail format; DC/DC with screw terminals; DC/DC for print on PCB	18-75VDC 36-48VDC 18-36VDC 9-36VDC
	1W-1kW	SMD and THT	SIP; SMD; Different sizes available; Din Rail format; DC/DC for print on PCB	18-75VDC 36-48VDC 18-36VDC 9-36VDC

Special requirement check on request
For details click to the company logo

Product Highlights

Name	Output Current/Power	Partner	Benefit	Product	Voltages
UWE/F_S-1WR3 series UWE/F_S-3WR3 series	1 - 3W		8:1 input voltage range(4.5 - 36 VDC) No-load power consumption as low as 0.12W I/O isolation test voltage 3K VDC -40°C-105°C		4.5 - 36VDC

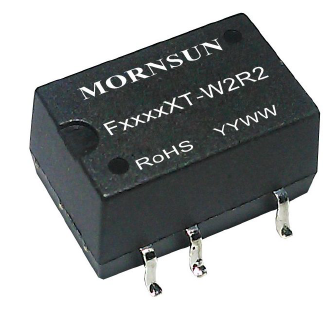

F0505XT F1205XT	0.25W with 5V or 12V input		-40°C-105°C Miniature SMD Package 3KV Isolation		5V
QA Series	Dual Output 150mA		For SiC and IGBT Drivers		+15V/-2,5V +15V/-8V

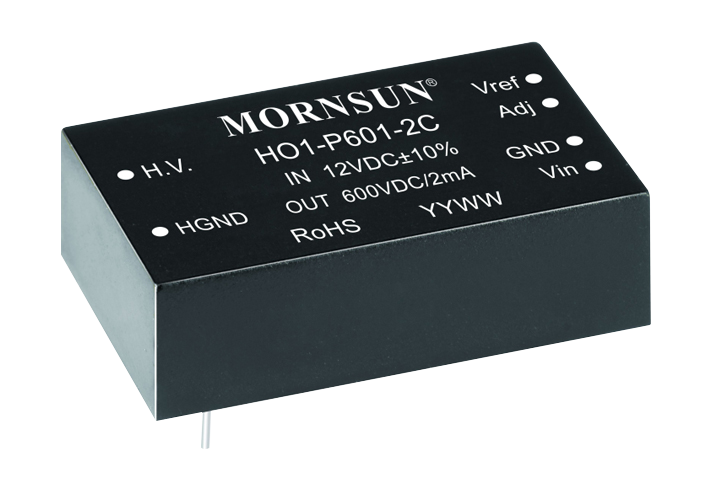

H01 Series	1,2W		0V-600Voutput		0V-600V

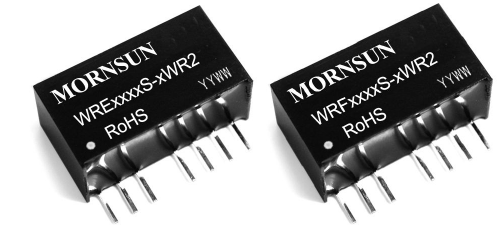

WRE Series	3W in SIP Package		SIP Package 3W Small low cost DC/DC Converter		3.3,5,9,12,15,24V

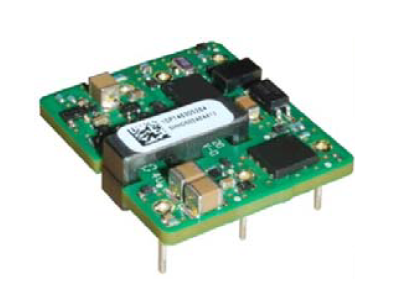

SHHD Series	15W		15W in 1" x 1" 18-75VDC		3.3,5,12V

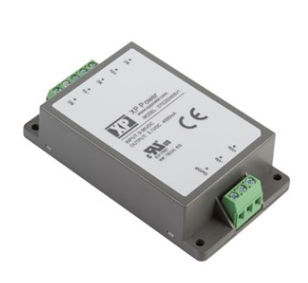

DTE Series	15W-40W		DC/DC for Din Rail		5,12,24,48V

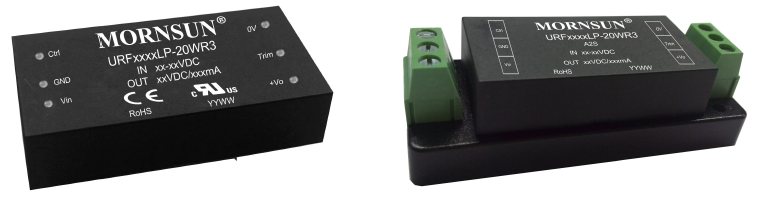

URA/URB Series	up to 30W		DC/DC converters with 9-36V; 18-75V; 18-36V; -40-85°C Temp. Range		3,3.5,9,12,15,24V

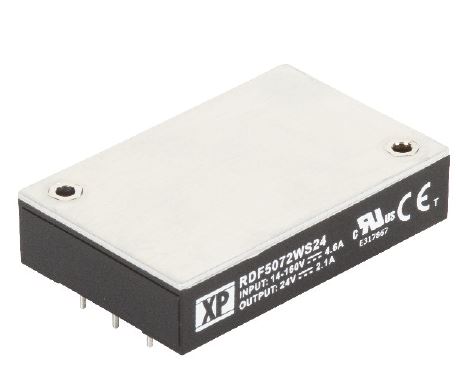

RDF50	50W		12:1 Eingang 14-160VDC		5V, 12V, 24V, 48V
QSB150	150W		8:1 Eingang 9-75V		12-48V
PV Series	5W-40W		Ultra Wide input voltage Range up to 1500V		5,12,24V

DC/DC Regulator Modules

Portfolio Highlights

• Big portfolio of regulators / Point of Loads in the range of 0,5A to 180A
• Low BOM cost
• Low EMI radiated due to small dimensions and therefore small loops
• Different Inptut votlage range up to 36VDC
• Loop Compensation for stable designs
• Simulation Tool available

Products

Partner	Output Current	Type	Regulated	Input Voltage Range
	500mA-2A	SMD, THT	yes	4,75V-36V 6-36V 4,75-18V
	2A,3A,6A,12A,20A,40A,80A,170A	SMD, THT	yes	up to 36V
	500mA	SMD, THT	yes	up to 34V

Special requirement check on request
For details click to the company logo

Product Highlights

Name	Output Current/Power	Partner	Benefit	Product
Femto Serie	3A and 6A versions in 6mm x 9mm		Very small PoLs with high current capability Plug and Play modules for fast evaluation and development
PNVTXX Series	Slim Lynx Family up to 12A in 12mm x 12mm		12 x 12 mm Footprint Low EMI generation due to small loops Small board space needed 3mm height 3A,6A and 12A version available Digital Interface as an option
ABXS002	65W Boost Converter		Small dimension 65W with 48Vout

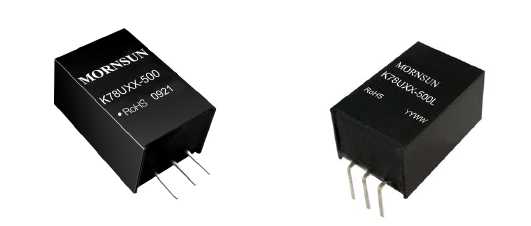

K78UXX-500	9-72VDC Poin t of Load with 500mA		Small dimension Very big input voltage range Miniature SIP Package 95% Efficiency
STR05S1	Small SMD/0,5A output current		Regulated single output Remote ON/OFF 97% Efficiency Trim function 3 year warranty
SRH05	9-72VDC Point of Load with 500mA		3 Pin Switching Regulator SIP Package Ultra Wide Input Range to 72V -40 °C to +85 °C Operation Full Load to 60 °C Ambient Class B Conducted & Radiated Emissions

DC/DC Switching and Linear Regulator ICs

Portfolio Highlights

• Very small DC/DC Converters IC's for Buck, Boost or Buck Boost
• Input Voltage Range up to 40VDC
• Non-synchronous rectification and synchronous rectification
• Big portfolio of LDOs in different packages and output currents
• Output currents from a few mA up to 8A
• Low BOM Cost
• Automotive qualified Converters
• Low Cost LED Driver

Products:

Partner	Output Current Range	Type	Package	Input Voltage Range
	0,3A-20A output current	Buck Integrated Inductor	Div. 2,5mm x 2mm up to 12mm x 12mm	up to 40VDC but normal is 5,5V or 12Vmax. Richtpreis und Aufbau 1A Regler mit 12vin
	0,5-8A output current	Buck Boost Buck Boost LED Driver Linear Regulator	SOT23-6 HSOP8 ESON8 VSP8	up to 40VDC
	0,6-25A output current	Buck	SO-8 SOT-23 DFN 2x2 up to 5x4 QFN 3x3 up to 5x5 TSOT23	up to 36VDC

Special requirement check on request
For details click to the company logo

Product Highlights

Name	Output Current/Power	Partner	Benefit	Product	Package
MUN3CXX Family	0,6A integrated inductor		Vin of 5.5V Vout 1.2 or 1.8V	Richtpreis und Aufbau 1A Regler mit 12vin	2.5mm x 2.5mm
NJW4750	Four channel DC/DC Converter Vin: 3,9-40V		4 channels in on package High input voltage possible of 24VDC Small size Individual use: Selceted DC DC or LDO		EQFN26
40V/45V Low dropout Regulator Series NJW41XX	100mA-1A output current		Vin of 40V Vout tolerance +/-1% Quiesent Current between 15uA and 60uA		SOT89- 3/5 TO-252-5

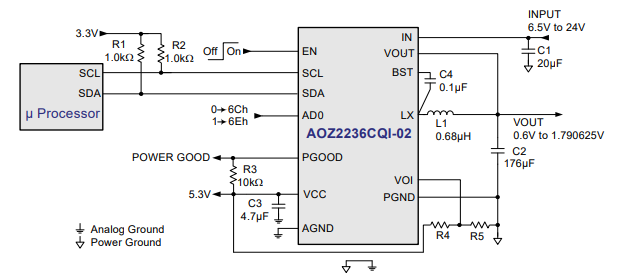

AOZ2236CQI-02	15A output current		An I2C controllable, high efficiency, easy-to-use DC-DC synchronous buck Regulator capable of operation from a 6.5V to 24V input bus		QFN-23L 4x4
AOZ1083CI	1,2A output current		High efficiency, simple to use 1.2 A buck HB LED driver Optimized for general lighting applications		SOT23-6L

SiC Modules

Portfolio Highlights

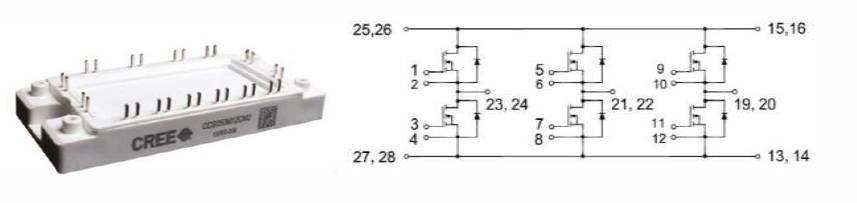

• Half Bride Modules or Six Pack Modules
• Fully SiC Modules
• Different Voltages and Currents available
• Here all SiC Modules (Page 13)

Product Highlights

Name	Current	Partner	Benefit	Product	Voltage
CCS050M12CM2	87A@25°C		• Ultra Low Loss • Zero Reverse Recovery Current • Zero Turn-off Tail Current • High-Frequency Operation • Positive Temperature Coefficient on VF and VDS(on) • Cu Baseplate, AlN DBC		1200V

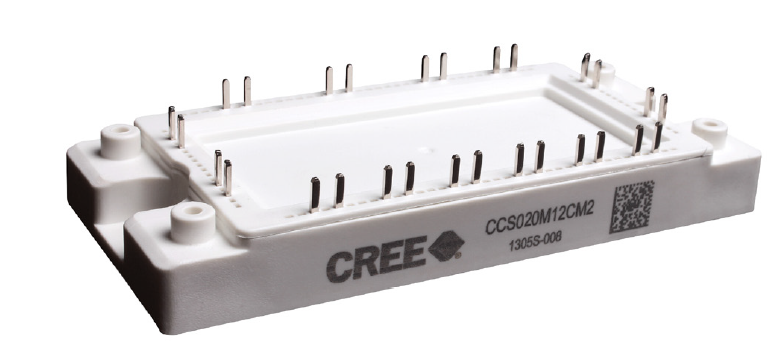

CCS020M12CM2	29.5A@25°C		• Ultra Low Loss • High-Frequency Operation • Zero Reverse Recovery Current from Diode • Zero Turn-off Tail Current from MOSFET • Normally-off, Fail-safe Device Operation • Ease of Paralleling • Copper Baseplate and Aluminum Nitride Insulator		1200V

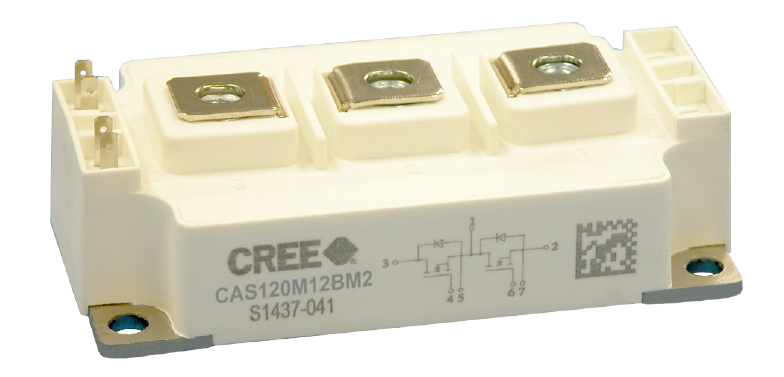

CAS120M12BM2	193A@25°C		• Ultra Low Loss • High-Frequency Operation • Zero Reverse Recovery Current from Diode • Zero Turn-off Tail Current from MOSFET • Normally-off, Fail-safe Device Operation • Ease of Paralleling • Copper Baseplate and Aluminum Nitride Insulator		1200V
CAS300M12BM2	404A@25°C		• Ultra Low Loss • High-Frequency Operation • Zero Reverse Recovery Current from Diode • Zero Turn-off Tail Current from MOSFET • Normally-off, Fail-safe Device Operation • Ease of Paralleling • Copper Baseplate and Aluminum Nitride Insulator		1200V

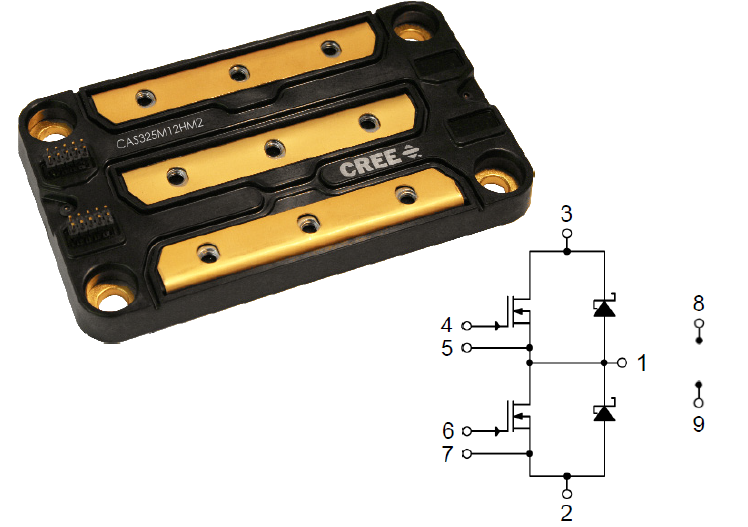

CAS325M12HM2	444A@25°C		• Ultra Low Loss, Low (5 nH) Inductance • Ultra-Fast Switching Operation • Zero Reverse Recovery Current from Diode • Zero Turn-off Tail Current from MOSFET • AlSiC Baseplate and Si3N4 AMB Substrate • Ease of Paralleling • High Temperature Packaging, TJ(max) = 175 °C		1200V
CAB450M12XM3	450A@25°C		• High Power Density Footprint • High Junction Temperature (175 °C) Operation • Low Inductance (6.7 nH) Design • Implements Conduction-Optimized Third Generation SiC MOSFET Technology • Silicon Nitride Insulator and Copper Baseplate		1200V

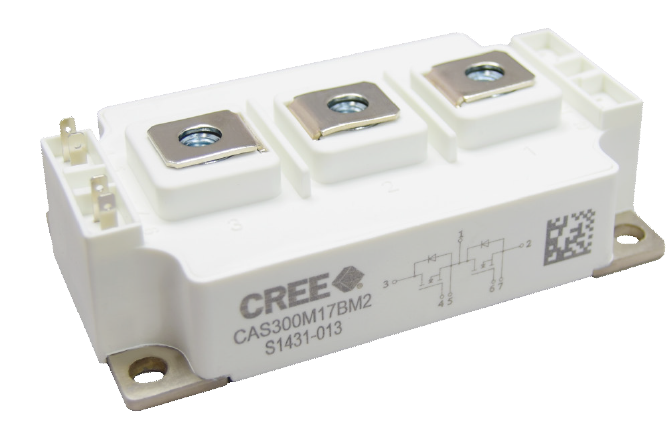

CAS300M17BM2	325A @25°C		• Ultra Low Loss • High-Frequency Operation • Zero Reverse Recovery Current from Diode • Zero Turn-off Tail Current from MOSFET • Normally-off, Fail-safe Device Operation • Ease of Paralleling • Copper Baseplate and Aluminum Nitride Insulator		1700V

See here the newest Cree SiC Modules

SiC Mosfets

Portfolio Highlights

• 650V, 900V, 1000V, 1200V and 1700V types
• Different Packages
• Low RDS On over temperature
• Standard Gate voltages -4V/15V for 3. Generation
• Biggest supplier of SIC products world wide
• Here all SiC MOSFETs (Page 7)

Products:

Partner	Voltage Level	Package	Current
	650V	SMD and THT	up to 120A
	900V	SMD and THT	up to 35A
	1000V	THT 4 Pin Package	uo tp 35A
	1200V	THT 3 Pin and 4 Pin	up to 90A
	Gate Driver Boards and Evaluation Boards	Board	different currents for the boards

Product Highlights

Name	Current	Partner	Benefit	Product	Voltage
C3M0065090J	up to 35A		Package: 7L D2PAK, TO247 and TO220 Blocking Voltage:900 V Current Rating: 22 A RDS (on): 65 mΩ Gate charge total: 30 nC Maximum junction temperature: 150 °C Reverse-Recovery Charge (Qrr): 131 nC Reverse-Recover Time (Trr): 16 ns		900V
CRD8FF1217P	up to 36A		The evaluation (EVL) board can be used for the following purposes: •Evaluate the SiC MOSFET performance during switching events and steady state operation. •Easily configure different topologies with SiC MOSFET and SiC diodes •Functional testing with SiC MOSFET, for example double pulse test to measure switching losses (Eon and Eoff) •PCB layout example for driving the wolfspeed MOSFET •Gate drive reference design for a TO-247 packaged wolfspeed MOSFET •Comparative testing between wolfspeed devices and IGBTs		1200V MOSFETs and diodes
C2M1000170J	up to 5A		Features:     • High blocking voltage with low RDS(on)     • Low parasitic inductance     • Separate driver source pin     • Ultra-low drain-gate capacitance     • Halogen Free, RoHS compliant Applications:   • Auxiliary power supplies    • Switch Mode Power Supplies     • High-voltage capacitive loads		1700V
CRD5FF0912P	up to 35A		Platform to test C3M 900V and 1200V devices in D2PAK-7L • Example for Uni-polar and Bi-polar output gate drive circuit • Desat implementation example • Optimal gate drive layout • Evaluate Switching characteristics • Optimal cooling for D2Pak-7L devices • Study effects of snubber, Cgs and Rg • Easy access to Id, Vgs and Vds waveforms • Easily construct a working prototype in multiple applications		900V

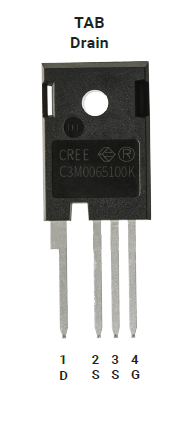

C3M0065100k C3M0120100K C3M0075120K	35A 22A		• New C3MTM SiC MOSFET technology • 4 Pin TO247 Package with Kelvin Connection • Optimized package with separate driver source pin • 8mm of creepage distance between drain and source • High blocking voltage with low on-resistance • High-speed switching with low capacitances • Fast intrinsic diode with low reverse recovery (Qrr) • Halogen free, RoHS compliant		1000V

• Special requirement check on request
• For details click to the company logo
• See here the newest Cree MOSFETs

SiC Diodes

Portfolio Highlights

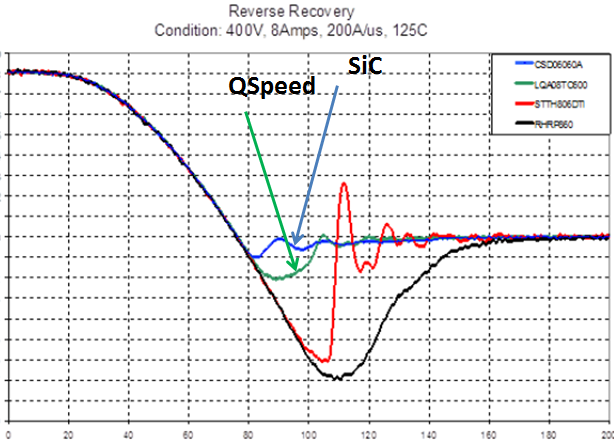

• Zero Reverse Recovery Current from Diode
• Big portfolio of 1200V/600V/650V/1700V diodes
• Replace Bipolar with Unipolar Rectifiers
• Essentially No Switching Losses
• Higher Efficiency
• Reduction of Heat Sink Requirements
• Parallel Devices Without Thermal Runaway
• Here all SiC Diodes from Wolfspeed (Page 10)

Products:

Partner	Voltage Level	Package	Current
	600V	TO247-3; TO263-3; TO220-2; TO252-2; QFN; Bare Die	1A-20A
	650V	TO247-3; TO220-2; TO252-2; TO220 isolated; Bare Die	2A-50A
	1200V	TO247-3; TO220-2; TO252-2; Bare Die	2A-50A
	1700V	TO247-2; Bare Die	10A-50A
	600V	TO247; Bare Die	4A-30A
	1200V	TO247; Bare Die	2A-50A

Product Highlights

Name	Current	Partner	Benefit	Product	Voltage
CVFD20650A	20A		Features: Ultra Low Vorward Voltage Drop (~1,4V@25°C), 650V, 20A, TO-220)		650
C3D16065A	16A		• 650 Volt Schottky Rectifier • Zero Reverse Recovery Current • Zero Forward Recovery Voltage • High-Frequency Operation • Temperature-Independent Switching Behavior • Extremely Fast Switching • Positive Temperature Coefficient on VF		650V

• Special requirement check on request
• For details click on the company logo
• See here the newest Cree Diodes

Si Schottky and Ultra Fast Diodes

Portfolio Highlights

• Big Portfolio of Diodes in different sizes
• From 5A to 75A
• 40V up to 1200V Breakdown Voltage
• SMD and THT
• Former ONSEMI parts now Littelfuse Parts



• Former NXP/Philips parts now WeEn parts



• Ultra Low Forward Voltage Drop
• AEC-Q qualified
• High frequency operation

           Applications:

• Output rectifiers in switch mode power supplies (SMPS) and DC to DC converters
• Free-wheeling diode or boost diode in converters and motor control circuits
• Anti-parallel diode for high frequency switching devices such as IGBT

Products:

Partner	Range	Type and Current	Package	Voltage Range
	Ultra Fast Diodes Fast Diodes	H Serie 600V Ultra Fast Q Serie 150V-600V Fast X Serie 600V Fast Qrr from 5nC to 51nC See Details: SiC or QSpeed? For PFC Stages		150-600V
	Schottky Diodes	WNS Series 10A-40A Typical Application		100V
	Ultra Fast Diodes	SABER Super Advanced Best Efficiency Rectifier 4A -75A BYC Family for PFC Stages		600V-1200V
	Schottky Diodes	Bare Die, SMD & THT 15mA-75A		20V-100V

Special requirement check on request
For details click to the company logo

TVS Diodes

Portfolio Highlights

• Low incremental surge resistance
• Unidirectional and Bidirectional polarities available
• Reverse standoff voltages range from 1.8V to 330V
• Peak power ratings to 250W
• High current protection available - 1kA, 3kA, 6kA, 10kA and 15kA

Products*:

Partner	Package Type	Reverse standoff Voltage	Peak Pulse Power Range(Ppp)	Series Name
	Div. Package Types (e.g. SMA, SMB, SOD-123, SOT-26, DO-15 etc.)	1.8-330	250W	Div. Series Names

* just a selection, for all TVS Diodes see selector Guide

Capacitors

Portfolio Highlights

• Extended Temperature
• Ultra-Low Impedance
• Direct Mount
• Super Capacitor / EDLC components up-to 165 Farads
• Custom supercapacitor / EDLC modules in virtually any voltage or capacitance
• Free Samples with Temperature sensing

Products:

Partner	Type	Product	Advantage
	Aluminium Electolytic		- Screw Terminal - Snap in - Flatpack - Axial and Radial - SMT
	DC Film		- DC Link - Snubber - Axial and Radial - SMT
	AC & DC Oil-Filled		- 1Ph and 3Ph - Harmonic Filters - Power Conversion - Motor Run - HID Lighting
	Mica		- RF Dipped - RF Clad - SMT - Transmitting

Product Highlights

Name	Capacitance	Partner	Benefit	Product	Voltages
THA/ THAS	60 μF to 18000 μF		highest energy density Size		10 Vdc to 450 Vdc
HHT	470 µF to 4700 µF		Only aluminum electrolytic on the market with 175 ºC performance		16 Vdc to 40 Vdc
MLSH	120 µF to 3,200 µF		The World's only Hermetic Aluminum Electrolytic Capacitor		up to 250 Vdc
AFK_V	10 μF to 6,800 μF		up to 30g shock resistant		6.3 Vdc to 100 Vdc

Power MOSFETs

Please follow this Link.

Transformers and EMI chokes

Portfolio Highlights

• Big Portfolio of FLyback transformers
• PFC chokes
• LLC converter
• EMI chokes
• Voltage Ripple Chokes
• Common Mode Chokes
• Transformers up to your needs (Windings/inductance/turns ratio/bobbins)
• 90% are customized
• For EMI chokes and CMC chokes their is a big standard portfolio

Products:

Partner	Types	SMD or THT	Isolation	Applications
	Flyback Transformers From EE12.6- EE16/20/25/30 ... ETD cores / RM Cores	both	Basic isolation Functional isolation Reinforced isolation	AC/DC Flyback solutions AC/DC Flyback solutions with Power Integrations
	PFC chokes	THT	no isolation	PFC Stages in general with different Controllers PFC stages with Power Integrations
	LLC Converter transformers	THT	Basic isolation Functional isolation Reinforced isolation	LLC Converters with different Controllers
	EMI chokes	SMD and THT	no isolation	EMI Filter for differential Mode
	Common Mode Chokes	THT	no isolation	EMI Filter for Common Mode
	Ripple Chokes	SMD and THT	no isolation	Reducing the output voltage Ripple of the AC/DC or DC/DC converter

• Special requirement check on request
• For details click on the company logo

EMI Filters

Portfolio Highlights

• Small Formfactors
• Low cost
• Plug and Play Filter
• Easy to use
• Big portfolio from small DC/DC filters up to 3 Phase Filters

Products:

Partner	Filter Range	Type	Form factor
	up to 2500A	AC/DC / DC/DC Filters for industrial applications Medical Filters Single and Three Phase Filters	div div
	18-75VDC up to 20A	DC/DC Filter for PCB Board mounting	1" x 1"
	18-75VDC up to 3A	DC/DC Filter for PCB Board mounting	1" x 1"

Product Highlights

Name	Type	Partner	Benefit	Product
DSCxx Family	Single Phase EMI filters		Small Formfactor Low Cost
RPxx Family	Three Phase EMI Filters		3 Phase Filter Easy mounting
LCR Family	IEC Inlet Filters		Small IEC inlet Integrated Filter
LCR Family	Medical Grade EMI Filters		Special for medical Applications
RPxx Family	Inverter EMI Filters		Special for Inverters
FI-B03D	DC/DC small Filters for PCB mounting		For every DC/DC application Plug and Play No discrete components EN55022 complaint Up to 3A Typical Application
FLT007 FLT012 FLTR75 FLTR100V10 FLTR100V20	DC/DC small Filters for PCB mounting		For every DC/DC application Plug and Play No discrete components EN55022 complaint UP to 20A Order your sample Typical Application

• Special requirement check on request
• For details click on the company logo

Power over Ethernet

For details follow the links:

PoE-Systems

Fiber Optical Transceiver for Single and Multi Mode Fiber

Portfolio Highlights

• Industrial Temperature Range (up to +105°C)
• Focus on Industrial Applications: Renewable Energy, Smart Grid, Transportation, Medical, Industrial Automotive
• OEM Labeling and customization available

Products:

Partner	Typ	Data Rate	Form Factor	Reach	Temperature
	Copper	10/100Base-T 10/100/1000Base-T 1000Base-T	SFP-T	0-100m	0°C to 70°C -40°C to +85°C
		2.5GNBase-T 5GNBase-T 10GBase-T			0°C to 70°C
	Unidirectional	125M / 155M / OC3 622M / OC12 1.25G / Fast Ethernet	1x9 2x5 SFP / SFP+	550m (MM) - 80km (SM)	0°C to 70°C -40°C to +85°C
		2.5G/OC48	SFP / SFP+	5km (MM) - 80km (SM)
		10G	SFP / SFP+ XFP	300m (MM) - 80km (SM)
		40G	QFSP	150m (MM) - 10km (SM)	0°C to 70°C
	Bidirectional	125M / 155M / OC3 1.25G / Fast Ethernet	1x9 2x5	500m (MM) - 120km (SM)	0°C to 70°C -40°C to +85°C
		2.5G/OC48	SFP / SFP+	20km (SM) - 120km (SM)
		10G	SFP / SFP+ XFP	10km (SM) - 60km (SM)
	CWDM / DWDM	125M / 155M / OC3	1x9 2x5	1270nm - 120km	0°C to 70°C
		1.25G / Gigabit Ethernet	1x9 2x5 SFP / SFP+	1270nm - 100km
		2.5G/OC48	SFP / SFP+	1270nm - 80km
		10G	SFP / SFP+ XFP	1270nm - 80km

Optical Transceiver for POF and PCS

Portfolio Highlights

• Broad Range of custom specific Products
• 100% drop in compatible and interoperable with AVAGO VersatileLink
• Transmitter with 20-years guaranteed life time and optimized coupled optical power due to use of RCLED
• 3.3V and 5.0V operation (dual Voltage)
• Receiver with superior EMI/noise immunity due to use of integrated PD (photo diode)
• Transmitter & Receiver with flame retardant (UL 94 V-0) connector housing

Products:

Partner	Type	Data Rate	Orientation	Supply Voltage	Temperature
	RedLink® Transmitter + Receiver	DC to 1/5/10/50 MBd Analog	Horizontal Vertical Tilted	Analog 3,3V 5V	-40°C to +85°C
	OptoLock® Transceiver	DC - 50 MBd 10 - 125/250 MBd	Horizontal	Analog 3,3V 5V	-40°C to +85°C
	LC Transceiver	DC - 50 MBd 10 - 125/250 MBd	Horizontal	Analog 3,3V 5V	-40°C to +85°C

• Broad range of Cable Assemblies, Accessories and Plugs
• Special requirement check on request
• For details click to the company logo

Ethernet PHYceiver

Portfolio Highlights

• World's most accurate IEEE1588 timestamping
• World's most advanced 256-bit AES MACsec security
• Energy-efficient Ethernet (802.3az)
• Fiber and UTP
• Single Pair Ethernet

Products:

Partner	Speed	MAC Interface	I/O Voltage	Timing Support	Ports	Temperature
	Fast Ethernet 1G Ethernet 2.5G Ethernet	SGMII RGMII GMII RMII MII	1.8V/1.5V 3.3V	IEEE 1588	1	C-Temp and I-Temp
!!! NEW !!! Single Pair Ethernet	100BASE-T1 10Mbps long distance 100Mbps long distance	RMII MII			1	C-Temp and I-Temp

Product Highlights:

Name	Speed	Partner	Benefit	Product
RTL8201G			-MII(5x5mm QFN32) and RMII(4x4mm QFN24) -supporting modes and cable length: -IEEE 802.3/802.3u support (Traditional Fast Ethernet) -IEEE 100BASE-T1 100Mbps@300meters for Cat 5e (1 pair) 100Mbps@500meters for Coaxial (75-5)                   @300meters for Coaxial (75-3) -Realtek Long Distance Tech: LD10: 10Mbps@1000meters for Coaxial (75-5) LD10: 10Mbps@800meters for Cat 5e (1pair) LD100: 100Mbps@500meters for Cat 5e (2pairs)
RTL82216B/ RTL8221B(I)	2.5G Ethernet		-SyncEthernet and 1588v2 support -6x6mm QFN48 package -SGMII, HiSGMII, 2500Base-X - Interface -22nm process with ultra low power consumption

Ethernet Switch Controller

Portfolio Highlights

• World's most accurate IEEE1588 timestamping
• World's most advanced 256-bit AES MACsec security
• Efficient Ethernet (802.3az)
• Fiber und UTP integrated PHYs
• Extended Temperature
• Single Pair Ethernet

Products:

Partner	Ports	Data Rate	Timing Support	Use Case
	3 5 8 16 24	Fast Ethernet Gigabit Ethernet		Unmanaged C-Temp and I-Temp
!!! NEW !!! Single Pair Ethernet	8 24	100BASE-T1 10Mbps long distance 100Mbps long distance		-IEEE 802.3/802.3u support (Traditional Fast Ethernet) -IEEE 100BASE-T1 100Mbps@300meters for Cat 5e (1 pair) 100Mbps@500meters for Coaxial (75-5) 100Mbps@300meters for Coaxial (75-3) -Realtek Long Distance Tech: LD10: 10Mbps@1000meters for Coaxial (75-5) LD10: 10Mbps@800meters for Cat 5e (1pair) LD100: 100Mbps@500meters for Cat 5e (2pairs)

Product Highlights:

Name	Ports	Partner	Product	Benefit
RTL8326H(I)	8 16 24			-8/16/24-port Single Pair Ethernet Switch with Long Distance Feature -supporting modes and cable length: -IEEE 802.3/802.3u support (Traditional Fast Ethernet) -IEEE 100BASE-T1 100Mbps@300meters for Cat 5e (1 pair) 100Mbps@500meters for Coaxial (75-5)                   @300meters for Coaxial (75-3) -Realtek Long Distance Tech: LD10: 10Mbps@1000meters for Coaxial (75-5) LD10: 10Mbps@800meters for Cat 5e (1pair) LD100: 100Mbps@500meters for Cat 5e (2pairs)

Ethernet Controller (NIC)

Portfolio Highlights

• Lowest Power Consumption
• Smallest Package and smallest BOM
• I-Temp available
• programmable plug-in modules with serial interface

Products:

Partner	Data Rate	Interface
	Fast Ethernet 1G Ethernet 2.5G Ethernet	PCIe USB2.0 USB3.0
Partner	Typ	Package
	Programmable embedded Ethernet Controller Modules	Plug-in PCB solution

Product Highlights

P/N	Partner	Features	Product
RTL8125		2.5 Gigabit Ethernet PCIe 2.0 QFN88
RTL8156		2.5 Gigabit Ethernet USB3.0 QFN88 I2C-Interface
TPS Tibbo Project System		highly configurable and affordable automation platform Configure your own modular programmable Ethernet & I/O controller
EM500		programmable Ethernet Controller (Tibbo-Basic or C) 1x serial interface 8x I/O 100 BaseT
EM1000		programmable Ethernet Controller (Tibbo-Basic or C) 4x high speed serial interface 53x I/O 100 BaseT

Real-Time Ethernet

Portfolio Highlights (EtherCAT)

• 100% Beckhoff compatible (Beckhoff code)
• integrated Multi Function and Control I/O Block (MFCIO) for Motion Control or Sensors
• Beckhoff licence clearing done by Trinamic
• TMC8462 with integrated PHYs: smallest available solution (9x9mm)
• World's first EtherCAT Slave Controller with Latency free advanced I/O peripherals

Products

Partner	Type	Features
	EtherCAT Slave Controller	with integrated Multi Function and Control I/O Block (MFCIO) for Motion Control or Sensors
	SOM	cost effectiv and easy to integrate one module for all market leading real-time communication systems open interfaces for more flexibly in the connector area works with RJ45, M12, M8 or MiniIO

Product Highlights

P/N	Interfaces	Features	Package
TMC8461-BA
	2x MII (PHY) IIC SPI Master Interface ABN encoder IN (differential) 3x Step/Direction OUT 4x PWM OUT 1x DAC OUT 24x Multi Function I/O 8x 100mA HV I/Os	EtherCAT slave controller with latency free I/O peripherals: 8x FMMU 8x Syncmanager 16k Process Data RAM 64bit Distributed Clocks 30Mbit/s SPI Process Data Interface 16/25MHz Clock Output	LGA144 10x10mm 0,8mm pitch
TMC8462-BA
	2x PHY IIC SPI Master Interface ABN encoder IN (differential) 3x Step/Direction OUT 4x PWM OUT 1x DAC OUT 24x Multi Function I/O 8x 100mA HV I/Os	EtherCAT slave controller with latency free I/O peripherals: integrated PHYs 8x FMMU 8x Syncmanager 16k Process Data RAM 64bit Distributed Clocks 30Mbit/s SPI Process Data Interface 16/25MHz Clock Output	LGA121 9x9mm 0,75mm pitch

RJ45 Jacks with Transformer

Portfolio Highlights

Partner	Benefit
	Strong Customization capabilities Low Cost Fast Delivery NO EOLs! Magnetices Expert THR Products (Through Hole Reflow)
	Wide Standard Portfolio Low Cost Fast Delivery Connector Expert

Product Highlights:

Partner	Data Rate	Product	Packages
	10Gb/s 1Gb/s Fast Ethernet		1x1 - 1x2 - 2x1 - 1x4 - 2x4 - 1x8 - 2x8 With LEDs or without EMI Fingers as an option SMD for 1x1 as an option Tap-up or Tap-down Side or Top Entry POE (+) Complaint
	1Gb/s Fast Ethernet		1x1 - 1x2 - 2x1 - 1x4 - 2x4 - 1x8 - 2x8 With LEDs or without EMI Finger as an option SMD for 1x1 as an option Tap-up or Tap-down Side, 45 angle or Top Entry

RJ45 Jacks without Transformer

Portfolio Highlights

Partner	Benefit
	Wide Standard Portfolio Low Cost Fast Delivery Connector Expert Very Flexible

Product Highlights:

Partner	Product	Packages
		1x1 - 1x2 - 2x1 - 1x4 - 2x4 - 1x8 - 2x8 With LEDs or without EMI Finger as an option SMD for 1x1 as an option Tap-up or Tap-down Side, 45 angle or Top Entry

M8 / M12

Portfolio Highlight

Partner	Benefit
	Wide Standard Portfolio Low Cost Fast Delivery Connector Expert Very Flexible

Product Highlights:

Partner	Product	Picture	Specifications
	M8 Waterproof Connector	Waterproof M8 Male	Female and Male M8 Waterproof Connectors IP Grade: IP68 Plastic Housing: Engineering Thermoplastic Flammability rating UL94V-0 Contacts: Cooper Alloy Plating: Gold plating over nickel in contact O-Ring: Silicone Rubber Black Color Shield: Brass with nickel plated Coupling Nut: M8 x 1 Brass with Nickel Plated Cable: UL2464 22AWG, OD 5.4mm, Color Black
	M12 x-code Waterproof Connector		Plastic Housing: Engineering Thermoplastic Flammability rating UL94V-0 Contacts: Cooper Alloy Plating: Gold plating over nickel in contact O-Ring: Silicone Rubber Black Color Shielded: Brass with nickel plated Cable: UL2464 22AWG, OD 5.4mm, Color Black Current Rating: 4A (2 to 5Pin), 2A (6 to 8Pin), 1.5A (9 to 12Pin) Insulation Resistance: 108 mΩ
	M12 A-code Waterproof Connector	M12 A-code Female	Female and Male M12 A-code Waterproof Connectors Plastic Housing: Engineering Thermoplastic Flammability rating UL94V-0 Contacts: Cooper Alloy Plating: Gold plating over nickel in contact O-Ring: Silicone Rubber Black Color Shielded: Brass with nickel plated Cable: UL2464 22AWG, OD 5.4mm, Color Black Current Rating: 4A (2 to 5Pin), 2A (6 to 8Pin), 1.5A (9 to 12Pin) Insulation Resistance: 108 mΩ
	M12 D-code Waterproof Connector	M12 D-code Female	Female and Male M12 D-code Waterproof Connectors Plastic Housing: Engineering Thermoplastic Flammability rating UL94V-0 Contacts: Cooper Alloy Plating: Gold plating over nickel in contact O-Ring: Silicone Rubber Black Color Shielded: Brass with nickel plated Cable: UL2464 22AWG, OD 5.4mm, Color Black Current Rating: 4A (2 to 5Pin), 2A (6 to 8Pin), 1.5A (9 to 12Pin) Insulation Resistance: 108 mΩ
	M12 Y-code Waterproof Connector		Plastic Housing: Engineering Thermoplastic Flammability rating UL94V-0 Contacts: Cooper Alloy Plating: Gold plating over nickel in contact O-Ring: Silicone Rubber Black Color Shielded: Brass with nickel plated Cable: UL2464 22AWG, OD 5.4mm, Color Black Current Rating: 4A (2 to 5Pin), 2A (6 to 8Pin), 1.5A (9 to 12Pin) Insulation Resistance: 108 mΩ
	M12 Cap Waterproof Connector		Plastic Housing: Engineering Thermoplastic Flammability rating UL94V-0 IP Grade: IP68

Ethernet Transformer

Portfolio Highlights

Partner	Benefit
	Strong Customization capabilities Low Cost Fast Delivery NO EOLs! Magnetices Expert

Product Highlights:

Partner	Data Rate	Product	Packages
	10Gb/s 1Gb/s Fast Ethernet		PoE (+) Compliant Multiple Channels Lowest Cost Various Packages

Ethernet Converter

Portfolio Highlights

• Programmable Ethernet to Serial Converter
• Embedded Modules
• Device Server Systems
• Tibbo Project System TPS
• Tibbo BASIC or C programmable

Products

Partner	Type	Features
	Ethernet to Serial Converter	Programmable

Product Highlights

P/N	Interfaces	Features	Size
EM203+RJ203
	1x Serial Interface	220mA / 5V RJ45	30,1 x 18,1 x 12,5 [mm]
EM500
	1x Serial Interface	8 x I/O 260mA / 3,3V RTC	18,5 x 16 x 6,5 [mm]
EM1000
	4x High Speed Serial Interface	53 x I/O 230mA / 3,3V RTC	19 x 17 x 14 [mm]
DS1100
	1x Serial Interface	12V (9V...18V)	90 x 48 x 25 [mm]
TPS: Tibbo Project System
	depending on selection of Tibbits	Flexible and modular Project system: Application can be defined by choosing Tibbitfunctionmodules and baseboards	90 x 48 x 25 [mm]

Industrial Interface Transceivers

Products:

Partner	Product Family	General Informations	Product
	CAN Bus Transceiver RS485	Signal Transmitter Communication Interface Module Built in DC/DC Converter
	CAN Bus Transceiver RS232	Signal Transmitter Communication Interface Module Built in DC/DC Converter

Product Highlights

Partner	Products	Product Family	Nodes	Rate
	TD301/501D485 TD301/501D485H TD312/512P485	RS485	32	Up to 9,6Kbps
	TD301/501D485H-A TD301/501D485H-E TD_11D485H TD312/512P485H TD31I/51IP485H	RS485	32	Up to 115,2 Kbps
	TD301/501D232H TD302/502D232H	RS232	/	Up to 115,2Kbps
	TD301/501DCAN TD302/502DCAN TD301/501DCANH2 TD301/501DCANH3	RS232	110	Up to 1Mbps

PoE Systems

Portfolio, Products & Highlights

Single Port Indoor Midspans Multi-Port Indoor Midspans PoE-Switches Outdoor Midspans, Hubs & Switches All products support 1GBit

Details: Single Port Indoor Midspans Multi Port Indoor Midspans PoE Switches Splitter

IoT Solutions

Portfolio Highlights

• Chipset and module based solutions
• Commercial and industrial temperature range
• WiFi, Bluetooth, ZigBee and LTE CAT NB1 to CAT 4
• SMT and connectorized solutions

Products

Partner	Benefit
	- Wireless SiP modules - 802.11b/g/n and 802.11a/b/g/n - Bluetooth Classic and BLE/ Bluetooths Smart (4.1, 4.2, 5.0) - Sigfox - certified - UART, SDIO, SPI interfaces - Commercial and industrial products
	- WiFi BT and BLE solutions - Chip based solution - Low Cost - Low Power - Extended temperature range
	- WiFi - Industrial temperature range - Gateway devices - small footprint - long lifecycle
	- LTE CAT NB1 to CAT 4 IoT modules - Integrated eSIM - Global Coverage - Hubble99 Management Cloud

Product Highlights

Partner	Product	Function	Pictures	Interface	Additional Features
	C10GS	LTE CAT1 or CAT 4		USB2.0, UART, SPI, I2C, USIM, GPIO, SDIO, PCM, GMII/RGMII	LTE CAT 1 upgradable to CAT 4 LGA package, 37 x 21.8 x 2.8 mm Operating Voltage 3.6V to 4.5V Operating temperature up to -40°C to +85°C TCP/IP/HTTP/HTTPS/MQTT/MQTTS/FTP/FTPS Optional GNSS support
	C42GM	LTE CAT M1 or NB1		USB2.0, UART, USIM, GPIO, PCM, I2C, ADC, CAN Bus	LTE CAT M1 or NB1 upgradable to NB2 LGA package, 26.5 x 22.5 x 2.3 mm Operating Voltage 3.1V to 4.2V Operating temperature up to -40°C to +85°C MQTT/MQTTS/TCP/HTTP/HTTPS/FTP/FTPS Optional GNSS support
	ZB7412-00	Bluetooth 4.2/5.0		UART	TI CC2640R2F with Cortex-M3 LGA 25 pin package 16.9mm(L) x 11mm(W) x 2.45mm(H) Integrated antenna Operating temperature -40°C - +85°C
	WG7837-V0	WiFi+BT/BLE		SDIO	802.11a/b/g/n BT/BLE TI CC2640R2F with Cortex M3 2.4 GHz 2T2R 5 GHz 1T1R LGA 100 pin package 13.3mm(L) x 13.4mm(W) x 2.0mm(H) -40°C - +85°C
	WS2118-00	Sigfox+BLE		UART, SPI, I2C	Sub-1GHz - Sigfox BLE Stamp-hole 38 pin package 22 mm x 24 mm x 2.8 mm -40°C - +85°C
	RTL8195AM	Wifi 802.11b/g/n		SDIO / USB / UART / SPI / I2C / I2S	Cortex M3 166Mhz Ethernet MII/RMII NFC Tag Audio: ADC/DAC
	RTL8711AM	Wifi 802.11b/g/n		UART / SPI / I2C / I2S	Cortex M3 166Mhz Audio: ADC
	RTL8710BN	Wifi 802.11b/g/n		UART / SPI / I2C	ARM Cortex M4 125Mhz Audio: ADC
	RTL8711BU	Wifi 802.11b/g/n		USB / UART / SPI / I2C / I2S	ARM Cortex M4 125Mhz Audio: ADC
	RTL8761B	BT5.0 Dual Mode		USB / UART	HCI communication with Host CPU
	RTL8762C	BT5.0 LE		I2C / SPI / UART / I2S / PWMx8	Cortex M4 Voice ADC for Voice Search
	RTL8763B	BT5.0 Dual Mode		SPDIF TX / UART / SPI / PCM / I2C / I2S	Lowest Active Power Consumption Open SDK Platform

WLAN 802.11 Modules

Portfolio Highlights

• Modules for 802.11ax/ac/a/b/g/n
• Commercial and industrial temperature range
• Long Lifecycle
• Linux, Windows and Android support
• Modules with internal uC
• Certification support

Products

Partner	Benefit
	- Mini PCI Express WiFi Interface - 2.4 GHz and 5 GHz frequency bands - 802.11a/b/g/n and 802.11ac Wave I/Wave II technology - Industrial Temperatur Range and long term availability - High power modules - Embedded Boards - Custom modification
	- USB, M.2 or mini PCI Express WiFi Interface - 2.4 GHz and 5 GHz frequency bands - 802.11ac/a/b/g/n and new 802.11ax/WiFi 6 technology - printed or external antennas - Industrial Temperatur Range and long term availability
	- Wireless SiP modules - 802.11b/g/n and 802.11a/b/g/n - Bluetooth Classic and BLE/ Bluetooths Smart (4.1, 4.2, 5.0) - Sigfox - UART, SDIO, SPI interfaces - Commercial and industrial products

WLAN Request Form

Product Highlights

Partner	Product	Function	Pictures	Interface	Additional Features
	WPEQ-268AXI(BT)	WiFi 6/6e + BLE		Mini PCIe	Tri-Band Dual-Concurrent 2T2R -40°C - +75°C Linux, Windows support 2 U.FL connectors CE, FCC, IC, MIC certification
	WNFQ-268AXI(BT)	WiFi 6/6e + BLE		M.2	Tri-Band Dual-Concurrent 2T2R -40°C - +75°C Linux, Windows support 2 MHF4 connectors CE, FCC, IC, MIC certification
	WNFT-238AX(BT)	WiFi 6 + BLE		M.2	Dualband 2T2R 0°C - +70°C Linux, Android support 2 x IPEX MHF4 connectors CE, FCC, IC, MIC, Australia certification
	WMX7203	WiFi 6 + BT5.2		Mini PCIe	WCN6856/QCA2066 2T2R -30°C to +85°C Windows and Linux Support CE, FCC, IC certification Half and Full Mini Card available
	WMX7205	WiFi 6 + BT5.2		M.2	WCN6856/QCA2066 2T2R -30°C to +85°C Windows and Linux Support CE, FCC, IC certification
	WMX6218	WiFi 5 + BT5.0		Mini PCIe	RTL8822CE 2T2R -40°C to +85°C Windows,Linux & Android Support CE, FCC, IC certification
	WMX6219	WiFi 5 + BT5.0		Mini PCIe	RTL8822CE 2T2R -40°C to +85°C Windows, Linux & Android Support CE, FCC, IC  + 100 certification
	WMU6204	WiFi 5 + BT4.2		USB	RTL8822BU 2T2R -20°C to 70°C Windows, Linux , Android Support
	WMX6401	WiFi 5		Mini PCIe	4T4R MU-MIMO QCA9984 Standard Mini PCIe -20°C - +85°C 20 dBm @ 2,4 GHz, 21 dBm @ 5 GHz Linux Driver Support
	WG7837-V0	WiFi+BT/BLE		SDIO	802.11a/b/g/n BT/BLE TI CC2640R2F with Cortex M3 2.4 GHz 2T2R 5 GHz 1T1R LGA 100 pin package 13.3mm(L) x 13.4mm(W) x 2.0mm(H) -40°C - +85°C

WLAN 802.11 ICs

Products

Partner	Function	Interface
	4x4 802.11ac / 2x2 802.11ac / 1x1 802.11ac	PCIe / USB / SDIO
	4x4 802.11bgn / 2x2 802.11bgn / 1x1 802.11bgn

Bluetooth Modules

Products:

Partner	Benefit
	- Mini PCI Express WiFi Interface - 2.4 GHz and 5 GHz frequency bands - 802.11a/b/g/n and 802.11ac Wave I/Wave II technology - Industrial Temperatur Range and long term availability - High power modules - Embedded Boards - Custom modification
	- USB, M.2 or mini PCI Express WiFi Interface - 2.4 GHz and 5 GHz frequency bands - 802.11a/b/g/n and new 802.11ac technology - printed or external antennas - Industrial Temperatur Range and long term availability
	- Wireless SiP modules - 802.11b/g/n and 802.11a/b/g/n - Bluetooth Classic and BLE/ Bluetooths Smart (4.1, 4.2, 5.0) - Sigfox - UART, SDIO, SPI interfaces - Commercial and industrial products

Product Highlights:

Partner	Product	Function	Pictures	Interface	Additional Features
	ZB7412-00	Wireless MCU Bluetooth 5 low energy		UART	TI CC2640R2F with Cortex-M3 LGA 25 pin package 16.9mm(L) x 11mm(W) x 2.45mm(H) Integrated antenna Operating temperature -40°C - +85°C
	WS2118-00	Sigfox+BLE		UART, SPI, I2C	Sub-1GHz - Sigfox BLE Stamp-hole 38 pin package 22 mm x 24 mm x 2.8 mm -40°C - +85°C
	WS2116-AO	Sigfox+BLE		UART, SPI, I2C	865 to 923 MHz 22.0mm x 22.0mm x 2.8 mm -40°C to +85°C STM BlueNRG-2 + S2-LP chipset Certification: in progress
	WPEQ-268AXI(BT)	WiFi 6/6e + BLE		Mini PCIe	Tri-Band Dual-Concurrent 2T2R -40°C - +75°C Linux, Windows support 2 U.FL connectors CE, FCC, IC, MIC certification
	WNFT-237ACN(BT)	802.11ac/a/b/g/n WiFi + Bluetooth 5.0 M.2 Module, Realtek RTL8822BE, 2T2R		PCIe, Bluetooth	Data Rate: up to 867 Mbps Certifications: CE, FCC, IC, MIC, AS/NZS 0°C to +70°C Support: Android, Windows, Linux
	WMX7203	WiFi 6 + BT5.2		Mini PCIe	WCN6856/QCA2066 2T2R -30°C to +85°C Windows and Linux Support CE, FCC, IC certification Half and Full Mini Card available
	WMX7205	WiFi 6 + BT5.2		M.2	WCN6856/QCA2066 2T2R -30°C to +85°C Windows and Linux Support CE, FCC, IC certification
	WMU6202	IEEE 802.11ac/a/b/g/n BT4.2		USB HMC	Chipset: RTL8822BU Antenna: 2T2R -20°C to 70°C Support: Windows, Linux, Android
	WMU6204-6207	IEEE 802.11ac/a/b/g/n BT4.2		USB	Chipset: RTL8822BU Antenna:2T2R -20°C to 70°C Support: Windows, Linux, Android

WLAN and Bluetooth Combination

Products:

Partner	Benefit
	- USB, M.2 or mini PCI Express WiFi Interface - 2.4 GHz and 5 GHz frequency bands - 802.11a/b/g/n and new 802.11ac technology - Printed or external antennas - Industrial Temperatur Range and long term availability
	- Mini PCI Express WiFi Interface - 2.4 GHz and 5 GHz frequency bands - 802.11a/b/g/n and 802.11ac Wave I/Wave II technology - Industrial Temperatur Range and long term availability - High power modules - Embedded Boards - Custom modification

Product Highlights

Partner	Product	Function	Pictures	Interface	Additional Features
	WPEQ-268AXI(BT)	WiFi 6/6e + BLE		Mini PCIe	Tri-Band Dual-Concurrent 2T2R -40°C - +75°C Linux, Windows support 2 U.FL connectors CE, FCC, IC, MIC certification
	WPEQ-261ACN(BT)	802.11ac/a/b/g/n Wi-Fi+ Bluetooth Half Mini PCIe Module, Qualcomm Atheros QCA6174A-5, 2T2R		PCIe, USB	Data Rate: up to 867 Mbps Certifications: CE, FCC, IC, MIC, AS/NZS, NCC -40°C to +70°C Support: Win7/Win8.1/10, Linux (recommended Kernel V4.0+)
	WNFT-234ACN(BT)	802.11ac/a/b/g/n WiFi + Bluetooth M.2 Module, Realtek RTL8822BE, 2T2R		PCIe, USB	Data Rate: up to 867 Mbps Certifications: in progress 0°C to +70°C Support: Android, Windows, Linux
	WNFT-237ACN(BT)	802.11ac/a/b/g/n WiFi + Bluetooth 5.0 M.2 Module, Realtek RTL8822BE, 2T2R		PCIe, USB	Data Rate: up to 867 Mbps Certifications: CE, FCC, IC, MIC, AS/NZS 0°C to +70°C Support: Android, Windows, Linux
	WMX7203	WiFi 6 + BT5.2		Mini PCIe	WCN6856/QCA2066 2T2R -30°C to +85°C Windows and Linux Support CE, FCC, IC certification Half and Full Mini Card available
	WMX7205	WiFi 6 + BT5.2		M.2	WCN6856/QCA2066 2T2R -30°C to +85°C Windows and Linux Support CE, FCC, IC certification
	WMU6202	IEEE 802.11ac/a/b/g/n BT4.2		USB HMC	Chipset: RTL8822BU Antenna: 2T2R -20°C to 70°C Support: Windows, Linux, Android
	WMU6203	IEEE 802.11ac/a/b/g/n BT4.2		USB M.22230	Chipset: RTL8822BU Antenna: 2T2R -20°C to +70°C Support: Windows, Linux
	WMU6204-6207	IEEE 802.11ac/a/b/g/n BT4.2		USB	Chipset: RTL8822BU Antenna:2T2R -20°C to 70°C Support: Windows, Linux, Android
	JWX6058	IEEE 802.11ac/a/b/g/n BT4.2		Mini PCIe, USB	Chipset: Qualcomm Atheros QCA6174A-5 Antenna 6058: 2T2R -20° to +70°C Support: Linux, Windows

Sigfox

Products:

Partner	Benefit
	- Wireless SiP modules - 802.11b/g/n and 802.11a/b/g/n - Bluetooth Classic and BLE/ Bluetooths Smart (4.1, 4.2, 5.0) - Sigfox - UART, SDIO, SPI interfaces - Commercial and industrial products

Product Highlights:

Partner	Product	Function	Pictures	Interface	Additional Features
	WS2118-00	Sigfox+BLE		UART, SPI, I2C	Sub-1GHz - Sigfox BLE Stamp-hole 38 pin package 22 mm x 24 mm x 2.8 mm -40°C - +85°C
	WS2116-AO	Sigfox+BLE		UART, SPI, I2C	865 to 923 MHz 22.0mm x 22.0mm x 2.8 mm -40°C to +85°C STM BlueNRG-2 + S2-LP chipset Certification: in progress

Antennas / Coaxial Cable

Partner	Benefits
	- Antennas for ISM, 4G/3G/2G, GNSS (GPS, GLONASS, etc.), WiFi, Bluetooth, TETRA, DAB, FM broadcast... - Internal and external antennas - Cable assembly - R&D and production in Slovakia
	- Antennas for 2.4 GHz and 5 GHz applications e.g. Bluetooth, Wifi - Chip Antennas for 2.4 GHz - PCB Antennas for 2.4 GHz - Antennas for GPS, Wimax, LTE etc.

Connectorized Modules

Portfolio Highlights

• Connectorized Amplifiers
• DC-40 GHz
• MIL-STD-220, further testing on request

Products

Partner	Benefits
	- Connectorized amplifiers, switches, attenuators, synthesizers, DC Blocks, etc. - DC-40 GHz - MIL-STD-220 and MIL-STD-883 qualification, further test on demand - suitable for instrumentation, Mil and space - NO ITAR
	- Connectorized amplifiers - DC-40 GHz

Product Highlights

Partner	Product	Function	Additional Features
	QP-AMLNA-0018-01	Wideband LNA 0.1 to 18 GHz	0.1 - 18 GHz 20 dB Gain max. 4 dB Noise Figure min. 15 dBm OP1dB
	QP-AMLNA-1840-02	Wideband LNA 18 to 40 GHz	18 - 40 GHz 14 dB Gain typ. 5.5 dB Noise Figure min. 17 dBm OP1dB
	SAC1173	Power Amplifier 22 -26 GHz	22 - 26 GHz 29 dB Gain 7.5 dB Noise Figure 32 dBm OP1dB

RF & Microwave ICs

Portfolio Highlights

• DC to 67 GHz
• Wide- and Narrowband products
• Amplifiers, Switches, Attenuators, Mixers
• Long term availability
• Custom Designs

Products

Partner	Benefit
	- DC - 27 GHz - Amplifiers, Switches, Attenuators, Tuners, Tunable Filters
	-Wideband Products -DC - 67 GHz -Amplifiers, Switches, Attenuators, Mixers

Amplifiers

Portfolio Highlights

• DC - 96 GHz
• Gain Block / Amplifier, Low Noise Amplifier, Power Amplifier
• Long term availability
• Custom Designs

Products

Partner	Benefit
	-DC - 26,5 GHz -QFN or DFN Package -Gain Block / Amplifier -Strong capabilities in MMIC design (standard and customized)

Product Highlights

Partner	Product	Function	Additional Features
	AM1063	Gain Block	DC - 10 GHz Gain 15 dB NF 2,5 dB 3x3 mm QFN or 1,3 x 2,0 mm DFN Package
	AM1075	Gain Block	5 - 26,5 GHz Bypass Gain 18 dB NF 4 dB 4x4 mm QFN Package

Switches

Portfolio Highlights

• DC - 110 GHz
• QFN Package or Die
• Long term availability
• Custom Designs

Products

Partner	Benefit
	-DC - 26,5 GHz -QFN Package -Strong capabilities in MMIC design (standard and customized)

Product Highlights

Partner	Product	Function	Additional Features
	AM6002A	SPDT	DC - 14 GHz Insertion Loss 2 dB Isolation 30 dB 3 x 3 mm QFN Package
	AM6015	SP6T	DC - 18 GHz Insertion Loss 2 dB Isolation 36 dB 4 x 4 mm QFN Package
	AM6017	SP4T	DC - 26,5 GHz Insertion Loss 2 dB Isolation 30 dB 4 x 4 mm QFN Package

Attenuators

Portfolio Highlights

• DC - 50 GHz
• Digital Attenuator or Analog Attenuator
• Long term availability
• Custom Designs

Products

Partner	Benefit
	-DC - 25 GHz -QFN Package -Strong capabilities in MMIC design (standard and customized)

Product Highlights

Partner	Product	Function	Additional Features
	AM2005	5 Bit Attenuator	DC - 20 GHz Stepsize 1 dB Resolution 5 bits Attenuation Range 31 dB 4 x 4 mm QFN Package

Frequency Conversion

Portfolio Highlights

• DC - 36 GHz
• Mixer or IQ-Mixer
• Long term availability
• Custom Designs

Products

Partner	Benefit
	RF 2 - 36 GHz Mixer or IQ Mixer Bare Die or Package Providing world leading expertise in RF, micro and millimetre-wave technology

Product Highlights

Partner	Product	Function	Additional Features
	SAC3508Q4	Double Balanced Mixer	RF Frequency 2,0 - 6,0 GHz IF Frequency 0 - 2,0 GHz Conversion Loss 8 dB 4mm x4mm QFN
	SAC3515Q5	Double Balanced Mixer	RF Frequency 3,5 - 9 GHz IF Frequency DC - 3 GHz Conversion Loss 8 dB 5mm x 5mm QFN

Filters

Portfolio Highlights

• Tunable High-, Low- and Bandpass Filter
• Switched Filterbanks
• 130 MHz to 26,5 GHz
• SMT component or module

Products

Partner	Benefit
	-Tunable High-, Low- and Bandpass Filter -Analog or digital tuning -Switched Filterbanks -130 MHz to 26,5 GHz -SMT component or module

Product Highlights

Partner	Product	Function	Additional Features
	AM3023B	Switched Filter Bank	Center Frequency 130 - 4900 MHz Cutoff Frequency low 100 MHz Cutoff Frequency high 6 GHz Bypassable amplifier Insertion Loss 7 dB Typ. Rejection 40 dB 20,5 x 20,5 mm Package
	AM3025A	Switched Filter Bank	Center Frequency 500 - 4900 MHz Cutoff Frequency low 400 MHz Cutoff Frequency high 6 GHz Insertion Loss 6 dB Typ. Rejection 40 dB 9 x 9 mm QFN Package
	AM3063	Digital Tunable Filter Bank	Cutoff Frequency low 6 GHz Cutoff Frequency high 18 GHz Insertion Loss 4 dB Typ. Rejection 40 dB 6 x 6 mm QFN Package
	AM3135	Analog Tunable Filter Bank	Cutoff Frequency low 3,5 GHz Cutoff Frequency high 9 GHz Insertion Loss 9 dB Typ. Rejection 50 dB 5 x 5 mm QFN Package
	AM3029	Digital Tunable Lowpass	Cutoff Frequency low 1,5 GHz Cutoff Frequency high 3 GHz Insertion Loss 1 dB Typ. Rejection 50 dB 4 x 4 mm QFN Package
	AM3039	Digital Tunable Lowpass	Cutoff Frequency low 9 GHz Cutoff Frequency high 18 GHz Insertion Loss 1 dB Typ. Rejection 50 dB 4 x 4 mm QFN Package
	AM3110	Digital Tunable Lowpass	Cutoff Frequency low 18 GHz Cutoff Frequency high 26,5 GHz Insertion Loss 2,5 dB Typ. Rejection 40 dB 4 x 4 mm QFN Package
	AM3041	Digital Tunable Highpass	Cutoff Frequency low 6 GHz Cutoff Frequency high 10 GHz Insertion Loss 1 dB Typ. Rejection 50 dB 4 x 4 mm QFN Package
	AM3108	Digital Tunable Highpass	Cutoff Frequency low 12 GHz Cutoff Frequency high 18 GHz Insertion Loss 5 dB Typ. Rejection 50 dB 4 x 4 mm QFN Package
	AM3109	Digital Tunable Highpass	Cutoff Frequency low 18 GHz Cutoff Frequency high 26,5 GHz Insertion Loss 7 dB Typ. Rejection 40 dB 4 x 4 mm QFN Package

Tuner / Receiver

Portfolio Highlights

• Receiver Chipsets and Modules
• 0,1 to 18 GHz
• Highly Integrated

Products

Partner	Benefit
	Highly Integrated receiver chipsets and modules 0,1 to 18 GHz High dynamic range Designed for low size, weight and power (SWaP)

Product Highlights

Partner	Product	Function	Additional Features
	AM9011-1	Receiver Chipset	0,002 - 6 GHz NF 13 dB Bandwidth 80 MHz Analog IF or 14 Bit digital output Power consumption 3,4 W SMT
	AM9017	Receiver Module	0,1 - 18 GHz NF 15 dB Bandwidth 500 MHz Analog IF output Power consumption 4 W SPI control Package size 35,1 x 68,2 x 6,7 mm

Passives

Portfolio Highlights

• SAW Filters
• Fixed and Temperature Compensation Attenuators up to 36 GHz
• Power Splitter/Combiner up to 18 GHz
• Hybrid and Directional Couplers

Products

Partner	Benefit
	- RF SAW Filters up to 2.7 GHz - Custom specification available - Temp Range -40°C to +85°C
	- RF SAW Filters up to 4 GHz - Custom specification available - Temp Range -40°C to +85°C
	Power Splitter/Combiner up to 18 GHz

Product Highlights

Partner	Product	Function	Additional Features
	AM4001	2-Way Power Splitter/Combiner	2 - 18 GHz Insertion Loss 1.7 dB Isolation 20 dB P1dB 27 dBm 4mm QFN package

Silicon Pressure Sensors

Product Highlights

Partner	Product	Pressure Range and Type	Pictures	Interface	Accuracy
	SM9xxx Family	from 1mBar, Differential		I²C bit, 14bit, 16bit.	1% FS
	SMXxxx X = 7,6,5,4 or 1 Families	0,15PSI - 30PSI customized pressure range possible with TailorSense Configurator Gauge, Differential, Asymmetric		I²C bit, 14bit, 16bit, analog.	1% FS Accustable Technology
	IntraSense	-0,8 Bar to +1,7 Bar Absolute		Analog or digital	1% FS Temp: 0 - 105°C

Products:

Partner	Product Families	Pictures	Features:
	Digital and Analog SM9231, SM9331		Pressure: 5mBar Differential Pressure Output: I²C, 14 bit or 16bit and analog Supply: 3,3V
	Digital and Analog SM7xxx, SM6xxx, SM5xxx SM4xxx and SM1xxx		Pressure Range: 10mBar - 2Bar Gauge, Differential, Asymmetric Pressure Output: I²C, 14 bit or 16bit and analog Supply: 3,3V/5V
	Uncompensated SM9G Low Cost!		Pressure Range: 20mBar - 100mBar Gauge, Differential Pressure Output: Analog Supply: 0 - 10V
	Uncompensated SM5G Low Cost!		Pressure Range: 300mBar - 5Bar Gauge, Differential Pressure Output: Analog Supply: 0 - 10V
	Uncompensated SM5420 Low Cost!		Pressure Range: 2Bar - 7,5Bar Absolute Pressure Output: Analog Supply: 0 - 10V

Pressure Sensor Overview! LINK

Temperature Sensors

Portfolio Highlights

Partner	Benefits	Products
	Wide product portfolio 30+ years of experience designing thermistors, RDTs and temperature probes	Thermistors RTDs Probes & Assemblies
	Wide product portfolio Cost Efficiencies Smarter Technologies Compact Footprints Better Systems	NTCs - Thermistors RTDs Digital Temperature Sensors Thermocouples Thermopiles Probes & Assemblies

Products:

Partner	Voltage Level	Pictures	Features
	Thermistors		Wide variety of Thermistor elements High accuracy Excellent long term stability Non-standard resistance values Operating temp. up to +300°C
	RDTs		Nearly linear R/T relationship Platinum & Nickel elements Operating temp. up to +850°C Fast thermal response
	Probe & Assemblies		Wide selection for use in temperature measurement and control applications Precise and extremely reliable temperature monitoring Provide mechanical strength and exceptional protection
	NTCs (Thermistors)		High accuracy / Interchangeability Proven long-term stability and reliability Miniaturized components Rapid time response Lead wire options Available in temp. ranges from -80ºC to +300ºC
	RDTs		Precise measurement in extreme environments Ease of application and use Engineered to withstand extreme temperatures -200 to + 600°C Greater engineering efficiency due to linear output Complete range for numerous applications
	Digital Temperature Sensors		Precise readings to 0.1°C Operating temp. from -40 to 125°C Digital (configurable I²C / SPI / SDM) output signals options Low current consumption options for maximum battery life Compact design with low thermal mass Fast step response
	Thermocouples		Wide operating temperature range Relatively constant sensitivity over their entire range Industry standard output signals Most popular alloy types available Wide range of sizes available, from micro to heavy industrial Metal sheathing and industrial connection head options
	Thermopiles		Contactless temperature measurement used in various applications Digital and analog output signals available including SPI, I2C, and RS-232 Single Pixel, Multi Pixel, and Industrial configurations available Flat window and Silicon lens optics options
	Probe & Assemblies		Product styles suitable for many applications Plastic over-molding options Standard tubular, ring lug, and clip-on designs

Position & Angle Sensors

please follow this Link: Position & Angle Sensors

RF Components for RF Sensors

Partner	Benefits	Picture
Highlights	- 24 GHz Doppler Sensor - Motion detection - up to 10m range - UART Interface or stand alone operation - Temperature Range -20°C to +60°C - Antenna, RF circuit, IF amp, MCU and voltage regulator are integrated in a small package - no distortion caused by sun light

Current Sensors

Portfolio Highlights

Partner	Benefit
	Italian based Manufacturer of passive components Strong Focus on Resonant transformers. MEV is exclusive Itacoil Partner for Europe.

Products:

Partner	Product:	Pictures	Sensor Sensitivity:
	E5		1

Stepper Motor Driver ICs

Portfolio Highlights

• Patented current control: spreadCycle™ Chopper and 256 microsteps

• smooth motor movement
• highest precision
• best current sine wave form
• optimized current zero crossing

• Patented sensor less load detection stallGuard2™
• online feedback of motor load (and overload) condition

• Patented load dependend current control coolStep™
• adaptive current setting using the stallGuard2™ load value

• Pat. Pending voltage mode control stealthChop™

• no noise at stand still and low velocity (low acceleration)
• stealthChop2™
• no noise at stand still and low velocity (fast acceleration)

• High supply voltage up to 60V DC

• high dynamic and speed

• Up to 2,8A (rms) with integrated MOSFET bridge
• up to 20A with external MOSETs

• lowest Rds(on) and lowest power disspation on the market

• SPI, Step/Direction, single wire UART or PWM interfaces

• Microstep Multiplyer microPlyer™ - high microstep performance with low step frequency input

• full diagnosis and protection

• extended temp. range: -40° to +125°C

• With or without stall detection

Products

Partner	Voltage Range	Key Facts	Current Range (RMS)	Interfaces
	5 ... 60V	Industrial (Automotive Temp)	0 ... 2,8A with internal MOSFET > 2,8A with external MOSFET	SPI, UART, Step/Dir, ABN

Product Highlights

Name	Partner	Sales Facts	max. Power	Features	Package
TMC5130
		Controller & Driver State-of-the-Art	1.4A / 46V (rms)	stallGuard2 coolStep spreadCycle stealthChop Encoder Input	eTQFP48 9x9mm
TMC5160
		Controller & Driver High Power High Current	20A / 60V (external MOSFETs)	stallGuard2 coolStep spreadCycle stealthChop2 Encoder Input	QFN56 8x8mm eTQFP48 9x9mm
TMC2209
		Low cost High Volume MOQ 3k	1.9A / 29V (rms)	stallGuard4 stealthChop2 coolStep spreadCycle	QFN28 5x5mm
TMC5072
		Dual Controller & Driver	2x 1.1A / 28V (rms)	stealthChop spreadCycle microPlyer 2x Encoder Input	QFN48 7x7mm

Stepper Motion Controller ICs

Portfolio Highlights

• Ramp generator & position controller for stepper motors

• time critical tasks in hardware

• single axis, linear-ramp, SPI in, Step/Direction out

• 3-axis, linear-ramps, SPI in, Step/Direction out

• single axis, S-ramp, SPI in, Step/Direction out, encoder interface

• 3-axis ABN-Encoder interface, SPI out

Products

Partner	Voltage Range	Microsteps	Acceleration Ramps	Interfaces	Package
	3.3 ... 5V	up to 256	Linear SixPoint S-Shaped	SPI, SSI, ABN	QFN32 QFN40 SSOP16 FBGA144

Product Highlights

Name	Partner	Number of Axis	Features	Package
TMC4361
		1	Closed Loop	QFN40 6x6mm
TMC4671
		1	Field Oriented Control	QFN 10.5x6.5mm

BLDC ICs

Portfolio Highlights

• HALL-sensor & incremental encoder interfaces
• block- and sinewave commutation
• sensorless, commutation
• integrated microcontroller
• interfaces & functionality in software
• custom solutions possible (high volume)
• automotive qualification
• very low cost
• low supply voltage (for battery applications)

Products

Partner	Voltage Range	Features
	2 ... 60V	FOC
	1,8 ... 55V	low supply voltage Hall-sensor block commutation
	600V	No Heat-sink with compact surface mount package Self-supplied operation Device dual level thermal protection

BLDC Driver IC

BLDC Driver Overview

Product Highlights

Name	Number of Axis	Product Type	Voltage	Features	Package
TMC4671
		BLDC-Controller with Fiel Oriented Control (FOC)	1,65 ... 1,95V	Hardware FOC	LGA51 12x17mm
TMC6200
		Predriver for BLDC & 3-Phase Motors	8 ... 60V	prog. gate current: 0,5/1/1,5A 3x inline current amplifiers	QFN32 5x5mm
NJW4315
		3-Phase BLDC MOSFET Predriver with HALL-Sensor Block Commutation	6,3 ... 36V	HALL commutation	QFN24 4x4mm
MP6540-H
Bridgeswitch
		HV BLDC motor drive	600V	System level over-temperature monitoring	SOP24-C 16.6x9.4mm

Power MOSFETs

Portfolio Highlights

• huge portfolio of power MOSFETs

• crossing of many types & vendors possible

• cost effective

• more than 10 years on the market

• ask GG for details / enquiries

Products

Partner	Voltage Range	Current Range (RMS)	Cross Reference List
	4.1V ... 700V	0.1A ... 100A	MOSFETs selector guide

Product Highlights

Name	Voltage	Current (RMS)	Partner	Benefit	Package
AOD1R4A70
	up to 800V	up to 15A		Optimized switching parameters for better EMI performance	TO252
AOD380A60
	up to 700V	up to 44A		Optimized switching parameters for better EMI performance	TO252

Stepper Modules

Portfolio Highlights

• fast time to market

• integrated Motion Controller for all time critical operations onboard:
  ramping, positioning, reference search

• outstanding Trinamic driver features: coolStep™, stallGuard2™, spreadCycle™
  for enegy efficiency, smooth & precise movement, advanced performance and reliability

• programable and remote controllable with Trinamic Motion Control Language (TMCL™)

• optional CANopen firmware

• multiple I/Os

• high dynamic and energy efficient closed loop solutions available

• EtherCAT solution available

• BLDC-Modules

Products

Partner	Voltage Range	Number of Axis	Phase Current	Interfaces
	7 ... 55V	1 .. 3 .. 6 Custom Boards possible	up to 6.5A	RS485, RS232, RS422, CAN, EtherCAT, USB, GPIO, ABN

Product Highlights

Name	Voltage	Current (RMS)	Partner	Benefit
TMCM-1210
	7 ... 30V	0 ... 0.6A		1 - Axis Module RS485 - Interface SixPoint Ramps
TMCM-1111
	10 ... 30V	1A / 2.8A		1 - Axis Module USB - Interface S - Shaped Ramps Closed Loop
TMCM-3315
	18 ... 53V	0 ... 6.5A		3 - Axis Module EtherCat SixPoint Ramps USB - Interface Closed Loop

Mechatronic PANdrive Solutions

Portfolio Highlights

• fast time to market

• integrated Motion Controller for all time critical operations onboard:
  ramping, positioning, reference search

• outstanding Trinamic driver features: coolStep™, stallGuard2™, spreadCycle™
  for energy efficiency, smooth & precise movement, advanced performance and reliability

• programable and remote controllable with Trinamic Motion Control Language (TMCL™)

• optional CANopen firmware

• multiple I/Os

• integrated absolute position encoder (sensOstep™)

Products

Partner	Voltage Range	Interfaces	Motor Flange Size
	6 ... 55V	RS485, RS232, RS422, CAN, USB, GPIO, ABN	28mm (NEMA 11) 42mm (NEMA 17) 57mm (NEMA 23) 60mm (NEMA 24) 86mm (NEMA 34)

Product Highlights

Name	Partner	Voltage	Flange Size	Interface
PD28-1021
		9 ... 28V	NEMA 11 (28x28mm)	RS485 Step/Dir
PD42-1070
		9 ... 26V	NEMA 17 (42x42mm)	RS232 Step/Dir
PD57-1160
		9 ... 51V	NEMA 23 (57x57mm)	RS485 CAN USB Step/Dir

Stepper & BLDC Motors

Portfolio Highlights

• winding adapted to use with Trinamic IC or TMCM Modules

• selection of highrunners available

• good availibility

• PowerPlus Technology (25% to 40% more torque)

• Encapsulated Stepper Motor

• Linear Actuator Stepper Motors (Hybrid & PM)

• cost effective for high volumes

• custom specific modifications

• standard lead time 14 to 16 weeks (China), samples 6 to 8 weeks

Products

Partner	Stepper Flange Size	BLDC Flange Size	Rotary Flange Size	Linear Flange Size	Other Motor Types
	28mm (NEMA 11) 42mm (NEMA 17) 57mm (NEMA 23) 60mm (NEMA 24) 86mm (NEMA 34)	42mm ∅ 57mm Round
	28mm (NEMA 11) 35mm (NEMA 14) 39mm (NEMA 16) 42mm (NEMA 17) 57mm (NEMA 23) 60mm (NEMA24) 86mm (NEMA 34) 110mm (NEMA 42) ∅ 36mm Encapsulated ∅ 44mm Encapsulated	42mm 57mm 70mm 80mm ∅ 42mm Round ∅ 57mm Round			Linear Actuators PM-Stepper Slotless BLDC
			D= 9mm / 32mm	Stroke= 9mm / 15mm / 30mm	Linear Motors Rotary Motors Piezo Drivers

Product Highlights

Name	Flange Size	Partner	Step Resolution	Holding Torque
QSH2818
	28 x 28 mm NEMA 11		1.8°	up to 0.12 Nm
QSH6018
	60 x 60 mm NEMA 24		1.8°	up to 3.1 Nm
MS17HA
	42 x 42 mm NEMA 17		0.9°	up to 0.53 Nm
PL23HS
	57 x 57 mm NEMA 23		1.8°	up to 3.3 Nm

Position & Angle Sensors

Portfolio Highlights

• Magnetic Absolute Angle Sensor IC

• Instantaneous angle sensing: up to 1μs sample rate
• Low cost
• Non contact
• High resolution up to 14 bit
• Support for shaft rotation speeds from zero to over 100kRPM
• Wide magnetic field range support from 15mT to 150mT working range
• End and side shaft sensor topologies
• Low power consumption: 3.3V, 12mA
• Small form factor: 3x3 QFN-16 package

• Optical Rotary Incremental Encoders optimized for Stepper Motor Servos
• Designed to be mounted on stepper motors
• Flange size from NEMA 11 (20 mm) to NEMA36 (86 mm)
• Shaft diameter of 4, 5 or 6.35 mm
• High resolution of 32768 or 40000 ppr

• Inductive Absolute Position Sensor IC with resonance technology

• Absolute position sensing
• Non contact
• Large gap possible
• Tolerant of misalignment
• Insensitive against dirt, dust, oli, salt water, metallic swarf, cleaning fluids
• Multi axis
• Stability from PCB technology
• Precision from CTU Chip
• High resolution (up to 16 bit)
• High Q-factor resonator for high signal level

• Inductive Absolute Position Sensor IC for high volume & automotive applications

• For a wide variety of industrial/commercial/automotive applications
• Automotive qualification
• Very low cost
• Non contact

• Broad range of Magnetic Hall Sensors

• Non contact sensing element
• Digital, analog, and rotary/angle sensors
• High-Frequency operation
• Linear sensing
• Wide variety of applications, including speed and direction sensing
• Ultra-small package size
• Options for customization

• Broad range of Magnetic Reed Sensors

• Non contact sensing element
• Zero power consumption
• Packaged in a variety of capsules suitable for mounting in a wide array of applications
• Electrical load capability
• EMC/ESD immunity
• Options for customization

Products

Partner	Sensor Type
	Inductive Absolute Position Sensors
	Optical Incremental Encoders (high resolution)

Product Highlights

Name	Partner	Interface	Resolution	Package
MA330
TMCS-28
		ABZ incremental	40.000 increments / rev.	casing
CAM312
		SPI IO's	10 ... 15 bit	QFN28 6x6mm

Monochrome LCD Technology

Portfolio Highlights

• Custom solutions possible
• Short lead times
• Various backlights & heaters available

Products:

Partner	Type	Image
	Customized LCDs VTN(VA)/ FSC / TN / STN / FSTN
	Customized LCDs VTN / FSC / TN / STN / FSTN Broad Standard Product Range for Character and GraphicalLCDs
	Broad Standard Product Range for Character and Graphical LCDs

E-Paper Technology

Portfolio Highlights

• lowest power consumption
• sunlight readable
• barcode readable
• high contrast
• almost 180 degree viewing angle
• evaluation kits available

Products:

Partner	Type	Image
	E-Paper Displays 1.6" to 8"; Segmented E-Paper Applications in: -Smart IOT -Wearables -Electronic Shelf Label -Mobile Accessories

OLED Displays

Portfolio Highlights

• ultra lightweight and thin
• high contrast
• high color saturation
• 180 degree viewing angle
• industrial temperature range available
• evaluation/demo kits available
• Custom OLED for moderate NRE available

Products:

Partner	Type	Image
	Full Colour OLED
	Flexible OLEDs
	OLED with "In-Cell" Touch Panel
	Transparent OLEDs
	Character OLED No MOQ for standard sizes / Drop in to replace Char LCD
	Graphic OLED No MOQ for standard sizes / Rectangle and Round format
	Customised OLED Displays

Industrial TFT Displays

Portfolio Highlights

• high quality
• competitive pricing
• low MOQ
• long term availability
• identical pin out
• resistive touch and cap touch available

Products:

Partner	Type	Image
	Industrial TFT 2" to 110"
	Sunlight Readable (High Brighntess) TFT 5000nits @50khours @-30...+85°C
	Bar Type (Cut) TFT in house patented cutting process cutting up to 1.5m length available
	Transparent TFT for show case applications etc.
	"UReady" Broadcast TFTs 4.3" ... 9" (fit into 1U/2U height)
	Embedded Development Kits The "Heart" of your HMI-Solution
	Broad Standard Product Range for TFT

Touch Screen Solutions

Portfolio Highlights:

• multi touch functionality
• competitive pricing
• size and color printing customized available
• long term available

Products:

Partner	Type	Image
	Industrial CTP and RTP Glove Operation / Rain Drops Operation
	Industrial CTP and RTP

LEDs for lighting

Portfolio Highlights:

• Mid and High Power LED
• High reliability
• Competitive Lumen per Dollar
• Food Light, Plant Light, True White, IR, UV
• Architectural Lighting, Stage Lighting
• Custom LED solutions
• Foot Print compatible with Major Players
• Collimator available

Products:

Partner	Type	Image
	COB / PLCC

UV LEDs

Portfolio Highlights:

• 390nm, 395nm, 400nm and 405nm range
• Surface mount and through hole options are available
• Through hole ultraviolet LEDs are equipped with a built-in Zener diode to protect against ESD
• High reliability
• Competitive Lumen per Dollar

Products:

Partner	Type	Image
	UV LED
	High Power UV LEDs

IR LEDs

Portfolio Highlights:

• High and Low Power Options available

Products:

Partner	Type	Image
	IR LEDs
	High Power IR LEDs

LEDs for Indication and Light pipe accessories

Portfolio Highlights:

• wide-range of colors, configurations, and options

Products:

Partner	Type	Image
	Rigid Light Pipes
	Flexible Light Pipes
	LED Mounts and Assemblies
	THT and SMT LEDs

Optical Transceiver for POF and PCS

Portfolio Highlights

• Broad Range of custom specific Products
• 100% drop in compatible and interoperable with AVAGO VersatileLink
• Transmitter with 20-years guaranteed life time and optimized coupled optical power due to use of RCLED
• 3.3V and 5.0V operation (dual Voltage)
• Receiver with superior EMI/noise immunity due to use of integrated PD (photo diode)
• Transmitter & Receiver with flame retardant (UL 94 V-0) connector housing

Products:

Partner	Type	Data Rate	Orientation	Supply Voltage	Temperature
	RedLink® Transmitter + Receiver	DC to 1/5/10/50 MBd Analog	Horizontal Vertical Tilted	Analog 3,3V 5V	-40°C to +85°C
	OptoLock® Transceiver	DC - 50 MBd 10 - 125/250 MBd	Horizontal	Analog 3,3V 5V	-40°C to +85°C
	LC Transceiver	DC - 50 MBd 10 - 125/250 MBd	Horizontal	Analog 3,3V 5V	-40°C to +85°C

• Broad range of Cable Assemblies, Accessories and Plugs
• Special requirement check on request
• For details click to the company logo

Fiber Optical Transceiver for Single and Multi Mode Fiber

Portfolio Highlights

• Industrial Temperature Range (up to +105°C)
• Focus on Industrial Applications: Renewable Energy, Smart Grid, Transportation, Medical, Industrial Automotive
• OEM Labeling and customization available

Products:

Partner	Typ	Data Rate	Form Factor	Reach	Temperature
	Copper	10/100Base-T 10/100/1000Base-T 1000Base-T	SFP-T	0-100m	0°C to 70°C -40°C to +85°C
		2.5GNBase-T 5GNBase-T 10GBase-T			0°C to 70°C
	Unidirectional	125M / 155M / OC3 622M / OC12 1.25G / Fast Ethernet	1x9 2x5 SFP / SFP+	550m (MM) - 80km (SM)	0°C to 70°C -40°C to +85°C
		2.5G/OC48	SFP / SFP+	5km (MM) - 80km (SM)
		10G	SFP / SFP+ XFP	300m (MM) - 80km (SM)
		40G	QFSP	150m (MM) - 10km (SM)	0°C to 70°C
	Bidirectional	125M / 155M / OC3 1.25G / Fast Ethernet	1x9 2x5	500m (MM) - 120km (SM)	0°C to 70°C -40°C to +85°C
		2.5G/OC48	SFP / SFP+	20km (SM) - 120km (SM)
		10G	SFP / SFP+ XFP	10km (SM) - 60km (SM)
	CWDM / DWDM	125M / 155M / OC3	1x9 2x5	1270nm - 120km	0°C to 70°C
		1.25G / Gigabit Ethernet	1x9 2x5 SFP / SFP+	1270nm - 100km
		2.5G/OC48	SFP / SFP+	1270nm - 80km
		10G	SFP / SFP+ XFP	1270nm - 80km

Compact Flash Cards

Product Highlights

Partner	Benefit
	Manufacturing: Taiwan Flash TLC: Micron. MLC, pSLC: Toshiba. SLC: Toshiba. Others are possible on request. Controller: JMicron, Phison and others I-grade and also Consumer Products
	Manufacturing: USA Flash MLC, pMLC: Toshiba. SLC: Toshiba. Others are possible on request. Controller: SMI and others Only I-grade solutions
	Manufacturing: Taiwan Flash MLC, pMLC: Toshiba. SLC: Toshiba. Others are possible on request. Controller: Phison and others Only I-grade Solutions

Products:

Partner	Product	Pictures	Features
	Industrial CF CF 6 SLC, 512MB - 64GB CF 6-M MLC, 8GB - 128GB		SMART I-Temp for SLC and MLC ECC Support Power Down Protection Performance: 110/80 MB/S (R/W)
	TuffDrive Compact Flash SLC 128MB - 64GB, MLC on request		SMART I-Temp for SLC and MLC SLC with 5 Years, MLC with 3 Years Warranty Power Down Protection
	HCF-50UD Compact Flash SLC, 128MB - 64GB MLC, up to 256GB pSLC, up to 128GB		SMART I-Temp for SLC, pSLC and MLC Power Down Protection Performance: 80/70 MB/s (R/W)

Special requirement check on request

CFast Cards

Product Highlights

Partner	Benefit
	Manufacturing: Taiwan Flash TLC: Micron. MLC, pSLC: Toshiba. SLC: Toshiba. Others are possible on request. Controller: JMicron, Phison and others I-grade and also Consumer Products
	Manufacturing: USA Flash MLC, pMLC: Toshiba. SLC: Toshiba. Others are possible on request. Controller: SMI and others Only I-grade solutions
	Manufacturing: Taiwan Flash TLC: Toshiba. MLC, pMLC: Toshiba. SLC: Toshiba. Others are possible on request. Controller: Phison and others Only I-grade Solutions

Products:

Partner	Product	Pictures	Features
	Industrial CFast CFast 2H SLC, 2GB - 64GB with 515/145 (MB/s in R/W) CFast 2A-M MLC, 8 - 128GB with 245/125 (MB/s in R/W) CFast 2H-M MLC 8 - 128GB with 415/175 (MB/s in R/W)		SMART SATA Secure Erase I-Temp for SLC and MLC ECC Support Power Down Protection
	StorFly CFast SLC 8GB - 128GB (5 Years Warranty) MLC 30GB - 480GB (3 Years Warranty) pSLC 16GB - 480GB (5 Years Warranty)		SMART I-Temp for SLC and MLC Power Down Protection Low Power (@3,3V - 1,7W)
	CFS- 24UD CFast SLC, 1GB - 64GB MLC, up to 256GB pSLC, up to 128GB		SMART I-Temp for SLC, pSLC and MLC Power Down Protection Performance: 520/190 MB/s (R/W)

Special requirement check on request

SD Cards

Product Highlights

Partner	Benefit
	Manufacturing: Taiwan Flash TLC: Micron. MLC, pSLC: Toshiba. SLC: Toshiba. Others are possible on request. Controller: JMicron, Phison and others I-grade and also Consumer Products
	Manufacturing: Taiwan Flash TLC: Toshiba. MLC, pMLC: Toshiba. SLC: Toshiba. Others are possible on request. Controller: Phison and others Only I-grade Solutions

Products:

Partner	Product	Pictures	Features
	Industrial SD Cards ISD: SLC 256MB-32GB with 23/17 MB/s R/W R1: SLC 1GB-16GB with 43/41 MB/s R/W SDHC HI-M: MLC 4GB-128GB with 43/25 MB/s R/W		SMART SD 3.0 and 2.0 Specification I-Temp for SLC -25 + 85C for MLC (SD)
	SDC-09HS SD Cards SLC 128MB - 32GB; MLC up to 64GB 75/25 MB/s R/W SDC-09UD SD Cards SLC 128MB - 32GB; MLC up to 128GB pSLC up to 128 all with 95/90 MB/s R/W		SMART I-Temp for SLC, pSLC and MLC

Special requirement check on request

MicroSD Cards

Products Highlights

Partner	Benefit
	Manufacturing: Taiwan Flash TLC: Micron. MLC, pSLC: Toshiba. SLC: Toshiba. Others are possible on request. Controller: JMicron, Phison and others I-grade and also Consumer Products
	Manufacturing: Taiwan Flash TLC: Toshiba. MLC, pMLC: Toshiba. SLC: Toshiba. Others are possible on request. Controller: Phison and others Only I-grade Solutions

Products:

Partner	Product	Pictures	Features
	Industrial microSD Cards MicroSD(HC): SLC 256MB-4GB with 20/16 MB/s R/W R1: SLC 1GB-8GB with 34/28 MB/s R/W MicroSDHC HI-M: 4GB-64GB with 44/36 MB/s R/W		SMART SD 3.0 and 2.0 Specification I-Temp for SLC I-Temp for MLC (microSD)
	uSD-08UD microSD Cards SLC 128MB-8GB; MLC up to 64GB; pSLC up to 32GB 95/90 MB/s R/W		SMART I-Temp for SLC, pSLC and MLC

Special requirement check on request

PCIe

Product Highlights

Partner	Benefit
	3D NAND Flash Modules with PCIe in Summer 2018
	Controller: SMI Various Secure Erase Features
	3D NAND Flash Products with PCie in Summer 2018

Products:

Partner	Product	Pictures	Features
	PCIe Products with MLC Flash: mPDM+ - mSATA; 8GB-64GB; 390/320 MB/s (R/W) M.2 PT42 - Mini M.2 Module; 16GB-128GB; 530/170 MB/s (R/W) M.2 PT60 - Full M.2 Module; 8GB-128GB; 765/355 MB/s (R/W)		SMART NANO Coating possible C-Temp only ATA Secure Erase
	mSATA and M.2 Formfactor available: SLC: 8GB-256GB (5 Years Warranty) MLC: 30GB-480GB (3 Years Warranty) pSLC: 16GB-480GB (5 Years Warranty)		SMART I-Temp for SLC and MLC Power Down Protection Low Power (2,5W)
	AIC-HLUD - MLC; 240GB - 2TB; 2,8/1,55 GB/s R/W Industrial Add-In Card (AIC) PCIe SSD M2P-10UD PCIe SSD - 2,8/1,55 GB/s R/W MLC: 240GB-960GB; pSLC: 120GB-480GB M2P-80UD PCIe SSD - 2,75/1,5 GB/s R/W MLC: 120GB.960GB; pSLC: 60GB-480GB		SMART pSLC and MLC C-Temp only (0-65 C) Power Down Protection

Special requirement check on request

SATA SSD´s (1,8", 2,5", mSATA, SlimSATA, M.2)

Product Highlights

Partner	Benefit
	3D TLC NAND Flash -I grade products available! I-Temp Products will be released in Q1 2019.
	Manufacturing: USA Flash MLC, pMLC: Toshiba. SLC: Toshiba. Others are possible on request. Controller: SMI and others Only I-grade Solutions
	Various SATA 3D NAND Flash Modules in Summer 2018

Products:

Partner	Product	Pictures	Features
	1,8" and 2,5" SSDs with SLC and MLC Up to 256GB (SLC); Up to 2TB (MLC and 3D TLC) mSATAwith SLC and MLC Up to 128GB (SLC); Up to 256GB (MLC), Up to 480GB (3D TLC) SlimSATA with SLC and MLC Up to 128GB (SLC); Up to 256GB (MLC), Up to 960GB (3D TLC) M.2 with MLC; Up to 512GB, Up to 960GB (3D TLC)		SMART ATA Secure Erase I-Temp for SLC and MLC ECC Support Power Down Protectionn TRIM Support
	1,8" and 2,5" SSDs with SLC, MLC, pSLC Up to 256GB (SLC); Up to 480GB (MLC and pSLC) mSATA with SLC, MLC, pSLC Up to 256GB (SLC); Up to 480GB (MLC and pSLC) SlimSATA with SLC, MLC, pSLC Up to 256GB (SLC); Up to 480GB (MLC and pSLC) M.2 with SLC, MLC, pSLC Up to 128GB (SLC); Up to 480 GB (MLC and pSLC)		SMART I-Temp for SLC, MLC and pSLC Power Down Protection AES Encryption on request ECC Support ATA Secure Erase
	1,8" and 2,5" SSDswith SLC, MLC, pSLC Up to 512GB (SLC and pSLC); Up to 1TB (MLC) mSATA with SLC, MLC, pSLC Up to... 64GB (SLC); 256GB (MLC); 128GB (pSLC) SlimSATA with SLC, MLC, pSLC Up to... 64GB (SLC); 256GB (MLC); 128GB (pSLC) M.2 with SLC, MLC, pSLC Up to... 64GB (SLC); 256 GB (MLC); 128GB (pSLC)		SMART I-Temp for SLC, pSLC and MLC Power Down Protection AES Encryption on request ECC Support ATA Secure Erase

Special requirement check on request

PATA SSD´s (1,8", 2,5")

Product Highlights

Partner	Benefit
	Manufacturing: Taiwan Flash MLC and SLC: Toshiba. Controller: JMicron, Phison and others I-grade and also Consumer Products
	Manufacturing: USA Flash: MLC and SLC (Toshiba) Controller: SMI and others Only I-grade solutions
	Manufacturing: Taiwan Flash MLC, pMLC: Toshiba. SLC: Toshiba. Controller: Phison and others Only I-grade Solutions

Products:

Partner	Product	Pictures	Features
	PATA SSDs with 2,5" and 1,8" SLC with up to 128GB, MLC with up to 256GB Other IDE Modules are available on request.		SMART ATA Secure Erase I-Temp for SLC and MLC ECC Support Power Down Protection
	TuffDrive® P25 2.5” PATA SLC up to 256GB, MLC with 512GB 100/60 MB/s (R/W)		SMART I-Temp for SLC and MLC Power Down Protection Low Power (@5V - 1,7W)
	IFD-25UD 2,5" PATA SSD Up to... SLC (256GB), MLC (512GB) and pSLC (256GB) 80/60 MB/s (R/W) Other IDE Modules are available on request.		SMART I-Temp for SLC, pSLC and MLC Power Down Protection

Special requirement check on request
